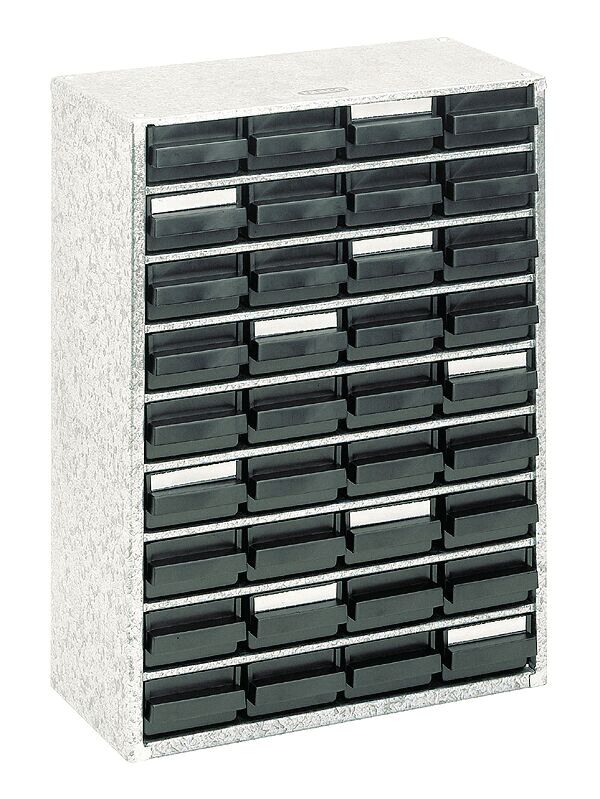

The image shows a compact storage cabinet with several small, dark drawers. It has a rectangular shape and is made of light material.
ESD cabinet 936, with 36 drawers
(Product No.: 050.936)
The image shows a compact storage cabinet with several small, dark drawers. It has a rectangular shape and is made of light material.
Notice / Inquire

ESD cabinet 936, with 36 drawers

dpvlink:
1038
Width :
306 mm
Height :
417 mm
Depth :
150 mm
Load capacity :
30 kg
Shelves:
8
Drawers:
36
Properties:
Further product information

chevron-down
161.55 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD cabinet 936, with 36 drawers

The ESD magazine 936 from raaco is a high-quality storage system specifically designed for the safe storage of electronic components. This model features 36 drawers, each measuring 35x64x135mm, and is made from a combination of steel and polypropylene, ensuring high durability and robustness.
The magazine measures a total of 420x307x150 mm (HxWxD) and has a load capacity of 30 kg. The conductive properties of the material comply with the standards DIN EN 61340-5-1 and IEC, ensuring ESD protection (Electrostatic Discharge) and thus preventing critical damage to electronic components.
The color scheme in gray and black, along with a total weight of 3.65 kg, highlights the functional and aesthetic quality of the product. With a total of 8 shelves, the ESD magazine offers an efficient way for systematic and safe storage.
Width
Width
306 mm
Height
Height
417 mm
Depth
Depth
150 mm
Load capacity
Load capacity
30 kg
Shelves
Shelves
8
Drawers
Drawers
36
Color
Color
grey / black
Conductivity
Conductivity
conductive
Material
Material
steel / polypropylene
Weight
Weight
3.65 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a rectangular, flat storage box made of transparent plastic. In the middle, there is a black divider that splits the box into two compartments.
Partition wall ESD, transverse for drawer...
ESD partition wall for type 150-01,
35 x 64 mm transverse, volume conductive,
Set = 48 pieces
Part no. 48X3564 ESD
dpvlink
1378

17.75 CHF
Show product

Spares

The image shows a rectangular, flat box made of black plastic. It has straight edges and an opening on the top. The inside is empty and smooth.
Drawer ESD type 150-01
ESD drawer, type 150 01
35 x 64 x 135 mm HxWxD, volume conductive
(DIN EN 61340-5-1 + IEC) Part no. 150-01 ESD
dpvlink
1378

3.70 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 339
Complete Catalog 2023 - 2024

Product Family

Cabinets series 900

Material: made of steel and polypropylene for durability and robustness

Conductivity: conductive material to ensure safe ESD protection

Color scheme: grey and black

Standards: conductivity in accordance with DIN EN 61340-5-1 and IEC



Article image
Article description
Width
Height
Depth
Load capacity
Shelves
Drawers
Price
Compare
050.945 - ESD cabinet 945, with 45 drawers
050.945
ESD cabinet 945, with 45 drawers
306 mm
417 mm
150 mm
30 kg
8
45
161.55 CHF
050.936 - ESD cabinet 936, with 36 drawers
050.936
ESD cabinet 936, with 36 drawers
306 mm
417 mm
150 mm
30 kg
8
36
161.55 CHF
050.918 - ESD cabinet 918, with 18 drawers
050.918
ESD cabinet 918, with 18 drawers
306 mm
417 mm
150 mm
19 kg
5
18
161.55 CHF
Show Compare List (0)

This product is compatible with (for example):

The image shows a modern fan in a vertical shape. It has a rectangular, narrow design and is made of metal. The front features many narrow ventilation slots.
Rotating tower ESD, for 12 cabinets of series...
ESD rotating rack, empty for 12 magazines
420 x 307 x 150 mm (900 series)
Dimensions: 1600 x diameter 680 mm
Part no. DC 900 ESD
dpvlink
1067

483.15 CHF
Show product

This product is similar to:

The image shows a rectangular, flat box made of black plastic. It has straight edges and an opening on the top. The inside is empty and smooth.
Drawer ESD type 150-01
ESD drawer, type 150 01
35 x 64 x 135 mm HxWxD, volume conductive
(DIN EN 61340-5-1 + IEC) Part no. 150-01 ESD
dpvlink
1378

3.70 CHF
Show product
