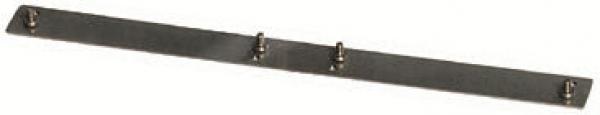

The image shows a long, narrow piece of metal with three protruding screws or mounts along its length. It has a smooth surface and is quite narrow.
Labeling rail for reel rack VARIO 300 ESD
(Product No.: 090.130.BS)
The image shows a long, narrow piece of metal with three protruding screws or mounts along its length. It has a smooth surface and is quite narrow.

Labeling rail for reel rack VARIO 300 ESD

Labeling rail for reel rack VARIO 300 ESD

dpvlink:
5754
Length :
300 mm
Width :
45 mm
Height :
15 mm
Properties:
Further product information


Compare Compare
Notice / Inquire
Product Info

Labeling rail for reel rack VARIO 300 ESD

The labeling rail for the roller frame VARIO 300 ESD is characterized by its robust metal construction, which is fully galvanized to ensure durability and corrosion resistance. With dimensions of 300 x 45 x 15 mm, the rail fits perfectly with roller frame Art. 090.130. It is equipped with 15 variably pluggable stainless steel brackets, allowing for flexible handling.
The rail offers a hole grid of 20 mm, enabling precise adjustment and expansion in 300 mm increments. This modular design supports easy and quick assembly as well as the possibility to extend the length as needed. Optional labeling rails are available, which allow for clear labeling and organization.
Additionally, the product meets the ESD standard DIN EN 61340-5-1, making it ideal for use in ESD-sensitive areas by providing reliable protection against electrostatic discharges.
Length
Length
300 mm
Width
Width
45 mm
Height
Height
15 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 347
Complete Catalog 2023 - 2024

Product Family

SMD Reel rack 300 VARIO

SMD reel rack VARIO 300 - flexible and robust reel rack for storing SMD reels.

Material: Sturdy metal construction, galvanized for a long service life

Stainless steel brackets: 15 variably pluggable stainless steel brackets

Pitch pattern: 20 mm for flexible adjustments

Extendable: Length can be extended as required (in 300 mm steps)

Optional labeling: Labeling rails for easy identification

ESD protection: in compliance with ESD standard DIN EN 61340-5-1 for safe protection against electrostatic discharge


Article image
Article description
Length
Width
Height
Reel diameter
Reels
Price
Compare
090.130.BS - Labeling rail for reel rack VARIO 300 ESD
090.130.BS
Labeling rail for reel rack VARIO 300 ESD
300 mm
45 mm
15 mm


-
090.130 - Reel rack VARIO 300 ESD with 15 movable wire dividers
090.130
Reel rack VARIO 300 ESD with 15 movable wire dividers
300 mm
285 mm
175 mm
180-380 mm
14
111.80 CHF
Show Compare List (0)

This product is compatible with (for example):

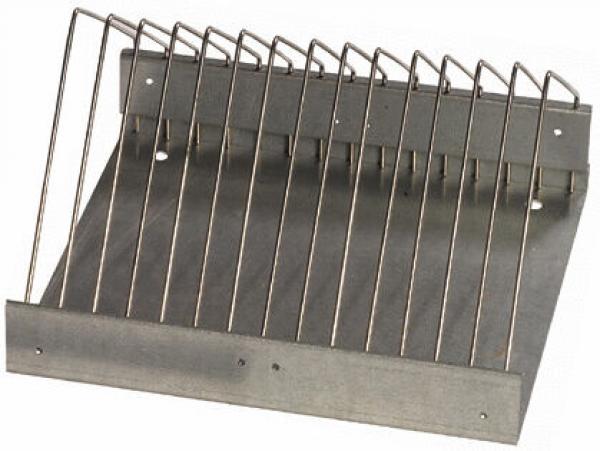

The image shows a simple metal paper tray. It has a slanted shape with several vertical bars that serve as compartments. The surface is smooth and flat.
Preview: Reel rack VARIO 300 ESD with 15 movable wire dividers
Preview: The image shows a wire rack with two large spools. One spool is blue, the other white. The spools are arranged on a metal frame that is tilted.
Reel rack VARIO 300 ESD with 15 movable...
Reel rack Vario 300 mm, with 15 wire dividers
for maximum 14 SMD reels diameter. 180-380 mm
Dimensions: 300 x 285 x 175 mm (LxWxH)
Material: steel / galvanized,
wire divider: stainless steel
dpvlink
5754

111.80 CHF
