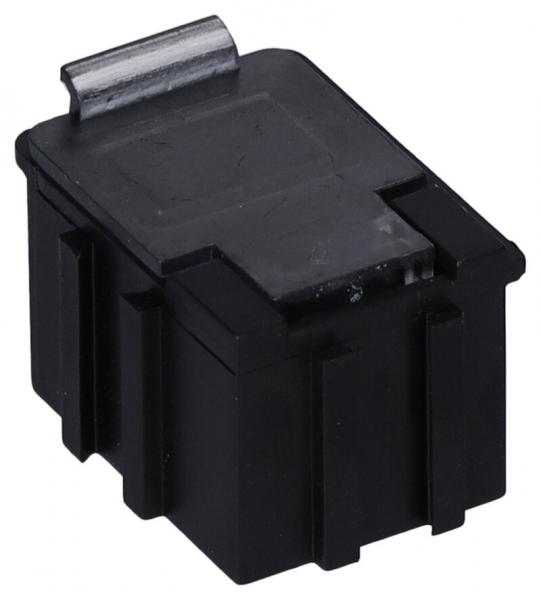

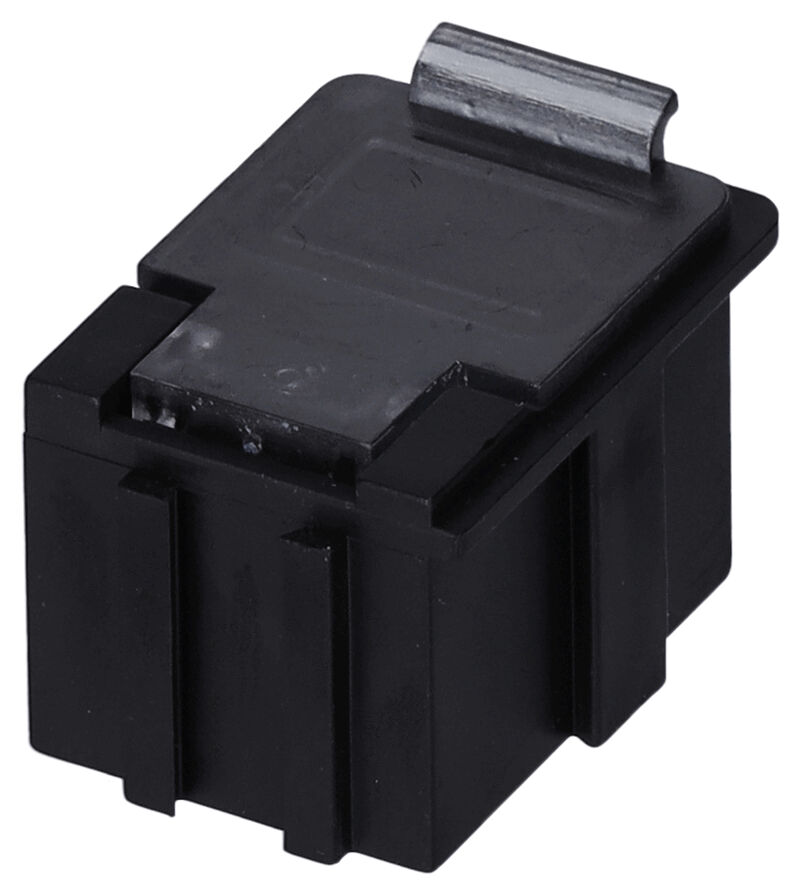

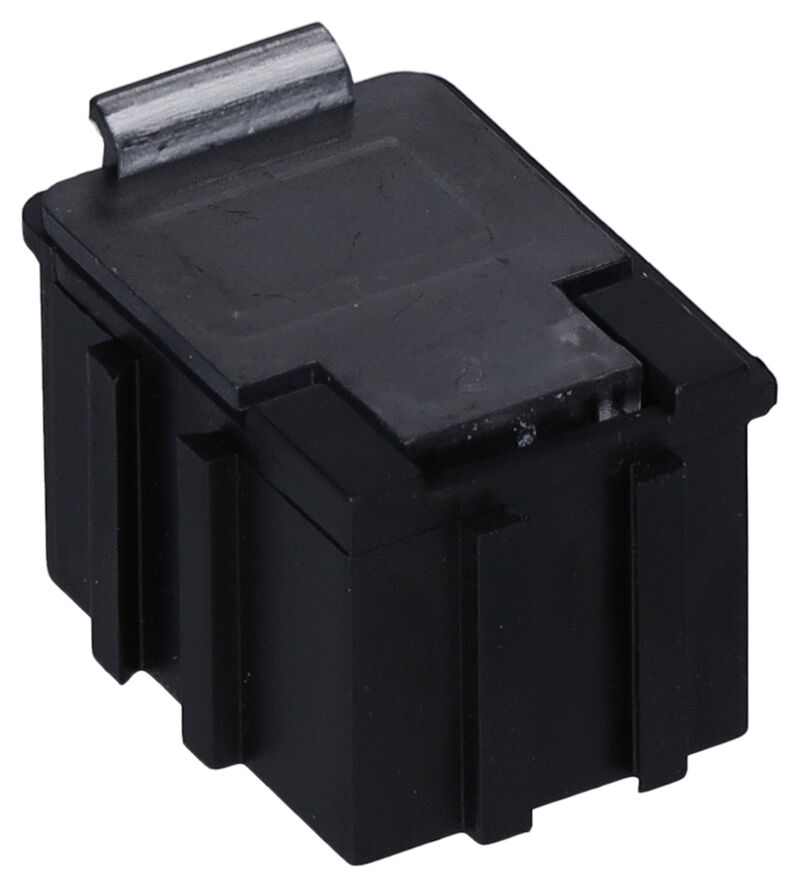

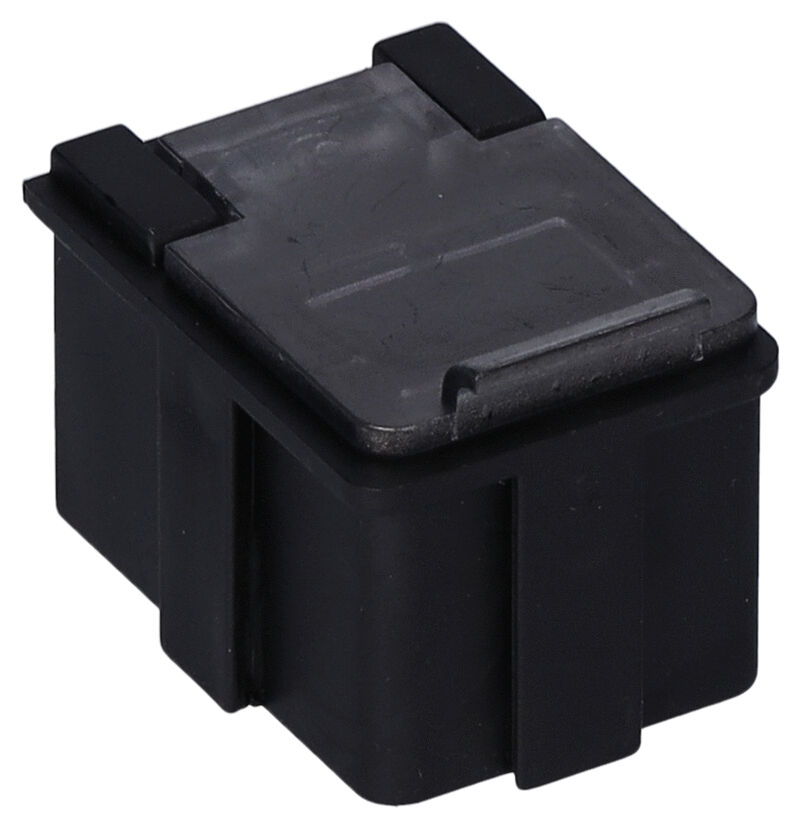

SMD folding box size N1 (small), conductive/LS
(Product No.: 038.411)
The image shows a small, rectangular box in black. It has a smooth top with two side brackets. The box appears sturdy and compact.
The image shows a small black container with a flat, slightly transparent lid on top. The corners are rounded, and the container has side notches. Ideal for storing small items.
The image displays a black electronic plug with a flat surface and a metallic bracket on top. It features a rectangular shape and a recessed side.
The image shows a small, rectangular, black box with a flat lid and side grooves. On the top, there is a metal flap. It resembles a connector.
Mobile Preview: The image shows a small, rectangular box in black. It has a smooth top with two side brackets. The box appears sturdy and compact.
Mobile Preview: The image shows a small black container with a flat, slightly transparent lid on top. The corners are rounded, and the container has side notches. Ideal for storing small items.
Mobile Preview: The image displays a black electronic plug with a flat surface and a metallic bracket on top. It features a rectangular shape and a recessed side.
Mobile Preview: The image shows a small, rectangular, black box with a flat lid and side grooves. On the top, there is a metal flap. It resembles a connector.
Notice / Inquire

SMD folding box size N1 (small), conductive/LS

dpvlink:
791
Length :
29.4 mm
Width :
21.8 mm
Height :
21 mm
Internal length:
16 mm
Inner width:
12 mm
Internal height:
15 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


chevron-down
1.90 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

SMD folding box size N1 (small), conductive/LS

The SMD folding box size N1 from Licefa offers an optimal solution for the storage and provision of SMD components. This product is characterized by its electrostatic volume conductivity and complies with the ESD standard DIN EN 61340-5-1, making it a safe choice for sensitive electronic components. The box has an internal length of 16 mm, a width of 12 mm, and a height of 15 mm, while the external dimensions are 29.4 mm in length, 21.8 mm in width, and 21 mm in height.
The weight is only 4.7 g, and the material withstands continuous use temperatures from -20 to 80 °C. The box features a transparent lid and a black base, which allows for easy identification of the contents. The surface resistance is between 10^3 and 10^5 Ohm. Practical features such as easily replaceable lids, which can stand open on their own and be securely closed with spring pressure, as well as the ability to attach labels, significantly increase the user-friendliness of this product.
Length
Length
29.4 mm
Width
Width
21.8 mm
Height
Height
21 mm
Internal length
16 mm
Inner width
Internal width
12 mm
Internal height
15 mm
Color
Color
black / transparent
Conductivity
Conductivity
conductive / with conductive layer
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Version
Version
with transperant lid
Size
Size
N1 (small)
Continuous use temperature
Continuous use temperature
-20-80 °C
Weight
Weight
4.7 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 331
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

SMD Folding boxes, conductive

SMD hinged boxes, electrostatically volume conductive

For clear and handy storage and provision of SMD components. The lids can be easily replaced, remain in the open position and can be securely closed using spring pressure. Labels for labeling can be easily attached. The SMD hinged boxes can also be integrated precisely into cabinets size 2.0.


In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
Length
Width
Height
Internal length
Inner width
Internal height
Price
Compare
038.401 - SMD folding box size N1 (small), conductive
038.401
SMD folding box size N1 (small), conductive
29.4 mm
21.8 mm
21 mm
16 mm
12 mm
15 mm
1.05 CHF
038.402 - SMD folding box size N2 (medium), conductive
038.402
SMD folding box size N2 (medium), conductive
29.4 mm
42.4 mm
21 mm
12 mm
37 mm
15 mm
1.50 CHF
038.403 - SMD folding box size N3 (large), conductive
038.403
SMD folding box size N3 (large), conductive
57.4 mm
42.3 mm
21 mm
41 mm
37 mm
15 mm
1.80 CHF
038.404 - SMD folding box size N4 (maxi), conductive
038.404
SMD folding box size N4 (maxi), conductive
85.3 mm
63 mm
21 mm
68 mm
57 mm
15 mm
2.35 CHF
038.411 - SMD folding box size N1 (small), conductive/LS
038.411
SMD folding box size N1 (small), conductive/LS
29.4 mm
21.8 mm
21 mm
16 mm
12 mm
15 mm
1.90 CHF
038.412 - SMD folding box size N2 (medium), conductive/LS
038.412
SMD folding box size N2 (medium), conductive/LS
29.4 mm
42.4 mm
21 mm
12 mm
37 mm
15 mm
2.40 CHF
038.413 - SMD folding box size N3 (large), conductive/LS
038.413
SMD folding box size N3 (large), conductive/LS
57.4 mm
42.3 mm
21 mm
41 mm
37 mm
15 mm
2.80 CHF
038.414 - SMD folding box size N4 (maxi), conductive/LS
038.414
SMD folding box size N4 (maxi), conductive/LS
85.3 mm
63 mm
21 mm
68 mm
57 mm
15 mm
3.65 CHF
