Part bins ESD

(Product No.: 050.165)

Part bins ESD

Name: Part bins ESD
SKU: 050.165
Price: 7.65 CHF
Availability: InStock

ArticleNo: 050.165

Part bins ESD

dpvlink:

5355

Height :

70 mm

Width :

99 mm

Depth :

160 mm

Internal height:

62 mm

Internal width:

85 mm

Internal depth:

100 mm

Volume:

1.1 l

Load capacity :

5 kg

Dimensions outside [mm]:

160 x 99 x 70

Properties:

Further product information

Imprinting / Printing for boxes
configure_now

7.65 CHF

excl. 8.1% tax

1 PCE

Compare

Notice / Inquire

Product Info

Part bins ESD

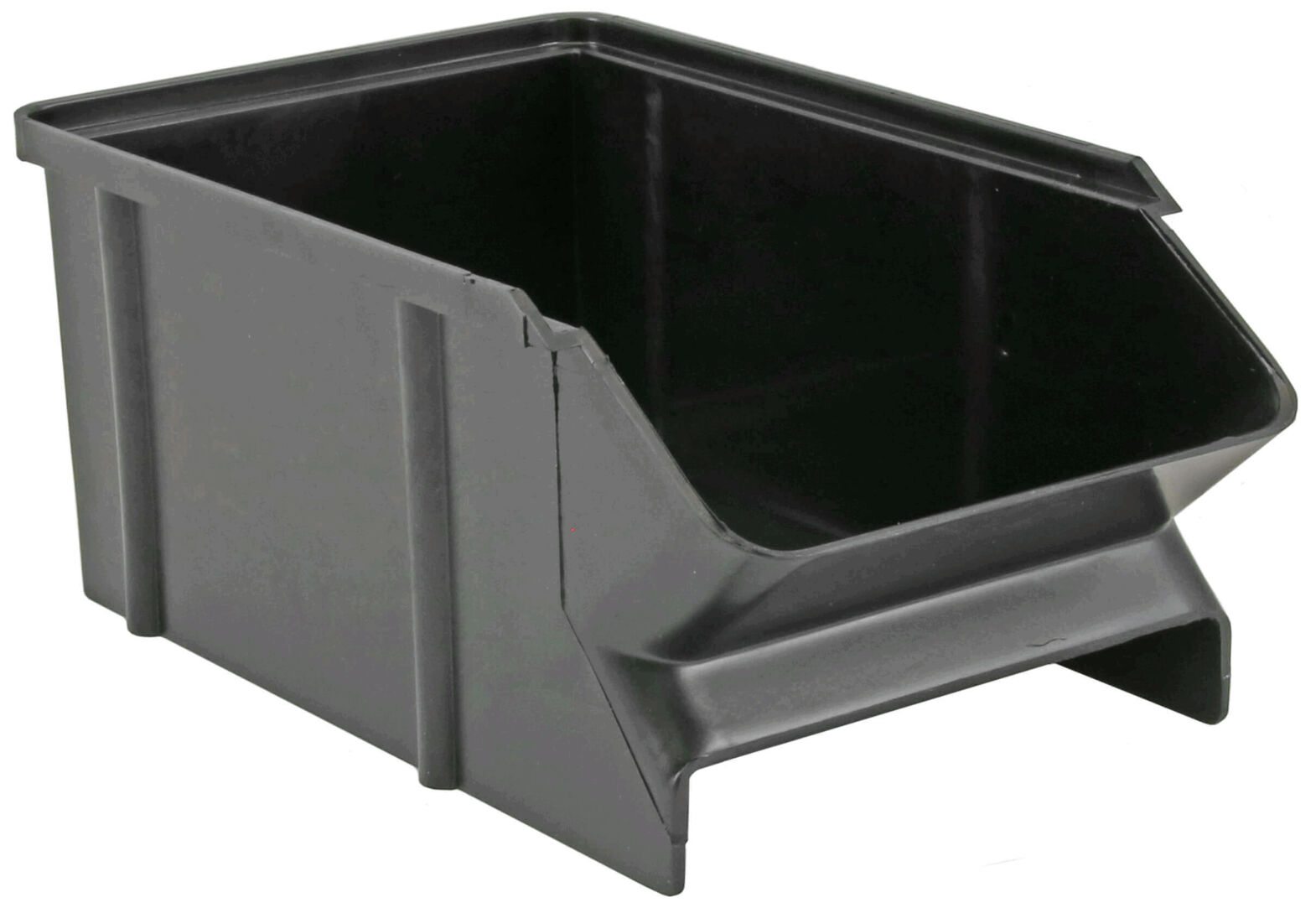

The ESD trays from Treston are specifically designed for use in environments where electrostatic discharges must be avoided. These trays are manufactured according to the ESD standard DIN EN 61340-5-1 and offer excellent electrical conductivity. With external dimensions of 160 x 99 x 70 mm and a volume of 1.1 liters, the trays are ideal for frequently repeated retrieval processes. The internal dimensions are 85 x 100 x 62 mm, which, along with the semi-open front and rounded inner edges, facilitates gripping.
The trays can be hung on wall rails or mounted on table turnstiles and are also stackable. They are made of black polystyrene, weigh 0.088 kg, and can carry loads up to 5 kg. Their temperature resistance ranges from -40 to 55 °C, which also qualifies them for use in cleanrooms. This makes the trays a versatile solution for technical work environments that have high demands on material handling and ESD protection.

Details

Height Height: 70 mm
Width Width: 99 mm
Depth Depth: 160 mm
Internal height: 62 mm
Internal width Internal width: 85 mm
Internal depth: 100 mm
Volume Volume: 1.1 l
Load capacity Load capacity: 5 kg
Cleanroom Cleanroom: suitable
Color Color: black
Conductivity Conductivity: conductive
Material Material: polystyrene
ESD ESD: yes
Additional Additional: suitable for bin rails
Stackable Stackable: yes
Temperature resistance Temperature resistance: -40 - 55 °C
Weight Weight: 0.088 kg

Show accessories

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

It is a narrow, three-tiered shelf topper in white. It has a slanted top and provides space for items on the three open shelves. The structure is stable and lightweight.

Assembly stand ESD for storage boxes/part...

ESD assembly stand EPL-12 ESD for
part bins 050.165 / 050.170 / 050.175 or
storage box 050.145

dpvlink

5365

188.95 CHF

Show product

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 343

Complete Catalog 2023 - 2024

Configurators:

Imprinting / Printing for boxes

Product Family

Part bins

Part bins can be mounted on the wall using wall rails, hung on suspension rails or placed on the worktable in a part bin rack. They also stand securely on their own on a worktable without tipping over when components are removed.

Ideally suited for frequently repeated removal processes. All inner edges are rounded and the front is half-open to facilitate gripping.

In compliance with ESD standard DIN EN 61340-5-1

Article image

Article description

Internal height

Internal width

Internal depth

Volume

Load capacity

Dimensions outside [mm]

Price

Compare

050.165
Part bins ESD

62 mm

85 mm

100 mm

1.1 l

5 kg

160 x 99 x 70

7.65 CHF

050.170
Part bins ESD

62 mm

175 mm

100 mm

2.2 l

5 kg

160 x 198 x 70

11.45 CHF

050.175
Part bins ESD with 3 compartments

62 mm

175 mm

100 mm

2.2 l

5 kg

160 x 198 x 70

13.35 CHF
