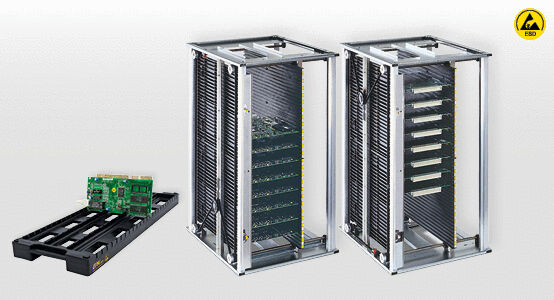

ESD PCB holders / magazines

The image shows a black, rectangular component that is flat and elongated. It has several parallel grooves and on the sides there are clips or brackets for mounting.
Slotted wall 400 reinforced
Version: without base stop, strengthened / Length : 355 mm / Width : 180 mm / Height : 22 mm /
Slotted wall 400 reinforced, 355 x 180 x 22 mm,
without base stop.
volume conductive (DIN EN 61340-5-1 + IEC)
dpvlink
4775

Product No.: 3518.900.992
31.30 CHF
excl. 8.1% tax
The image displays an elongated, rectangular piece of metal in silver color, equipped with a handle at one end. It appears smooth and has a clear, simple shape.

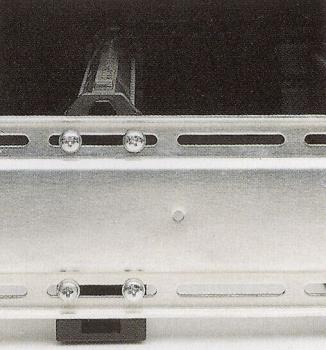

Profile rail, length 252 mm
Profile rail 252 mm long
dpvlink
4612

Product No.: 8910252
4.80 CHF
excl. 8.1% tax
In the image, there are four elongated metal profiles in a silver hue. They vary in length and are each straight and narrow, suitable for various applications.
Profile rail 1-556
Profile rail 1-556 for WEZRack series 100
Length: 556 mm
dpvlink
30718

Product No.: 9980.149.556
9.55 CHF
excl. 8.1% tax
The image shows a rectangular structure made of metal with vertical, black slats. These are attached to a frame that is stable and straight-lined. The slats are partially movable.
PCB magazine 602.2 PC, partially assembled
Width : 320 mm / Length : 400 mm / Height : 563 mm / PCB width: 40 - 250 mm / PCB length: 387 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C /
602.2PC PCB magazine partially assembled
with transport lock
Dimensions: 400 x 320 x 563 mm outside (LxWxH)
PCB width D = 40-250 mm, slot depth 3 mm
max. PCB length C = 387 mm

+++ version 602.2 PC resistant to high temperatures slots up to 130 °C / environment up to 100°C +++
dpvlink
5908

Product No.: 8916602
378.00 CHF
excl. 8.1% tax
The image shows a rectangular structure made of metal with vertical, black slats. These are attached to a frame that is stable and straight-lined. The slats are partially movable.
PCB magazine 601.1 PS, partially assembled
Width : 320 mm / Length : 355 mm / Height : 563 mm / PCB width: 40 - 250 mm / PCB length: 342 mm / Temperature resistance Insertion: 60 °C / Temperature resistance Environment: 50 °C /
601.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 355 x 320 x 563 mm outside (LxWxH)
PCB width D = 40-250 mm, slot depth 3 mm
Continuous use temperature max. 50°C
+++ 601.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5908

Product No.: 8917601
277.20 CHF
excl. 8.1% tax
The image shows a long, narrow, black object with rectangular ends. It has a smooth surface and could be a holder or a support bar.
Handle 230 x 8 mm
Handle 230 x 8 mm
unmounted for WEZ rack 180
dpvlink
4803

Product No.: 9980.077.000
3.00 CHF
excl. 8.1% tax
The image shows a rectangular device with a metallic frame and several black slats arranged in parallel. It has an open front and a sturdy construction.
PCB magazine 704.1 PS, partially assembled
Width : 400 mm / Length : 460 mm / Height : 563 mm / PCB width: 10 - 330 mm / PCB length: 447 mm / Temperature resistance Insertion: 60 °C / Temperature resistance Environment: 50 °C /
704.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 460 x 400 x 563 mm outside (LxWxH)
PCB width D = 10-330 mm, slot depth 3 mm
max. PCB length C = 447 mm
+++ 704.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5912

Product No.: 8917704
567.00 CHF
excl. 8.1% tax
The image shows a rectangular box with a transparent lid. Inside, there are several narrow, vertical elements arranged. The surface appears shiny and dark.
ESD Protective cover 704/804
PU: 10 piece /
ESD protection cover PCB magazine 704/804
Pink, dissipative, stable, and tear-resistant.
dimensions: 465x405x560 mm
Material thickness: 150 µm
(PU = 10 units)
dpvlink
22468

Product No.: 8916414
181.80 CHF
excl. 8.1% tax
The image shows a long, rectangular, black container. The surface is ribbed and has red reflectors at the ends. The container is sturdy and has an industrial aesthetic.
Partition 100, with holes for groove lock
Partition 100 with holes for slot lock
electrically dissipative (DIN EN 61340-5-1)
dpvlink
4285

Product No.: 8913913
35.30 CHF
excl. 8.1% tax
The image displays a black, rectangular object with several parallel grooves. Numbers are printed on one side, which might indicate a scale. It appears sturdy and functional.
Partition wall 300 standard plus distance
Partition wall 300 / plus distance, T = 5.08 mm
235 x 100 x 10 mm
volume conductive (DIN EN 61340-5-1 + IEC)
dpvlink
4847

Product No.: 2310.110.992
9.70 CHF
excl. 8.1% tax
The image displays an elongated, black cooler with grooves and a green computer component resting on top. The card features black and silver components and shiny connections.
EPAstore® PCB holder "Tray type Deep + Shallow"
PCB holder "Tablet type Deep + Shallow"
Dimensions: 172 x 484 mm, 25 + 24 rows /
spacing 16 mm
Max. PCB thickness 3.0mm (25 rows), 2.0mm
(24 rows)
electrostatically dissipative (DIN EN 61340-5-1)
dpvlink
24680

Product No.: 052.745
34.70 CHF
excl. 8.1% tax
The image shows a rectangular, black component with several parallel grooves and connections on the bottom. It appears to be made of plastic and is flat.
Slotted wall 322
Version: with base stop type 22, unstrengthened / Length : 255 mm / Width : 180 mm / Height : 22 mm /
Slotted wall 322 - 255 x 180 x 22 mm,
with base stop 322
volume conductive (DIN EN 61340-5-1 + IEC)
dpvlink
4760

Product No.: 2518.022.992
20.70 CHF
excl. 8.1% tax
The image shows a long, flat black component with parallel grooves, which has small cutouts on one side. It appears to be a part of a technical device or a circuit board.
Partition wall 600 standard plus distance
Partition wall 600 / plus distance, T = 5.08 mm
535 x 100 x 10 mm
volume conductive (DIN EN 61340-5-1 + IEC)
dpvlink
4863

Product No.: 5310.110.992
20.00 CHF
excl. 8.1% tax
The image shows a square, flat black plastic container with many parallel grooves on the surface. It has rounded edges and is smooth, ideal for stacking or storage.
Double slotted wall 432 reinforced
Version: with base stop type 32, double reinforced / Length : 355 mm / Width : 345 mm / Height : 32 mm /
Double slotted wall 432 reinforced
355 x 345 x 32 mm, with base stop 432,
volume conductive (DIN EN 61340-5-1 + IEC)
dpvlink
4782

Product No.: 3535.932.992
79.35 CHF
excl. 8.1% tax
The image shows two black plastic handle strips arranged side by side. Next to them are four screws. The handles have a rectangular shape, ideal for assembly.
Carrying handle for partition 180 / 300
Handle 180 / 300 (2 pieces)
dpvlink
4609

Product No.: 8910097
12.55 CHF
excl. 8.1% tax
The image shows a rectangular box with a transparent lid. Inside, there are several narrow, vertical elements arranged. The surface appears shiny and dark.
ESD Protective cover 602/702/802
PU: 10 piece /
ESD protection cover PCB magazine 602/702/802
Pink, dissipative, stable, and tear-resistant.
Material thickness: 150 µm
(PU = 10 units)
dpvlink
22468

Product No.: 8916412
162.90 CHF
excl. 8.1% tax
