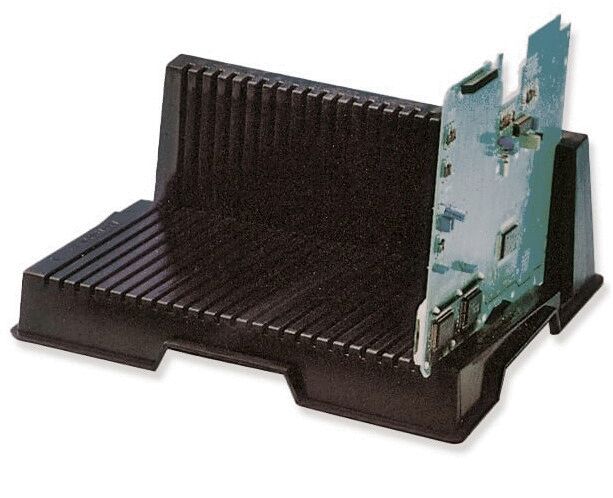

The image shows a black, rectangular holder with a slanted, green component. The holder has a textured surface and serves to support the component.

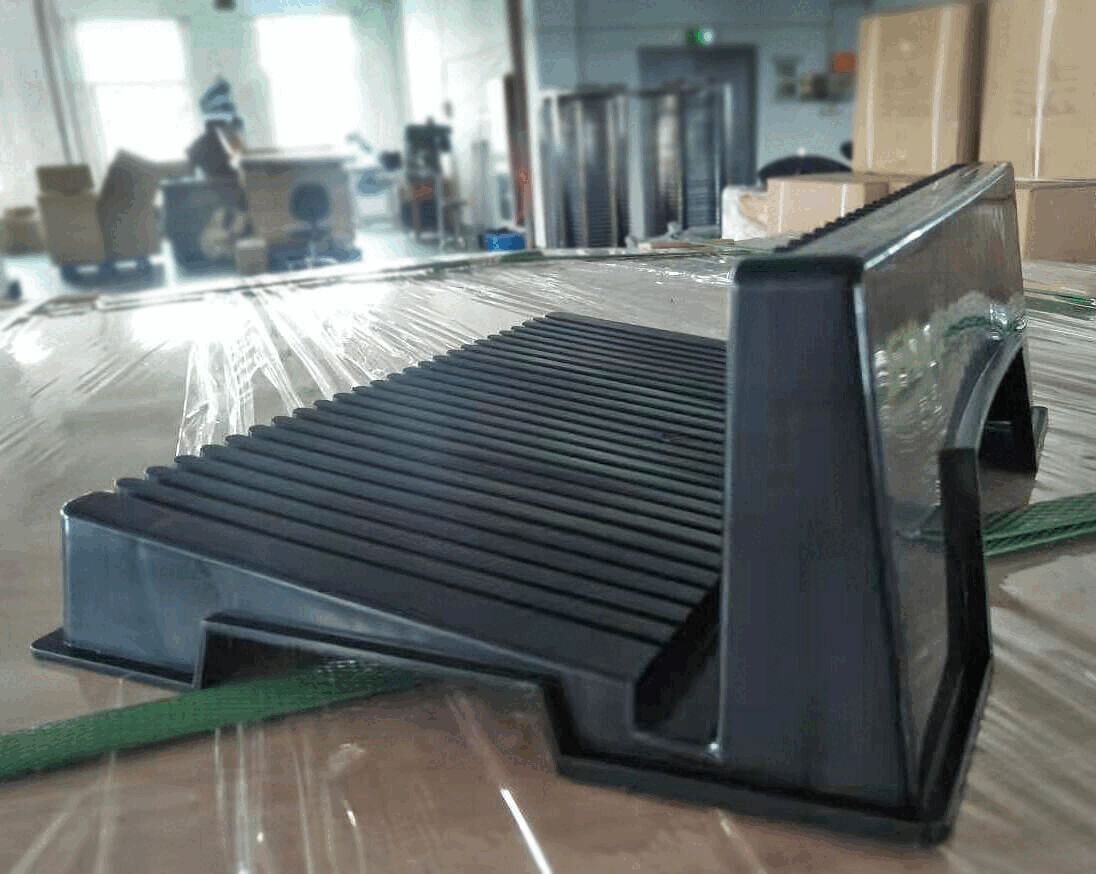

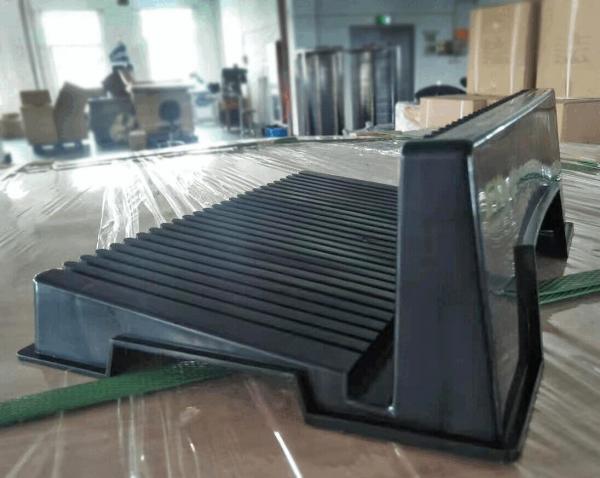

The image shows a black, rectangular object with a wavy surface and vertical grooves. It appears to be standing on a transparent base, surrounded by blurry boxes.
Preview: The image shows a black, rectangular holder with a slanted, green component. The holder has a textured surface and serves to support the component.
Preview: The image shows a black, rectangular object with a wavy surface and vertical grooves. It appears to be standing on a transparent base, surrounded by blurry boxes.
L-profile holder size 1 / small
(Product No.: 052.725)
The image shows a black, rectangular holder with a slanted, green component. The holder has a textured surface and serves to support the component.
The image shows a black, rectangular object with a wavy surface and vertical grooves. It appears to be standing on a transparent base, surrounded by blurry boxes.
Mobile Preview: The image shows a black, rectangular holder with a slanted, green component. The holder has a textured surface and serves to support the component.
Mobile Preview: The image shows a black, rectangular object with a wavy surface and vertical grooves. It appears to be standing on a transparent base, surrounded by blurry boxes.
Notice / Inquire

L-profile holder size 1 / small

L-profile holder size 1 / small

dpvlink:
3866
Length :
208 mm
Width :
272 mm
Height :
93 mm
Properties:
Further product information

chevron-down
22.30 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

L-profile holder size 1 / small

The L-stand size 1 / small is an efficient PCB holder designed for the storage, transport, and provisioning of both assembled and unassembled PCBs. This product meets the ESD standard DIN EN 61340-5-1 and ensures safe handling of sensitive electronic components through its conductive properties.
With a width of 272 mm, a height of 93 mm, and a length of 208 mm, this stand provides ample space for PCBs with a maximum thickness of 3.2 mm. The 25 slots with a groove spacing of 10 mm allow for an organized and clear arrangement.
The L-stand is available in black and features a surface resistance of 10^8 and high conductivity, which supports the safe handling of electrostatically sensitive components.
Length
Length
208 mm
Width
Width
272 mm
Height
Height
93 mm
Color
Color
black
Spacing
Spacing
10 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
108 Ω
PCB thickness
PCB thickness
3.2 mm
Groove number
Groove number
25
Temperature resistance
Temperature resistance
60 °C
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 349
Complete Catalog 2023 - 2024

Product Family

L-profile PCB holder

Article image
Article description
Length
Width
Height
Price
Compare
052.725 - L-profile holder size 1 / small
052.725
L-profile holder size 1 / small
208 mm
272 mm
93 mm
22.30 CHF
052.730 - L-profile holder size 2 / large
052.730
L-profile holder size 2 / large
355 mm
268 mm
128 mm
39.40 CHF
