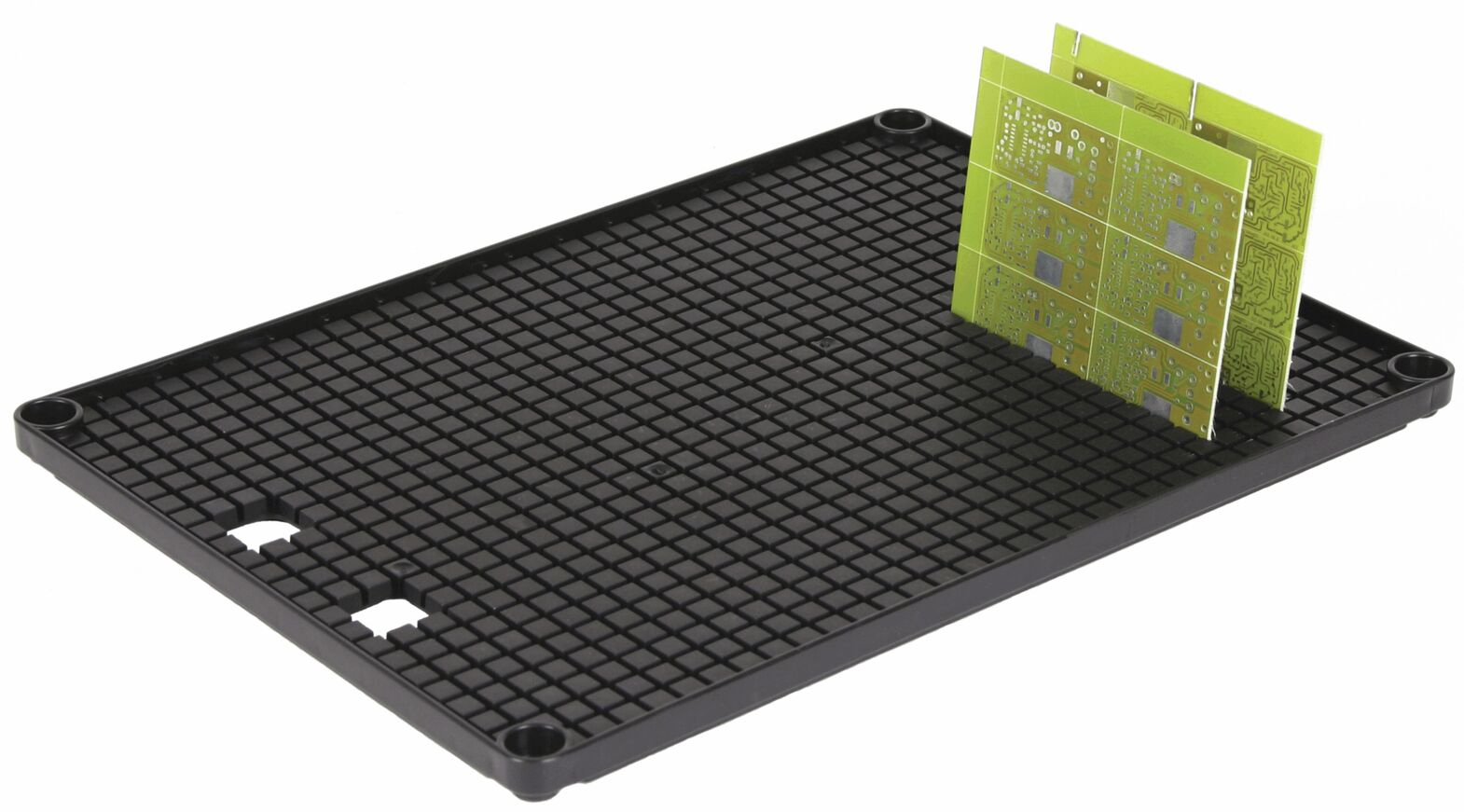

The image shows a rectangular, black plate with a grid pattern. On it is a green, thin piece with square fields, which is slightly tilted.
Plug-in board (knobbed)
(Product No.: 053210)
The image shows a rectangular, black plate with a grid pattern. On it is a green, thin piece with square fields, which is slightly tilted.
Notice / Inquire

Plug-in board (knobbed)

Plug-in board (knobbed)

dpvlink:
3703
Properties:
Further product information

14.75 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Plug-in board (knobbed)

The pegboard (studded board) is specifically designed for the secure storage of circuit boards of any size. With its external dimensions of 352 x 252 x 15 mm and made from conductive polypropylene, it provides an effective solution for preventing electrostatic discharge and meets the ESD standard DIN EN 61340-5-1. The studs on the board measure 8 x 8 mm with a height of 6 mm and are optimally designed for circuit boards up to 1.7 mm thick.
Thanks to its volume conductive properties and a surface resistance between 10^4 and 10^11 Ohm, the board ensures reliable protection against electrostatic damage. The board is also temperature resistant from 50 to 70 °C and its black color and square stud shape are visually appealing. Ideal for technical environments where compliance with ESD protection measures is critical.
Color
Color
black
Height
Height
15 mm
Knob height
Knob height
6 mm
Knob length
Knob length
8 mm
Knob width
Knob width
8 mm
Length
Length
352 mm
Width
Width
252 mm
Conductivity
Conductivity
volume conductive
Surface resistance Rs
Surface resistance Rs
104 - 1011 Ω
Knob shape
Knob shape
square
PCB thickness
PCB thickness
1.7 mm
Temperature resistance
Temperature resistance
50 - 70 °C
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 349
Complete Catalog 2023 - 2024

Product Family

Plug-in boards (square knobs)

Properties: secure hold for circuit boards of any size

Material: electrostatically volume conductive

Color: black

Application: ideal for the protection and storage of sensitive electronic components

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
Color
Height
Knob height
Knob length
Knob width
Length
Width
Conductivity
Surface resistance Rs
Knob shape
PCB thickness
Temperature resistance
Price
Compare
053210 - Plug-in board (knobbed)
053210
Plug-in board (knobbed)
black
15 mm
6 mm
8 mm
8 mm
352 mm
252 mm
volume conductive
104 - 1011 Ω
square
1.7 mm
50 - 70 °C
14.75 CHF
053212 - Plug-in board (knobbed)
053212
Plug-in board (knobbed)
black
22 mm
8 mm
14 mm
14 mm
557 mm
357 mm
volume conductive
104 - 1011 Ω
square
2.5 mm

30.35 CHF
053212-1 - Handle, stainless for plug-in board
053212-1
Handle, stainless for plug-in board












15.20 CHF
