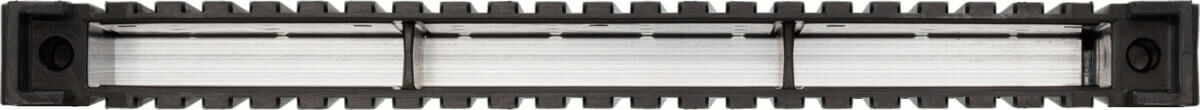

Double slotted wall 300 reinforced
The Double Groove Wall 300 reinforced by WEZ is a highly functional component for efficient handling of circuit boards in production, storage, and transportation processes. With dimensions of 255 x 345 x 22 mm and a design without a bottom stop, combined with an aluminum reinforcement, this product offers a robust and durable solution. The wall is electrostatically volume conductive and meets the ESD standard DIN EN 61340-5-1, making it ideal for use in ESD-sensitive environments.
The black Double Groove Wall weighs 0.87 kg and is made of PP, which ensures good chemical resistance and high mechanical strength. It features 20 grooves with a width of 3.5 mm and a depth of 2.5 mm. The material's temperature resistance ranges from -20 to 80 °C, allowing for use in various climatic conditions. The modular design allows for easy integration into Euro containers and can be customized to meet different requirements.
With its dual reinforcement and practical groove configuration, the Double Groove Wall 300 reinforced is a reliable choice for technical buyers who value quality and functionality.
The black Double Groove Wall weighs 0.87 kg and is made of PP, which ensures good chemical resistance and high mechanical strength. It features 20 grooves with a width of 3.5 mm and a depth of 2.5 mm. The material's temperature resistance ranges from -20 to 80 °C, allowing for use in various climatic conditions. The modular design allows for easy integration into Euro containers and can be customized to meet different requirements.
With its dual reinforcement and practical groove configuration, the Double Groove Wall 300 reinforced is a reliable choice for technical buyers who value quality and functionality.
Details
- Length [mm] Length [mm]
- 255 mm
- Width [mm] Width [mm]
- 345 mm
- Height [mm] Height [mm]
- 22 mm
- Version Version
- without base stop, double strengthened
- Color Color
- black
- Conductivity Conductivity
- volume conductive
- Material Material
- PP
- ESD ESD
- yes
- Groove depth Groove depth
- 2.5 mm
- Groove width Groove width
- 3.5 mm
- Groove number Groove number
- 20
- Temperature resistance Temperature resistance
- -20 - 80 °C
- Weight Weight
- 0.87 kg
Simple and safe system for PCB handling in the production, in the storage and for the transport. Modular design fits in Euro containers. Individually configurable for the different practical needs.
Electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1
Open slots or base stop?
The slotted walls of the series 180 are available with open or closed slot ends.
Versions 000 / 900 open slots for pushing through
Versions 022 922 base stop 22, support width = 2.5 mm
Versions 032 / 932 base stop 32, support width = 7.5 mm
Versions 025 / 925 base stop 25, support width = 4.0 mm
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
