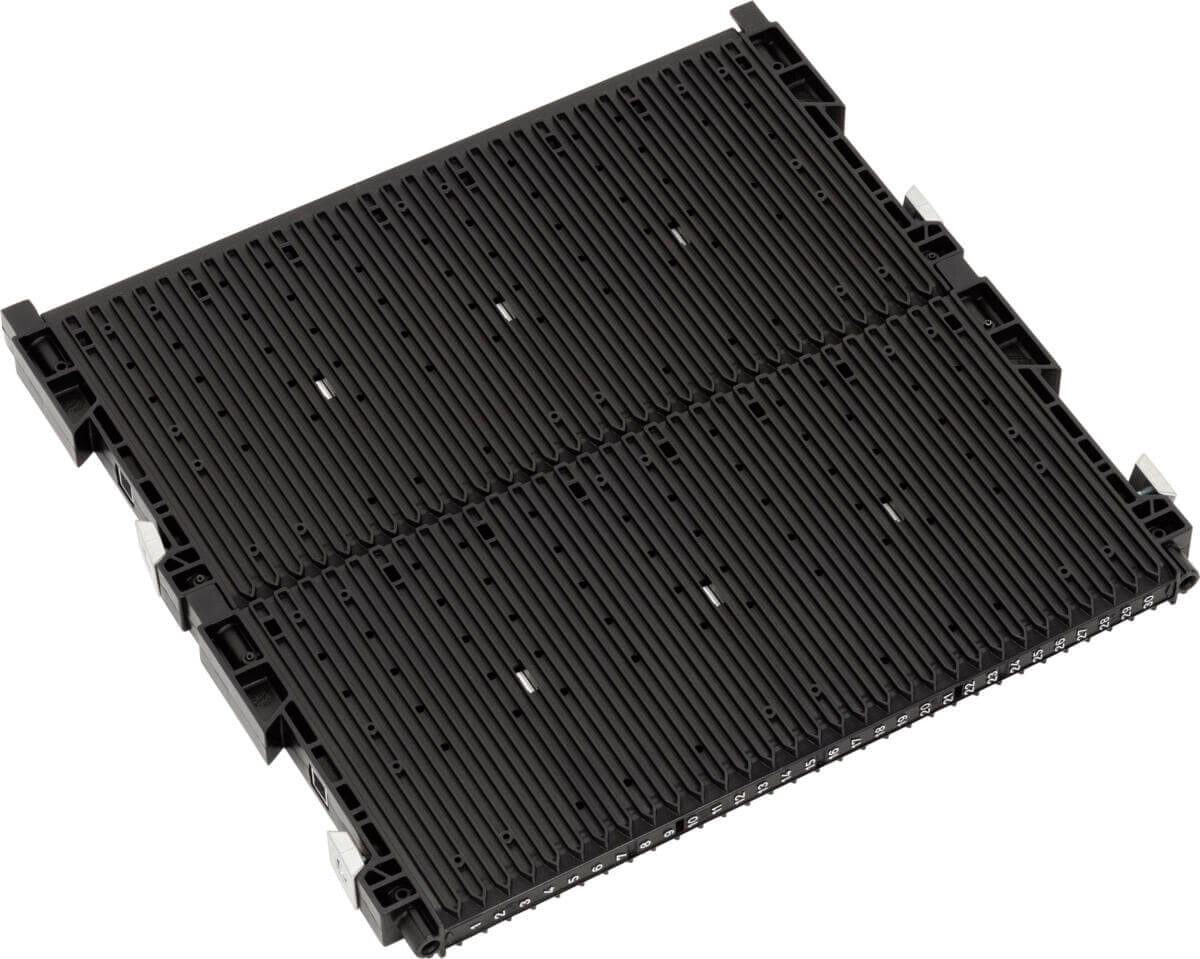

The image shows a rectangular, black plastic plate with many parallel grooves. It has small hooks or tabs on the edges and appears sturdy and flat.
The image shows a long, narrow object with a solid structure, featuring alternating black and silver sections, and rough edges on both sides.
Preview: The image shows a rectangular, black plastic plate with many parallel grooves. It has small hooks or tabs on the edges and appears sturdy and flat.
Preview: The image shows a long, narrow object with a solid structure, featuring alternating black and silver sections, and rough edges on both sides.
Double slotted wall 400 reinforced
(Product No.: 3535.900.992)
The image shows a rectangular, black plastic plate with many parallel grooves. It has small hooks or tabs on the edges and appears sturdy and flat.
The image shows a long, narrow object with a solid structure, featuring alternating black and silver sections, and rough edges on both sides.
Mobile Preview: The image shows a rectangular, black plastic plate with many parallel grooves. It has small hooks or tabs on the edges and appears sturdy and flat.
Mobile Preview: The image shows a long, narrow object with a solid structure, featuring alternating black and silver sections, and rough edges on both sides.
Notice / Inquire

Double slotted wall 400 reinforced

Double slotted wall 400 reinforced

dpvlink:
4782
Version:
without base stop, double reinforced
Length :
355 mm
Width :
345 mm
Height :
22 mm
Properties:
Further product information

chevron-down
75.00 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Double slotted wall 400 reinforced

The Double Groove Wall 400 reinforced by WEZ is specifically designed for the WEZ Rack System 180 and optimizes storage and handling of circuit boards. This product, made of volume conductive polypropylene, meets the ESD standard DIN EN 61340-5-1, thereby ensuring high protection against electrostatic discharges. The wall measures 355 x 345 x 22 mm and is available in black.
The reinforced design without a bottom stop allows for sliding circuit boards through, while optionally attachable groove locks can secure unused grooves. The inlet bevels facilitate the insertion of the circuit boards. With 30 grooves, a groove width of 3.5 mm, and a groove depth of 2.5 mm at a groove spacing of 10.16 mm, the Double Groove Wall can accommodate up to 30 circuit boards. The container sizes 400 x 300 mm or 600 x 400 mm are compatible with this system.
The product is also doubly reinforced and offers temperature resistance from -20 to 80 °C. Weighing 1.21 kg, it is robust yet handy and easy to integrate.
Version
Version
without base stop, double reinforced
Length
Length
355 mm
Width
Width
345 mm
Height
Height
22 mm
Color
Color
black
Conductivity
Conductivity
volume conductive
Material
Material
PP
ESD
ESD
yes
Groove depth
Groove depth
2.5 mm
Groove spacing
Groove spacing
10.16 mm
Groove width
Groove width
3.5 mm
Groove number
Groove number
30
Temperature resistance
Temperature resistance
-20 - 80 °C
Weight
Weight
1.21 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail, length = 356 mm
Profile rail 0356 for WEZRack series 180
Length: 356 mm
dpvlink
4797

6.65 CHF
Show product
In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail customer-specific
dpvlink
4797

Price on request
Show product
The image shows two small, black plastic parts. They have a rectangular base with two upright supports that lean slightly upwards. Ideal for mounts or attachments.
Slot lock (Pack = 100 pcs)
Groove lock for WEZ rack system 180
PU = 100 pieces
dpvlink
4803

37.75 CHF
Show product
The image shows a long, narrow, black object with rectangular ends. It has a smooth surface and could be a holder or a support bar.
Handle 230 x 8 mm
Handle 230 x 8 mm
unmounted for WEZ rack 180
dpvlink
4803

3.00 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 353
Complete Catalog 2023 - 2024

Product Family

Double slotted wall 400 / 422 / 432

The double slotted wall 400 is a component of the WEZ Rack System 180 and is used for the safe storage and handling of PCBs.

  • Material: volume conductive polypropylene
  • Complies with the ESD standard DIN EN 61340-5-1
  • Available as unreinforced and reinforced version
  • Available with open groove ends to allow the PCBs to slide through, or as bottom stop variants for secure fixing of the PCBs
  • Inlet bevels facilitate insertion and optional clip-on groove locks secure unused grooves.
  • Suitable for 400 x 300 mm or 600 x 400 mm containers
  • Holds a maximum of 30 PCBs with an insertion dimension of up to 220 or 520 mm

Double slotted wall 400 / 422 / 432

Slot number:30
Slot width:3.5 mm
Slot depth:2.5 mm
Slot pitch:10.16 mm


Article image
Article description
Version
Length
Width
Height
Price
Compare
3535.000.992 - Double slotted wall 400
3535.000.992
Double slotted wall 400
without base stop, unstrengthened
355 mm
345 mm
22 mm
45.40 CHF
3535.900.992 - Double slotted wall 400 reinforced
3535.900.992
Double slotted wall 400 reinforced
without base stop, double reinforced
355 mm
345 mm
22 mm
75.00 CHF
3535.022.992 - Double slotted wall 422
3535.022.992
Double slotted wall 422
with base stop type 22, unstrengthened
355 mm
345 mm
22 mm
47.00 CHF
3535.922.992 - Double slotted wall 422 reinforced
3535.922.992
Double slotted wall 422 reinforced
with base stop type 22, double reinforced
355 mm
345 mm
22 mm
79.35 CHF
3535.032.992 - Double slotted wall 432
3535.032.992
Double slotted wall 432
with base stop type 32, unstrengthened
355 mm
345 mm
32 mm
47.00 CHF
3535.932.992 - Double slotted wall 432 reinforced
3535.932.992
Double slotted wall 432 reinforced
with base stop type 32, double reinforced
355 mm
345 mm
32 mm
79.35 CHF
