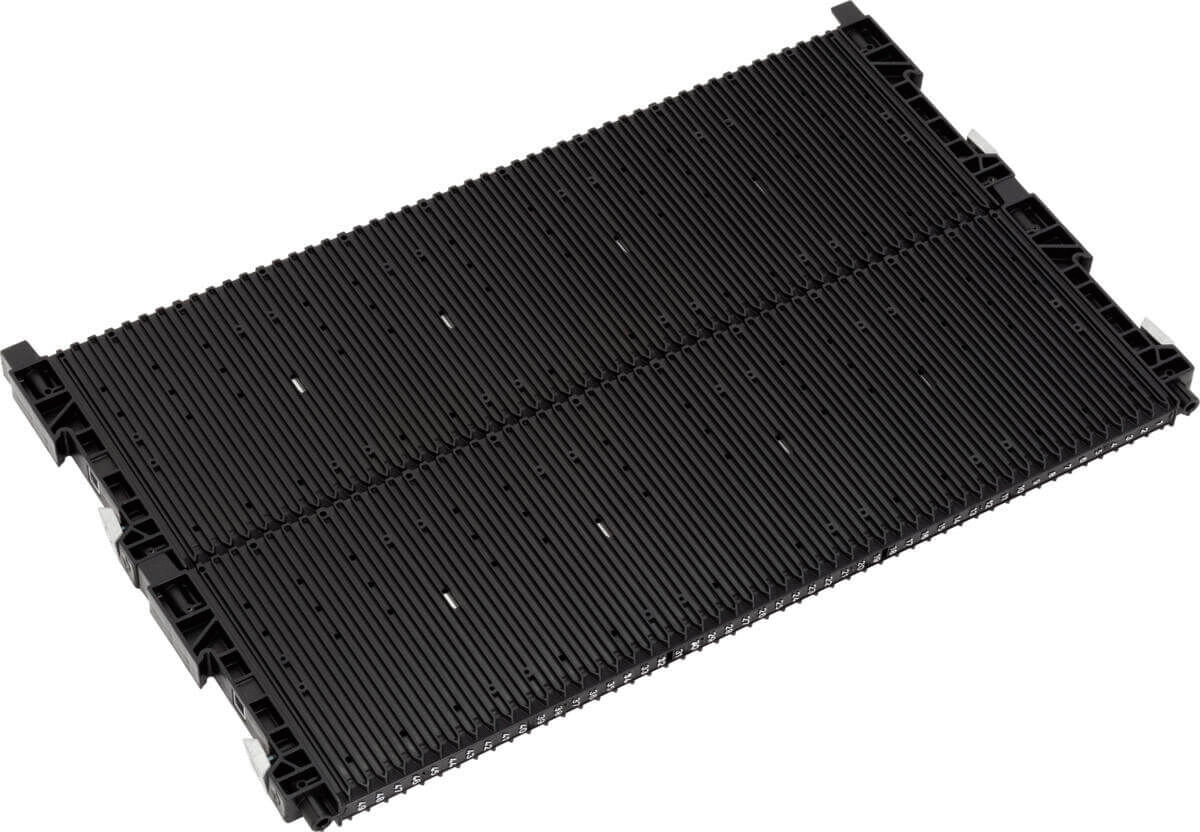

Double slotted wall 600 reinforced
The Double Groove Wall 600 reinforced by WEZ is a high-quality solution for efficient handling of circuit boards in production, storage, and transport environments. With a size of 555 x 345 x 22 mm and aluminum reinforcement, this product provides robust and reliable support for your requirements. The wall is made of black PP material, electrostatically volume conductive, and meets the ESD standard DIN EN 61340-5-1, making it ideal for handling sensitive electronic components.
The Double Groove Wall is designed without a floor stop, features 49 grooves with a width of 3.5 mm and a depth of 2.5 mm, and is double reinforced to ensure additional stability. The weight is 1.62 kg, and it is temperature resistant from -20 to 80 °C. This modular system is easily adaptable and fits perfectly into Euro containers, making it a flexible choice for various applications.
The Double Groove Wall is designed without a floor stop, features 49 grooves with a width of 3.5 mm and a depth of 2.5 mm, and is double reinforced to ensure additional stability. The weight is 1.62 kg, and it is temperature resistant from -20 to 80 °C. This modular system is easily adaptable and fits perfectly into Euro containers, making it a flexible choice for various applications.
Details
- Color Color
- black
- Height [mm] Height [mm]
- 22 mm
- Length [mm] Length [mm]
- 555 mm
- Width [mm] Width [mm]
- 345 mm
- Conductivity Conductivity
- volume conductive
- Material Material
- PP
- ESD ESD
- yes
- Version Version
- without base stop, double strengthened
- Groove depth Groove depth
- 2.5 mm
- Groove width Groove width
- 3.5 mm
- Groove number Groove number
- 49
- Temperature resistance Temperature resistance
- -20 - 80 °C
- Weight Weight
- 1.62 kg
Simple and safe system for PCB handling in the production, in the storage and for the transport. Modular design fits in Euro containers. Individually configurable for the different practical needs.
Electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1
Open slots or base stop?
The slotted walls of the series 180 are available with open or closed slot ends.
Versions 000 / 900 open slots for pushing through
Versions 022 922 base stop 22, support width = 2.5 mm
Versions 032 / 932 base stop 32, support width = 7.5 mm
Versions 025 / 925 base stop 25, support width = 4.0 mm
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
