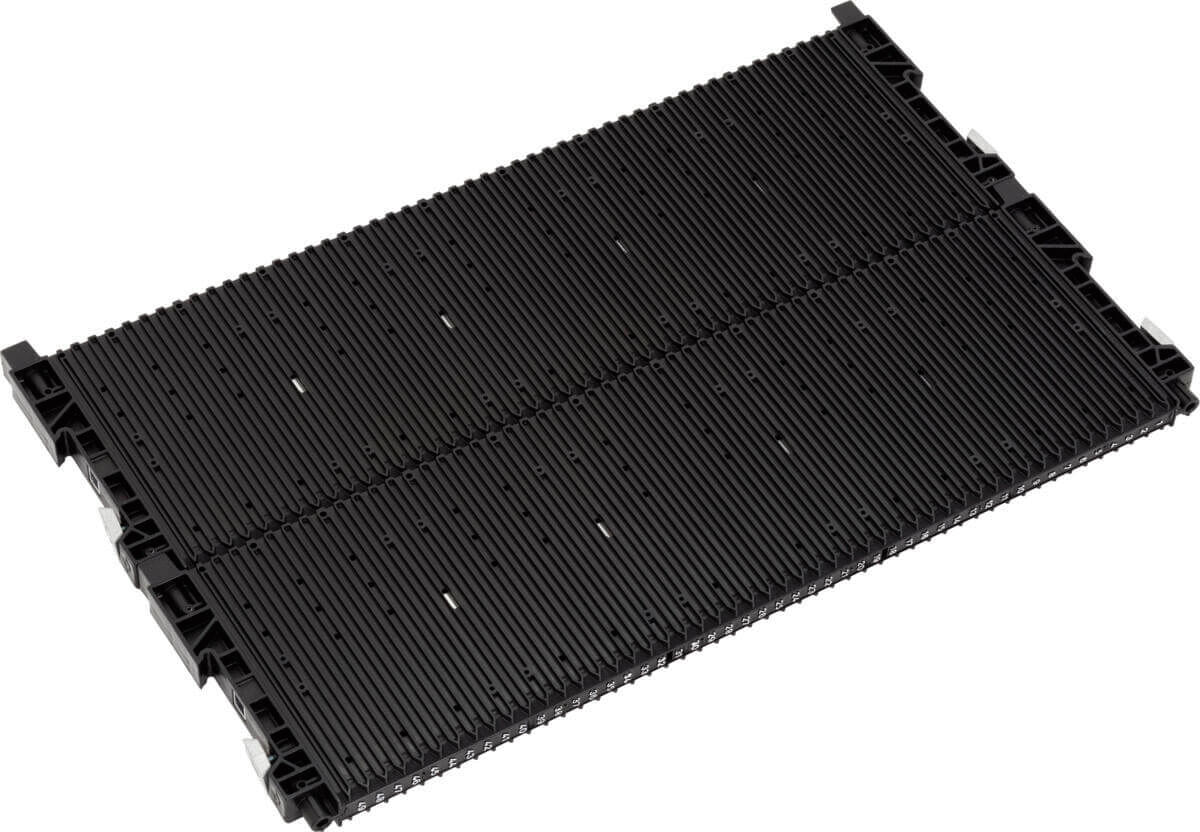

The image shows a rectangular, flat object in black with several parallel grooves or stripes that give the object a textured surface. It has sharp edges and corners.
The image shows an elongated, silver object with a prismatic structure. It has a matte surface and along the longitudinal axis, evenly arranged sections are visible.
Preview: The image shows a rectangular, flat object in black with several parallel grooves or stripes that give the object a textured surface. It has sharp edges and corners.
Preview: The image shows an elongated, silver object with a prismatic structure. It has a matte surface and along the longitudinal axis, evenly arranged sections are visible.
Double slotted wall 600
(Product No.: 5535.000.992)
The image shows a rectangular, flat object in black with several parallel grooves or stripes that give the object a textured surface. It has sharp edges and corners.
The image shows an elongated, silver object with a prismatic structure. It has a matte surface and along the longitudinal axis, evenly arranged sections are visible.
Mobile Preview: The image shows a rectangular, flat object in black with several parallel grooves or stripes that give the object a textured surface. It has sharp edges and corners.
Mobile Preview: The image shows an elongated, silver object with a prismatic structure. It has a matte surface and along the longitudinal axis, evenly arranged sections are visible.
Notice / Inquire

Double slotted wall 600

Double slotted wall 600

dpvlink:
4792
Version:
without base stop, strengthened
Length :
555 mm
Width :
345 mm
Height :
22 mm
Properties:
Further product information

chevron-down
72.40 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Double slotted wall 600

The Double Groove Wall 600 from WEZ is an optimal solution for handling circuit boards in production environments, storage areas, and during transport. With a size of 555 x 345 x 22 mm and a design without a bottom stop, this product offers a robust and reinforced structure. The double groove wall is made from black, volume-conductive PP material, which meets the ESD standard DIN EN 61340-5-1, thereby safely dissipating electrostatic charges.
The wall has 49 slots with a width of 3.5 mm, a spacing of 10.16 mm, and a depth of 2.5 mm. These features enable flexible and efficient organization of circuit boards. Additionally, the double groove wall is temperature resistant from -20 to 80 °C, ensuring wide usability in various environments. Its modular design also fits perfectly into Euro containers and can be individually equipped according to various practical needs.
Version
Version
without base stop, strengthened
Length
Length
555 mm
Width
Width
345 mm
Height
Height
22 mm
Color
Color
black
Conductivity
Conductivity
volume conductive
Material
Material
PP
ESD
ESD
yes
Groove depth
Groove depth
2.5 mm
Groove spacing
Groove spacing
10.16 mm
Groove width
Groove width
3.5 mm
Groove number
Groove number
49
Temperature resistance
Temperature resistance
-20 - 80 °C
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail, length = 256 mm
Profile rail 0256 for WEZRack series 180
Length: 256 mm
dpvlink
4797

5.15 CHF
Show product
In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail, length = 556 mm
Profile rail 0556 for WEZRack series 180
Length: 556 mm
dpvlink
4797

9.55 CHF
Show product
In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail customer-specific
dpvlink
4797

Price on request
Show product
The image shows two small, black plastic parts. They have a rectangular base with two upright supports that lean slightly upwards. Ideal for mounts or attachments.
Slot lock (Pack = 100 pcs)
Groove lock for WEZ rack system 180
PU = 100 pieces
dpvlink
4803

37.75 CHF
Show product
The image shows a long, narrow, black object with rectangular ends. It has a smooth surface and could be a holder or a support bar.
Handle 230 x 8 mm
Handle 230 x 8 mm
unmounted for WEZ rack 180
dpvlink
4803

3.00 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 353
Complete Catalog 2023 - 2024

Product Family

Double slotted wall 600 / 625

The double slotted wall 600 is a component of the WEZ Rack System 180 and is used for the safe storage and handling of PCBs.

  • Material: volume conductive polypropylene
  • Complies with the ESD standard DIN EN 61340-5-1
  • Available as unreinforced and reinforced version
  • Available with open groove ends to allow the PCBs to slide through, or as bottom stop variants for secure fixing of the PCBs
  • Inlet bevels facilitate insertion and optional clip-on groove locks secure unused grooves.
  • Suitable for 600 x 400 mm containers
  • Holds a maximum of 49 PCBs with an insertion dimension of up to 320 mm

Double slotted wall 600/625

Slot number:49
Slot width:3.5 mm
Slot depth:2.5 mm
Slot pitch:10.16 mm


Article image
Article description
Version
Length
Width
Height
Price
Compare
5535.000.992 - Double slotted wall 600
5535.000.992
Double slotted wall 600
without base stop, strengthened
555 mm
345 mm
22 mm
72.40 CHF
5535.900.992 - Double slotted wall 600 reinforced
5535.900.992
Double slotted wall 600 reinforced
without base stop, double reinforced
555 mm
345 mm
22 mm
81.60 CHF
5535.025.992 - Double slotted wall 625
5535.025.992
Double slotted wall 625
with base stop type 25, strengthened
550 mm
345 mm
25 mm
81.60 CHF
5535.925.992 - Double slotted wall 625 reinforced
5535.925.992
Double slotted wall 625 reinforced
with base stop type 25, double reinforced
550 mm
345 mm
25 mm
93.00 CHF
