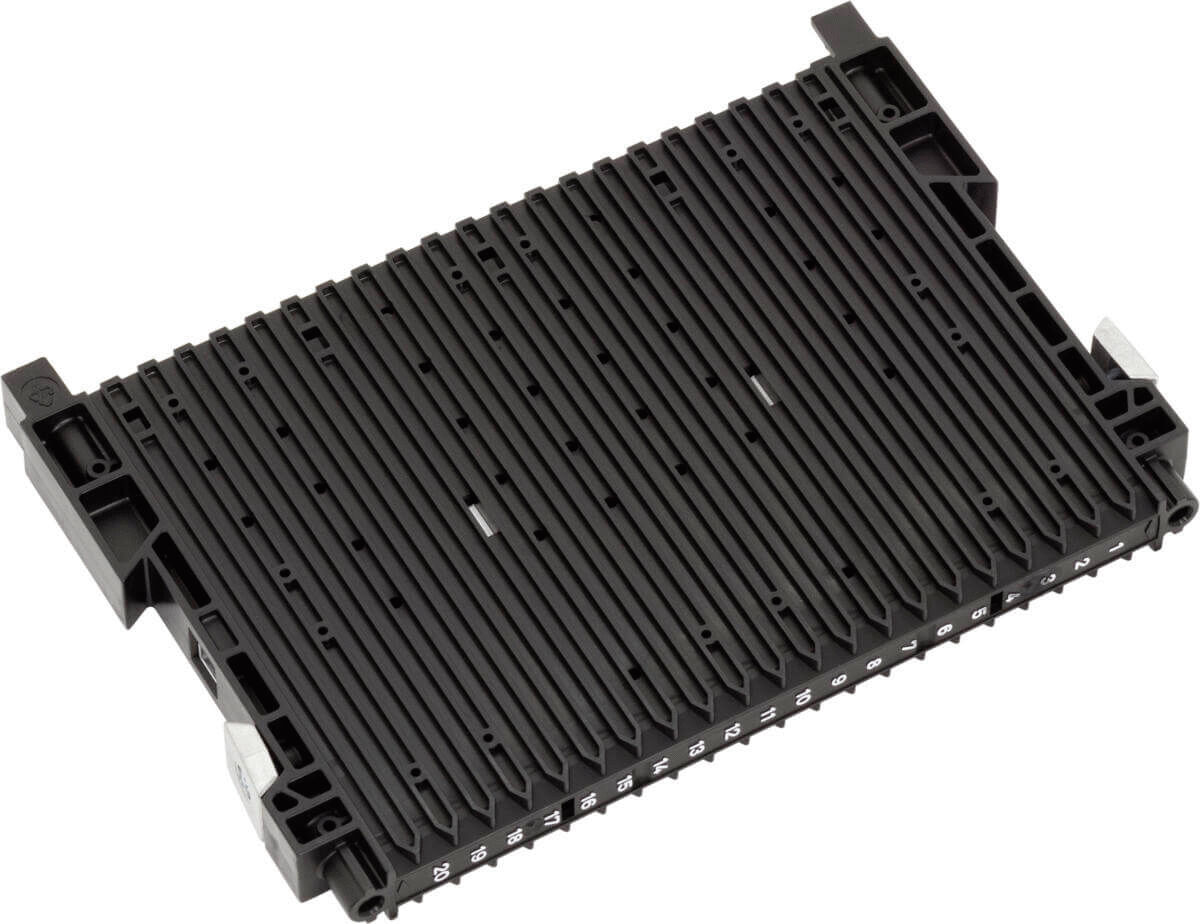

Slotted wall 300 reinforced
The slotted wall 300 reinforced by WEZ, measuring 255 x 180 x 22 mm, is specifically designed for efficient handling of circuit boards in production environments, warehouses, and during transport. This reinforced version without a bottom stop is made from black PP and offers space for a total of 20 slots with a slot width of 3.5 mm and a slot depth of 2.5 mm.
The slotted wall fits perfectly into Euro containers and is modular, allowing for individual equipment according to specific practical needs. It is electrostatically volume conductive and meets the ESD standard DIN EN 61340-5-1, making it ideal for ESD-sensitive environments.
The aluminum reinforcement additionally ensures stability and durability. Weighing only 0.4 kg and with a temperature resistance from -20 to 80 °C, this slotted wall combines functionality with high quality and safety.
The slotted wall fits perfectly into Euro containers and is modular, allowing for individual equipment according to specific practical needs. It is electrostatically volume conductive and meets the ESD standard DIN EN 61340-5-1, making it ideal for ESD-sensitive environments.
The aluminum reinforcement additionally ensures stability and durability. Weighing only 0.4 kg and with a temperature resistance from -20 to 80 °C, this slotted wall combines functionality with high quality and safety.
Details
- Length [mm] Length [mm]
- 255 mm
- Width [mm] Width [mm]
- 180 mm
- Height [mm] Height [mm]
- 22 mm
- Version Version
- without base stop, strengthened
- Color Color
- black
- Conductivity Conductivity
- volume conductive
- Material Material
- PP
- ESD ESD
- yes
- Groove depth Groove depth
- 2.5 mm
- Groove width Groove width
- 3.5 mm
- Groove number Groove number
- 20
- Temperature resistance Temperature resistance
- -20 - 80 °C
- Weight Weight
- 0.4 kg
Simple and safe system for PCB handling in the production, in the storage and for the transport. Modular design fits in Euro containers. Individually configurable for the different practical needs.
Electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1
Open slots or base stop?
The slotted walls of the series 180 are available with open or closed slot ends.
Versions 000 / 900 open slots for pushing through
Versions 022 922 base stop 22, support width = 2.5 mm
Versions 032 / 932 base stop 32, support width = 7.5 mm
Versions 025 / 925 base stop 25, support width = 4.0 mm
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
