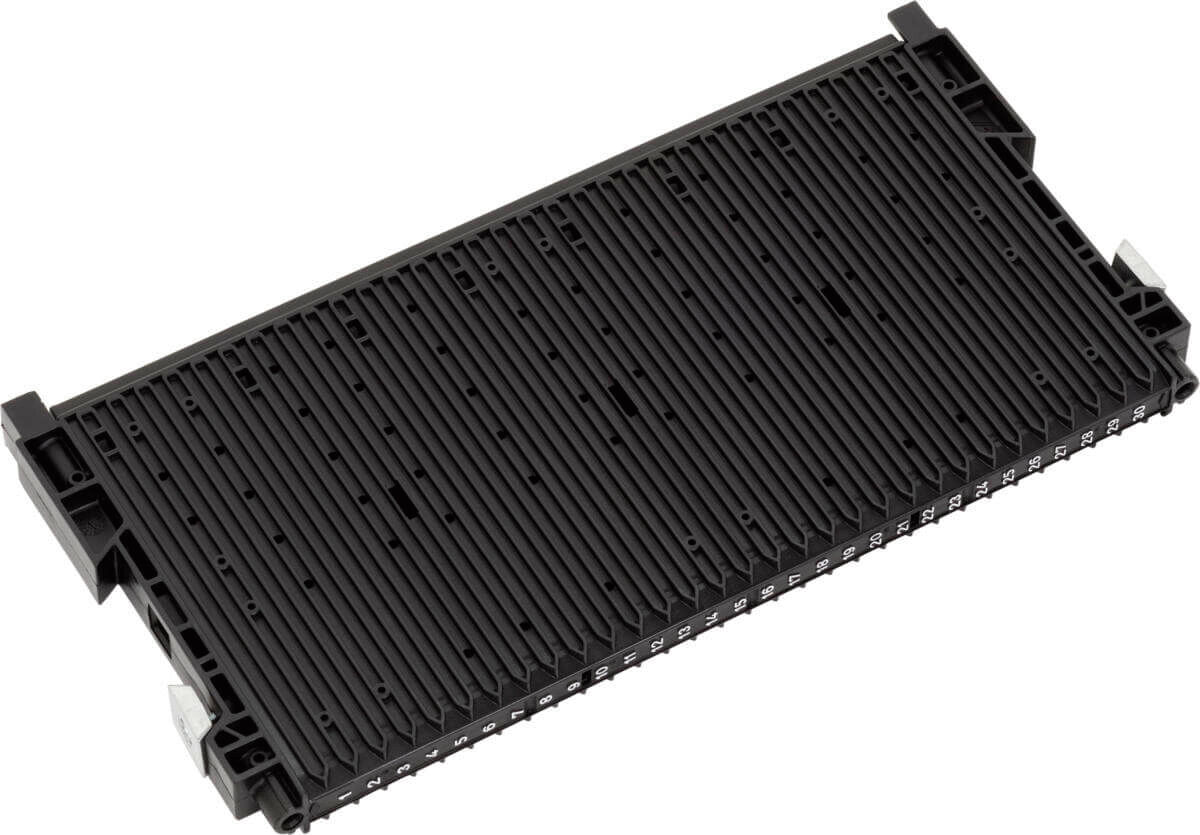

The image shows a black, rectangular component with many parallel grooves. It has small brackets at the ends and looks like a technical module or a circuit board.
Slotted wall 422
(Product No.: 3518.022.992)
The image shows a black, rectangular component with many parallel grooves. It has small brackets at the ends and looks like a technical module or a circuit board.
Notice / Inquire

Slotted wall 422

Slotted wall 422

dpvlink:
4775
Version:
with base stop type 22, unstrengthened
Length :
355 mm
Width :
180 mm
Height :
22 mm
Properties:
Further product information

chevron-down
21.80 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Slotted wall 422

The slot wall 422 from WEZ is an efficient solution for handling circuit boards in production environments, warehouses, and during transport. With dimensions of 355 x 180 x 22 mm and a base stop of type 22, this product offers robust and reliable support for your requirements. The wall is made from black, electrostatically volume conductive polypropylene, which complies with the ESD standard DIN EN 61340-5-1, making it ideal for use in ESD-sensitive areas.
The slot wall features 30 slots with a width of 3.5 mm and a depth of 2.5 mm, spaced at 10.16 mm intervals. This design allows for securely and stably holding various sizes of circuit boards. The unreinforced design, with a weight of 0.53 kg and temperature resistance from -20 to 80 °C, ensures high flexibility and durability under various operating conditions. The modular construction allows for easy integration into Euro containers and can be individually adapted to different practical needs.
Version
Version
with base stop type 22, unstrengthened
Length
Length
355 mm
Width
Width
180 mm
Height
Height
22 mm
Color
Color
black
Conductivity
Conductivity
volume conductive
Material
Material
PP
ESD
ESD
yes
Groove depth
Groove depth
2.5 mm
Groove spacing
Groove spacing
10.16 mm
Groove width
Groove width
3.5 mm
Groove number
Groove number
30
Temperature resistance
Temperature resistance
-20 - 80 °C
Weight
Weight
0.53 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail, length = 356 mm
Profile rail 0356 for WEZRack series 180
Length: 356 mm
dpvlink
4797

6.65 CHF
Show product
In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail customer-specific
dpvlink
4797

Price on request
Show product
The image shows two small, black plastic parts. They have a rectangular base with two upright supports that lean slightly upwards. Ideal for mounts or attachments.
Slot lock (Pack = 100 pcs)
Groove lock for WEZ rack system 180
PU = 100 pieces
dpvlink
4803

37.75 CHF
Show product
The image shows a long, narrow, black object with rectangular ends. It has a smooth surface and could be a holder or a support bar.
Handle 230 x 8 mm
Handle 230 x 8 mm
unmounted for WEZ rack 180
dpvlink
4803

3.00 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 353
Complete Catalog 2023 - 2024

Product Family

Slotted wall 400 / 422 / 432

The slotted wall 400 is a component of the WEZ Rack System 180 and is used for the safe storage and handling of PCBs.

  • Material: volume conductive polypropylene
  • Complies with the ESD standard DIN EN 61340-5-1
  • Available as unreinforced and reinforced version
  • Available with open groove ends to allow the PCBs to slide through, or as bottom stop variants for secure fixing of the PCBs
  • Inlet bevels facilitate insertion and optional clip-on groove locks secure unused grooves.
  • Suitable for 400 x 300 mm or 600 x 400 mm containers
  • Holds a maximum of 30 PCBs with an insertion dimension of up to 220 or 520 mm

Slotted wall 400 / 422 / 432

Slot number:30
Slot width:3.5 mm
Slot depth:2.5 mm
Slot pitch:10.16 mm


Article image
Article description
Version
Length
Width
Height
Price
Compare
3518.000.992 - Slotted wall 400
3518.000.992
Slotted wall 400
without base stop, unstrengthened
355 mm
180 mm
22 mm
16.70 CHF
3518.900.992 - Slotted wall 400 reinforced
3518.900.992
Slotted wall 400 reinforced
without base stop, strengthened
355 mm
180 mm
22 mm
31.30 CHF
3518.022.992 - Slotted wall 422
3518.022.992
Slotted wall 422
with base stop type 22, unstrengthened
355 mm
180 mm
22 mm
21.80 CHF
3518.922.992 - Slotted wall 422 reinforced
3518.922.992
Slotted wall 422 reinforced
with base stop type 22, strengthened
355 mm
180 mm
22 mm
35.65 CHF
3518.032.992 - Slotted wall 432
3518.032.992
Slotted wall 432
with base stop type 32, unstrengthened
355 mm
180 mm
32 mm
21.80 CHF
3518.932.992 - Slotted wall 432 reinforced
3518.932.992
Slotted wall 432 reinforced
with base stop type 32, strengthened
355 mm
180 mm
32 mm
35.65 CHF
