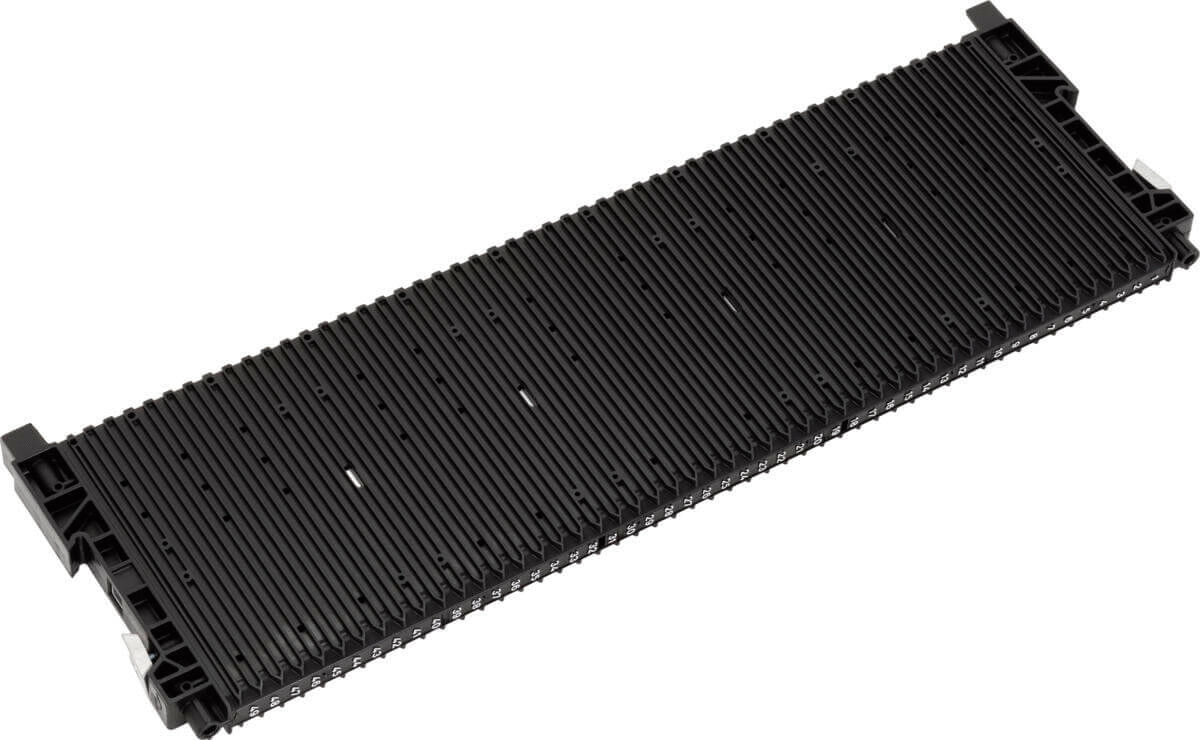

The image shows a long, flat, black heatsink with many fine, parallel grooves. The edges are slightly rounded, and there are brackets at both ends.
Slotted wall 600 reinforced
(Product No.: 5518.000.992)
The image shows a long, flat, black heatsink with many fine, parallel grooves. The edges are slightly rounded, and there are brackets at both ends.
Notice / Inquire

Slotted wall 600 reinforced

Slotted wall 600 reinforced

dpvlink:
4789
Version:
without base stop, strengthened
Length :
555 mm
Width :
180 mm
Height :
22 mm
Properties:
Further product information

chevron-down
30.15 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Slotted wall 600 reinforced

The Groove Wall 600 reinforced by WEZ offers a robust and ESD-compliant solution for handling circuit boards in production environments, storage, and during transport. This specially designed groove wall measures 555 x 180 x 22 mm and is constructed without a floor stop, which allows for easy implementation. The product is made of black, volume-conductive polypropylene, ensuring compliance with the ESD standard DIN EN 61340-5-1 and enabling safe use in sensitive electronic environments.
The groove wall features 49 grooves with a width of 3.5 mm and a depth of 2.5 mm, spaced 10.16 mm apart, to provide optimal adaptation to various circuit board sizes. With a temperature resistance from -20 to 80 °C and a weight of 0.77 kg, this product is ideally suited for both mobile and stationary applications. The reinforced design ensures increased durability and reliability under various operating conditions.
Version
Version
without base stop, strengthened
Length
Length
555 mm
Width
Width
180 mm
Height
Height
22 mm
Color
Color
black
Conductivity
Conductivity
volume conductive
Material
Material
PP
ESD
ESD
yes
Groove depth
Groove depth
2.5 mm
Groove spacing
Groove spacing
10.16 mm
Groove width
Groove width
3.5 mm
Groove number
Groove number
49
Temperature resistance
Temperature resistance
-20 - 80 °C
Weight
Weight
0.77 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail, length = 256 mm
Profile rail 0256 for WEZRack series 180
Length: 256 mm
dpvlink
4797

5.15 CHF
Show product
In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail, length = 556 mm
Profile rail 0556 for WEZRack series 180
Length: 556 mm
dpvlink
4797

9.55 CHF
Show product
In the picture, there are three parallel-arranged, matte aluminum profiles of various lengths. They have a rectangular shape with a slightly curved top.
Profile rail customer-specific
dpvlink
4797

Price on request
Show product
The image shows two small, black plastic parts. They have a rectangular base with two upright supports that lean slightly upwards. Ideal for mounts or attachments.
Slot lock (Pack = 100 pcs)
Groove lock for WEZ rack system 180
PU = 100 pieces
dpvlink
4803

37.75 CHF
Show product
The image shows a long, narrow, black object with rectangular ends. It has a smooth surface and could be a holder or a support bar.
Handle 230 x 8 mm
Handle 230 x 8 mm
unmounted for WEZ rack 180
dpvlink
4803

3.00 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 353
Complete Catalog 2023 - 2024

Product Family

Slotted wall 600 / 625

The slotted wall 600 is a component of the WEZ Rack System 180 and is used for the safe storage and handling of PCBs.

  • Material: volume conductive polypropylene
  • Complies with the ESD standard DIN EN 61340-5-1
  • Available as reinforced version
  • Available with open groove ends to allow the PCBs to slide through, or as bottom stop variants for secure fixing of the PCBs
  • Inlet bevels facilitate insertion and optional clip-on groove locks secure unused grooves.
  • Suitable for 600 x 400 mm containers
  • Holds a maximum of 49 PCBs with an insertion dimension of up to 320 mm

Slotted wall 600/625

Slot number:49
Slot width:3.5 mm
Slot depth:2.5 mm
Slot pitch:10.16 mm


Article image
Article description
Version
Length
Width
Height
Price
Compare
5518.000.992 - Slotted wall 600 reinforced
5518.000.992
Slotted wall 600 reinforced
without base stop, strengthened
555 mm
180 mm
22 mm
30.15 CHF
5518.025.992 - Slotted wall 625 reinforced
5518.025.992
Slotted wall 625 reinforced
with base stop type 25, strengthened
550 mm
180 mm
25 mm
40.80 CHF
Show Compare List (0)
