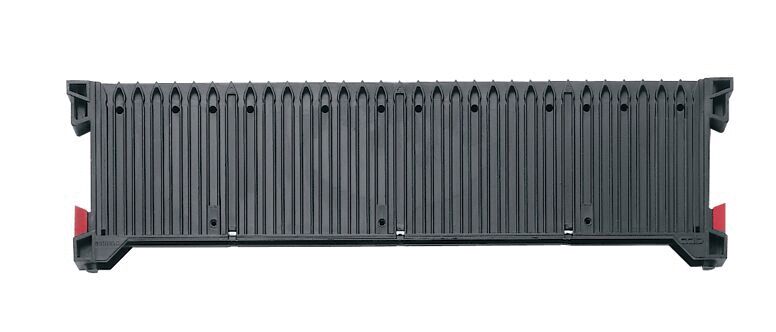

Partition 100, with holes for groove lock
(Product No.: 8913913)
Notice

Partition 100, with holes for groove lock

dpvlink:
4285
Tags:
Further product information

35.85 CHF
35.85 CHF per PCE

PCE:
Compare Compare
Notice
Product Info
Partition Wall 100, with holes for slot locks The circuit board holder Partition Wall 100 is specially designed for use in manufacturing, testing, and storage, allowing flexible assembly in both vertical and horizontal positions. This product is characterized by its electrostatic conductivity and complies with the ESD standard DIN EN 61340-5-1, making it ideal for handling sensitive electronic components. The robust construction with double-walled partition walls and an additional option for reinforcement with a metal tube provides high stability and torsional rigidity. Technical Specifications: - Width: 100 mm - Height: 20 mm - Length: 359 mm - Slot width: 2.8 mm - Slot depth: 2.0 mm - Number of slots: 32 - Grid: 10 mm - Material: Polypropylene - Color: Black - Surface resistance Rs: 10^9 Ω - Continuous usage temperature: 70°C - Conductivity: Volume conductive Additional features include retractable carrying handles for easy handling, side-mountable clips for accompanying documents, and a support rail to secure large circuit boards. The clearance of 17 mm above the table surface protects protruding components from damage. The modular design allows for quick and easy assembly and adaptation to various circuit board sizes, with the guides being blockable by slot locks to prevent damage. Item number: 8913913
Color
Color
black
Height [mm]
Height [mm]
20
Length [mm]
Length [mm]
359
Spacing
Spacing
10 mm
Width [mm]
Width [mm]
100
Conductivity
Conductivity
volume conductive
Surface resistance Rs
Surface resistance Rs
109 Ω
Material
Material
polypropylene
Groove depth
Groove depth
2.0 mm
Groove width
Groove width
2.8 mm
Groove number
Groove number
32
Common

electrostatically conductive, an exemplary concept: well thought out, flexible and complete





These PCB holders are used in the production, in test fields and in the storage. They can be equipped as well when standing vertically as lying horizontally. The width is completely variable and the system can be assembled for all PCB sizes according to the individual requirements.

  • Handles
    They facilitate the transport and especially the removal of the PCB holders out of the transport boxes. For saving space in the height they are retractable.
  • Clamp
    It can be mounted on the side of every PCB holder. The clamp serves to fix accompanying documents like parts lists and order forms.
  • Bearing rail
    It serves to support heavy and large PCB and protects them from slipping down while being transported.
  • Profile rail
    It is made of aluminium extruded profile and is available with every requested length.
  • Partitions
    The double-walled partitions are extremely stable and torsion-resistant due to the sandwich structure.
  • Free space
    For preventing damages of protruding components the bearing edge lies 17 mm above the table surface.


Quick and simple assembly

Quick and easy adjustment due to external adjustment grooves lying 0.4 mm above the surface.



Transport container

The PCB holder can be used for the transport in Euro containers 600 x 400 mm or 400 mm x 300 mm.

The retractable handles facilitate the insertion and removal.



Stable and torsion-resistant

The partitions are extremely stable due to the double-walled structure. In addition, in case of mechanical and thermal load, the partitions can be stiffened by a metal tube.



Standing vertically

Equipped PCBs must be stored horizontally before soldering. For this purpose, the PCBs be placed vertically.



Groove lock

For preventing damages of the components while inserting the PCBs into the magazine the grooves can be blocked by groove locks.



Technical data partition 100 / 180 / 300:

Number guide slots:32
Spacing guide slots:10 mm
Material:Polypropylene
Color:Black
Continuous use temperature:70°C

After aging no diminution of the conductivity, chemical and UV resistance excellent.

Version conductive = electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1

 Partition wall

 Slot width

 Slot depth

 PCB spacing

 Max. equipment

 100

 2.8 mm

 2.0 mm

 10 mm

 32 PCBs

 180

 4.0 mm

 2.5 mm

 10 mm

 32 PCBs

 300

 3.5 mm

 2.5 mm

 10 mm

 32 PCBs



The length of the profile (dimension X) is calculated according to the indications below.
Dimension D = PCB width
Dimension X = length of profile rail


Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 350
Complete Catalog 2023 - 2024

Product Family

Article imageArticle descriptionColorHeight [mm]Length [mm]SpacingWidth [mm]ConductivitySurface resistance RsPriceCompare
8910050 - Partition 100 8910050
Partition 100 		black2035910 mm100volume conductive109 Ω 25.45 CHF
8910102 - Partition 100, reinforced 8910102
Partition 100, reinforced 		black2035910 mm100volume conductive109 Ω 39.70 CHF
8913913 - Partition 100, with holes for groove lock 8913913
Partition 100, with holes for groove lock 		black2035910 mm100volume conductive109 Ω 35.85 CHF
