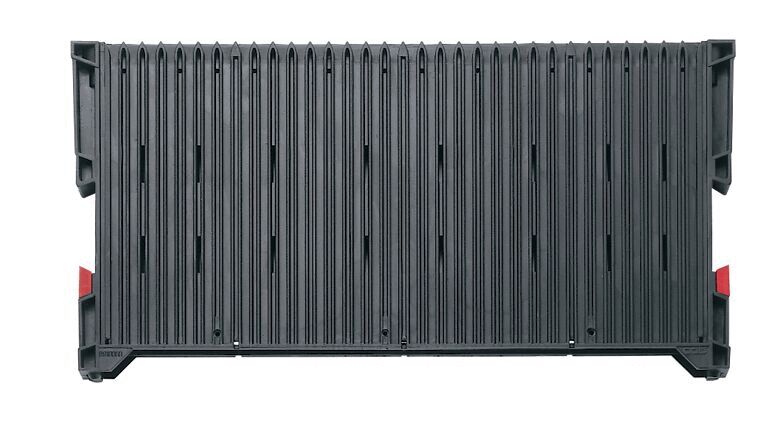

The image shows a rectangular, gray container with vertical grooves. There are red elements at the corners. The surface texture is uniform and sturdy.
Partition 180, with holes for groove lock
(Product No.: 8910104)
The image shows a rectangular, gray container with vertical grooves. There are red elements at the corners. The surface texture is uniform and sturdy.
Notice / Inquire

Partition 180, with holes for groove lock

Partition 180, with holes for groove lock

dpvlink:
4288
Properties:
Further product information

chevron-down
45.35 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Partition 180, with holes for groove lock

The Stegwand 180 is a highly functional element for the safe and efficient handling of circuit boards in technical operations. Made from volume-conductive polypropylene, this product offers a width of 180 mm, a height of 21 mm, and a length of 359 mm. It is characterized by high stability, achieved through a double-walled sandwich structure, which can additionally be reinforced with a metal tube.
The product features 32 slots with a width of 4.0 mm and a depth of 2.5 mm, arranged in a 10 mm grid. The surface has a resistance of 10^9 Ω and is available in black. The Stegwand is equipped with holes for slot locks to cover unused guides and prevent component damage.
For transport and storage, the Stegwands are stackable and have retractable carrying handles that facilitate insertion and removal from standardized containers. The funnel-shaped guide slots and attached positioning strips ensure precise and secure placement of the circuit boards.
The manufacturer of this robust and adaptable product is CAB, a company known for its high-quality solutions.
Color
Color
black
Height
Height
21 mm
Length
Length
359 mm
Spacing
Spacing
10 mm
Width
Width
180 mm
Conductivity
Conductivity
volume conductive
Surface resistance Rs
Surface resistance Rs
109 Ω
Material
Material
polypropylene
Groove depth
Groove depth
2.5 mm
Groove width
Groove width
4.0 mm
Groove number
Groove number
32
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 351
Complete Catalog 2023 - 2024

Product Family

Partition 180

Quick and easy installation - The partition walls can be adjusted on the profile rails. Two PCBs are inserted into the outer adjustment grooves. The upper partition wall is pressed against the PCBs and fixed in place with screws.

Stable and torsion-resistant - The partition walls are extremely stable thanks to their double-walled construction. In addition, the partition wall can be reinforced with a metal tube to withstand high mechanical and thermal loads.

Slot lock - Unused guides can be covered by slot locks to prevent damage to components when the PCBs are inserted into the magazine.

Stackable - The magazines can be stacked thanks to fixing holes and pins on the outer corners. Recessed grips on the underside of the partition walls make lifting easier.

Upright storage - Assembled PCBs must be stored horizontally before soldering. The magazines are set upright for this purpose.

Transport container - The magazines can be placed in standardized containers (600 x 400 mm or 400 x 300 mm) for transport. The retractable carrying handles facilitate insertion and removal.

Safe guide
The guide grooves are funnel-shaped at the beginning to ensure safe insertion of the PCBs. Glued-on positioning strips with yellow markings indicate the exact placement position and prevent PCBs from being inserted at an angle by hand.

1. Carrying handles
They facilitate transportation and, above all, allow the PCB holders to be easily removed from transport boxes. They are retractable to save space in height.

2. Clamp
It can be screwed onto the side of each PCB holder. This is used to clamp accompanying documents such as parts lists and order forms.

3. Support rail
It is used to support heavy and large PCBs and secures them so that they cannot slip out during transportation.

4. Profile rail
It is made from an extruded aluminum profile and is supplied in any desired length.

5. Partition walls
The double-walled partition walls are extremely stable and torsion-resistant thanks to the sandwich structure.

6. Free space
To ensure that protruding components are not damaged, the support edge is 17 mm above the table surface.

Technical data:

Numbers of guiding grooves:

32

Distance of guiding grooves:

10 mm

Material:

polypropylene

Color:

black

Continuous use temperatur:

70°C

Groove width:

4.0 mm

Groove depth:

2.5 mm

PCB spacing:

10 mm

max. placement:

32 PCBs

No drop in conductivity after ageing, very good chemical and UV resistance.

Conductive version = electrostatically volume conductive

In compliance with the DIN EN 61340-5-1


Article image
Article description
Color
Height
Length
Spacing
Width
Conductivity
Surface resistance Rs
Material
Groove depth
Groove width
Groove number
Price
Compare
8910060 - Partition 180, with holes for groove lock
8910060
Partition 180, with holes for groove lock
black
21 mm
359 mm
10 mm
180 mm
volume conductive
109 Ω
polypropylene
2.5 mm
4.0 mm
32
32.75 CHF
8910104 - Partition 180, with holes for groove lock
8910104
Partition 180, with holes for groove lock
black
21 mm
359 mm
10 mm
180 mm
volume conductive
109 Ω
polypropylene
2.5 mm
4.0 mm
32
45.35 CHF
