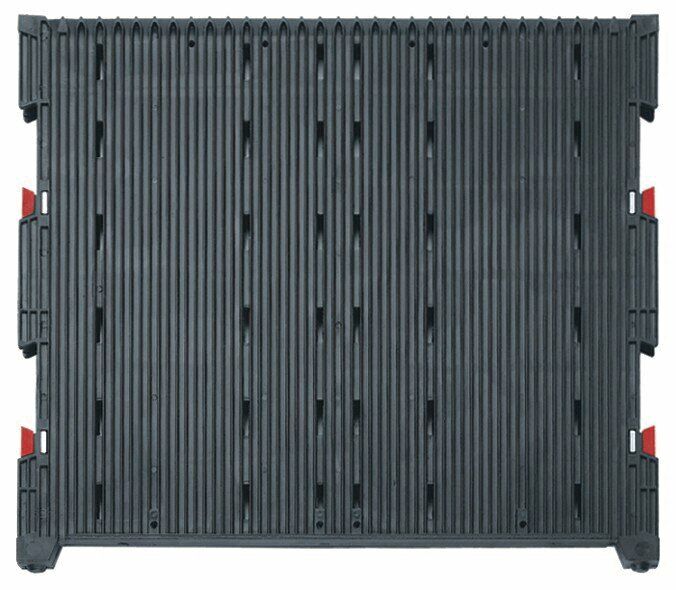

The image shows a rectangular, black-gray structure with vertical grooves. At the corners, there are red elements visible that hold the entire object together.
Partition 300
(Product No.: 8912049)
The image shows a rectangular, black-gray structure with vertical grooves. At the corners, there are red elements visible that hold the entire object together.
Notice / Inquire

Partition 300

Partition 300

dpvlink:
4292
Properties:
Further product information

chevron-down
38.45 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Partition 300

The Stegwand 300 from CAB is a highly functional solution for the secure and efficient handling of circuit boards. With dimensions of 357 x 303 x 20 mm and a slot depth for circuit boards of 285 mm, this product offers a well-thought-out design for technical applications. The Stegwand is made of polypropylene, which provides it with high stability and torsional rigidity.

The surface of the Stegwand is black and has a surface resistance of 10^9 Ω, making it volume conductive. The product structure includes 32 slots with a width of 3.5 mm and a depth of 2.5 mm, arranged in a 10 mm grid. These features guarantee precise guidance and positioning of the circuit boards.

Additional features such as funnel-shaped guide slots and glued positioning strips with yellow markings facilitate the correct insertion of the boards and prevent misalignment. For transportation and storage, the Stegwands are stackable and feature retractable carrying handles that ease handling. Slot locks protect unused guides and prevent damage to components.

The Stegwand 300 is thus an ideal choice for technical buyers who value efficiency, safety, and quality.
Color
Color
black
Height
Height
20 mm
Length
Length
357 mm
Spacing
Spacing
10 mm
Width
Width
303 mm
Conductivity
Conductivity
volume conductive
Surface resistance Rs
Surface resistance Rs
109 Ω
Material
Material
polypropylene
Version
Version
unstrengthened
Groove depth
Groove depth
2.5 mm
Groove width
Groove width
3.5 mm
Groove number
Groove number
32
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 351
Complete Catalog 2023 - 2024

Product Family

Partition 300

Quick and easy installation - The partition walls can be adjusted on the profile rails. Two PCBs are inserted into the outer adjustment grooves. The upper partition wall is pressed against the PCBs and fixed in place with screws.

Stable and torsion-resistant - The partition walls are extremely stable thanks to their double-walled construction. In addition, the partition wall can be reinforced with a metal tube to withstand high mechanical and thermal loads.

Slot lock - Unused guides can be covered by slot locks to prevent damage to components when the PCBs are inserted into the magazine.

Stackable - The magazines can be stacked thanks to fixing holes and pins on the outer corners. Recessed grips on the underside of the partition walls make lifting easier.

Upright storage - Assembled PCBs must be stored horizontally before soldering. The magazines are set upright for this purpose.

Transport container - The magazines can be placed in standardized containers (600 x 400 mm or 400 x 300 mm) for transport. The retractable carrying handles facilitate insertion and removal.

Safe guide
The guide grooves are funnel-shaped at the beginning to ensure safe insertion of the PCBs. Glued-on positioning strips with yellow markings indicate the exact placement position and prevent PCBs from being inserted at an angle by hand.

The partition is available in two versions: without reinforcement or with holes for groove lock.

1. Carrying handles
They facilitate transportation and, above all, allow the PCB holders to be easily removed from transport boxes. They are retractable to save space in height.

2. Clamp
It can be screwed onto the side of each PCB holder. This is used to clamp accompanying documents such as parts lists and order forms.

3. Support rail
It is used to support heavy and large PCBs and secures them so that they cannot slip out during transportation.

4. Profile rail
It is made from an extruded aluminum profile and is supplied in any desired length.

5. Partition walls
The double-walled partition walls are extremely stable and torsion-resistant thanks to the sandwich structure.

6. Free space
To ensure that protruding components are not damaged, the support edge is 17 mm above the table surface.

Technical data:

Numbers of guiding grooves:

32

Distance of guiding grooves:

10 mm

Material:

polypropylene

Color:

black

Continuous use temperatur:

70°C

Groove width:

3.5 mm

Groove depth:

2.5 mm

PCB spacing:

10 mm

max. placement:

32 PCBs

No drop in conductivity after ageing, very good chemical and UV resistance.

Conductive version = electrostatically volume conductive

In compliance with the DIN EN 61340-5-1


Article image
Article description
Color
Height
Length
Spacing
Width
Conductivity
Surface resistance Rs
Material
Version
Groove depth
Groove width
Groove number
Price
Compare
8912049 - Partition 300
8912049
Partition 300
black
20 mm
357 mm
10 mm
303 mm
volume conductive
109 Ω
polypropylene
unstrengthened
2.5 mm
3.5 mm
32
38.45 CHF
8913914 - Partition 300, with holes for groove lock
8913914
Partition 300, with holes for groove lock
black
20 mm
357 mm
10 mm
303 mm
volume conductive
109 Ω
polypropylene
with holes for groove lock
2.5 mm
3.5 mm
32
47.75 CHF
