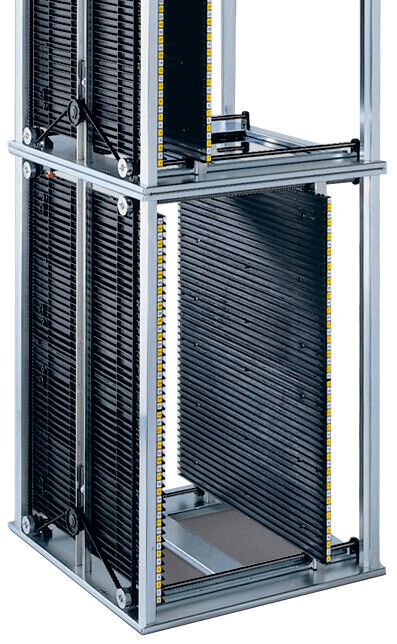

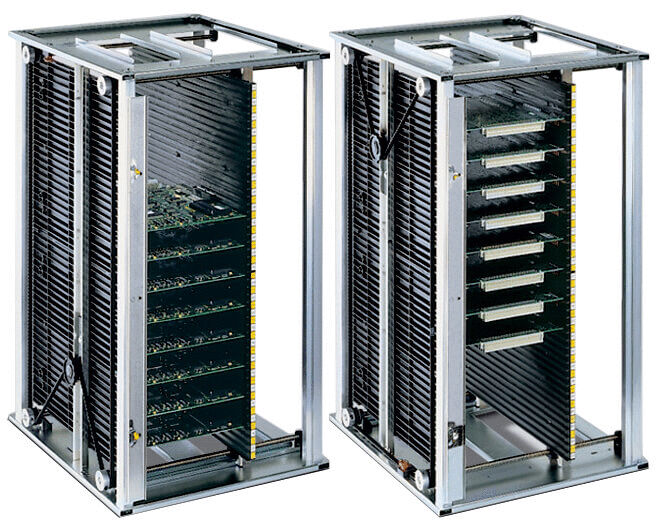

PCB magazine 701.2 PC, partially assembled

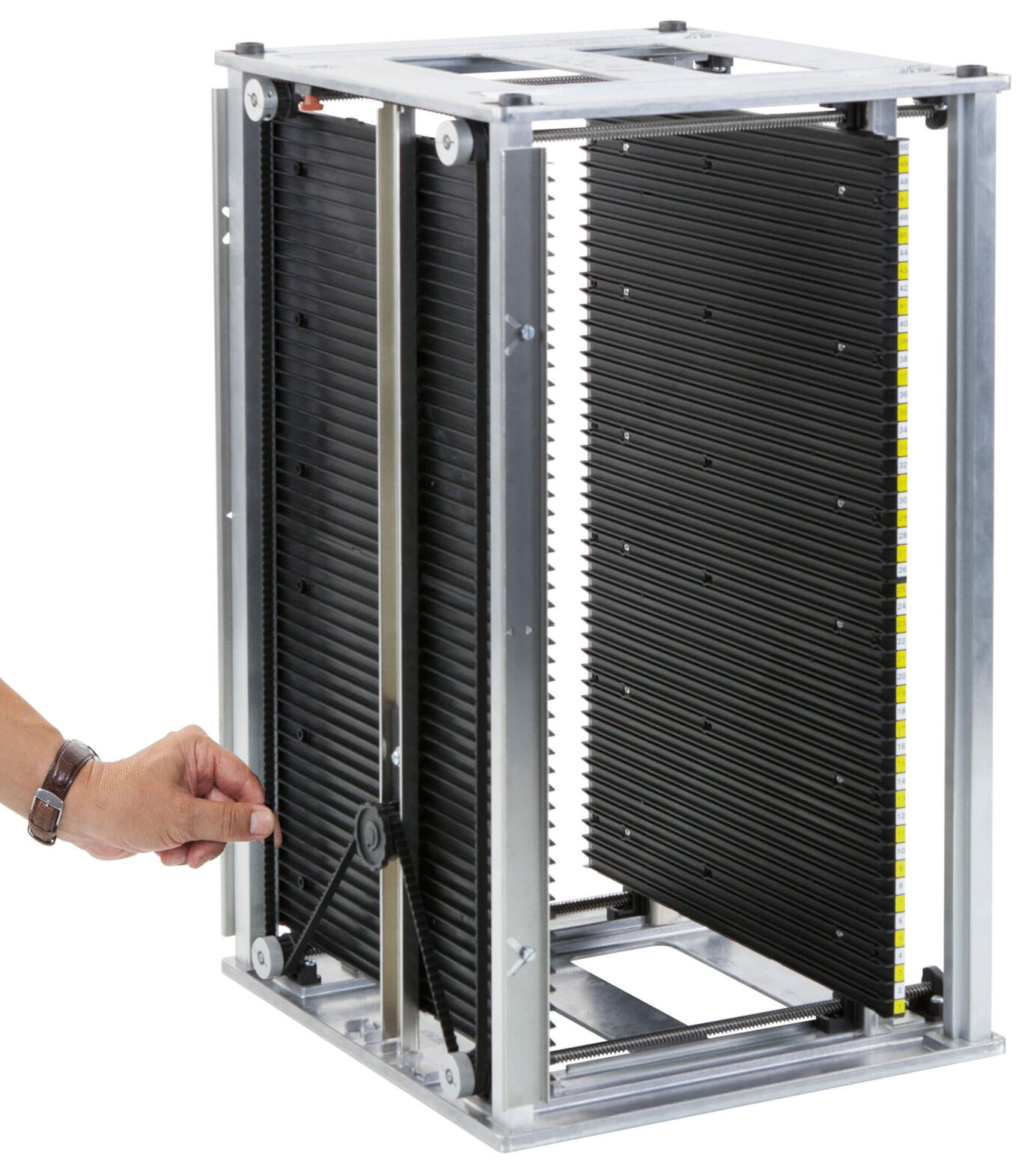

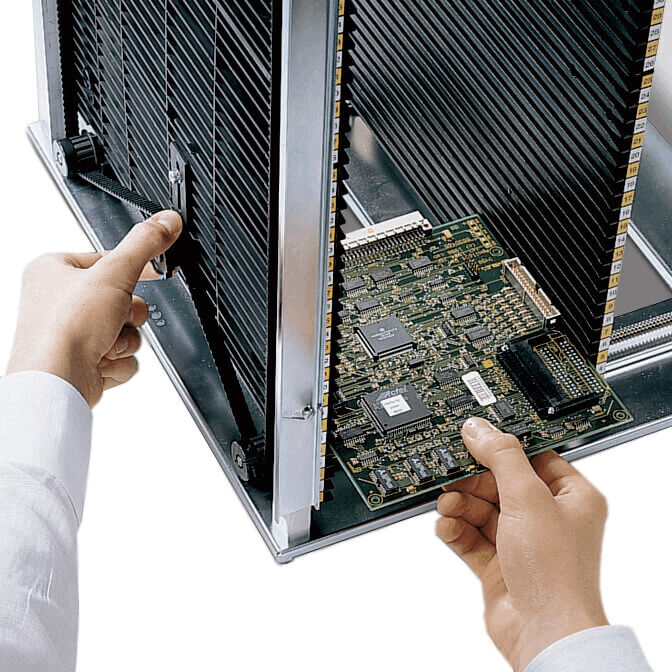

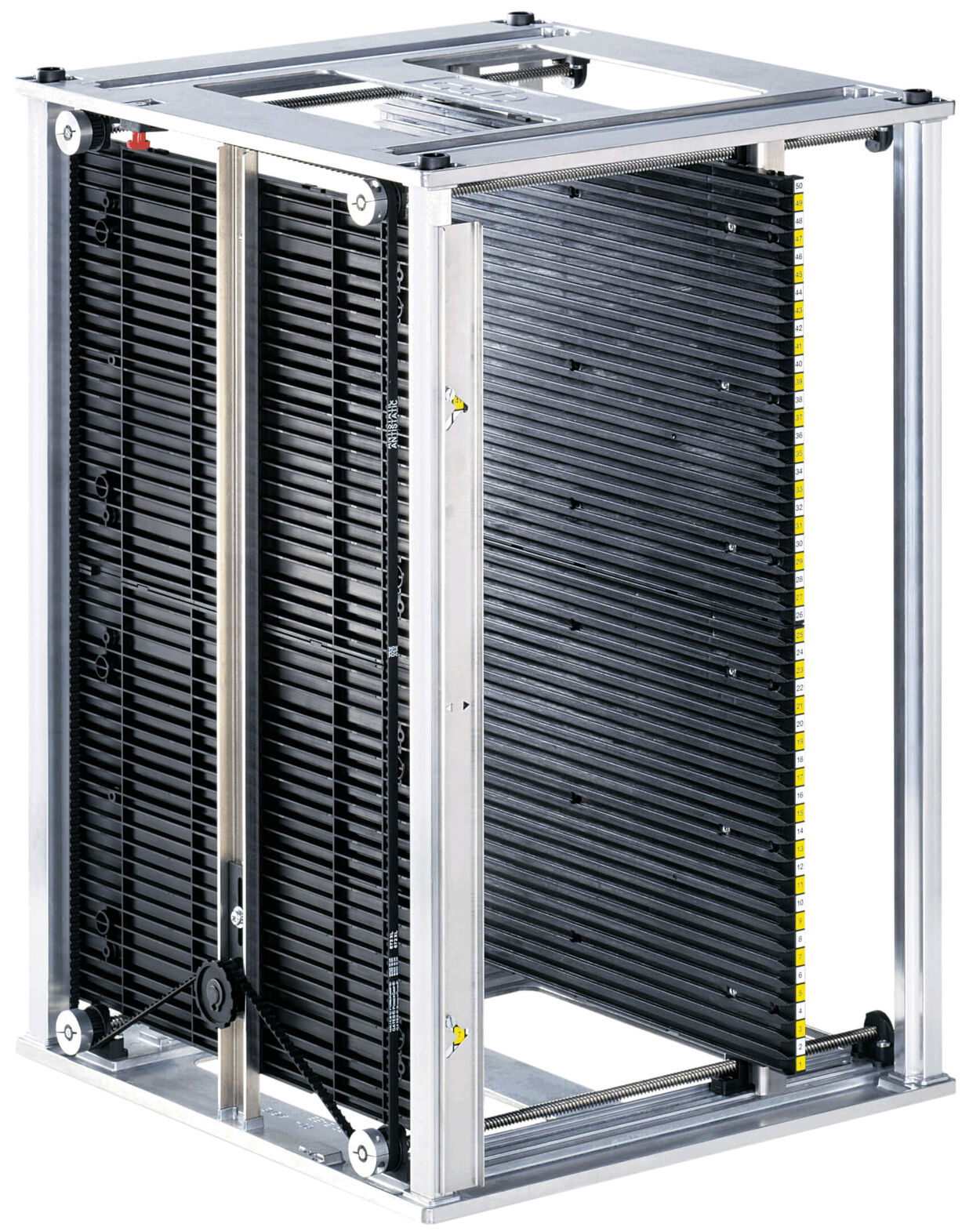

The PCB magazine 701.2 PC by CAB is designed for technical use and allows for quick and precise width adjustment of PCBs through a manual belt drive system. The Series 700 is characterized by easy handling, where the width can be adjusted within seconds. The magazine is partially assembled and consists of a set of base plates and web walls made of high-temperature-resistant polycarbonate, which can withstand temperatures up to 130°C.
The dimensions of the magazine are 355 x 320 x 563 mm (L x W x H), it supports PCBs with a width of 40 to 250 mm and a maximum length of 342 mm. The weight is 5.9 kg. The slots of the magazine are also high-temperature resistant up to 130°C, while the ambient temperature can be up to 80°C.

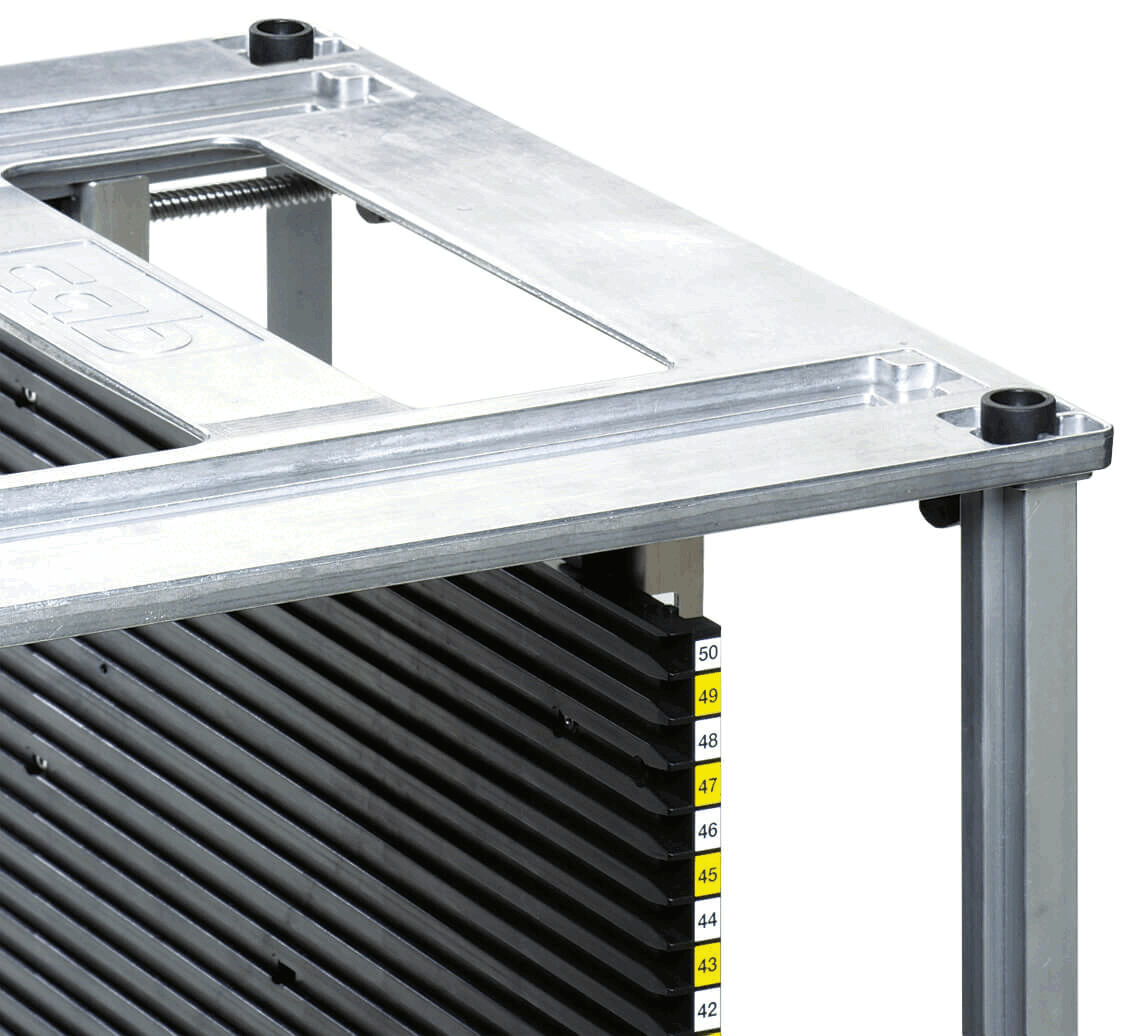

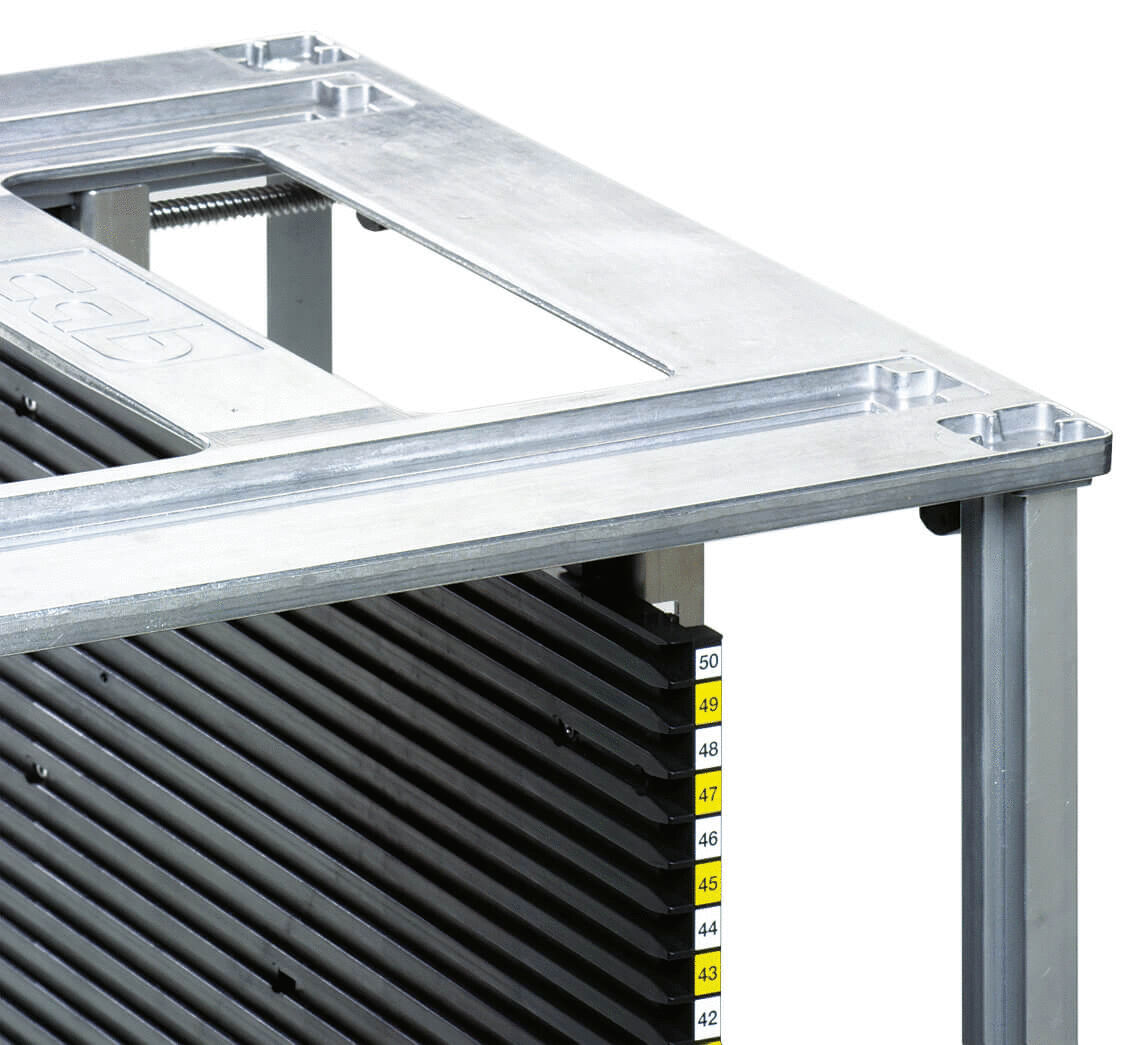

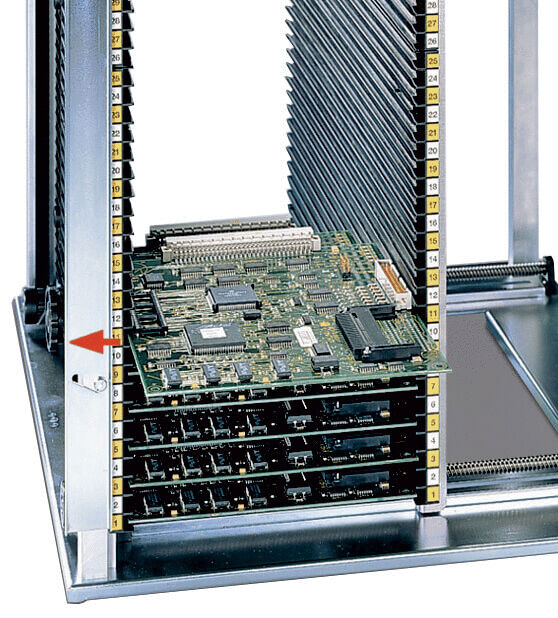

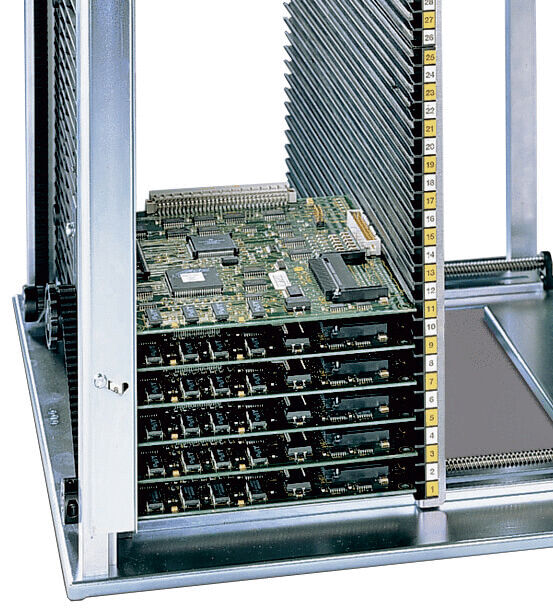

Additional safety features include transport locks on the front and back, which automatically fall into the locking position due to their own weight. The magazine is stackable, allowing for space-saving storage. It is ESD-safe and volume conductive with a surface resistance of 10^9 Ω, making it ideal for use in ESD-protected areas. The magazine series offers a wide selection of standard sizes that are compatible with common systems on the market.
The dimensions of the magazine are 355 x 320 x 563 mm (L x W x H), it supports PCBs with a width of 40 to 250 mm and a maximum length of 342 mm. The weight is 5.9 kg. The slots of the magazine are also high-temperature resistant up to 130°C, while the ambient temperature can be up to 80°C.
Additional safety features include transport locks on the front and back, which automatically fall into the locking position due to their own weight. The magazine is stackable, allowing for space-saving storage. It is ESD-safe and volume conductive with a surface resistance of 10^9 Ω, making it ideal for use in ESD-protected areas. The magazine series offers a wide selection of standard sizes that are compatible with common systems on the market.
Details
- PCB width PCB width
- 40 - 250 mm
- PCB length PCB length
- 342 mm
- Type Type
- partially assembled
- Height [mm] Height [mm]
- 563
- Length [mm] Length [mm]
- 355
- Width [mm] Width [mm]
- 320
- Conductivity Conductivity
- volume conductive
- Surface resistance Rs Surface resistance Rs
- 109 Ω
- Material Material
- polycarbonate
- ESD ESD
- yes
- PCB magazine series PCB magazine series
- Typ 700
- Width adjustment Width adjustment
- with toothed belt, manual
- Temperature resistance Environment Temperature resistance Environment
- 80 °C
- Temperature resistance Insertion Temperature resistance Insertion
- 130 °C
- Weight Weight
- 5.9 kg
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
