PCB magazine 804.2 PC, partially assembled
Circuit Board Magazine 804.2 PC, Partially Assembled

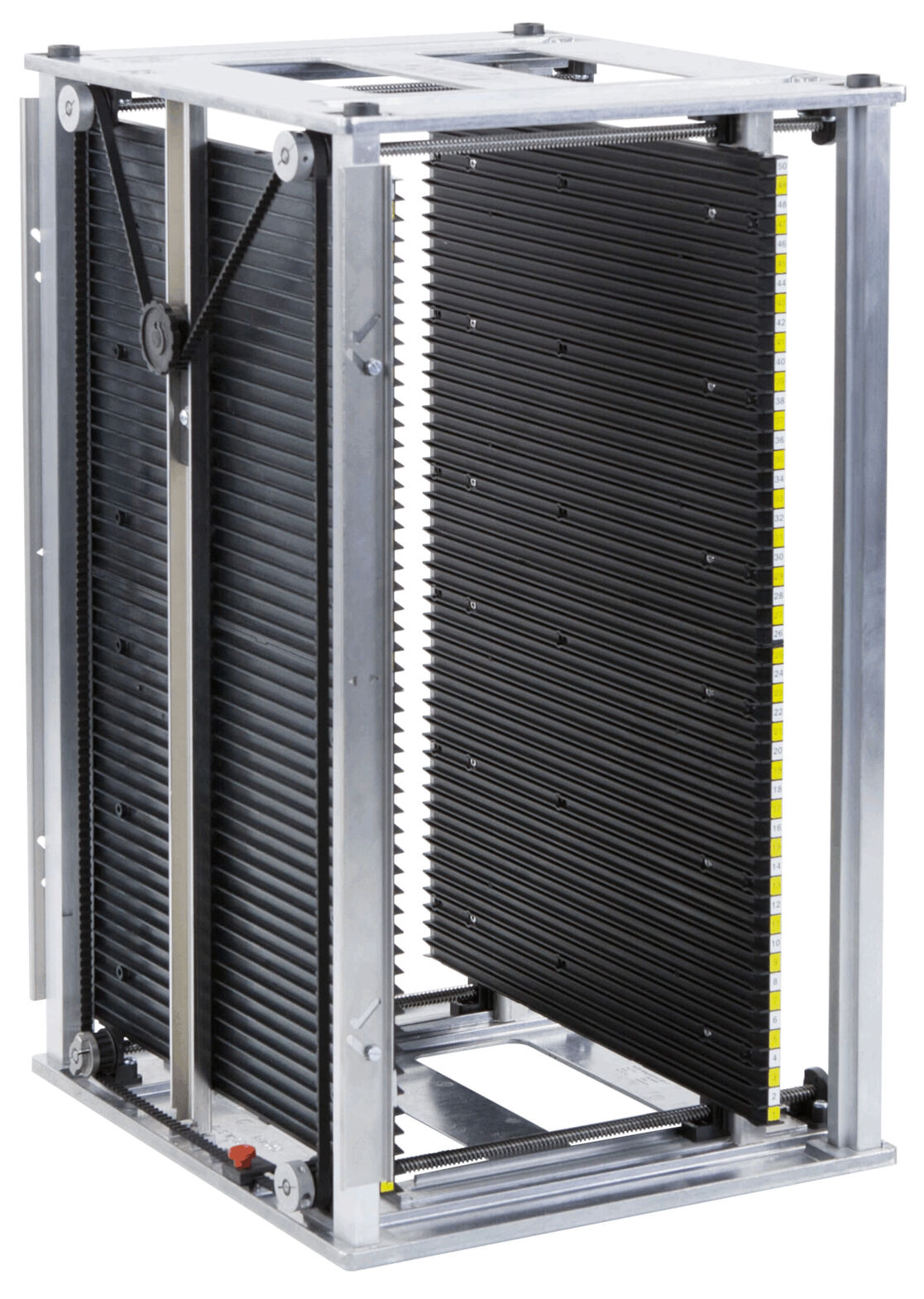

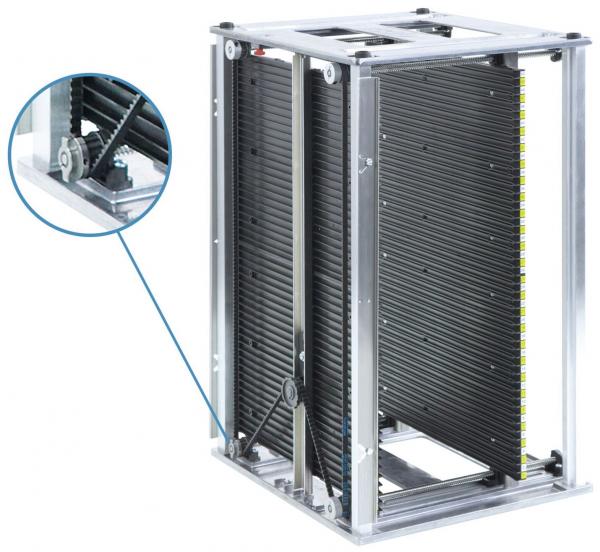

The Circuit Board Magazine 804.2 PC, partially assembled, offers robust storage and handling of circuit boards for technical applications. Made from heat-resistant polycarbonate, this magazine allows for efficient and safe storage with a temperature resistance of the slots up to 130°C and the surrounding environment up to 80°C. The width adjustment can be done either manually or automatically using a timing belt, allowing flexible adaptation to various circuit board sizes from 10 mm to 330 mm in width. The maximum circuit board length is 447 mm.

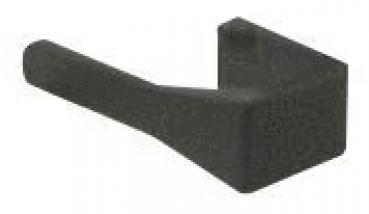

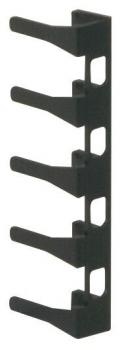

The product is partially assembled, which facilitates shipping and saves space. It is suitable for both automatic and manual operation, with safety latches ensuring reliable fixation of the circuit boards. The external dimensions of the magazine are 460 mm in length, 500 mm in width, and 563 mm in height, with a weight of 8.0 kg.
Technical Specifications:
- Material: Polycarbonate
- Width: 10 - 330 mm
- Length: 460 mm
- Height: 563 mm
- Max. Circuit Board Length: 447 mm
- Weight: 8.0 kg
- Temperature Resistance of Slots: 130 °C
- Temperature Resistance of Environment: 80 °C
- Automatic and manual width adjustment.
Product Number: 8918804
Details
- PCB length PCB length
- 447 mm
- PCB width PCB width
- 10 - 330 mm
- Height [mm] Height [mm]
- 563
- Length [mm] Length [mm]
- 460
- Width [mm] Width [mm]
- 500
- Surface resistance Rs Surface resistance Rs
- 109 Ω
- Material Material
- polycarbonate
- PCB magazine series PCB magazine series
- Typ 800
- Type Type
- partially assembled
- Width adjustment Width adjustment
- with toothed belt, automatic or manual
- Temperature resistance Environment Temperature resistance Environment
- 80 °C
- Temperature resistance Insertion Temperature resistance Insertion
- 130 °C
- Weight Weight
- 8.0 kg
