PCB magazine 805.3 M, fully assembled
(Product No.: 8915805)

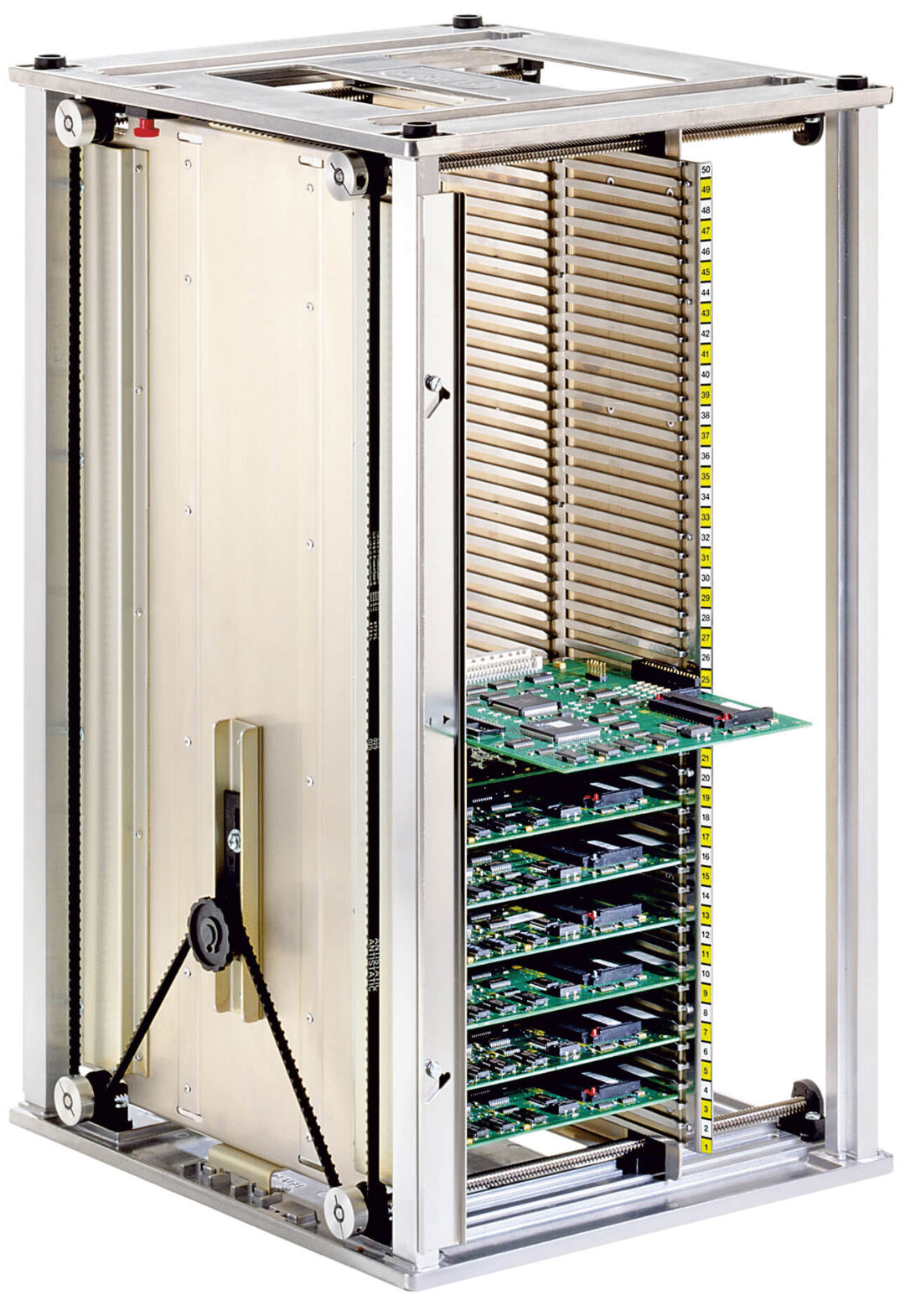

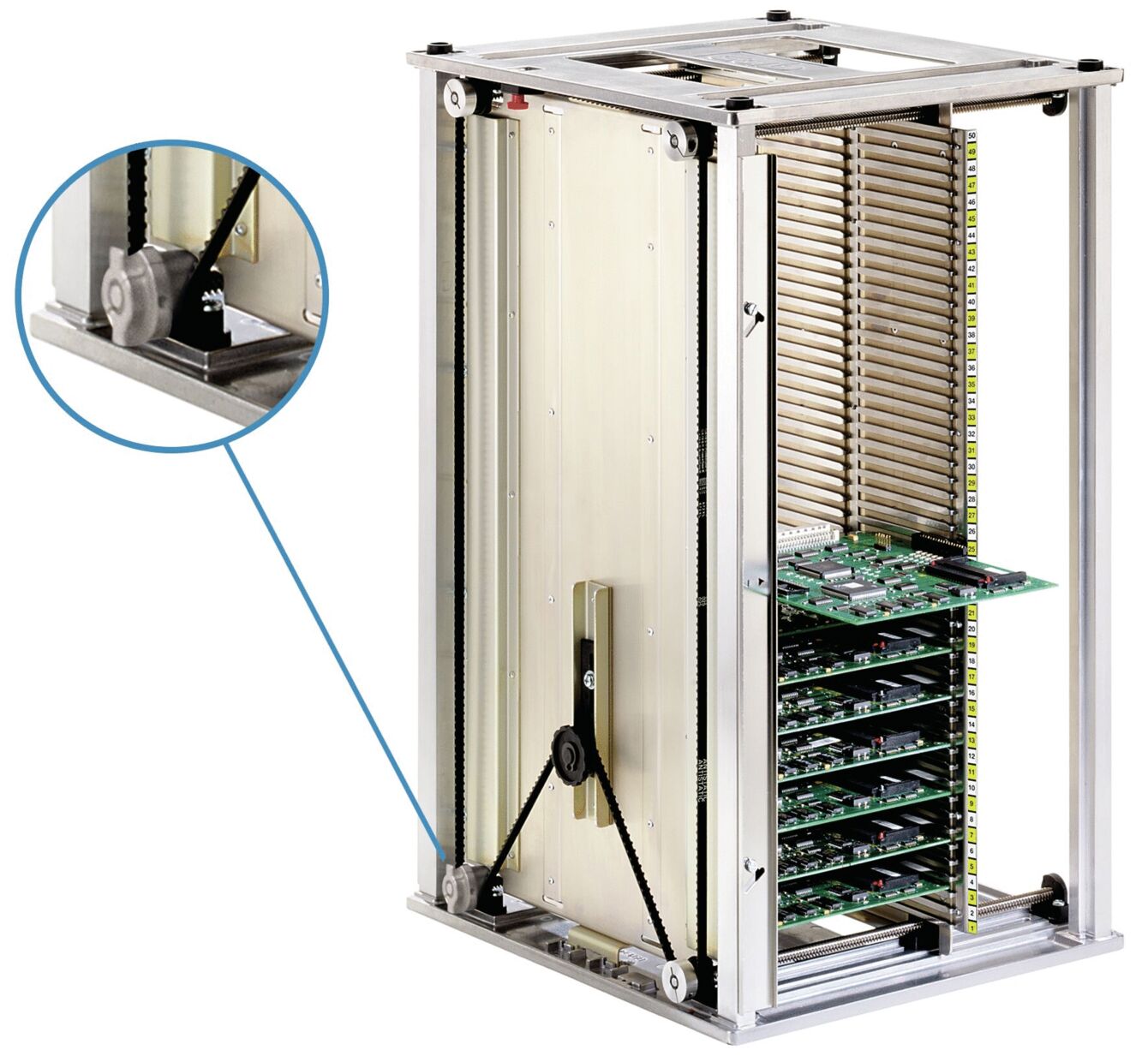

PCB magazine 805.3 M, fully assembled

dpvlink:
22357
Tags:
PCB width:
10 - 310 mm
PCB length:
522 mm
Further product information


Compare Compare
Notice
Product Info
Circuit Board Magazine 805.3 M, Fully Assembled The Circuit Board Magazine 805.3 M is characterized by its sturdy construction with metal side walls and high temperature resistance of the slots up to 200 °C and the surrounding environment up to 100 °C. It offers automatic and manual width adjustment via a timing belt, allowing for quick and precise adjustments. This model is fully assembled for efficient handling and supports circuit boards with a width of 10 to 310 mm and a maximum length of 522 mm. The external dimensions are 535 x 380 x 570 mm (L x W x H). Technical Specifications: - Material: Metal - Width Adjustment: with timing belt, automatic or manual - PCB Width: 10 - 310 mm - PCB Length: 522 mm - Width: 380 mm - Height: 570 mm - Length: 535 mm - Surface Resistance Rs: 10^9 Ω - Configuration: fully assembled - Temperature Resistance Slots: 200 °C - Temperature Resistance Environment: 100 °C Item Number: 8915805
PCB width
PCB width
10 - 310 mm
PCB length
PCB length
522 mm
Height [mm]
Height [mm]
570
Length [mm]
Length [mm]
535
Width [mm]
Width [mm]
380
Surface resistance Rs
Surface resistance Rs
109 Ω
Material
Material
metal
PCB magazine series
PCB magazine series
Typ 800
Type
Type
completely assembled
Width adjustment
Width adjustment
with toothed belt, automatic or manual
Temperature resistance Environment
Temperature resistance Environment
100 °C
Temperature resistance Insertion
Temperature resistance Insertion
200 °C
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Article imageArticle descriptionPCB widthPCB lengthPriceCompare
8915817 - PCB magazine 817.3 M, fully assembled 8915817
PCB magazine 817.3 M, fully assembled 		10 - 460 mm522 mm 1,062.40 CHF
8916740 - PCB magazine 802.3 M, fully assembled 8916740
PCB magazine 802.3 M, fully assembled 		40 - 250 mm387 mm 755.20 CHF
8915801 - PCB magazine 801.3 M, fully assembled 8915801
PCB magazine 801.3 M, fully assembled 		40 - 250 mm342 mm 684.80 CHF
8915803 - PCB magazine 803.3 M, fully assembled 8915803
PCB magazine 803.3 M, fully assembled 		40 - 310 mm387 mm 780.80 CHF
8915804 - PCB magazine 804.3 M, fully assembled 8915804
PCB magazine 804.3 M, fully assembled 		10 - 330 mm447 mm 908.80 CHF
8915805 - PCB magazine 805.3 M, fully assembled 8915805
PCB magazine 805.3 M, fully assembled 		10 - 310 mm522 mm -
8915806 - PCB magazine 806.3 M, fully assembled 8915806
PCB magazine 806.3 M, fully assembled 		10 - 390 mm522 mm -
8915807 - PCB magazine 807.3 M, fully assembled 8915807
PCB magazine 807.3 M, fully assembled 		10 - 460 mm522 mm -
8915808 - PCB magazine 808.3 M, fully assembled 8915808
PCB magazine 808.3 M, fully assembled 		10 - 400 mm522 mm -
8915815 - PCB magazine 815.3 M, fully assembled 8915815
PCB magazine 815.3 M, fully assembled 		10 - 310 mm522 mm -
8915816 - PCB magazine 816.3 M, fully assembled 8915816
PCB magazine 816.3 M, fully assembled 		10 - 390 mm522 mm 1,043.20 CHF
8915818 - PCB magazine 818.3 M, fully assembled 8915818
PCB magazine 818.3 M, fully assembled 		10 - 400 mm522 mm -
