PCB magazine 815.2 PC, partially assembled

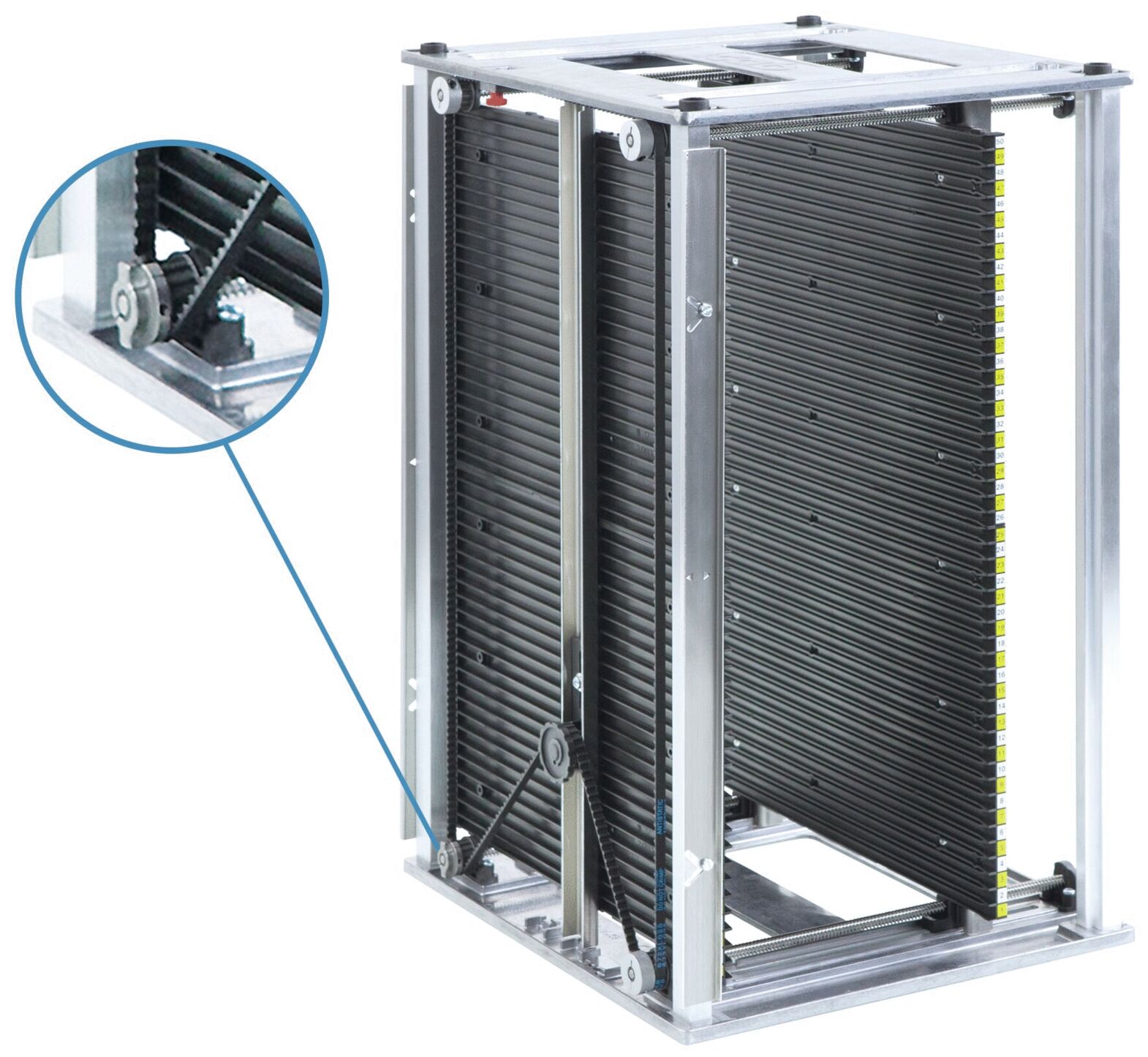

The circuit board magazine 815.2 PC, partially assembled by CAB, offers efficient and secure storage and handling of circuit boards. It is made of high-temperature-resistant polycarbonate, ensuring a temperature resistance of the slots up to 130°C and the surroundings up to 80°C. The dimensions of the magazine are 535 x 380 x 563 mm (L x W x H), and it can accommodate circuit boards with a width of 10 to 310 mm and a maximum length of 522 mm.
The width adjustment can be done either automatically or manually using a timing belt, which allows for precise customization. The partially assembled design of the magazine facilitates transportation and saves space. For transport safety, standard latches on the front and back are provided, which lock automatically due to their angled design.
In addition to its functional features, the magazines are stackable and have knobs on the top for secure and space-saving storage. Various standard sizes are available to meet the needs of different applications. With its ESD protection feature, volume-conductive materials, and a surface resistance of 10^9 Ω, this magazine is ideal for use in sensitive electronic environments.
The width adjustment can be done either automatically or manually using a timing belt, which allows for precise customization. The partially assembled design of the magazine facilitates transportation and saves space. For transport safety, standard latches on the front and back are provided, which lock automatically due to their angled design.
In addition to its functional features, the magazines are stackable and have knobs on the top for secure and space-saving storage. Various standard sizes are available to meet the needs of different applications. With its ESD protection feature, volume-conductive materials, and a surface resistance of 10^9 Ω, this magazine is ideal for use in sensitive electronic environments.
Details
- PCB length PCB length
- 522 mm
- PCB width PCB width
- 10 - 310 mm
- Height [mm] Height [mm]
- 563
- Length [mm] Length [mm]
- 535
- Width [mm] Width [mm]
- 380
- Conductivity Conductivity
- volume conductive
- Surface resistance Rs Surface resistance Rs
- 109 Ω
- Material Material
- polycarbonate
- ESD ESD
- yes
- PCB magazine series PCB magazine series
- Typ 800
- Type Type
- partially assembled
- Width adjustment Width adjustment
- with toothed belt, automatic or manual
- Temperature resistance Environment Temperature resistance Environment
- 80 °C
- Temperature resistance Insertion Temperature resistance Insertion
- 130 °C
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
