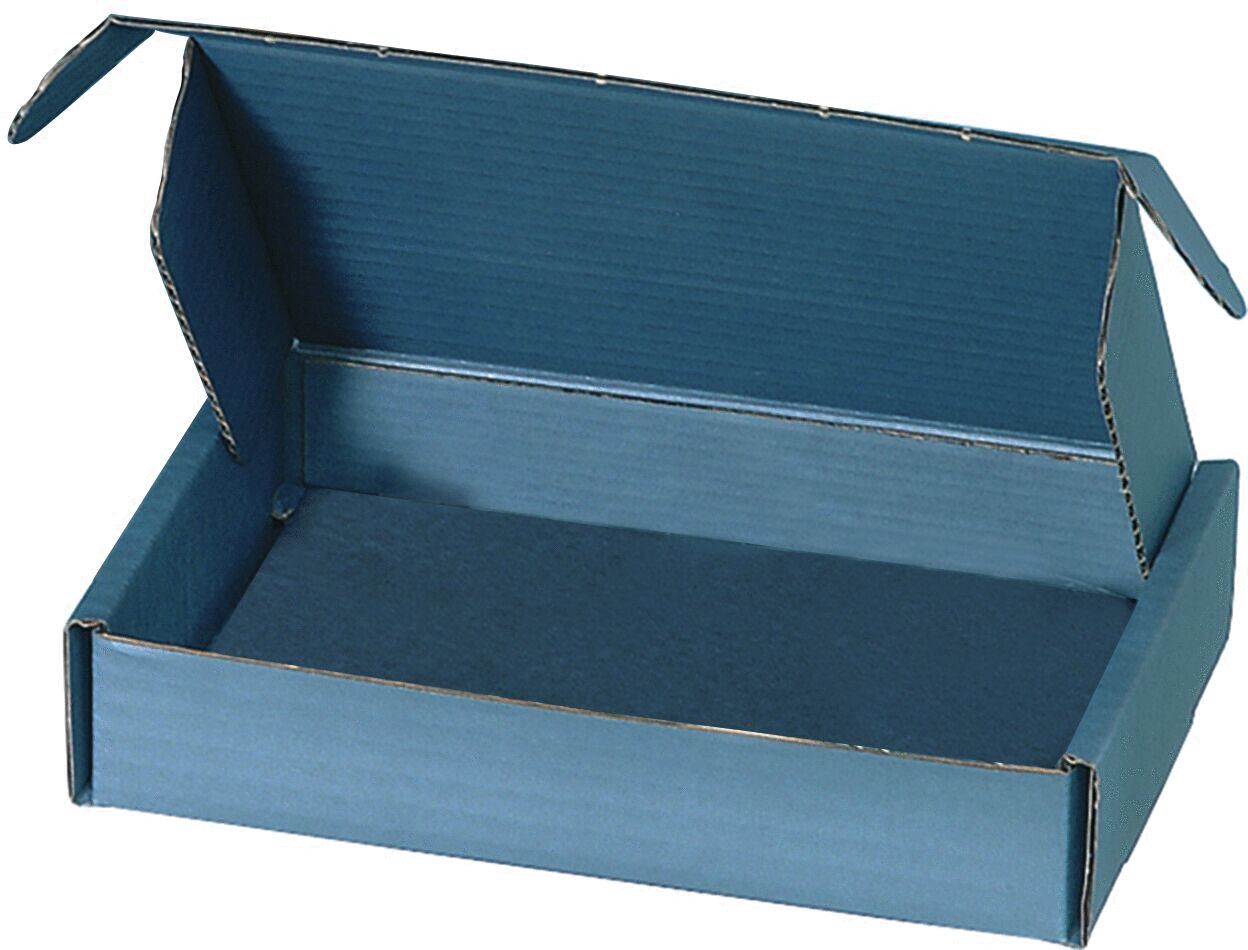

This is an open, rectangular box made of blue cardboard. The sides are upright, with a flat bottom surface and no lid. The edges are sharp and the surface is smooth.
CORTRONIC® shipping box 250x191x38 mm
(Product No.: COR-30.TVS)
This is an open, rectangular box made of blue cardboard. The sides are upright, with a flat bottom surface and no lid. The edges are sharp and the surface is smooth.
Notice / Inquire

CORTRONIC® shipping box 250x191x38 mm

CORTRONIC® shipping box 250x191x38 mm

dpvlink:
626
inside LxWxH [mm]:
250 x 191 x 38
Foam:
without foam
Properties:
Further product information

Minimum order:
10 PCE
chevron-down
2.40 CHF

excl. 8.1% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

CORTRONIC® shipping box 250x191x38 mm

The CORTRONIC shipping box with dimensions of 250x191x38 mm, manufactured by Kolb, offers a reliable solution for the safe shipping of sensitive products. This box is characterized by its electrostatic shielding of less than 10 nJ (Energy Bag Test) and ensures effective dissipation of electrostatic charges with a surface resistance of 10^7 - 10^8 Ohm.
The box is blue on the inside and outside, features a standard ESD warning print, a type designation, and a recycling symbol, making it not only functional but also environmentally friendly as it is fully recyclable.
Additionally, the box is standardized according to FEFCO-Code 0427 and DIN EN 61340-5-1 and offers high shielding properties through its multi-layer construction of corrugated cardboard and conductive layers. The minimum order quantity is 10 pieces.
Suitable foam inserts for additional protection are also available. This makes the CORTRONIC shipping box an ideal choice for technical purchasers who value safety and sustainability.
Foam
Foam
without foam
Color
Color
blue
Height
Height
43 mm
Internal height
38 mm
Internal length
250 mm
Internal width
Internal width
191 mm
Length
Length
272 mm
Width
Width
199 mm
Surface resistance Rs
Surface resistance Rs
107 - 108 Ω
recyclable
recyclable
yes
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

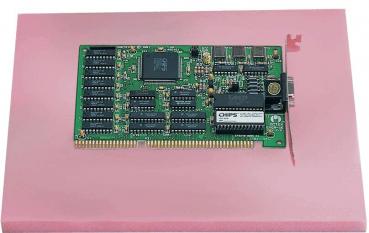

The image shows a green circuit board with many small components and a large chip. It is lying on a pink mat. The circuit board has contacts on the bottom.
PU foam 250x191x15 mm
PU foam 250 x 191 x 15 mm smooth,
pink, electrostatically dissipative /
antistatic (DIN EN 61340-5-1)
dpvlink
641

0.80 CHF
Show product
The image shows a green circuit board with many small components and a large chip. It is lying on a pink mat. The circuit board has contacts on the bottom.
PU foam 250x191x20 mm
PU foam 250 x 191 x 20 mm smooth,
pink, electrostatically dissipative /
antistatic (DIN EN 61340-5-1)
dpvlink
641

1.05 CHF
Show product
The image shows a green circuit board with various chips, connected wires, and slots, resting on a soft, pink surface. The board is rectangular and technology-related.
PU foam 250x191x20 mm
PU foam 250 x 191 x 20 mm profile 1:1,
pink, electrostatically dissipative /
antistatic (DIN EN 61340-5-1)
dpvlink
641

0.80 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 288
Complete Catalog 2023 - 2024

Product Family

CORTRONIC® Shipping boxes standard

The CORTRONIC standard shipping boxes offer an optimum solution for the safe and electrostatically protected transportation of products. Matching foam inserts are available under the following link. The shipping boxes have the following common features:

  • blue
  • long-lasting color fastness
  • with high shielding
  • Typical surface resistance interior / exterior  RS = 107 - 108  ohm
  • Electrostatic shielding < 10 nJ (Energy Bag Test)
  • standard imprint: ESD logo, type designation, recycling logo

The shipping boxes within this product family differ in terms of their dimensions and the foam/without foam.

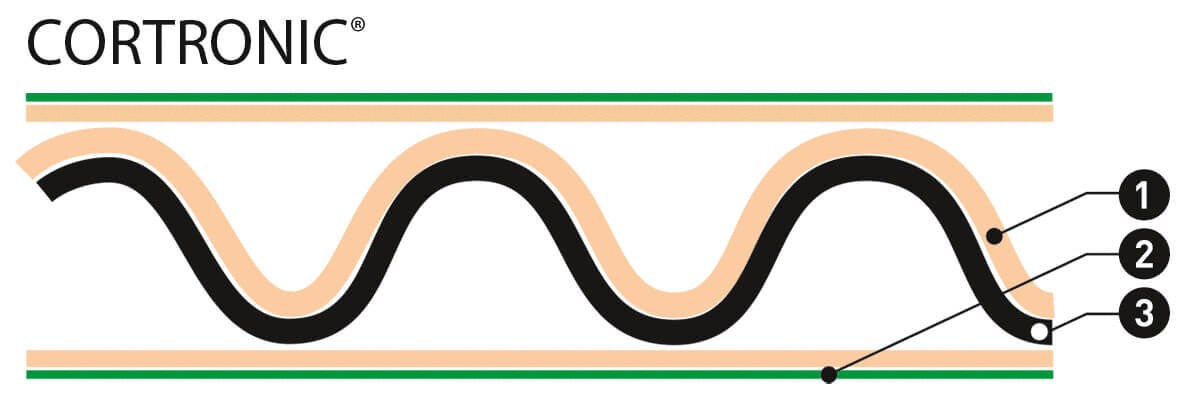

The structure of the boxes is as follows:

  1. Corrugated board
  2. Dissipative layer
  3. Conductive layer, sealed


Article image
Article description
Dimensions inside LxWxH [mm]
Foam
Price
Compare
COR-01.TVS - CORTRONIC® shipping box 40x40x15 mm
COR-01.TVS
CORTRONIC® shipping box 40x40x15 mm
40 x 40 x 15
PU foam for pin insertion / napped foam EL black
1.00 CHF
COR-02.TVS - CORTRONIC® shipping box 62x62x25 mm
COR-02.TVS
CORTRONIC® shipping box 62x62x25 mm
62 x 62 x 25
PU foam for pin insertion / napped foam EL black
1.15 CHF
COR-05.TVS - CORTRONIC® shipping box 100x55x25 mm
COR-05.TVS
CORTRONIC® shipping box 100x55x25 mm
100 x 55 x 25
without foam
0.75 CHF
NEW
COR-06.TVS - CORTRONIC Shipping box 120x80x30 mm
COR-06.TVS
CORTRONIC Shipping box 120x80x30 mm
120 x 80 x 30
without foam
1.20 CHF
COR-10.TVS - CORTRONIC® shipping box 183x127x38 mm
COR-10.TVS
CORTRONIC® shipping box 183x127x38 mm
183 x 127 x 38
without foam
1.60 CHF
COR-15.TVS - CORTRONIC® shipping box 178x127x64 mm
COR-15.TVS
CORTRONIC® shipping box 178x127x64 mm
178 x 127 x 64
without foam
2.50 CHF
COR-20.TVS - CORTRONIC® shipping box 190x135x40 mm
COR-20.TVS
CORTRONIC® shipping box 190x135x40 mm
190 x 135 x 40
without foam
1.75 CHF
COR-30.TVS - CORTRONIC® shipping box 250x191x38 mm
COR-30.TVS
CORTRONIC® shipping box 250x191x38 mm
250 x 191 x 38
without foam
2.40 CHF
COR-40.TVS - CORTRONIC® shipping box 250x191x64 mm
COR-40.TVS
CORTRONIC® shipping box 250x191x64 mm
250 x 191 x 64
without foam
3.60 CHF
COR-45.TVS - CORTRONIC® shipping box 250x191x110 mm
COR-45.TVS
CORTRONIC® shipping box 250x191x110 mm
250 x 191 x 110
without foam
6.30 CHF
COR-50.TVS - CORTRONIC® shipping box 267x216x64 mm
COR-50.TVS
CORTRONIC® shipping box 267x216x64 mm
267 x 216 x 64
without foam
4.00 CHF
COR-55.TVS - CORTRONIC® shipping box 300x300x100 mm
COR-55.TVS
CORTRONIC® shipping box 300x300x100 mm
300 x 300 x 100
without foam
7.90 CHF
COR-57.TVS - CORTRONIC® shipping box 380x280x60 mm
COR-57.TVS
CORTRONIC® shipping box 380x280x60 mm
380 x 280 x 60
without foam
5.20 CHF
COR-58.TVS - CORTRONIC Shipping box 380x250x120 mm
COR-58.TVS
CORTRONIC Shipping box 380x250x120 mm
380 x 250 x 120
without foam
11.70 CHF
COR-60.TVS - CORTRONIC® shipping box 420x220x40 mm
COR-60.TVS
CORTRONIC® shipping box 420x220x40 mm
420 x 220 x 40
without foam
4.35 CHF
COR-65.TVS - CORTRONIC® shipping box 420x220x65 mm
COR-65.TVS
CORTRONIC® shipping box 420x220x65 mm
420 x 220 x 65
without foam
5.15 CHF
NEW
COR-67.TVS - CORTRONIC Shipping box 420x220x100 mm
COR-67.TVS
CORTRONIC Shipping box 420x220x100 mm
420 x 220 x 100
without foam
9.85 CHF
COR-70.TVS - CORTRONIC Shipping box 480x360x64 mm
COR-70.TVS
CORTRONIC Shipping box 480x360x64 mm
480 x 350 x 64
without foam
9.30 CHF
