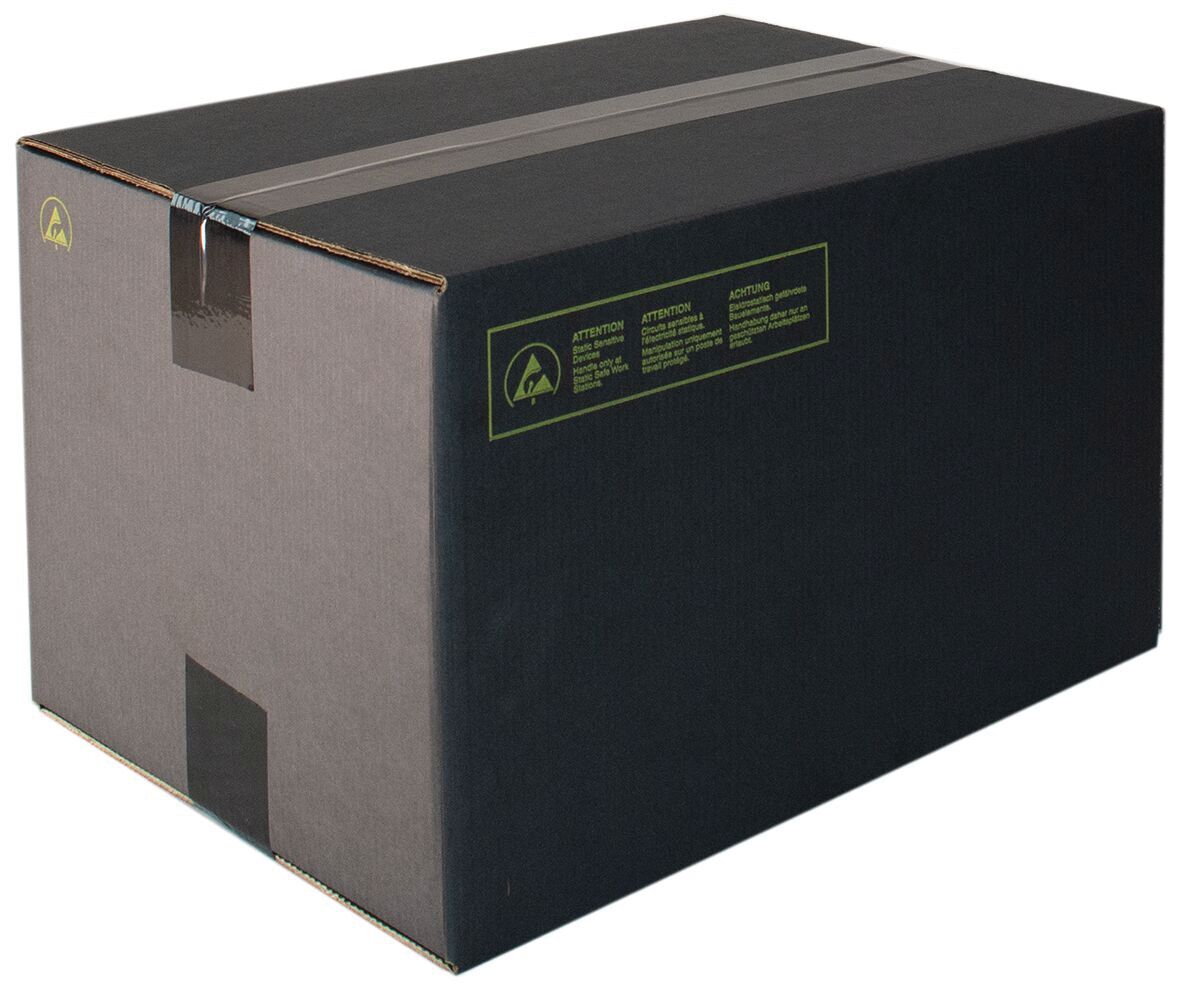

It is a rectangular, black cardboard box. The front features an inscription in yellow lettering. The cardboard appears sturdy and has a smooth, matte surface.

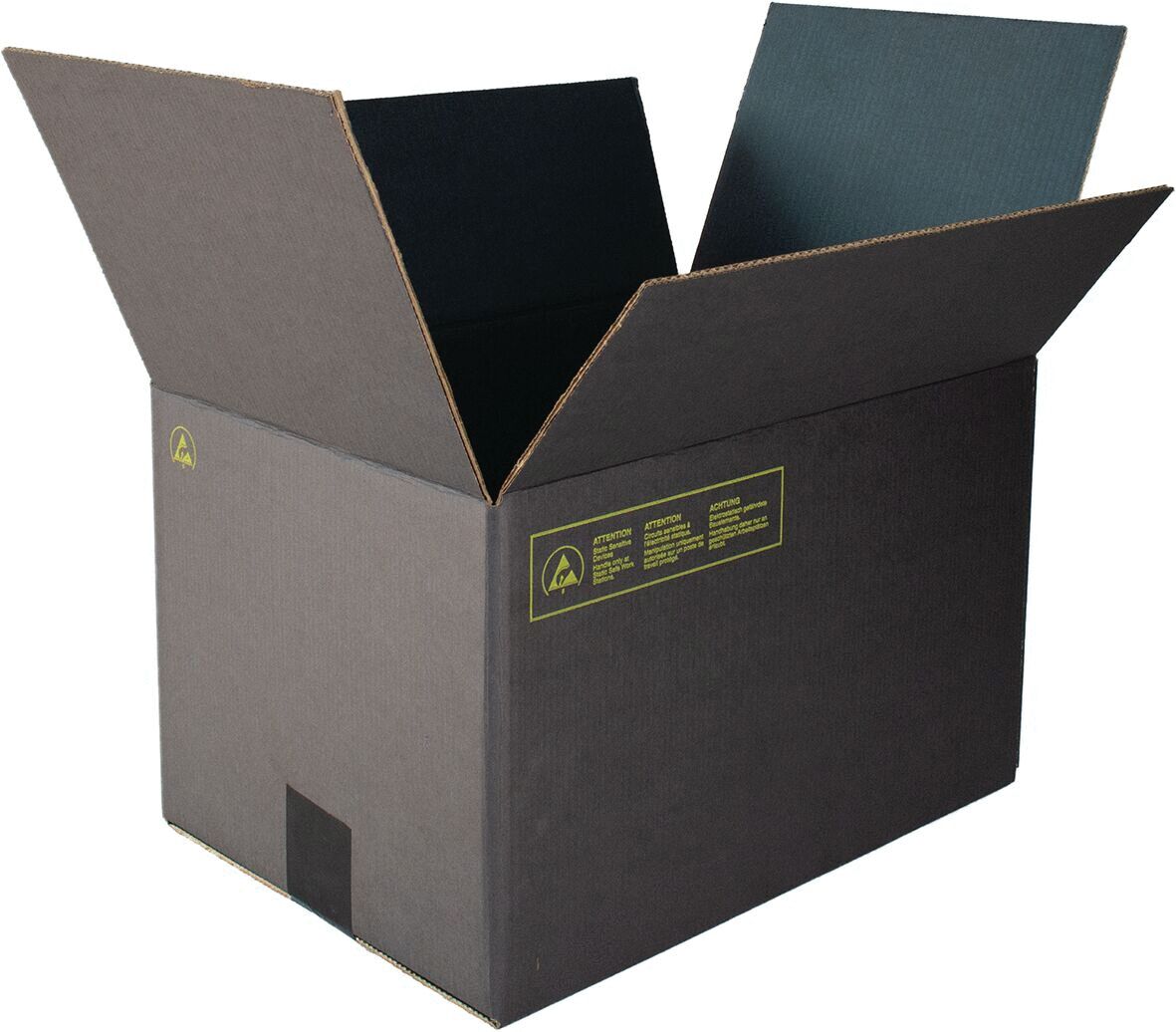

The image shows an open black cardboard box. The sides are folded up, and the insides are in a dark green shade. There is a yellow label on the box.
Preview: It is a rectangular, black cardboard box. The front features an inscription in yellow lettering. The cardboard appears sturdy and has a smooth, matte surface.
Preview: The image shows an open black cardboard box. The sides are folded up, and the insides are in a dark green shade. There is a yellow label on the box.
CORTRONIC American Box TAB 362 x 251 x 220 mm
(Product No.: COR-15.TAB)
It is a rectangular, black cardboard box. The front features an inscription in yellow lettering. The cardboard appears sturdy and has a smooth, matte surface.
The image shows an open black cardboard box. The sides are folded up, and the insides are in a dark green shade. There is a yellow label on the box.
Mobile Preview: It is a rectangular, black cardboard box. The front features an inscription in yellow lettering. The cardboard appears sturdy and has a smooth, matte surface.
Mobile Preview: The image shows an open black cardboard box. The sides are folded up, and the insides are in a dark green shade. There is a yellow label on the box.
Notice / Inquire

CORTRONIC American Box TAB 362 x 251 x 220 mm

CORTRONIC American Box TAB 362 x 251 x 220 mm

dpvlink:
24275
inside LxWxH [mm]:
362 x 251 x 220
Dimensions outside:
373 x 259 x 236
Properties:
Further product information

Minimum order:
10 PCE
chevron-down
6.85 CHF

excl. 8.1% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

CORTRONIC American Box TAB 362 x 251 x 220 mm

The CORTRONIC American Box TAB, manufactured by Kolb, is a highly functional packaging solution specifically designed for technical applications. This box, with interior dimensions of 362 x 251 x 220 mm and exterior dimensions of 373 x 259 x 236 mm, not only provides ample space but also effectively protects its contents from electrostatic discharges, as it complies with the standards of DIN EN 61340-5-1.
The surfaces of the box are coated on both the inside and outside with electrostatic dissipative material and additionally feature a water-repellent and scratch-resistant layer on the outside, making the box particularly durable. The black box is also stackable, which simplifies storage and transport. The surface resistance is between 10^7 and 10^8 Ohm, ensuring high shielding effectiveness.
The box is fully recyclable and features standard prints such as the ESD warning label, type designation, and the recycling symbol, to support sustainability efforts and ease handling.
Color
Color
black
Height
Height
236 mm
Internal height
220 mm
Internal length
362 mm
Internal width
Internal width
251 mm
Length
Length
373 mm
Width
Width
259 mm
Surface resistance Rs
Surface resistance Rs
107 - 108 Ω
recyclable
recyclable
yes
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a roll of black tape. It has a round core on which the adhesive surface is rolled up. The outside is smooth and even.
Adhesive tape black 50 mm x 66 m for Cortronic...
Tape black for Cortronic partition container
50mm x 66m

+++Minimum order quantity 10 pieces+++
dpvlink
24358

0.70 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 289
Complete Catalog 2023 - 2024

Product Family

CORTRONIC American Box TAB

The CORTRONIC American Box TAB made of corrugated cardboard is a highly functional packaging solution specially developed for the protection of electronic components. The folding boxes have the following common properties:

  • interior and exterior with electrostatically dissipative coating and sealing
  • exterior with water-repellent and scratch-resistant coating
  • recyclable
  • High shielding
  • color: black
  • Standard imprint: ESD warning imprint, type designation, recycling symbol
  • In compliance with the ESD standard DIN EN 61340-5-1

Article image
Article description
inside LxWxH [mm]
Dimensions outside
Price
Compare
NEW
COR-10.TAB - CORTRONIC American Box TAB 362 x 251 x 140 mm
COR-10.TAB
CORTRONIC American Box TAB 362 x 251 x 140 mm
362 x 251 x 140
373 x 259 x 156
6.30 CHF
COR-15.TAB - CORTRONIC American Box TAB 362 x 251 x 220 mm
COR-15.TAB
CORTRONIC American Box TAB 362 x 251 x 220 mm
362 x 251 x 220
373 x 259 x 236
6.85 CHF
COR-13.TAB - CORTRONIC American Box TAB 362 x 251 x 172 mm
COR-13.TAB
CORTRONIC American Box TAB 362 x 251 x 172 mm
362 x 251 x 172
373 x 259 x 188
6.55 CHF
COR-30.TAB - CORTRONIC American Box TAB 551 x 362 x 172 mm
COR-30.TAB
CORTRONIC American Box TAB 551 x 362 x 172 mm
551 x 362 x 172
562 x 370 x 188
10.45 CHF
COR-35.TAB - CORTRONIC American Box TAB 551 x 362 x 220 mm
COR-35.TAB
CORTRONIC American Box TAB 551 x 362 x 220 mm
551 x 362 x 220
562 x 370 x 236
10.35 CHF
