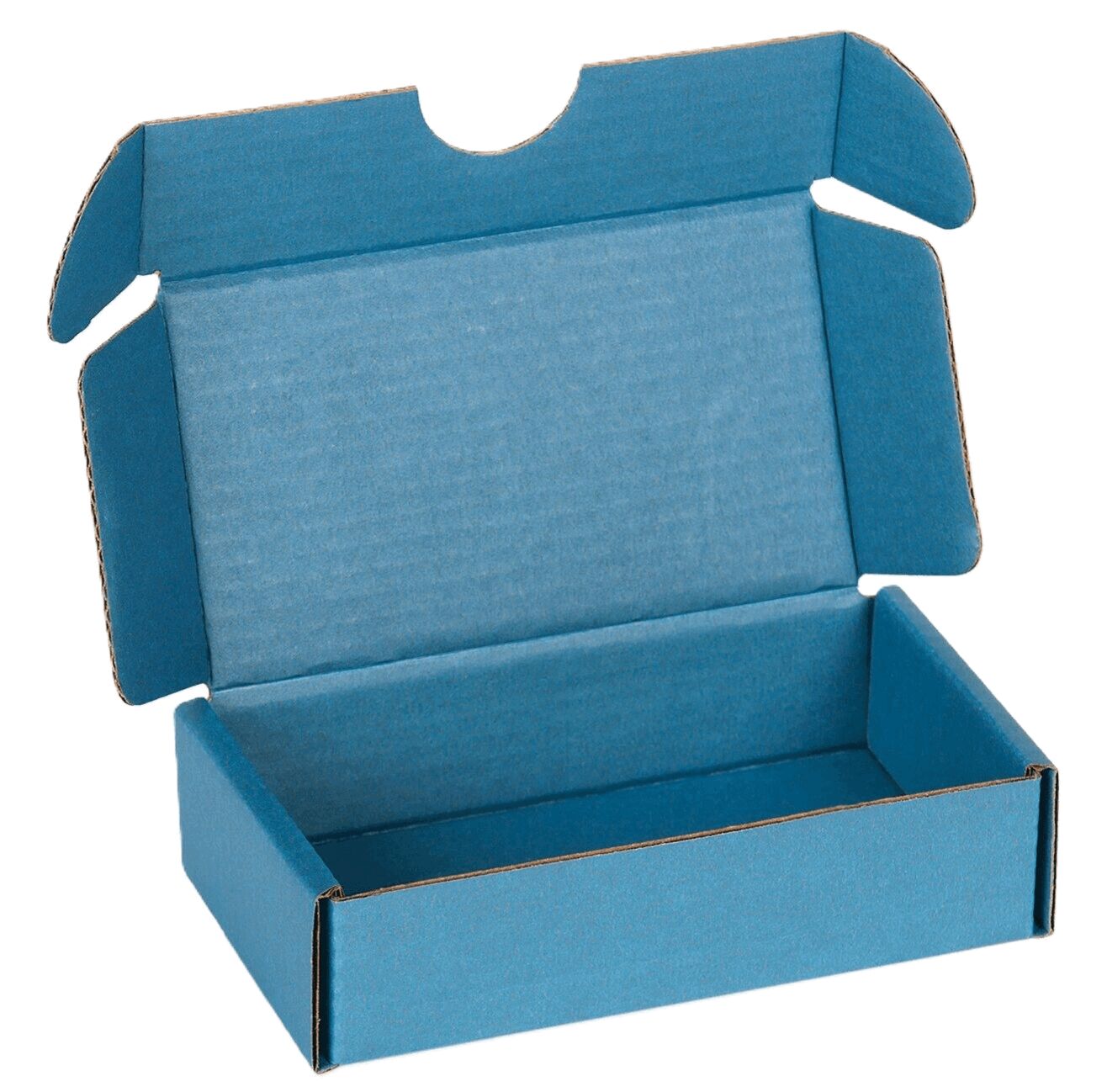

CORTRONIC Shipping box 120x80x30 mm

Name: CORTRONIC Shipping box 120x80x30 mm
SKU: COR-06.TVS
Price: 1.20 CHF
Availability: InStock

ArticleNo: COR-06.TVS

CORTRONIC Shipping box 120x80x30 mm

dpvlink:

626

inside LxWxH [mm]:

120 x 80 x 30

Foam:

without foam

Properties:

Further product information

Minimum order:

10 PCE

Internal length x Internal width x Internal height / Foam:

NEW

1.20 CHF

excl. 8.1% tax

10 PCE

Compare

Notice / Inquire

Product Info

CORTRONIC Shipping box 120x80x30 mm

The CORTRONIC® shipping box, manufactured by Kolb, offers an optimal solution for the safe and environmentally friendly shipping of sensitive electronic components. With internal dimensions of 120 x 80 x 30 mm and the robust Cortronic 7.24 B-flute, the box is specifically designed for electrostatic shielding. The box is flat-laying and features conductive inside and outside surfaces, ensuring a fast discharge time of less than 1 second and effectively shielding electrostatic discharges under 10 nJ.
The surface resistance is between 10^7 and 10^8 Ohms, ensuring high shielding properties. The box is presented in an attractive blue and features a standard print that includes ESD warning notices in three languages (EN/FR/DE), the type designation, and a recycling symbol. This product is not only reusable but also fully recyclable, contributing to the sustainability of your operation. The execution according to Fefco 0427 guarantees high product quality and reliability in the shipping process.

Details

Foam Foam: without foam
Color Color: blue
Internal height: 30 mm
Internal length: 120 mm
Internal width Internal width: 80 mm
Conductivity Conductivity: dissipative / shielding
Electrostatic shielding Electrostatic shielding: <10 nJ
Static decay time max. Static decay time max.: <1 s
Surface resistance Rs Surface resistance Rs: 10⁷ - 10⁸ Ω
recyclable recyclable: yes

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

CORTRONIC® Shipping boxes standard

The CORTRONIC standard shipping boxes offer an optimum solution for the safe and electrostatically protected transportation of products. Matching foam inserts are available under the following link. The shipping boxes have the following common features:
