CORTRONIC Shipping box 420x220x100 mm

Name: CORTRONIC Shipping box 420x220x100 mm
SKU: COR-67.TVS
Price: 9.85 CHF
Availability: InStock

ArticleNo: COR-67.TVS

CORTRONIC Shipping box 420x220x100 mm

dpvlink:

626

inside LxWxH [mm]:

420 x 220 x 100

Foam:

without foam

Properties:

Further product information

Minimum order:

10 PCE

Internal length x Internal width x Internal height / Foam:

NEW

9.85 CHF

excl. 8.1% tax

10 PCE

Compare

Notice / Inquire

Product Info

CORTRONIC Shipping box 420x220x100 mm

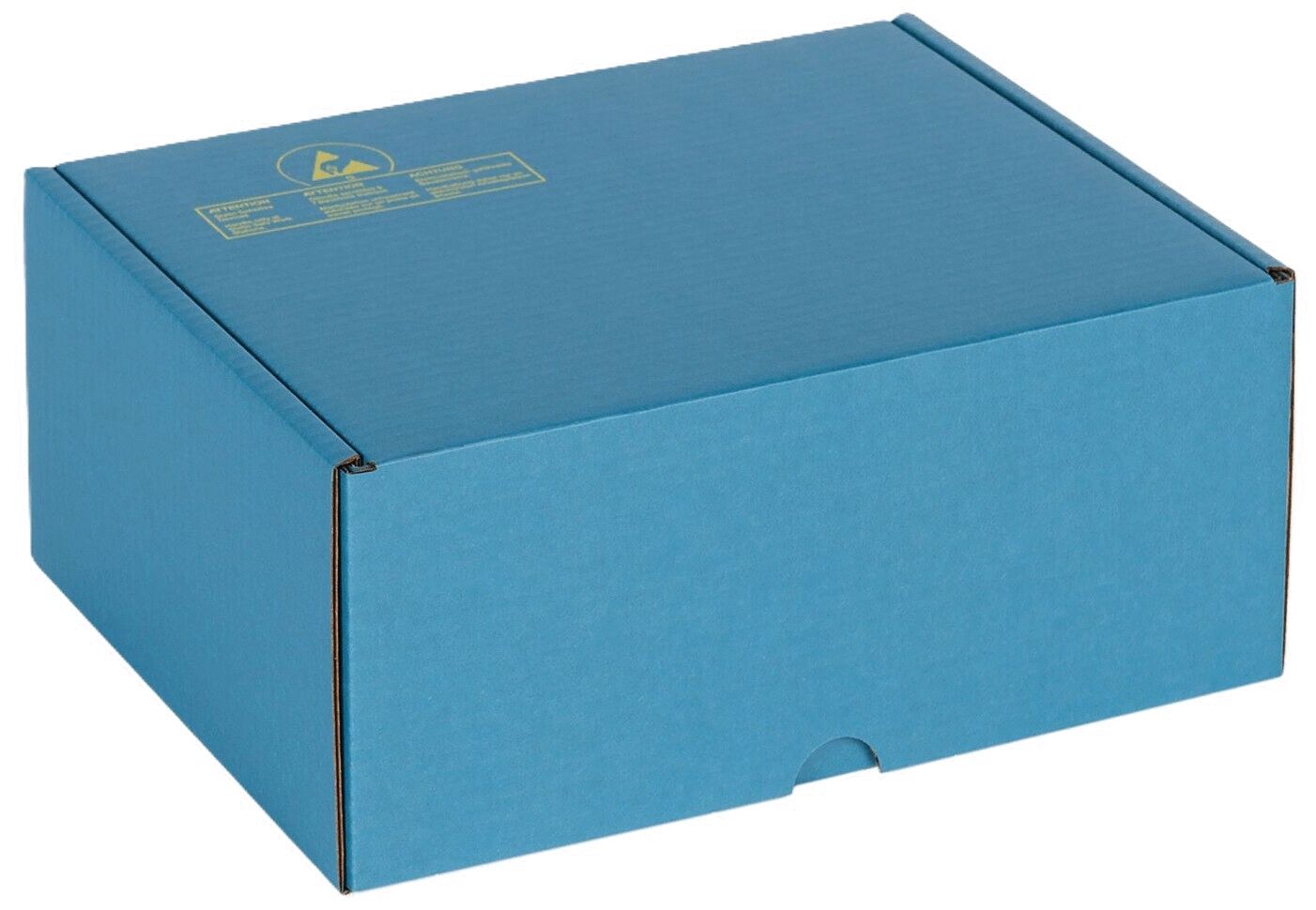

The CORTRONIC shipping box, manufactured by Kolb, measures 420x220x100 mm and provides an optimal solution for the secure transport of sensitive electronic components. This box is characterized by its conductive properties, with an inner and outer surface that effectively dissipate electrostatic charges. The surface resistance of the inner and outer covers ranges between 10^7 and 10^8 Ohms, making the box a reliable protection against electrostatic discharges.
The box is presented in an appealing blue and features a standard print that includes an ESD warning, type designation, and a recycling symbol. The prints are available in multiple languages (EN/FR/DE), facilitating international use. The CORTRONIC shipping box is standardized according to Fefco 0427 and is made from a Cortronic 7.24 B-flute, enhancing its shielding properties.
In addition to its high functionality, the box is reusable and fully recyclable, making it an environmentally friendly packaging option. The box is delivered flat and is easy to assemble. Optional foam inserts are available, providing additional protection.

Details

Foam Foam: without foam
Color Color: blue
Internal height: 100 mm
Internal length: 420 mm
Internal width Internal width: 220 mm
Conductivity Conductivity: dissipative / conductive
Electrostatic shielding Electrostatic shielding: <10 nJ
Static decay time max. Static decay time max.: <1 s
Surface resistance Rs Surface resistance Rs: 10⁷ - 10⁸ Ω
recyclable recyclable: yes

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

CORTRONIC® Shipping boxes standard

The CORTRONIC standard shipping boxes offer an optimum solution for the safe and electrostatically protected transportation of products. Matching foam inserts are available under the following link. The shipping boxes have the following common features:
