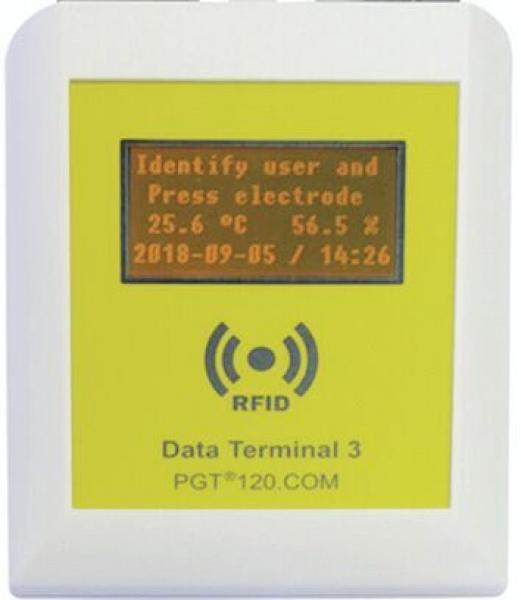

The image shows a rectangular device with a yellow frame and a screen. The display shows information such as temperature, humidity, and a date/time stamp. An RFID symbol is visible.
Preview: The image shows a rectangular device with a yellow frame and a screen. The display shows information such as temperature, humidity, and a date/time stamp. An RFID symbol is visible.
Preview: Image
Data Terminal Controller DT3
(Product No.: 7100.PGT120.COM.DT3)
The image shows a rectangular device with a yellow frame and a screen. The display shows information such as temperature, humidity, and a date/time stamp. An RFID symbol is visible.
Mobile Preview: The image shows a rectangular device with a yellow frame and a screen. The display shows information such as temperature, humidity, and a date/time stamp. An RFID symbol is visible.
Mobile Preview: Image

Data Terminal Controller DT3

Data Terminal Controller DT3

dpvlink:
22373
Further product information


Compare Compare
Notice / Inquire
Product Info

Data Terminal Controller DT3

The Data Terminal Controller DT3 is an advanced device for logging measurement data, specifically designed for use with the Personnel Grounding Tester PGT®120.COM. This model features integrated components such as an RFID reader, a display, and a switching contact, allowing for versatile use.
The technical characteristics of the DT3 include easy integration into existing infrastructures and the ability to connect multiple PGT®120.COM stations into a network. Existing employee badges or time recording cards can still be used, while customer systems can be connected via an open database interface. The measurement data is available within seconds for further processing, and there is the option to use various databases. Moreover, it can be combined with existing access systems, supported by secure, encrypted network communication.
The dimensions of the DT3 are 120 mm in width, 63 mm in height, and 150 mm in length. The device operates at a voltage of 100-240 V and weighs 0.35 kg. It is designed for an operating temperature range of 0 to 40 °C and a maximum humidity of 75%.
Included in the delivery are the Data Terminal DT3, a power supply with interchangeable adapters for EU/USA, a USB to Micro-USB connection cable to activate the internal RFID card reader, and a quick start guide in German and English.
Voltage
Voltage
100 - 240 V
Height
Height
63 mm
Length
Length
150 mm
Width
Width
120 mm
Humidity
Humidity
75 %
Operating temperature
Operating temperature
0 - 40 °C
Weight
Weight
0.35 kg
Show accessories
Accessories

Accessories

The image shows a round knob with a glass surface and grooved design. The bottom is black, and a USB cable leads from it. The knob is likely used for volume control.
Signal light with acoustic signal
Signal light with buzzer
(red/yellow/green)
dpvlink
21688

Price on request
Show product
The image shows a black USB hub with an attached USB cable. It has two USB ports on the front and a simple, rectangular design.
4-Port USB Hub
4-port USB hub
dpvlink
21688

10.70 CHF
Show product
The image shows a metallic wedge that is flat on one side and rises to a sharp angle at the top. It has a smooth surface and an opening at the base.
Wall bracket for Data Terminal Controller...
Wall bracket for Data Terminal Controller DT3
dpvlink
21688

Price on request
Show product
The image shows an electrical testing device with two rectangular buttons, a display on the right side, and symbols for various functions. The color is primarily yellow and black.
Holder extension for Data Terminal 3
Holder extension for Data Terminal 3
dpvlink
21688

67.60 CHF
Show product
Calibration for personnel grounding tester...
Calibration for PGT 120 (with certificate)
Device must be sent in for calibration.
dpvlink
26315

109.60 CHF
Show product
The image displays a calibration certificate. It includes information on accreditation, test data, and the calibration date. The phrase "DAkkS Calibration" is highlighted in green.
DAkkS/DKD Calibration for PGT 120
DAkkS/DKD calibration pour PGT 120
(with certificate)
dpvlink
26315

Price on request
Show product
The image shows a USB relay. It has a rectangular, white shape with two buttons and two small LEDs. A transparent USB cable connects it to a computer.
Door opener switching relay for data terminals...
Door opener switching relay for data terminals
DT2, DT2.1, TC18
dpvlink
21688

Price on request
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 196
Complete Catalog 2023 - 2024

Product Family

PGT 120-COM Data Terminal DT3

Article image
Article description
Voltage
Height
Length
Width
Humidity
Operating temperature
Weight
Price
Compare
7100.PGT120.COM.DT3 - Data Terminal Controller DT3
7100.PGT120.COM.DT3
Data Terminal Controller DT3
100 - 240 V
63 mm
150 mm
120 mm
75 %
0 - 40 °C
0.35 kg
-
