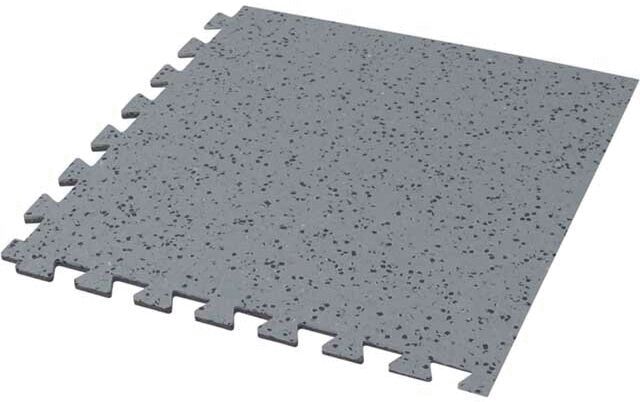

The image shows a square, gray floor tile with small black speckles. The edges are dimpled to facilitate easy installation.
ECOSTAT-DF Corner ramp element
(Product No.: 1330.PF.06.RES)
The image shows a square, gray floor tile with small black speckles. The edges are dimpled to facilitate easy installation.
Notice

ECOSTAT-DF Corner ramp element

ECOSTAT-DF Corner ramp element

dpvlink:
23230
Width [mm]:
310
Length [mm]:
310
Thickness [mm]:
6
Properties:
Further product information

53.50 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

ECOSTAT-DF Corner ramp element

The ECOSTAT-DF ramp corner element is a two-layer composite covering in tile form, distinguished by its puzzle-like dovetail connection. This product is specifically designed for technical applications where volume conductivity and abrasion resistance are required. It is available with a thickness of 6 mm and dimensions of 310 x 310 mm, and meets the ESD standard DIN EN 61340-5-1, making it ideal for ESD-sensitive environments.
The material is flame-retardant (fire class Bfl – s1) and has a resistance to ground of 10^4 - 10^5 Ω. The high Shore hardness of 90 Shore A ensures excellent resistance under mechanical stress. Thanks to its suitability for chair casters and forklifts, and the fact that it is self-laying and walkable during installation, the product minimizes downtime in operational processes. The ease of machining with woodworking tools allows for straightforward customization to specific requirements, while the gray color provides an attractive appearance.
Width [mm]
Width
310
Length [mm]
Length
310
Thickness [mm]
Thickness
6
Fire behavior
Fire behavior
hardly inflammable
Fire class
Fire class
Bfl – s1
Bleeder resistance
Bleeder resistance
104 - 105 Ω
Shore hardness
Shore hardness
90 Shore A
ESD
ESD
yes
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
