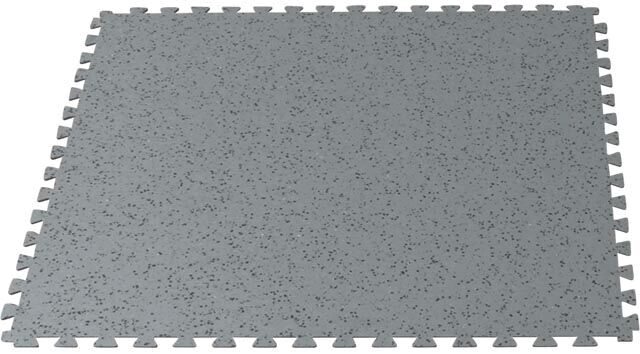

The image shows a square, gray mat with a textured surface and jagged edges, which are designed for easy connection with other mats. It is durable and versatile.

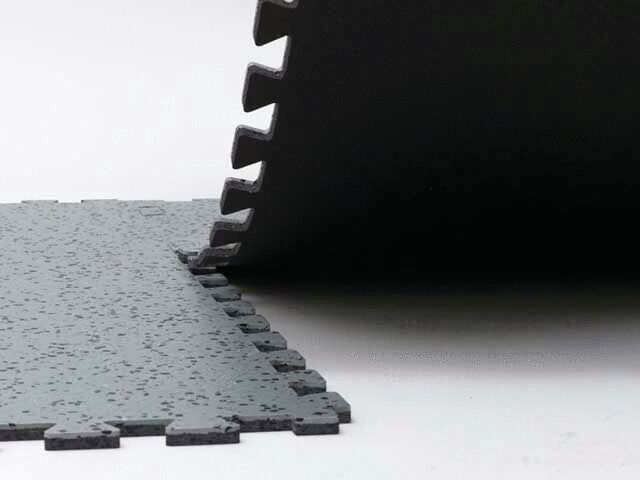

The image shows a black, textured surface made of thick mats stacked at one edge. One mat is slightly lifted, while the other is flat. The surface has a rough texture.
Preview: The image shows a square, gray mat with a textured surface and jagged edges, which are designed for easy connection with other mats. It is durable and versatile.
Preview: The image shows a black, textured surface made of thick mats stacked at one edge. One mat is slightly lifted, while the other is flat. The surface has a rough texture.
ECOSTAT-DF INTERLOCKING SYSTEM 6.0
(Product No.: 1330.PF.06)
The image shows a square, gray mat with a textured surface and jagged edges, which are designed for easy connection with other mats. It is durable and versatile.
The image shows a black, textured surface made of thick mats stacked at one edge. One mat is slightly lifted, while the other is flat. The surface has a rough texture.
Mobile Preview: The image shows a square, gray mat with a textured surface and jagged edges, which are designed for easy connection with other mats. It is durable and versatile.
Mobile Preview: The image shows a black, textured surface made of thick mats stacked at one edge. One mat is slightly lifted, while the other is flat. The surface has a rough texture.
Notice

ECOSTAT-DF INTERLOCKING SYSTEM 6.0

ECOSTAT-DF INTERLOCKING SYSTEM 6.0

dpvlink:
23230
Width [mm]:
635
Length [mm]:
635
Thickness [mm]:
6
Properties:
Further product information

Minimum order:
10 MTK
129.85 CHF

excl. 8.1% tax

10 MTK
Compare Compare
Notice
Product Info

ECOSTAT-DF INTERLOCKING SYSTEM 6.0

The ECOSTAT-DF PUZZLE 6.0 is an innovative, dual-layer composite tile that impresses with its puzzle-like dovetail connection. These tiles are specifically designed for technical applications where volume conductivity according to the ESD standard DIN EN 61340-5-1 is required. With dimensions of 635 x 635 x 6 mm and in the color gray, they not only offer an aesthetic solution but also high functionality.
The tiles are abrasion-resistant, have a conductive back, and are suitable for both chair casters and forklifts, making them ideal for dynamic work environments. Thanks to a Shore hardness of 90 Shore A and a fire class of Bfl – s1, they are flame retardant and provide high safety at the workplace. The resistance to ground lies between 10^4 and 10^5 Ω, ensuring continued ESD safety.
Particularly noteworthy is the ease of handling of the ECOSTAT-DF PUZZLE 6.0 tiles. They are self-laying and can be walked on during installation, which minimizes downtime. The tiles can be easily worked with woodworking tools, simplifying installation. These features make the ECOSTAT-DF PUZZLE 6.0 an optimal solution for technical rooms where efficiency and safety are top priorities.
Width [mm]
Width
635
Length [mm]
Length
635
Thickness [mm]
Thickness
6
Fire behavior
Fire behavior
hardly inflammable
Fire class
Fire class
Bfl – s1
Bleeder resistance
Bleeder resistance
104 - 105 Ω
Shore hardness
Shore hardness
90 Shore A
ESD
ESD
yes
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
