Table mats 600 x 900 mm, grey
(Product No.: 1402.663.S)
The image displays a monochrome, matte surface in shades of gray, without any discernible patterns or objects. It appears simple and neutral, almost like a blank sheet.
The image shows a gray surface with a rounded corner. In the top left, there is a yellow label with the text "DPV EBP" and a mounting point.
Mobile Preview: The image displays a monochrome, matte surface in shades of gray, without any discernible patterns or objects. It appears simple and neutral, almost like a blank sheet.
Mobile Preview: The image shows a gray surface with a rounded corner. In the top left, there is a yellow label with the text "DPV EBP" and a mounting point.
Notice / Inquire

Table mats 600 x 900 mm, grey

Table mats 600 x 900 mm, grey

dpvlink:
2663
Color:
grey
Width :
600 mm
Length :
900 mm
Thickness :
2 mm
Properties:
Further product information
Table Covering Cutting
configure_now


chevron-down
43.25 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Table mats 600 x 900 mm, grey

The ESD table mat in platinum gray with dimensions of 600 x 900 mm and a thickness of 2 mm provides an optimal solution for work environments that need to prevent electrostatic discharges. Made from highly wear-resistant synthetic rubber, this mat is suitable for both loose laying and adhesive bonding. It prevents corrosion on electronic contacts and is resistant to solder and heat up to 60°C.
The mat is characterized by its dissipative, wear-resistant top layer and a high-resistance bottom layer. It is easy to clean and remains permanently elastic. Additionally, it is free from PVC, plasticizers, halogens, and heavy metals, making it an environmentally friendly choice. The delivery includes two snap connectors (DK 10 mm) on the short side and rounded corners, although other connectors are available.
The table mat meets the ESD standard DIN EN 61340-5-1 and offers a point-to-point resistance of 10^7 Ω. Optionally, it can be fixed with double-sided adhesive tape or Quick-Lift fabric tape if a more permanent installation is required.
Color
Color
grey
Width
Width
600 mm
Length
Length
900 mm
Thickness
Thickness
2 mm
Point-to-point resistance Rp-p
Point-to-point resistance Rp-p
107 Ω
Material
Material
synthetic rubber
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a blue mat with a gray pillow, a yellow warning sign, and a connecting cable. A microphone is integrated into the cable and connected.
Accessory set 1 for table coverings
- 1 x 2850.10020.EPA Warning sign PVC 100x50 mm

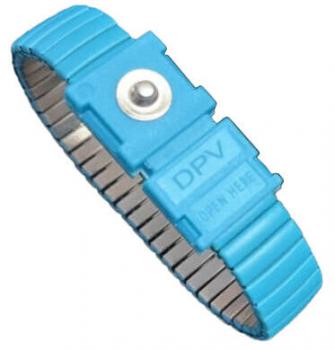

- 1 x 2050.750.3 Wrist strap DK 3
- 1 x 2101.752.3.10 Grounding cable DK 3/10
- 1 x 2200.101 Grounding module
dpvlink
24891

Price on request
Show product
The image shows a blue mat with a gray pillow, a yellow warning sign, and a connecting cable. A microphone is integrated into the cable and connected.
Accessory set 1 for table coverings (Switzerland)...
- 1 x Art. 2850.10050.EPA Sign PVC 100x50 mm
- 1 x Art. 2050.750.3 Wrist strap DK 3
- 1 x Art. 2101.752.3.10 Grounding cable DK 3/10
- 1 x Art. 2200.101.CH grounding module
- 1 x Art. 2850.10050.EPA Warning Sign PVC 100x50 mm - M2-4
- 1 x Art. 2050.750.3 Wrist Strap DK 3 - M3-45
- 1 x Art. 2101.752.3.10 Ground cable DK 3/10 - M3-36
- 1 x Art. 2200.101.CH Grounding Module - M3-47
dpvlink
24891

30.15 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 147
Complete Catalog 2023 - 2024
Configurators:
Table Covering Cutting

Product Family

Table mats

  • suitable for loose laying as well as for bonding
  • causes no corrosion on electronic contacts
  • resistant to solder and heat up to 60°C
  • dissipative, wear-resistant wear layer, high-impedance bottom layer
  • easy to clean
  • two-layer structure
  • highly wear-resistant rubber material, permanently elastic
  • abrasion-resistant
  • dimensional stability
  • environmentally friendly
  • free from PVC, plasticizers, halogens and heavy metals
  • Material thickness: 2 mm
  • Delivery incl. 2 snap connections DK 10 mm on the short side and rounded corners, one with EBP label (other connections available)

(if necessary, fixation with double-sided adhesive tape or Quick-lift fabric tape)

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
Color
Width
Length
Thickness
Price
Compare
1402.662.S.1 - Table mats 600 x 600 mm, beige
1402.662.S.1
Table mats 600 x 600 mm, beige
beige
600 mm
600 mm
2 mm
33.20 CHF
1402.662.S - Table mats 600 x 900 mm, beige
1402.662.S
Table mats 600 x 900 mm, beige
beige
600 mm
900 mm
2 mm
43.25 CHF
1402.662.S.2 - Table mats 600 x 1200 mm, beige
1402.662.S.2
Table mats 600 x 1200 mm, beige
beige
600 mm
1200 mm
2 mm
55.90 CHF
1402.662.S.3 - Table mats 700 x 1200 mm, beige
1402.662.S.3
Table mats 700 x 1200 mm, beige
beige
700 mm
1200 mm
2 mm
63.45 CHF
1402.662.S.4 - Table mats 800 x 1200 mm, beige
1402.662.S.4
Table mats 800 x 1200 mm, beige
beige
800 mm
1200 mm
2 mm
71.05 CHF
1402.663.S.1 - Table mats 600 x 600 mm, grey
1402.663.S.1
Table mats 600 x 600 mm, grey
grey
600 mm
600 mm
2 mm
32.70 CHF
1402.663.S - Table mats 600 x 900 mm, grey
1402.663.S
Table mats 600 x 900 mm, grey
grey
600 mm
900 mm
2 mm
43.25 CHF
1402.663.S.2 - Table mats 600 x 1200 mm, grey
1402.663.S.2
Table mats 600 x 1200 mm, grey
grey
600 mm
1200 mm
2 mm
55.90 CHF
1402.663.S.3 - Table mats 700 x 1200 mm, grey
1402.663.S.3
Table mats 700 x 1200 mm, grey
grey
700 mm
1200 mm
2 mm
63.45 CHF
1402.663.S.4 - Table mats 800 x 1200 mm, grey
1402.663.S.4
Table mats 800 x 1200 mm, grey
grey
800 mm
1200 mm
2 mm
71.05 CHF
1402.664.S.1 - Table mats 600 x 600 mm, green
1402.664.S.1
Table mats 600 x 600 mm, green
green
600 mm
600 mm
2 mm
32.70 CHF
1402.664.S - Table mats 600 x 900 mm, green
1402.664.S
Table mats 600 x 900 mm, green
green
600 mm
900 mm
2 mm
43.25 CHF
1402.664.S.2 - Table mats 600 x 1200 mm, green
1402.664.S.2
Table mats 600 x 1200 mm, green
green
600 mm
1200 mm
2 mm
55.90 CHF
1402.664.S.3 - Table mats 700 x 1200 mm, green
1402.664.S.3
Table mats 700 x 1200 mm, green
green
700 mm
1200 mm
2 mm
63.45 CHF
1402.664.S.4 - Table mats 800 x 1200 mm, green
1402.664.S.4
Table mats 800 x 1200 mm, green
green
800 mm
1200 mm
2 mm
71.05 CHF
1402.665.S.1 - Table mats 600 x 600 mm, light blue
1402.665.S.1
Table mats 600 x 600 mm, light blue
light blue
600 mm
600 mm
2 mm
32.70 CHF
1402.665.S - Table mats 600 x 900 mm, light blue
1402.665.S
Table mats 600 x 900 mm, light blue
light blue
600 mm
900 mm
2 mm
43.25 CHF
1402.665.S.2 - Table mats 600 x 1200 mm, light blue
1402.665.S.2
Table mats 600 x 1200 mm, light blue
light blue
600 mm
1200 mm
2 mm
55.90 CHF
1402.665.S.3 - Table mats 700 x 1200 mm, light blue
1402.665.S.3
Table mats 700 x 1200 mm, light blue
light blue
700 mm
1200 mm
2 mm
63.45 CHF
1402.665.S.4 - Table mats 800 x 1200 mm, light blue
1402.665.S.4
Table mats 800 x 1200 mm, light blue
light blue
800 mm
1200 mm
2 mm
71.05 CHF
1402.666.S.1 - Table mats 600 x 600 mm, royal blue
1402.666.S.1
Table mats 600 x 600 mm, royal blue
royal blue
600 mm
600 mm
2 mm
32.70 CHF
1402.666.S - Table mats 600 x 900 mm, royal blue
1402.666.S
Table mats 600 x 900 mm, royal blue
royal blue
600 mm
900 mm
2 mm
43.25 CHF
1402.666.S.2 - Table mats 600 x 1200 mm, royal blue
1402.666.S.2
Table mats 600 x 1200 mm, royal blue
royal blue
600 mm
1200 mm
2 mm
55.90 CHF
1402.666.S.3 - Table mats 700 x 1200 mm, royal blue
1402.666.S.3
Table mats 700 x 1200 mm, royal blue
royal blue
700 mm
1200 mm
2 mm
63.45 CHF
1402.666.S.4 - Table mats 800 x 1200 mm, royal blue
1402.666.S.4
Table mats 800 x 1200 mm, royal blue
royal blue
800 mm
1200 mm
2 mm
71.05 CHF
Show Compare List (0)
