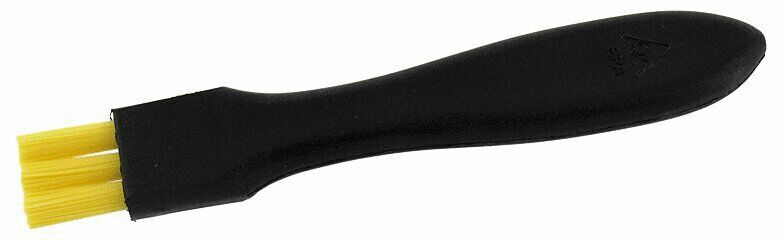

The image shows a brush with a black handle and yellow bristles. The handle is ergonomically shaped and fits well in the hand. The bristles are densely arranged.
ESD Nylon flat brushes
(Product No.: 6104.Y.104)
The image shows a brush with a black handle and yellow bristles. The handle is ergonomically shaped and fits well in the hand. The bristles are densely arranged.
Notice / Inquire

ESD Nylon flat brushes

ESD Nylon flat brushes

dpvlink:
8607
Hardness:
hard
Width :
19 mm
Bristles :
nylon bristles / dissipative
Properties:
Further product information

14.10 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD Nylon flat brushes

The ESD flat brush Nylon, designed for use on ESD-sensitive flat assemblies, prevents the formation of static charges during cleaning processes due to its conductive properties. This brush features permanently conductive nylon bristles and a volume-conductive plastic handle, which is additionally marked with an ESD warning symbol. The bristles of the brush have a diameter of 0.4 mm and a length of 20 mm, enabling effective and safe cleaning.
Furthermore, the product is available in a hard version with a width of 19 mm and yellow nylon bristles that comply with the standards DIN EN 61340-5-1 and have a resistance to discharge between 10^9 and 10^10 Ω. These technical specifications ensure high reliability and durability of the product while meeting all relevant safety standards in handling electrostatically endangered components.
Hardness
Hardness
hard
Width
Width
19 mm
Bristles
Bristles
nylon bristles / dissipative
Bristle color
Bristle color
yellow
Brush length
Brush length
20 mm
Bleeder resistance
Bleeder resistance
109 - 1010 Ω
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 172
Complete Catalog 2023 - 2024

Product Family

ESD Nylon flat brushes

When using these conductive brushes, cleaning work does not cause static charges on ESD-sensitive flat assemblies.

  • Integrated, permanently dissipative nylon bristles
  • Volume-conductive plastic handle with ESD warning symbol
  • Bristle diameter 0.4 mm

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
Hardness
Width
Bristles
Price
Compare
6103.B.103 - ESD Nylon flat brush
6103.B.103
ESD Nylon flat brush
hard
12.5 mm
nylon bristles / dissipative
11.75 CHF
6103.B.104 - ESD Nylon flat brush
6103.B.104
ESD Nylon flat brush
hard
13 mm
nylon bristles / dissipative
13.50 CHF
6103.B.105 - ESD Nylon flat brush
6103.B.105
ESD Nylon flat brush
hard
25 mm
nylon bristles / dissipative
14.55 CHF
6103.B.106 - ESD Nylon flat brush
6103.B.106
ESD Nylon flat brush
hard
38 mm
nylon bristles / dissipative
14.75 CHF
6103.B.107 - ESD Nylon flat brush
6103.B.107
ESD Nylon flat brush
hard
50 mm
nylon bristles / dissipative
17.55 CHF
6104.Y.103 - ESD Nylon flat brushes
6104.Y.103
ESD Nylon flat brushes
hard
12.5 mm
nylon bristles / dissipative
12.30 CHF
6104.Y.104 - ESD Nylon flat brushes
6104.Y.104
ESD Nylon flat brushes
hard
19 mm
nylon bristles / dissipative
14.10 CHF
6104.Y.105 - ESD Nylon flat brushes
6104.Y.105
ESD Nylon flat brushes
hard
25 mm
nylon bristles / dissipative
15.15 CHF
6104.Y.106 - ESD Nylon flat brushes
6104.Y.106
ESD Nylon flat brushes
hard
38 mm
nylon bristles / dissipative
15.35 CHF
6104.Y.107 - ESD Nylon flat brushes
6104.Y.107
ESD Nylon flat brushes
hard
50 mm
nylon bristles / dissipative
18.25 CHF
