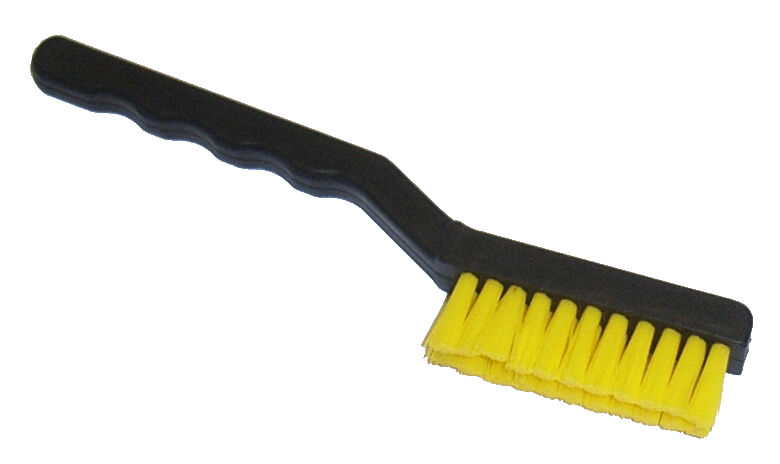

The image shows a small hand brush with a black handle and a brushing surface made of yellow bristles. The bristles are closely spaced and soft.
ESD Nylon hard brush
(Product No.: 6104.Y.9002)
The image shows a small hand brush with a black handle and a brushing surface made of yellow bristles. The bristles are closely spaced and soft.
Notice

ESD Nylon hard brush

ESD Nylon hard brush

dpvlink:
8616
Hardness:
hard
Width [mm]:
60
Properties:
Further product information

14.15 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

ESD Nylon hard brush

The ESD stiff brush Nylon is specifically designed for cleaning ESD-sensitive flat assemblies to prevent static charges. This brush features electrostatically conductive, yellow nylon bristles with a diameter of 0.4 mm and a length of 17 mm. The handle made of volume-conductive plastic is marked with an ESD warning symbol and ensures permanent conductivity. The brush meets the ESD standard DIN EN 61340-5-1 and offers a resistance range between 10^9 and 10^10 Ω. With a width of 60 mm and bristles classified as stiff, this tool is ideal for precise cleaning tasks on sensitive components.
Hardness
Hardness
hard
Width [mm]
Width
60
Bristle color
Bristle color
yellow
Brush length
Brush length
17 mm
Bleeder resistance
Bleeder resistance
109 - 1010 Ω
Bristles
Bristles
nylon bristles / dissipative
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 172
Complete Catalog 2023 - 2024
