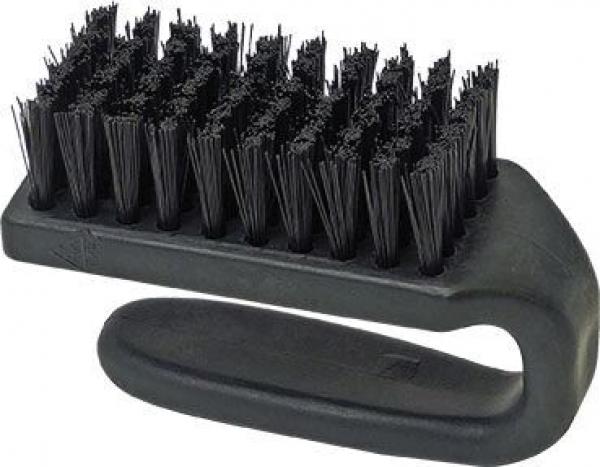

The image shows a black brush with an ergonomic handle. The brush head has many short nylon bristles, densely arranged, used for cleaning or grooming.
ESD Nylon hard brush
(Product No.: 6103.B.4000)
The image shows a black brush with an ergonomic handle. The brush head has many short nylon bristles, densely arranged, used for cleaning or grooming.
Notice / Inquire

ESD Nylon hard brush

ESD Nylon hard brush

dpvlink:
8616
Hardness:
hard
Width :
80 mm
Properties:
Further product information

28.80 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD Nylon hard brush

The ESD-hard brush made of nylon is specifically designed for cleaning ESD-sensitive flat assemblies to prevent static charges. The handle of this brush is made from volume-conductive plastic and is marked with an ESD warning symbol, confirming compliance with the ESD standard DIN EN 61340-5-1. The brush measures 35 x 80 mm and features electrically conductive, integrated nylon bristles that are hard and have a length of 22 mm. The diameter of the bristles is 0.4 mm, and they are presented in black. The resistance to ground of this brush is between 10^4 and 10^5 Ohms, highlighting its reliable conductivity. These features make the brush an indispensable tool for the safe handling and maintenance of sensitive electronic components.
Hardness
Hardness
hard
Width
Width
80 mm
Bristle color
Bristle color
black
Brush length
Brush length
22 mm
Bleeder resistance
Bleeder resistance
104 - 105 Ω
Bristles
Bristles
nylon bristles / dissipative
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 172
Complete Catalog 2023 - 2024

Product Family

ESD Nylon hard brush

When using these conductive brushes, cleaning work does not cause static charges on ESD-sensitive flat assemblies.

  • Integrated, permanently dissipative nylon bristles
  • Volume-conductive plastic handle with ESD warning symbol
  • Bristle diameter 0.4 mm

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
Hardness
Width
Price
Compare

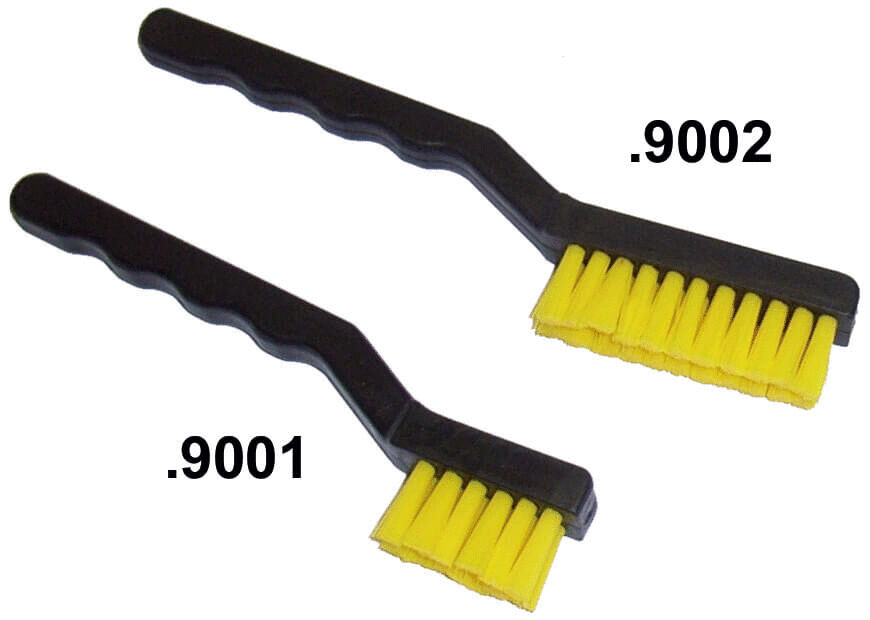

6103.B.9001 - ESD Nylon hard brush
6103.B.9001
ESD Nylon hard brush
hard
30 mm
11.45 CHF
6103.B.9002 - ESD Nylon hard brush
6103.B.9002
ESD Nylon hard brush
hard
60 mm
14.05 CHF
6103.B.4000 - ESD Nylon hard brush
6103.B.4000
ESD Nylon hard brush
hard
80 mm
28.80 CHF
6104.Y.9001 - ESD Nylon hard brush
6104.Y.9001
ESD Nylon hard brush
hard
30 mm
11.50 CHF
6104.Y.9002 - ESD Nylon hard brush
6104.Y.9002
ESD Nylon hard brush
hard
60 mm
14.15 CHF
6104.Y.4000 - ESD Nylon hard brush
6104.Y.4000
ESD Nylon hard brush
hard
80 mm
29.10 CHF
