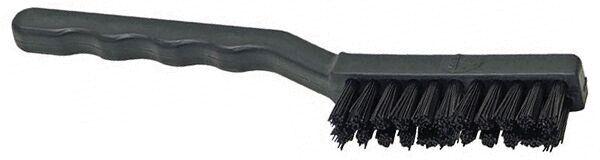

The image shows a black wire brush with a long, ergonomic handle. The bristles are stiff and dense, ideal for cleaning surfaces.
ESD Nylon hard brush
(Product No.: 6103.B.9002)
The image shows a black wire brush with a long, ergonomic handle. The bristles are stiff and dense, ideal for cleaning surfaces.
Notice / Inquire

ESD Nylon hard brush

ESD Nylon hard brush

dpvlink:
8616
Hardness:
hard
Width :
60 mm
Properties:
Further product information

14.05 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD Nylon hard brush

The ESD stiff brush Nylon is specifically designed for cleaning ESD-sensitive flat assemblies to prevent static charges. This brush features electrically conductive nylon bristles that are incorporated into a volume conductive plastic handle with an ESD warning symbol. The bristles have a diameter of 0.4 mm and a length of 24 mm, allowing for effective and even cleaning.
The brush meets the ESD standard DIN EN 61340-5-1 and offers a resistance to discharge between 10^4 and 10^5 Ω. With a width of 60 mm and the stiff nature of the bristles, this tool is excellent for precise cleaning tasks on sensitive electronic components. The black bristles not only support the technical functionality but also contribute to a visually appealing design.
Hardness
Hardness
hard
Width
Width
60 mm
Bristle color
Bristle color
black
Brush length
Brush length
24 mm
Bleeder resistance
Bleeder resistance
104 - 105 Ω
Bristles
Bristles
nylon bristles / dissipative
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 172
Complete Catalog 2023 - 2024

Product Family

ESD Nylon hard brush

When using these conductive brushes, cleaning work does not cause static charges on ESD-sensitive flat assemblies.

  • Integrated, permanently dissipative nylon bristles
  • Volume-conductive plastic handle with ESD warning symbol
  • Bristle diameter 0.4 mm

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
Hardness
Width
Price
Compare
6103.B.9001 - ESD Nylon hard brush
6103.B.9001
ESD Nylon hard brush
hard
30 mm
11.45 CHF
6103.B.9002 - ESD Nylon hard brush
6103.B.9002
ESD Nylon hard brush
hard
60 mm
14.05 CHF
6103.B.4000 - ESD Nylon hard brush
6103.B.4000
ESD Nylon hard brush
hard
80 mm
28.80 CHF
6104.Y.9001 - ESD Nylon hard brush
6104.Y.9001
ESD Nylon hard brush
hard
30 mm
11.50 CHF
6104.Y.9002 - ESD Nylon hard brush
6104.Y.9002
ESD Nylon hard brush
hard
60 mm
14.15 CHF
6104.Y.4000 - ESD Nylon hard brush
6104.Y.4000
ESD Nylon hard brush
hard
80 mm
29.10 CHF
