AeroBar 5225S Ionizing bar 36"/907 mm

(Product No.: 7500.AB.36)

AeroBar 5225S Ionizing bar 36"/907 mm

Name: AeroBar 5225S Ionizing bar 36"/907 mm
SKU: 7500.AB.36
Price: 2254.10 CHF
Availability: InStock

ArticleNo: 7500.AB.36

dpvlink:

24679

Further product information

2,254.10 CHF

1 PCE

Compare

Notice

Product Info

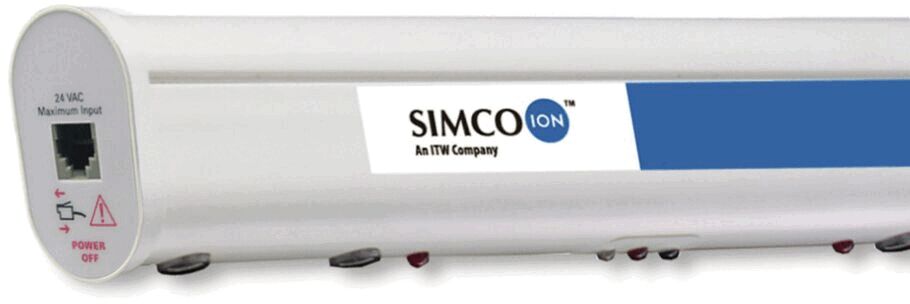

The AeroBar 5225S Ionizing Bar from Simco is specifically designed for use in cleanroom environments and ensures efficient neutralization of static charges. With an active length of 907 mm and overall dimensions of 53 mm in height, 31 mm in width, and 932 mm in length, this device is ideal for applications where precision and cleanroom compatibility are essential. The ionization modes can be switched between pulsed and steady DC, allowing for precise adjustment to specific requirements.
The ionizing bar is equipped with replaceable single-crystal silicon or titanium emitters that meet the highest purity standards (ISO class 1 for silicon and class 3 for titanium). The emitters ensure minimal contamination and are known for their durability.
The device is controlled via a 24-volt DC power supply and can be adjusted using the remote control 7500.AB.R or software. Additional features include an ion balance of +/- 10 V, a maximum ozone generation of 0.005 ppm, and a weight of 1.02 kg. The ambient temperature for optimal operation ranges from 15 to 35 °C.
This highly specialized device is excluded from exchange and supports easy mounting and integration into existing systems without the need for an additional controller.
