BlueLine mobile ionizer
BlueLine mobile ionizer

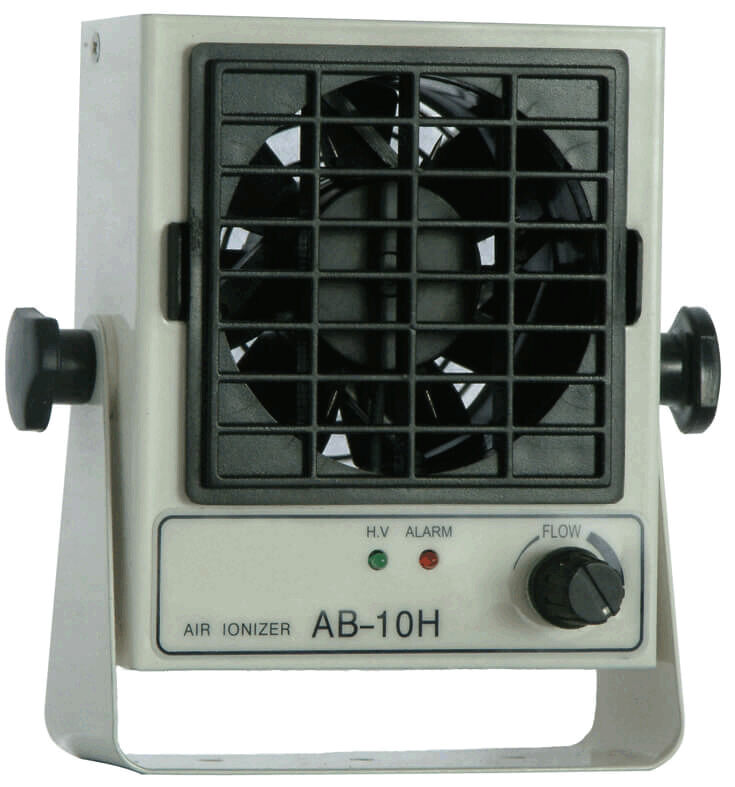

The BlueLine AB-10H Ionizer, a mobile and compact solution, has been specifically designed for neutralizing static charges in sensitive environments such as electronics manufacturing and precision instrument industries. With dimensions of 140 x 58 x 140 mm and a weight of 650 g, it offers user-friendly handling.The device is characterized by its piezoelectric high-voltage power supply, which enables efficient ion generation and is free from electromagnetic interference. An automatic ion balance ensures a stable ionization process without the need for manual adjustments. The discharge needle made from a special alloy promises a long lifespan.
The performance is supported by an integrated, continuously adjustable blower, which allows individual adjustment of the air volume and the blowing angle. Safety aspects are covered by an HV alarm display for monitoring the output voltage. Maintenance of the device is facilitated by the accessibility of the front air flap and the blow-out needle, which should be cleaned every 100 operating hours.
The device operates at a voltage of 230V/50 Hz, achieves a discharge time of about 1.4 seconds, and maintains an ion balance of +/-5 V. Despite its powerful features, the operation remains pleasantly quiet with a noise level of about 60 dB at 1 meter distance.
Details
- Discharge time max. Discharge time max.
- 1.4 s
- Ion balance +/- Ion balance +/-
- 5 V
- Voltage Voltage
- 230 V
- Depth [mm] Depth
- 58 mm
- Height [mm] Height
- 140 mm
- Width [mm] Width
- 140 mm
- Weight [g] Weight
- 650 g
