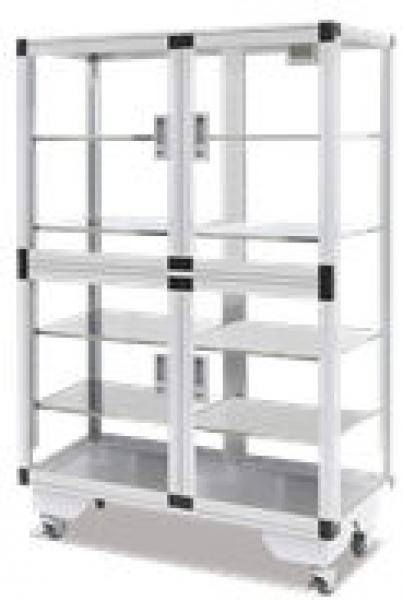

Acrylic drying cabinet ESDA 804-00
The acrylic drying cabinet ESDA 804-00 from Totech SuperDry is a highly functional solution for storing and drying sensitive components in technical and industrial environments. The robust polycarbonate housing ensures durability and safety, while the lockable doors provide protection against unauthorized access. This model is equipped with a maintenance-free drying unit that keeps the relative humidity (RH) below 2% and allows for a quick recovery of moisture control to under 5% RH within 30 minutes of opening the door.
Compliance with the ESD standard DIN EN 61340-5-1 confirms the ESD safety of the cabinet, making it ideal for use in electronics manufacturing. The cabinet has a volume of 800 liters, with dimensions of 1152 mm in width, 1692 mm in height, and 517 mm in depth. Internal dimensions include a width of 1072 mm, a height of 1406 mm, and a depth of 494 mm. The load capacity per shelf is 30 Kg, with a total load capacity of 200 kg and a net weight of 88 kg.
Additional features such as humidity and temperature display, digital control panel, and forced air circulation through an integrated fan (dryer only) enhance the user-friendliness and efficiency of this model.
Compliance with the ESD standard DIN EN 61340-5-1 confirms the ESD safety of the cabinet, making it ideal for use in electronics manufacturing. The cabinet has a volume of 800 liters, with dimensions of 1152 mm in width, 1692 mm in height, and 517 mm in depth. Internal dimensions include a width of 1072 mm, a height of 1406 mm, and a depth of 494 mm. The load capacity per shelf is 30 Kg, with a total load capacity of 200 kg and a net weight of 88 kg.
Additional features such as humidity and temperature display, digital control panel, and forced air circulation through an integrated fan (dryer only) enhance the user-friendliness and efficiency of this model.
Details
- Shelves Shelves
- 10
- Volume Volume
- 800 l
- Width [mm] Width [mm]
- 1152
- Height [mm] Height [mm]
- 1692 mm
- Depth [mm] Depth [mm]
- 517 mm
- Internal depth Internal depth
- 494 mm
- Internal height
- 1406 mm
- Internal width Internal width
- 1072 mm
- Tabletop dimensions Tabletop dimensions
- 460 x 490 mm
- Bracket Bracket
- polycarbonate
- Load capacity Load capacity
- 200 kg
- Weight Weight
- 88 kg
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
