Acrylic drying cabinet ESDA 804-21
(Product No.: TO-ESDA-804-21)

Acrylic drying cabinet ESDA 804-21

dpvlink:
27263
Tags:
Shelves:
10
Volume:
800 l
Width [mm]:
1152 mm
Height [mm]:
1692 mm
Depth [mm]:
517 mm
Further product information


Compare Compare
Notice
Product Info

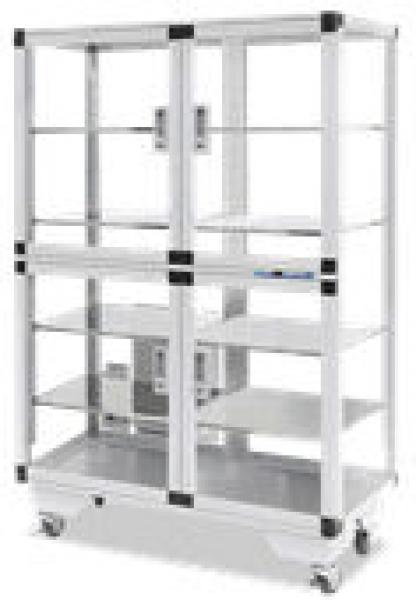

Acrylic Dry Storage Cabinet ESDA 804-21 This high-quality dry storage cabinet made of polycarbonate offers an optimal solution for storing sensitive components. With a volume of 800 liters and lockable doors, the model ensures safety and protection. The drying unit keeps the relative humidity consistently below 2%, and the ESD safety complies with the standard DIN EN 61340-5-1. Equipped with a humidity and temperature display as well as monitoring functions, the cabinet also features a digital control panel. Air circulation is supported by an integrated fan, and the recovery time after opening the door is only 30 minutes to below 5% RH. Technical Specifications: - Shelves: 10 - Width: 1152 mm - Height: 1692 mm - Depth: 517 mm - Interior dimensions (WxHxD): 1120 x 1485 x 417 mm - Shelf size: 460 x 490 mm, additional short shelf: 460 x 380 mm - Weight: 88 kg - Load capacity: 200 kg Item number: TO-ESDA-804-21.
Shelves
Shelves
10
Volume
Volume
800 l
Width [mm]
Width [mm]
1152 mm
Height [mm]
Height [mm]
1692 mm
Depth [mm]
Depth [mm]
517 mm
Internal depth
Internal depth
417 mm
Internal height
Internal height
1485 mm
Internal width
Internal width
1120 mm
Tabletop dimensions
Tabletop dimensions
460 x 490 mm
Bracket
Bracket
polycarbonate
Load capacity
Load capacity
200 kg
Weight
Weight
88 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Article imageArticle descriptionShelvesVolumeWidth [mm]Height [mm]Depth [mm]PriceCompare
TO-ESDA-201-00 - Acrylic drying cabinet ESDA 201-00 TO-ESDA-201-00
Acrylic drying cabinet ESDA 201-00 		2200 l574 mm750 mm517 mm -
TO-ESDA-402-00 - Acrylic drying cabinet ESDA 402-00 TO-ESDA-402-00
Acrylic drying cabinet ESDA 402-00 		5400 l574 mm1692 mm517 mm -
TO-ESDA-402-21 - Acrylic drying cabinet ESDA 402-21 TO-ESDA-402-21
Acrylic drying cabinet ESDA 402-21 		5400 l5741692517 -
TO-ESDA-804-00 - Acrylic drying cabinet ESDA 804-00 TO-ESDA-804-00
Acrylic drying cabinet ESDA 804-00 		10800 l11521692 mm517 mm -
TO-ESDA-804-21 - Acrylic drying cabinet ESDA 804-21 TO-ESDA-804-21
Acrylic drying cabinet ESDA 804-21 		10800 l1152 mm1692 mm517 mm -
