Drying storage cabinet SD+ 302-22

(Product No.: TO-SD+302-22)

(Product No.: TO-SD+302-22)

Drying storage cabinet SD+ 302-22

ArticleNo: TO-SD+302-22

dpvlink:

27413

Tags:

Shelves:

Volume:

320 l

Width [mm]:

500 mm

Height [mm]:

1227 mm

Depth [mm]:

640 mm

Further product information

Compare

Notice

Product Info

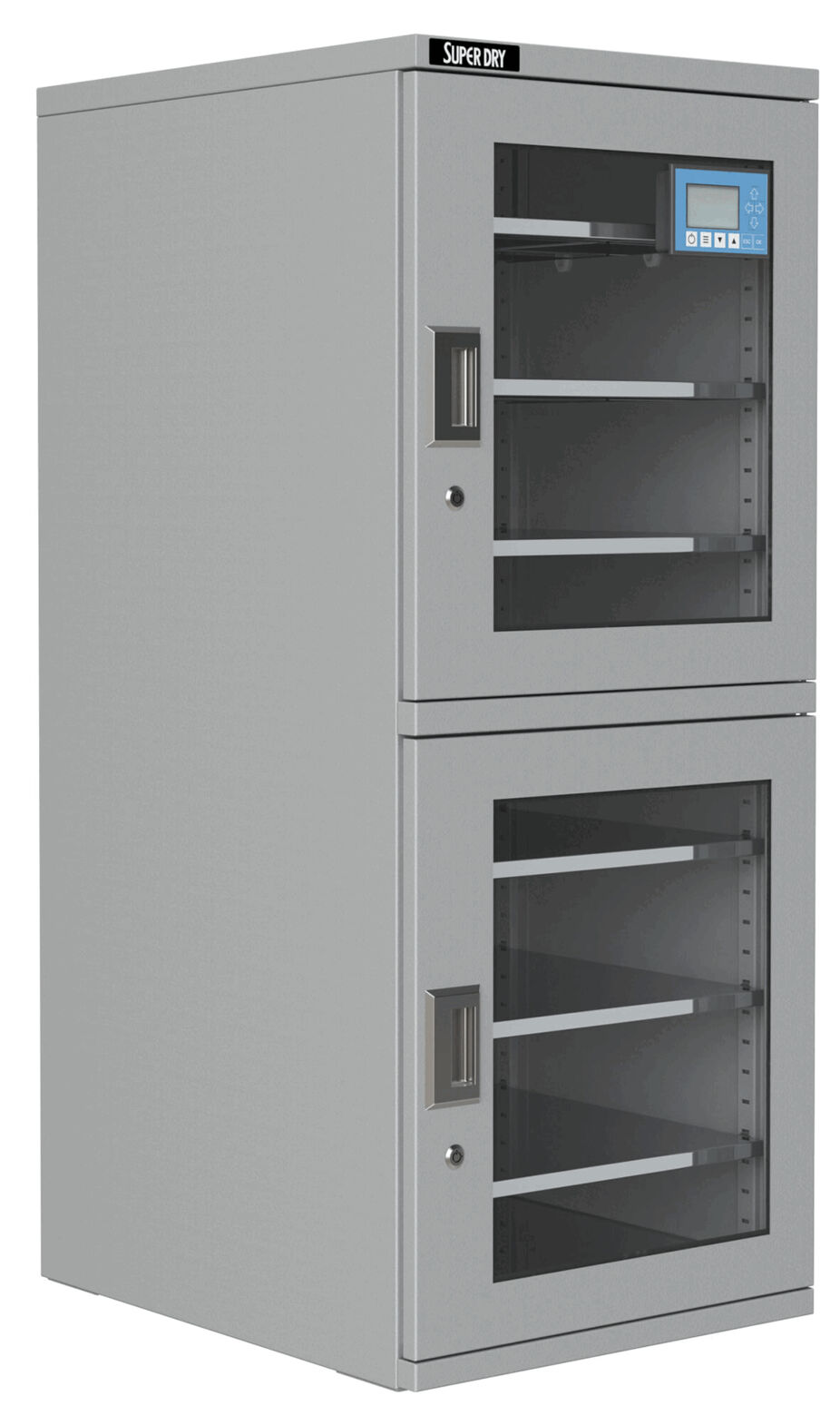

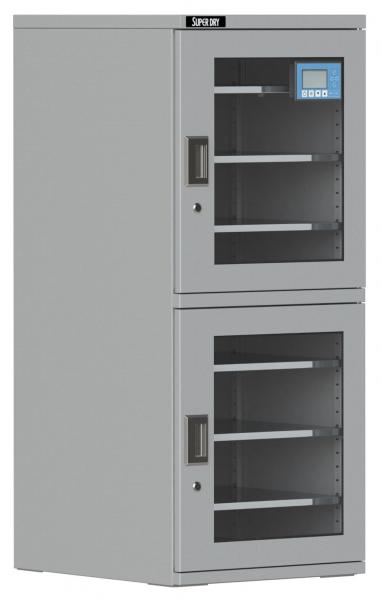

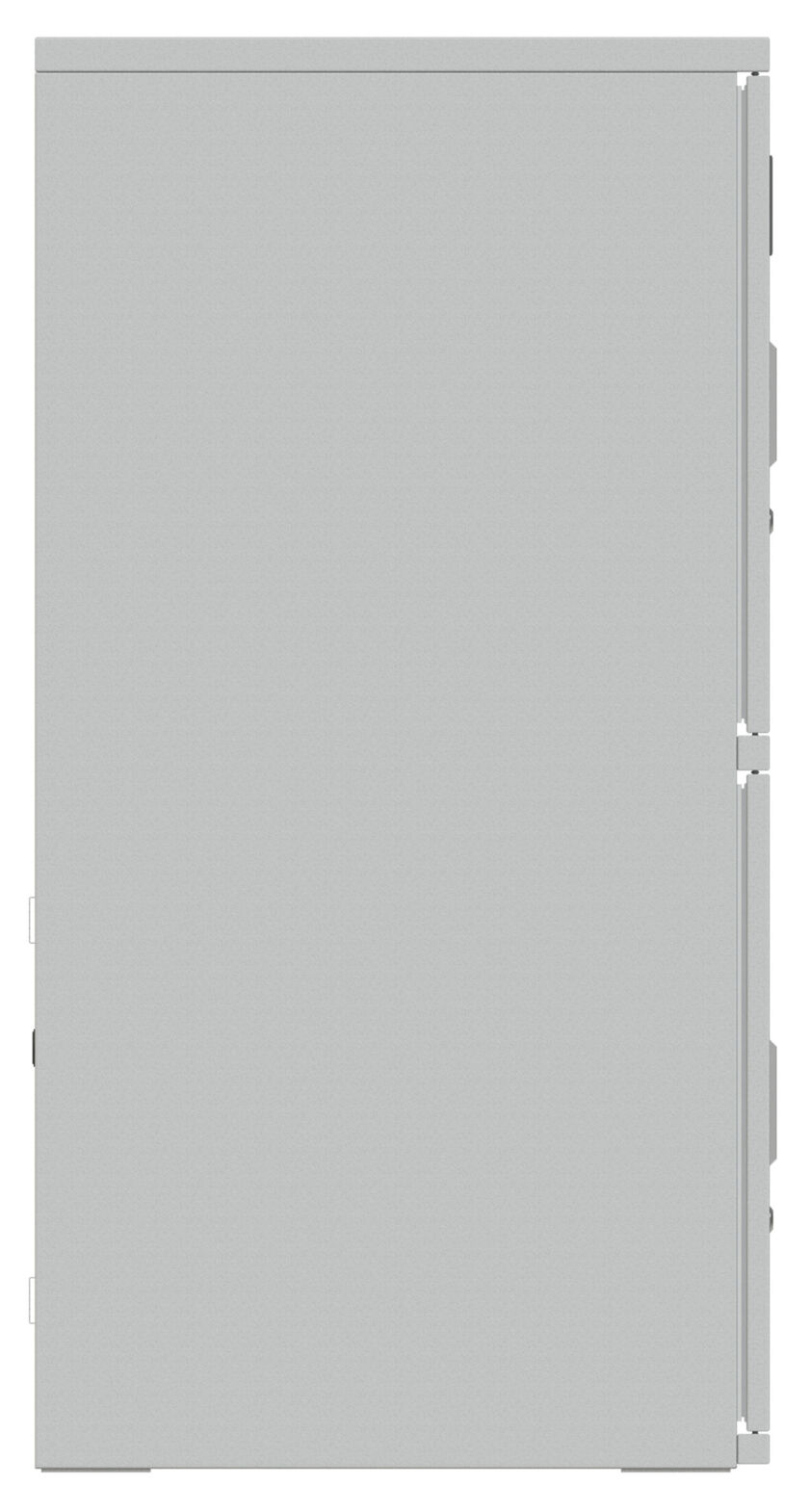

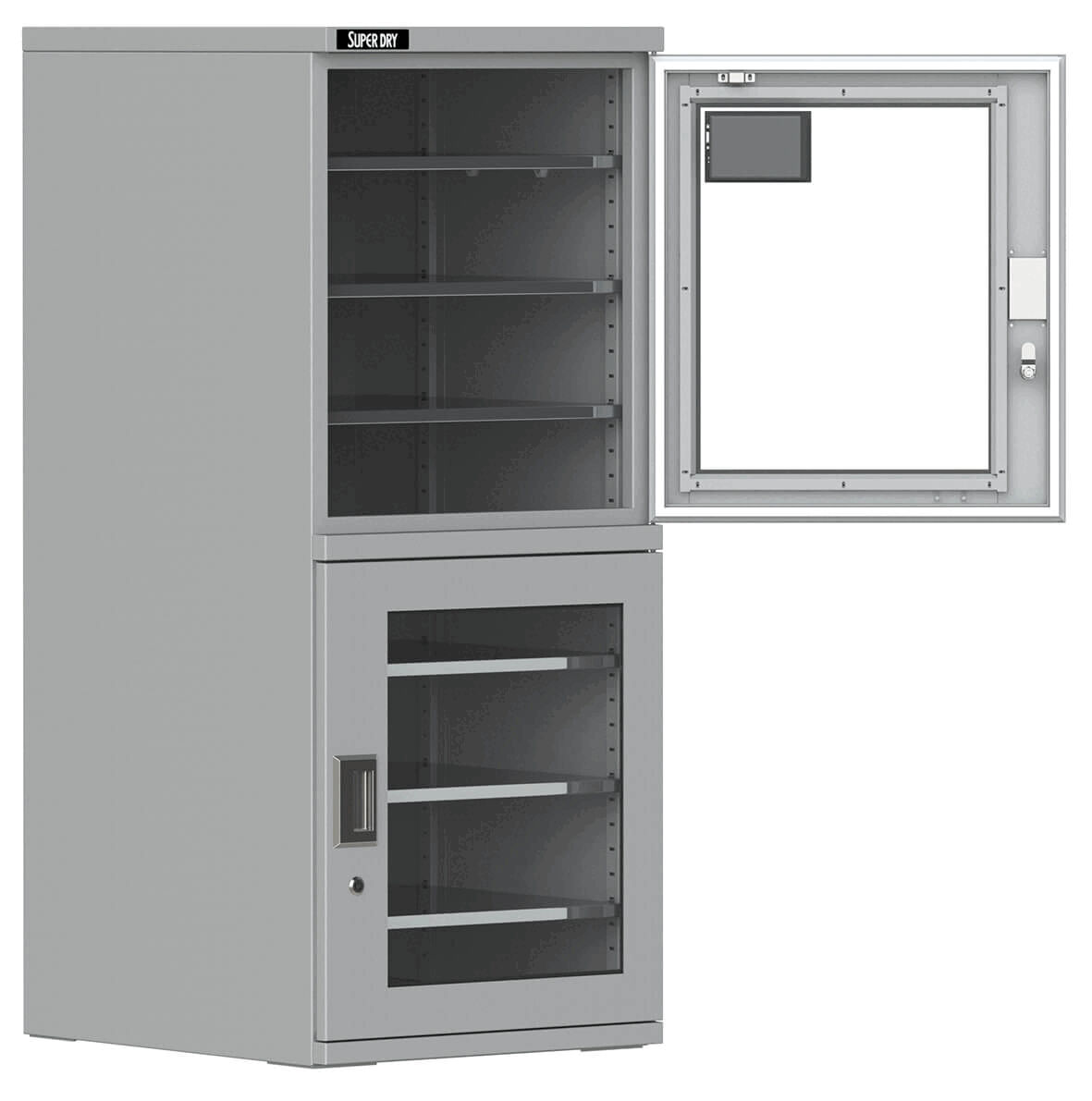

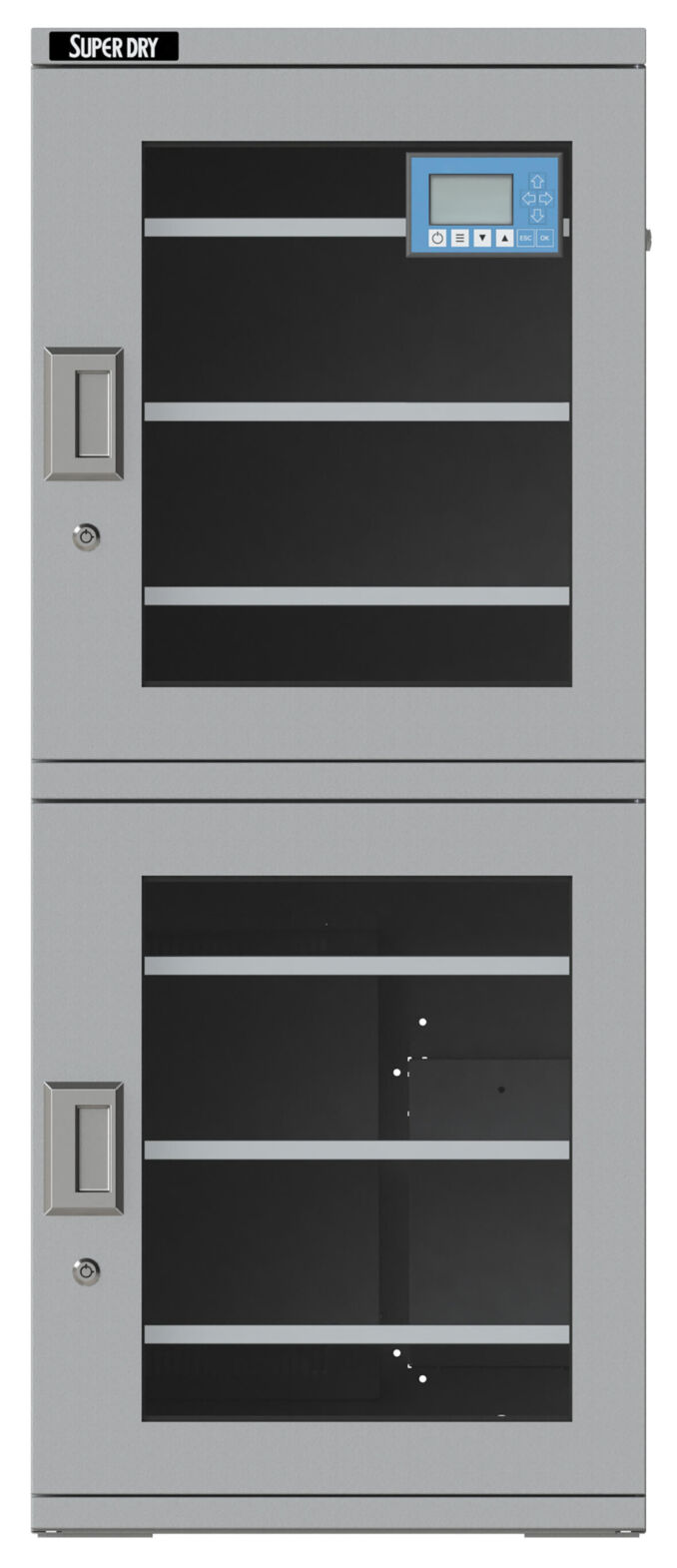

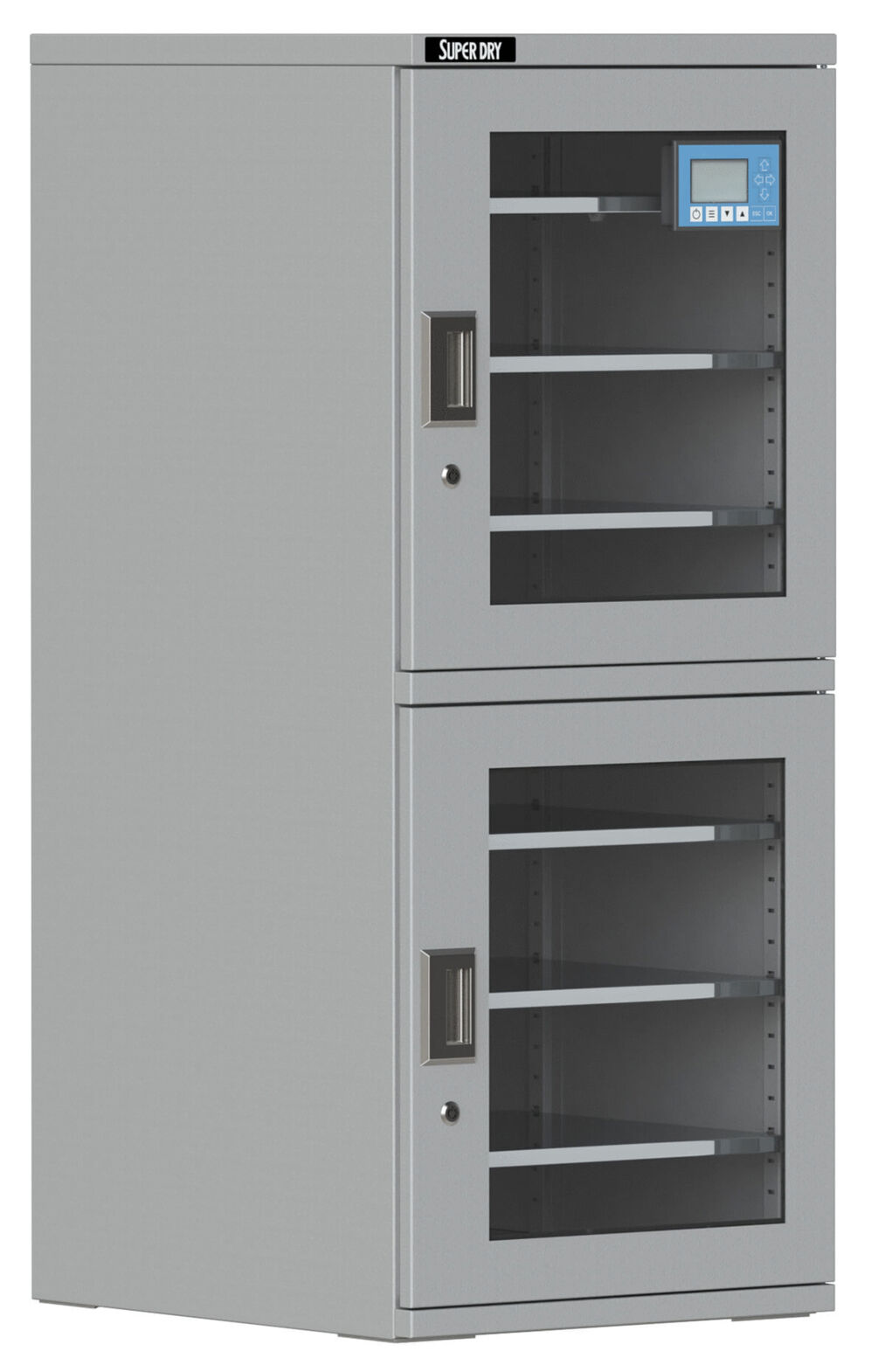

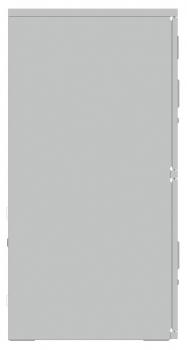

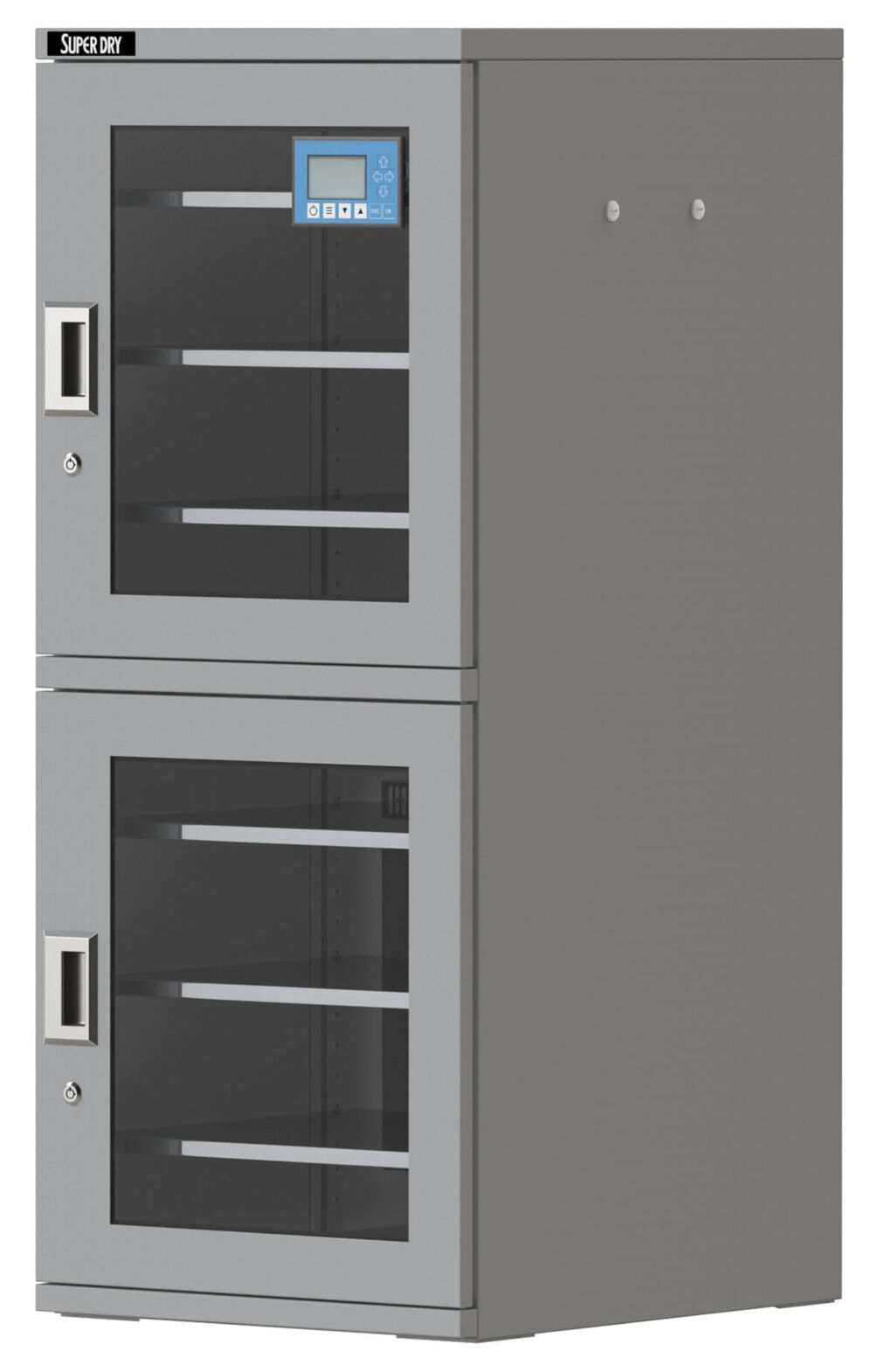

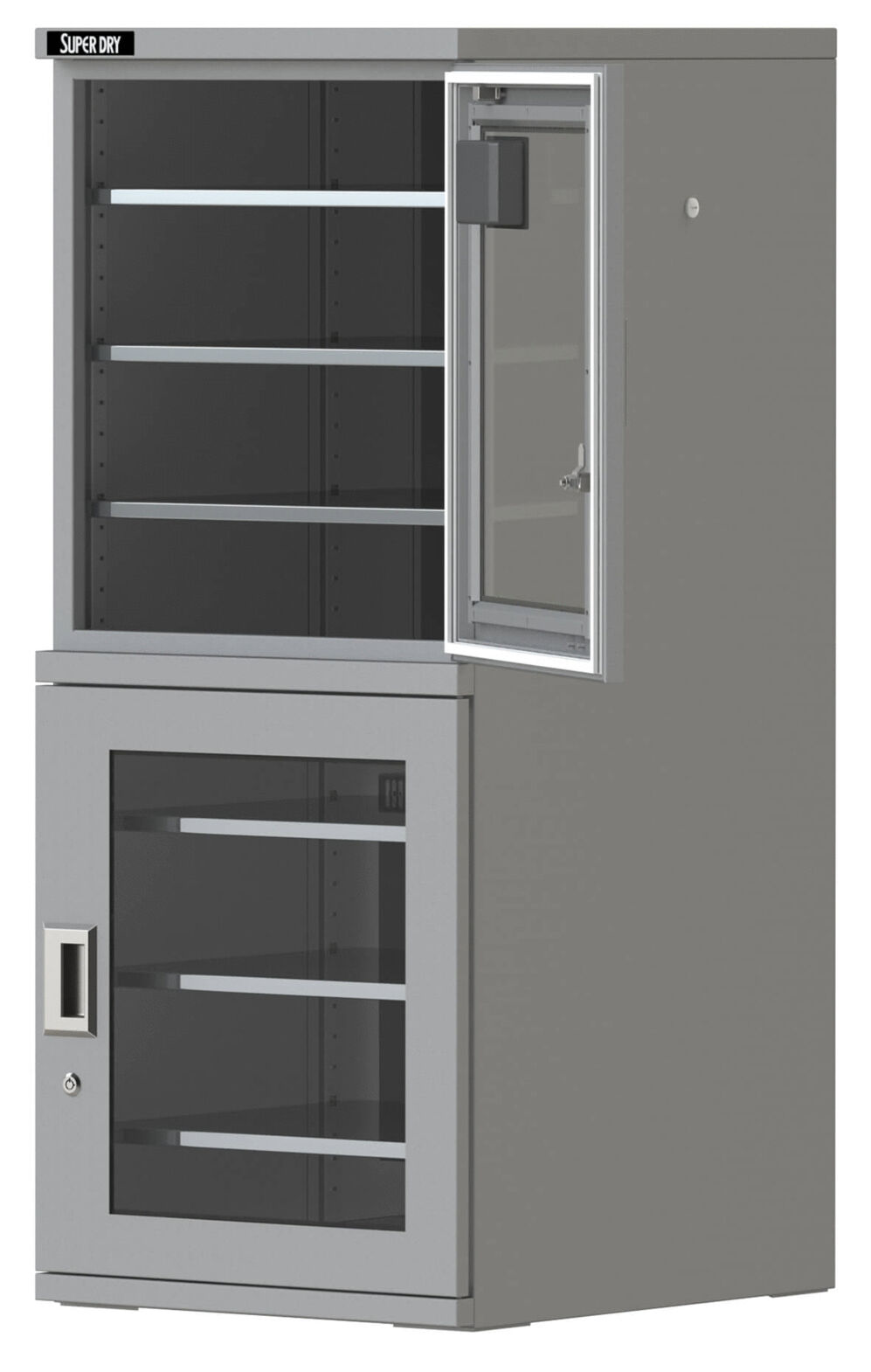

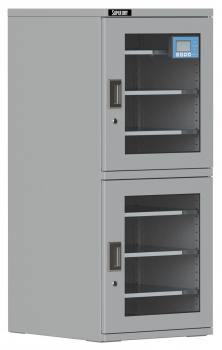

Dry Storage Cabinet SD+ 302-22 This dry storage cabinet offers an optimal solution for the secure and dry storage of sensitive components. Equipped with a robust steel casing and lockable doors of protection class 1, the product ensures safety and is solidly grounded. The maintenance-free dry unit consistently maintains relative humidity (RH) below 1%. Additionally, the cabinet is ESD-safe and meets the ESD standard DIN EN 61340-5-1. Technical Specifications: - Volume: 320 l - Dimensions (W x H x D): 500 x 1227 x 640 mm - Interior dimensions (W x H x D): 490 x 1124 x 602 mm - Weight: 68 kg - Load capacity: 100 kg - Cable length: 5.0 m - Housing material: steel sheet - Equipment: 4 long shelves (468 x 510 mm), 3 short shelves (468 x 380 mm), load capacity per shelf: 30 kg Additional features include an integrated data logger, Totech Viewer software, Ethernet interface, digital control panel, and forced air circulation. The integrated sensor measures humidity with an accuracy of +/- 0.8% RH. After opening the door, the cabinet returns to a humidity level below 5% RH in just 30 minutes. Product number: TO-SD+302-22

Details

Shelves Shelves: 7
Volume Volume: 320 l
Width [mm] Width [mm]: 500 mm
Height [mm] Height [mm]: 1227 mm
Depth [mm] Depth [mm]: 640 mm
Cable length Cable length: 5.0 m
Internal depth Internal depth: 602 mm
Internal height Internal height: 1124 mm
Internal width Internal width: 490 mm
Bracket Bracket: steel sheet
Load capacity Load capacity: 100 kg
Weight Weight: 68 kg

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

Article image	Article description	Shelves	Volume	Width [mm]	Height [mm]	Depth [mm]	Price
	TO-SD+1104-22 Drying storage cabinet SD+ 1104-22	5	1179 l	1200 mm	1675 mm	658 mm	-
	TO-SD+1106-22 Drying storage cabinet SD+ 1106-22	5	1179 l	1200 mm	1675 mm	658 mm	-
	TO-SD+302-22 Drying storage cabinet SD+ 302-22	7	320 l	500 mm	1227 mm	640 mm	-
