Drying storage cabinet SD 1106-21
(Product No.: TO-SD-1106-21)
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image

Drying storage cabinet SD 1106-21

dpvlink:
27417
Tags:
Shelves:
5
Volume:
1179 l
Width [mm]:
1200 mm
Height [mm]:
1675 mm
Depth [mm]:
765 mm
Further product information


Compare Compare
Notice
Product Info

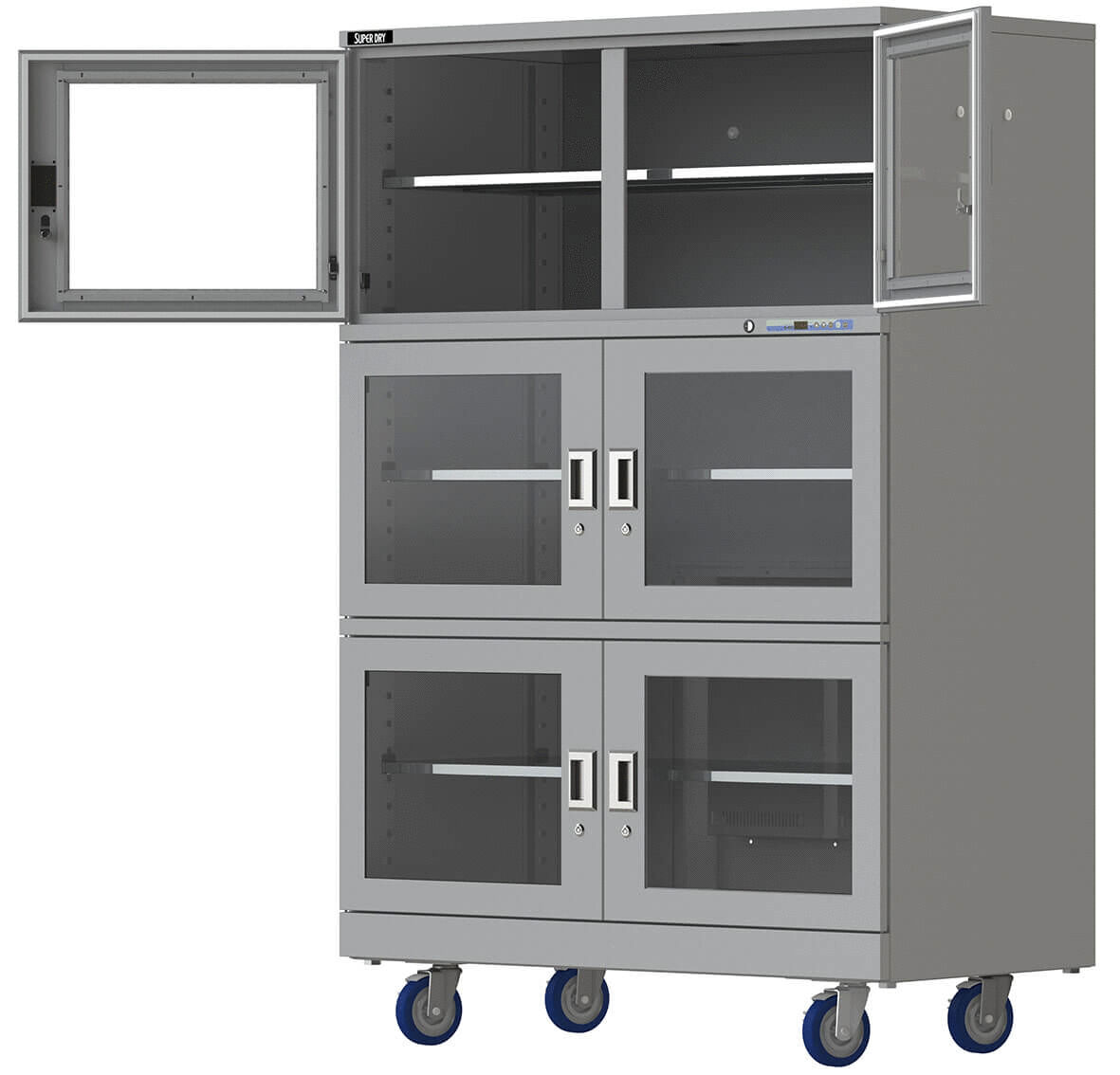

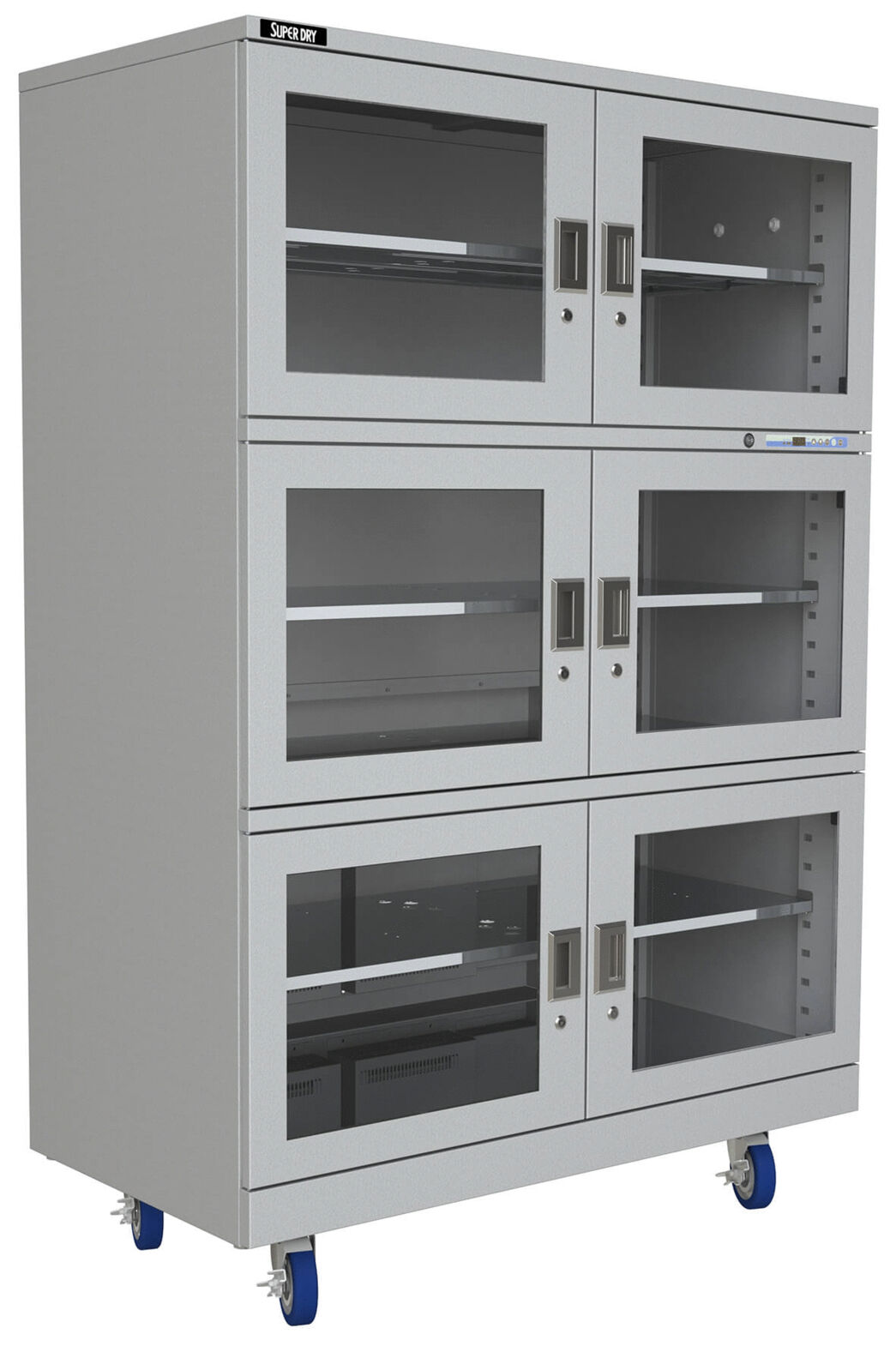

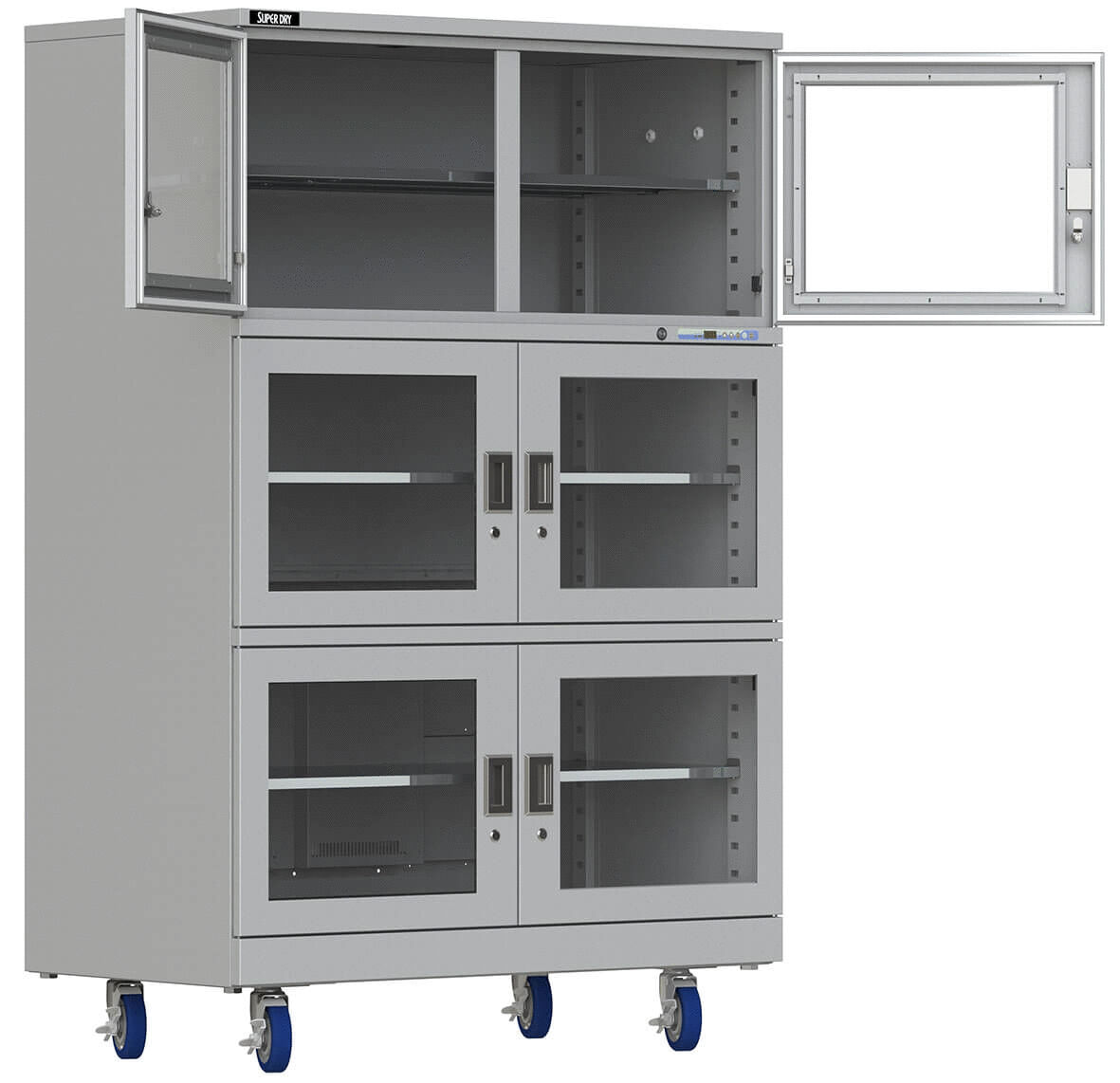

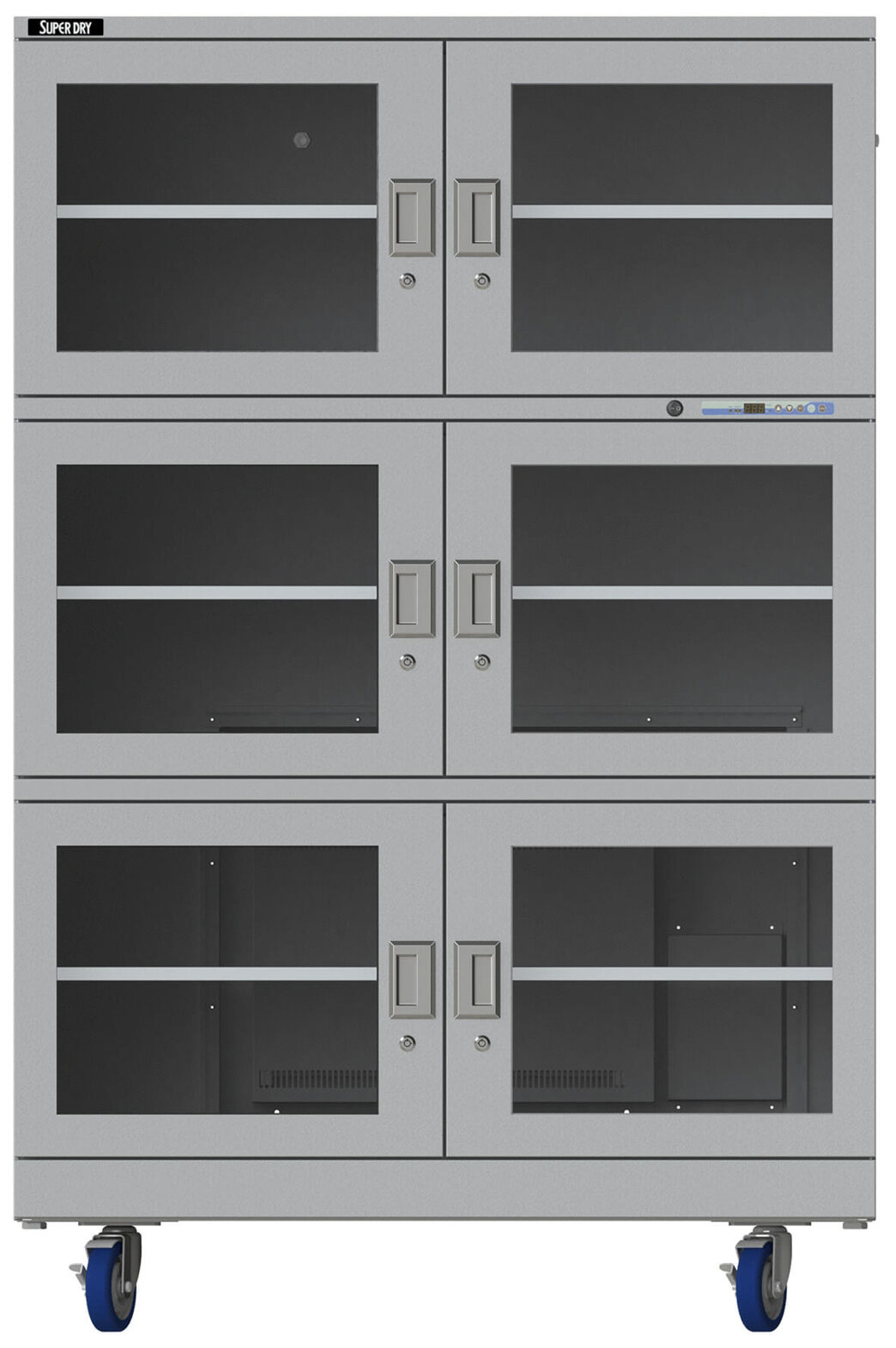

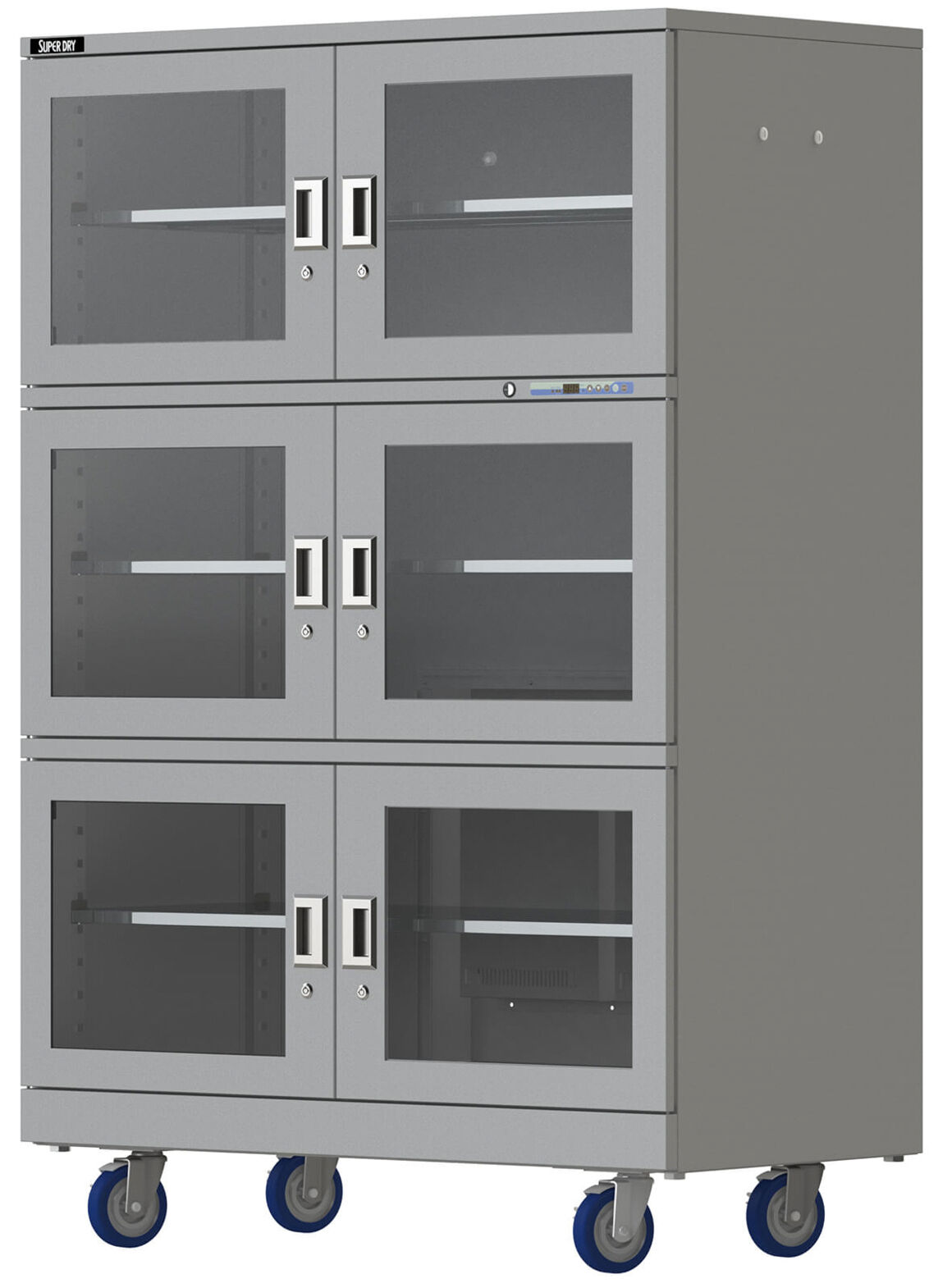

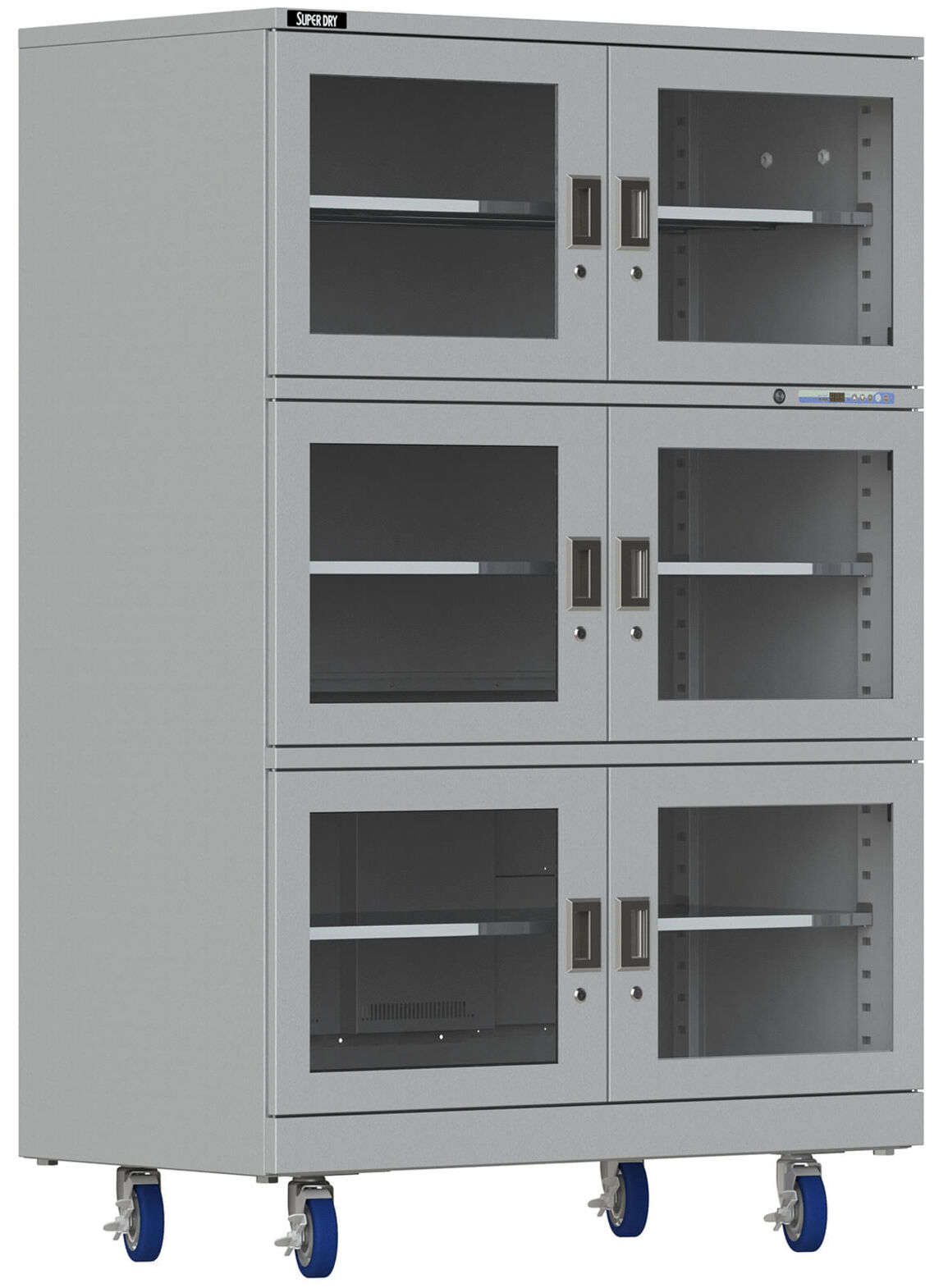

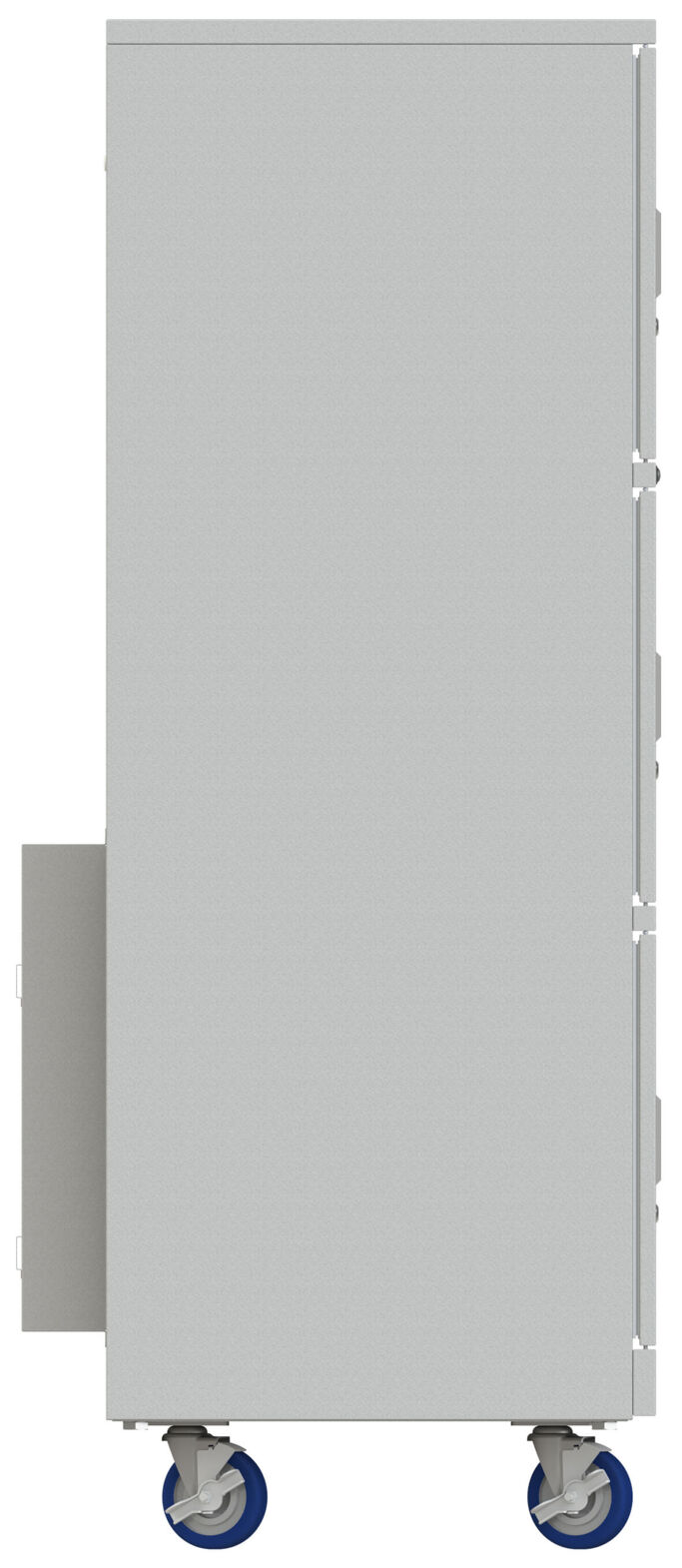

Dry Storage Cabinet SD 1106-21 The dry storage cabinet from the Totech series offers an optimal solution for the safe storage and drying of sensitive components according to the ESD standard DIN EN 61340-5-1. The robust steel housing is equipped with 360° casters that allow easy maneuverability and are equipped with brakes to ensure a secure stand. The doors are lockable and offer protection class 1. The drying unit operates maintenance-free and keeps the relative humidity consistently below 2%. Additionally, the cabinet is ESD-safe and features a limit monitoring system and a digital control panel. The forced air circulation and an integrated sensor with a measurement accuracy of +/- 3% RH ensure a quick restoration of humidity conditions after opening the door. Technical Data: - Volume: 1179 l - External dimensions (W x H x D): 1200 mm x 1675 mm x 765 mm - Internal dimensions (W x H x D): 1190 mm x 1533 mm x 630 mm - Weight: 176 kg - Load capacity: 500 kg - Number of shelves: 5 - Shelf load capacity: 100 kg - Cable length: 5.0 m - Material: Steel sheet Item number: TO-SD-1106-21. This model is ideal for storage and drying according to IPC standards and provides an efficient and safe storage solution.
Shelves
Shelves
5
Volume
Volume
1179 l
Width [mm]
Width [mm]
1200 mm
Height [mm]
Height [mm]
1675 mm
Depth [mm]
Depth [mm]
765 mm
Cable length
Cable length
5.0 m
Internal depth
Internal depth
630 mm
Internal height
Internal height
1533 mm
Internal width
Internal width
1190 mm
Bracket
Bracket
steel sheet
Load capacity
Load capacity
500 kg
Weight
Weight
176 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Article imageArticle descriptionShelvesVolumeWidth [mm]Height [mm]Depth [mm]PriceCompare
TO-SD-1104-21 - Drying storage cabinet SD 1104-21 TO-SD-1104-21
Drying storage cabinet SD 1104-21 		51179 l1200 mm1675 mm765 mm -
TO-SD-1106-21 - Drying storage cabinet SD 1106-21 TO-SD-1106-21
Drying storage cabinet SD 1106-21 		51179 l1200 mm1675 mm765 mm -
TO-SD-151-21 - Drying storage cabinet SD 151-21 TO-SD-151-21
Drying storage cabinet SD 151-21 		3135 l500 mm630 mm580 mm -
TO-SD-1704-21 - Drying storage cabinet SD 1704-21 TO-SD-1704-21
Drying storage cabinet SD 1704-21 		51700 l1200 mm1675 mm960 mm -
TO-SD-302-21 - Drying storage cabinet SD 302-21 TO-SD-302-21
Drying storage cabinet SD 302-21 		7320 l500 mm1227 mm640 mm -
TO-SD-502-21 - Drying storage cabinet SD 502-21 TO-SD-502-21
Drying storage cabinet SD 502-21 		3496 l880 mm898 mm740 mm -
TO-SD-702-21 - Drying storage cabinet SD 702-21 TO-SD-702-21
Drying storage cabinet SD 702-21 		5680 l620 mm1675 mm768 mm -
