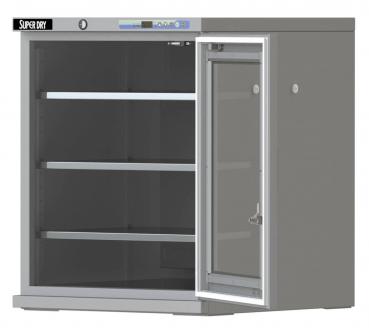

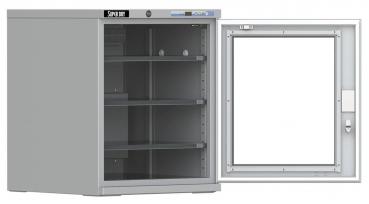

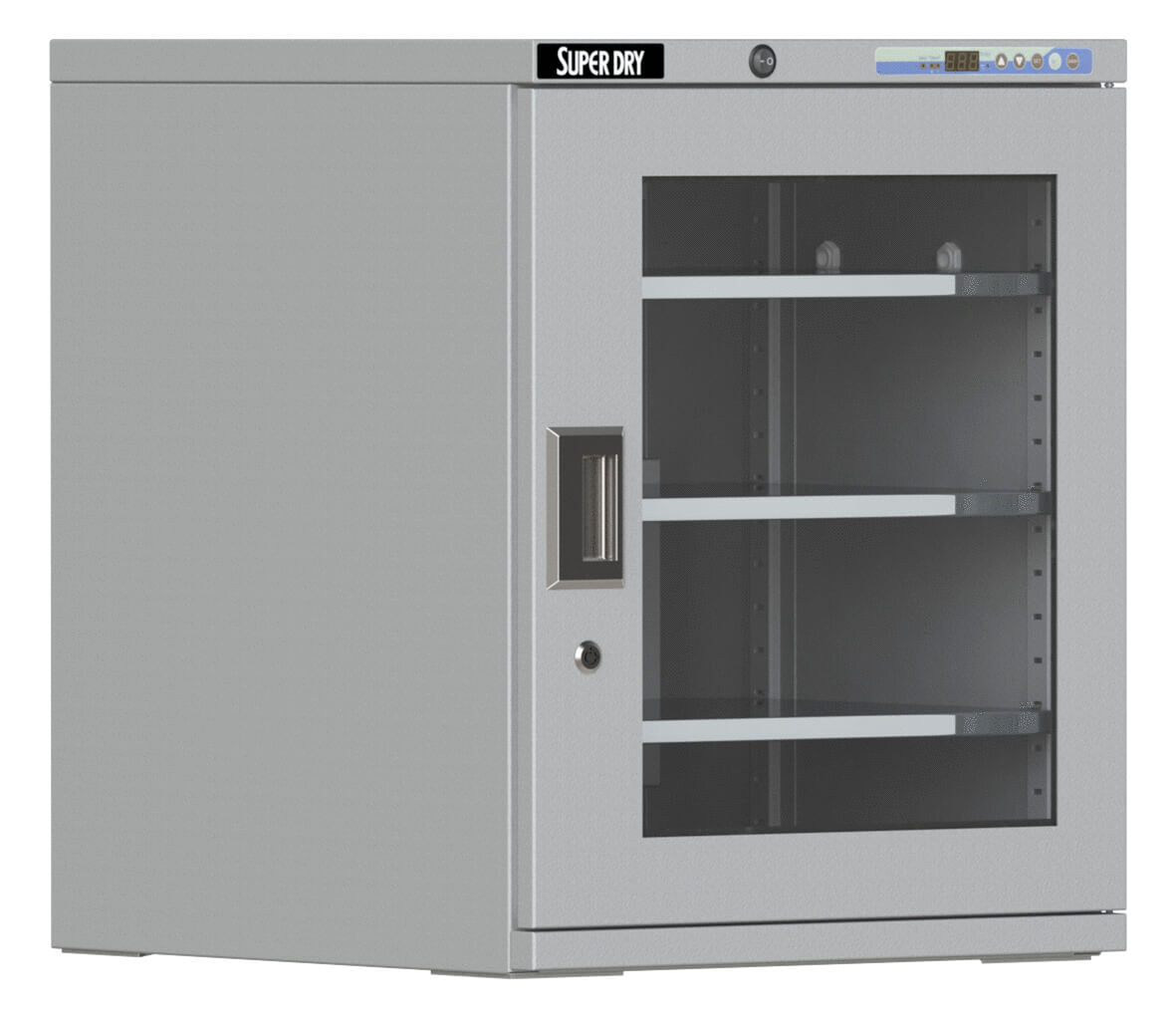

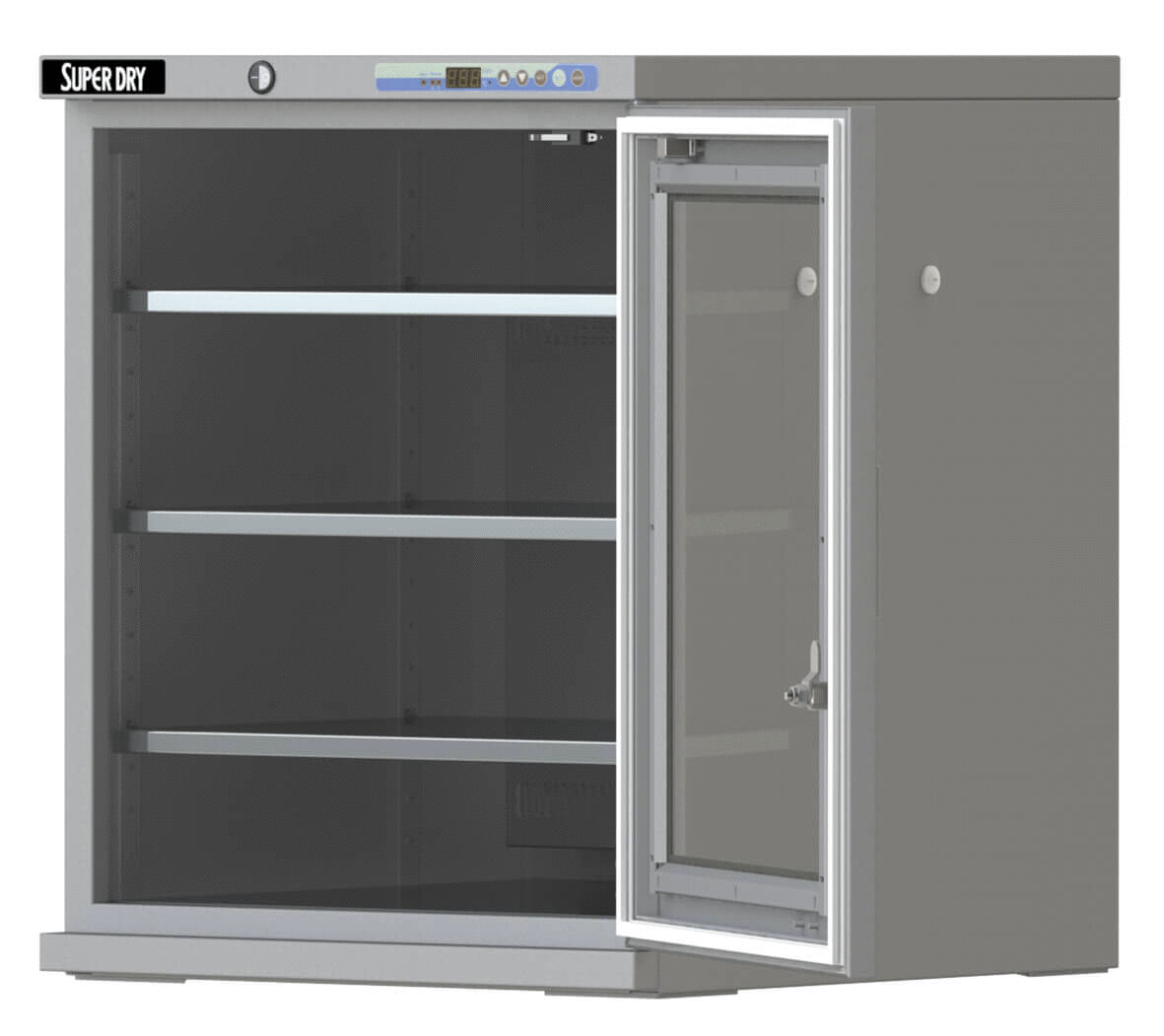

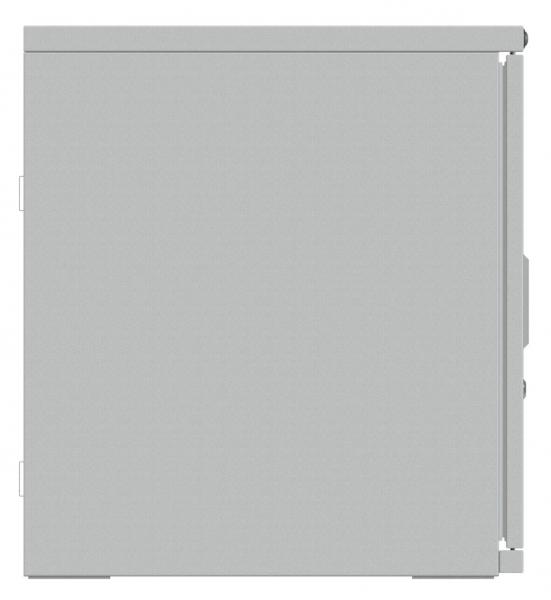

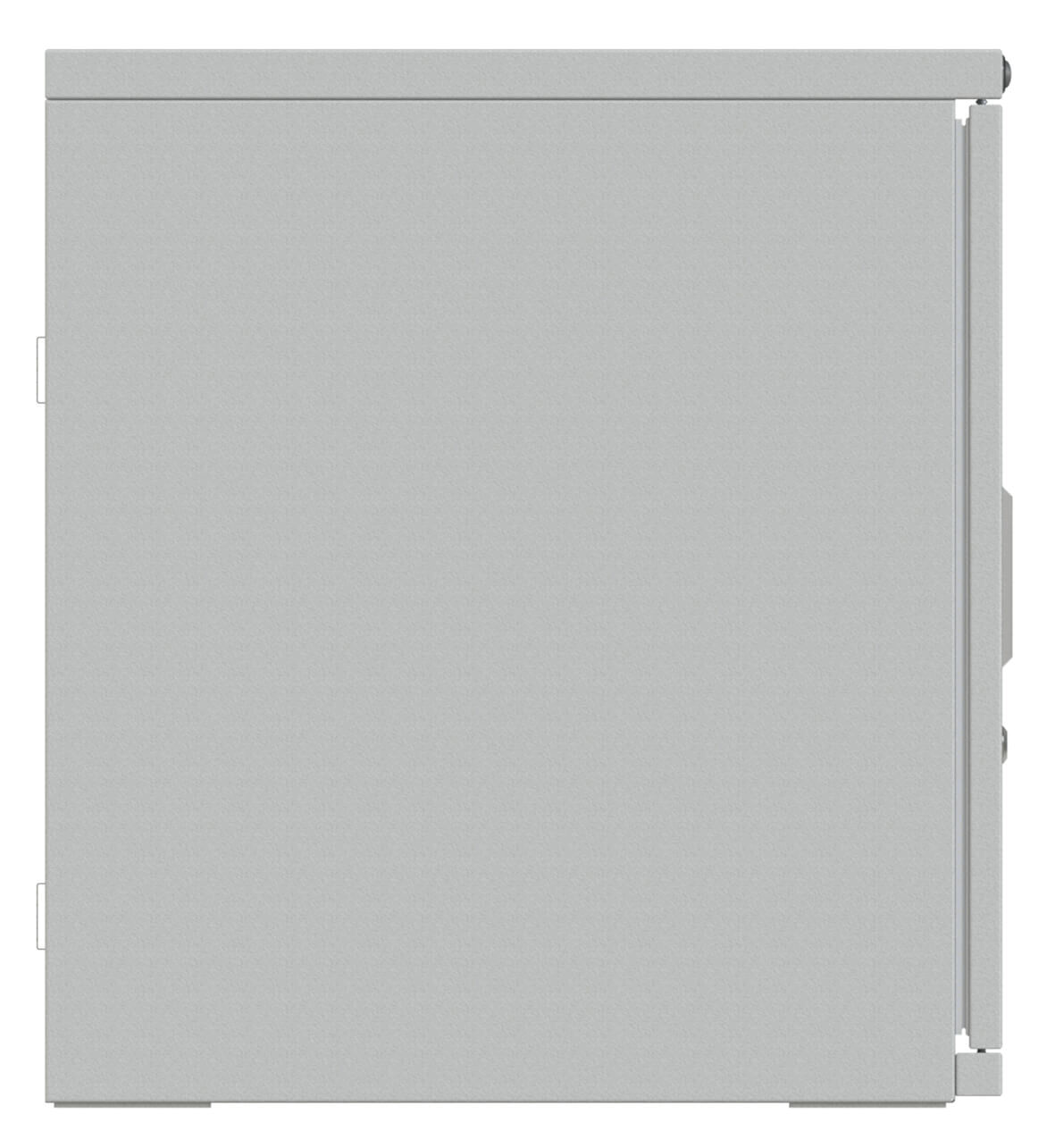

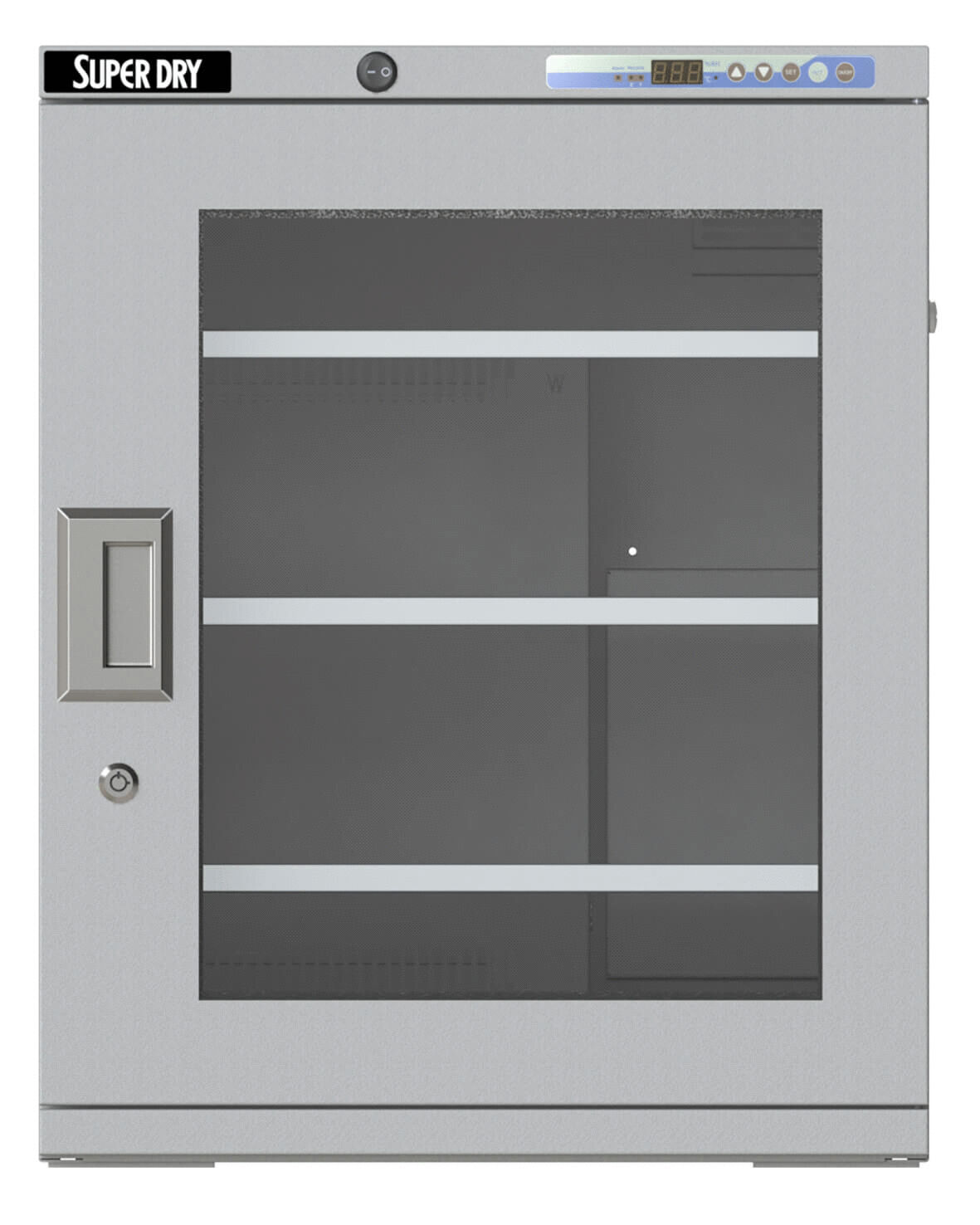

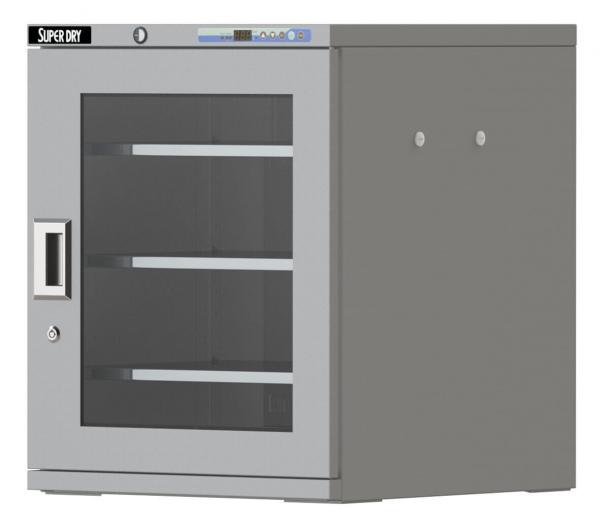

Drying storage cabinet SD 151-21
(Product No.: TO-SD-151-21)
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image

Drying storage cabinet SD 151-21

dpvlink:
27417
Tags:
Shelves:
3
Volume:
135 l
Width [mm]:
500 mm
Height [mm]:
630 mm
Depth [mm]:
580 mm
Further product information


Compare Compare
Notice
Product Info

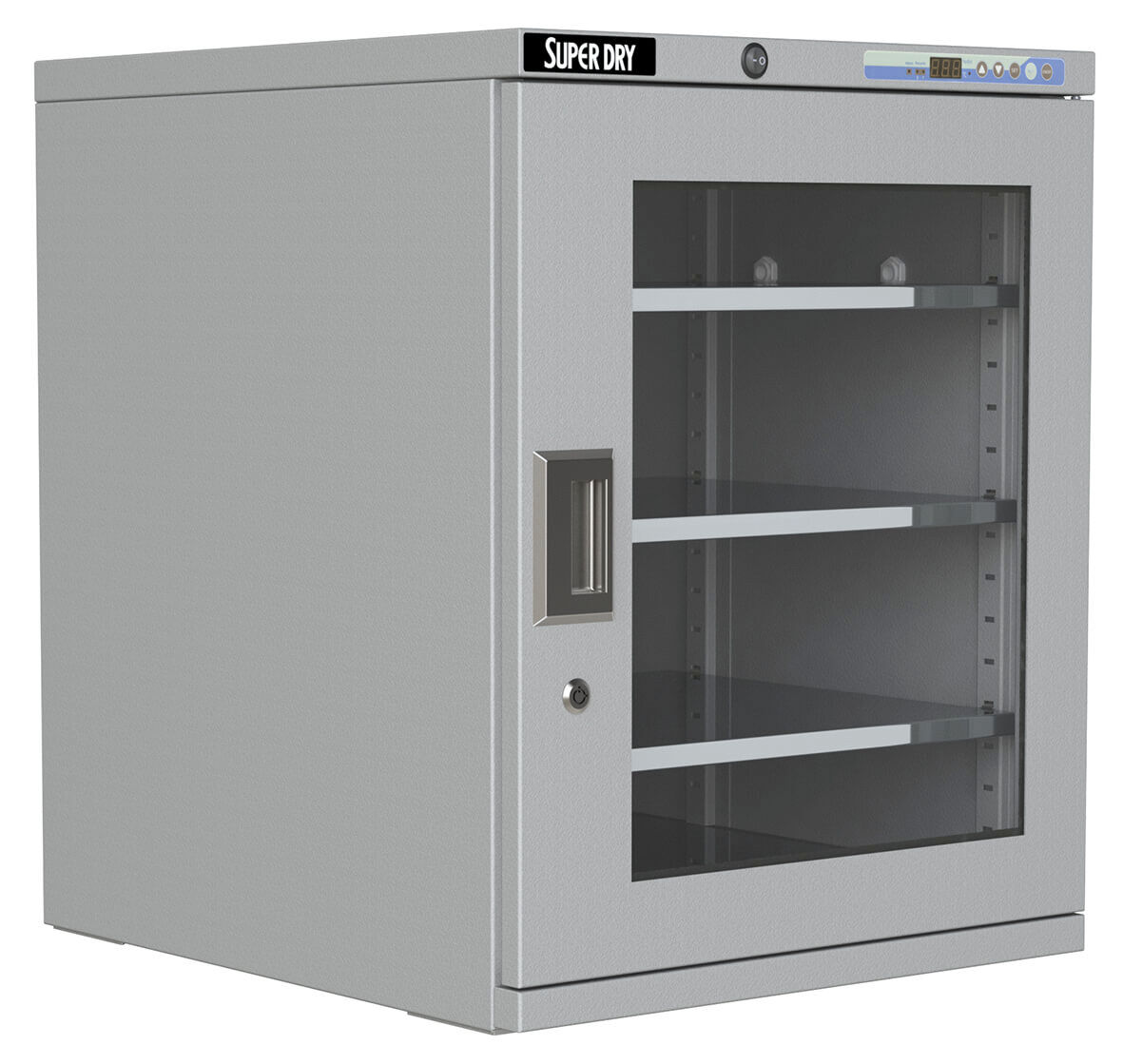

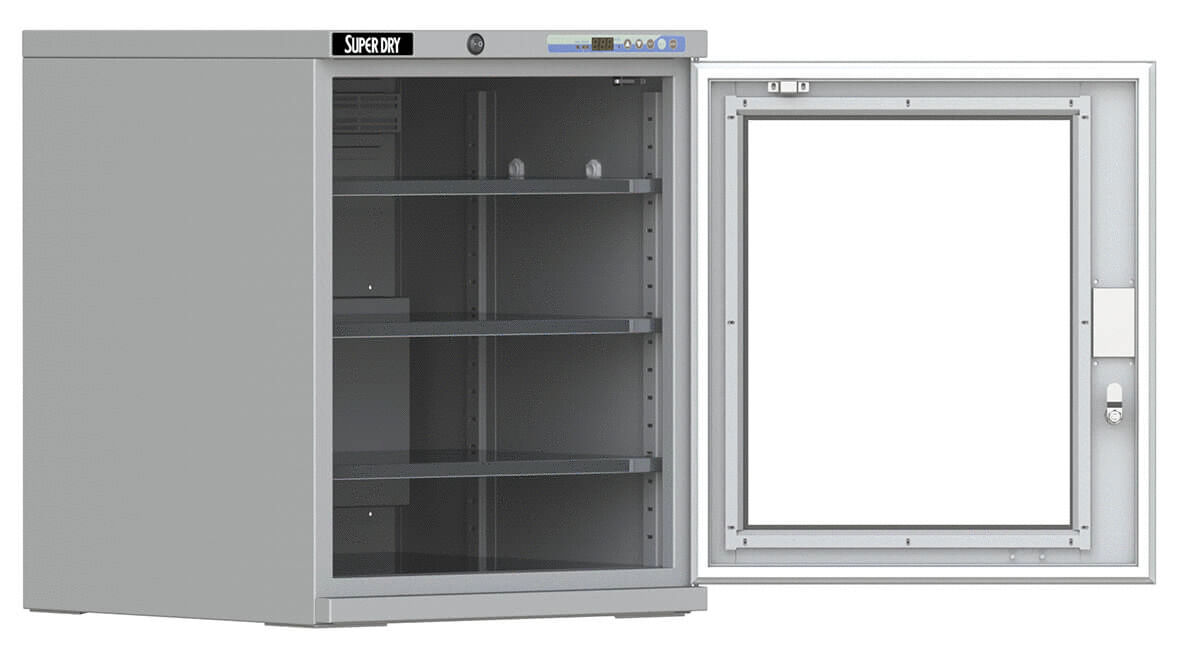

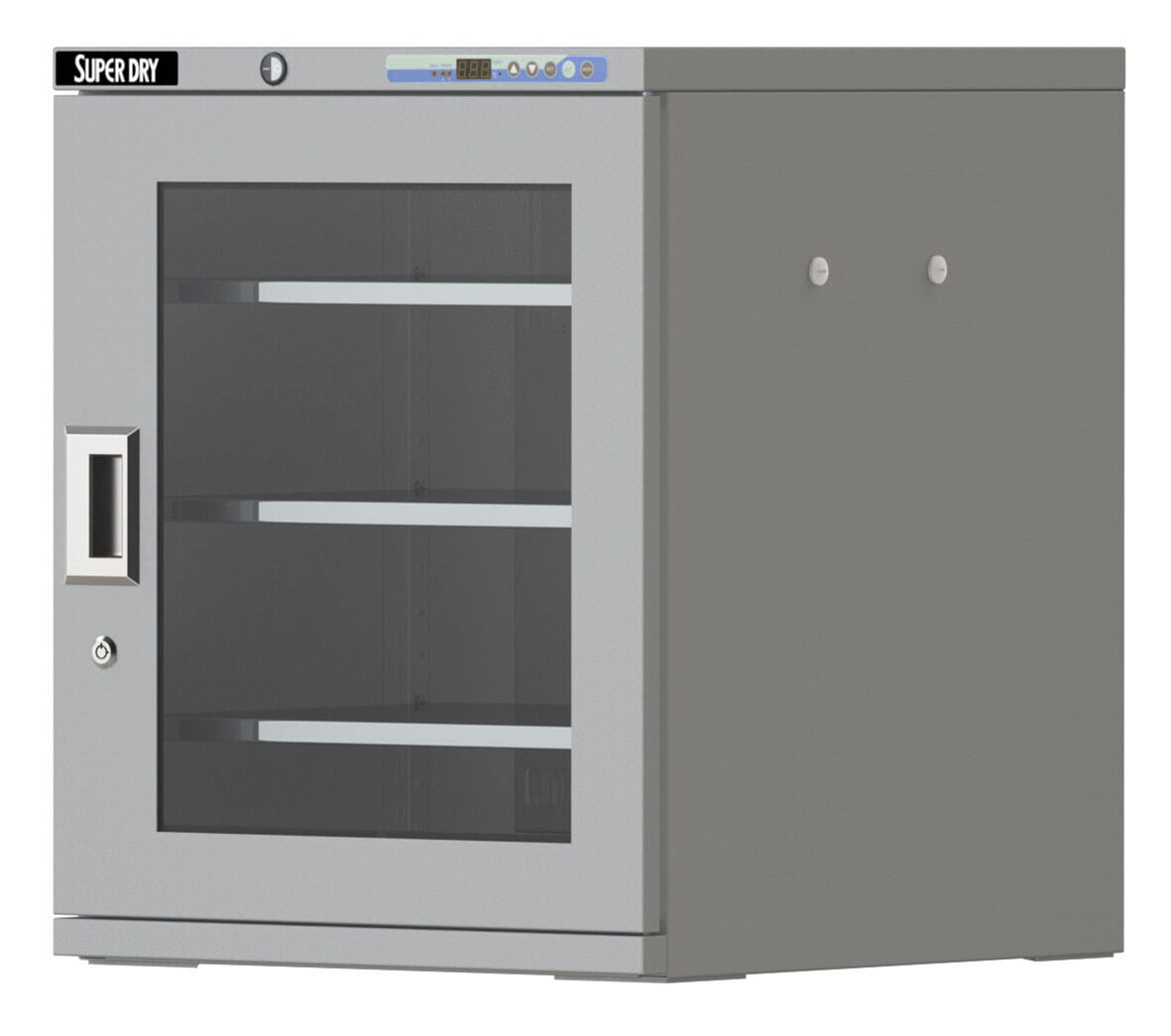

Dry Storage Cabinet SD 151-21 The SD 151-21 dry storage cabinet from Totech offers an optimal solution for the safe and dry storage of sensitive components. This model is equipped with a robust steel housing and ensures the highest protection for electronic components through its ESD safety and compliance with the ESD standard DIN EN 61340-5-1. The doors are lockable and firmly grounded to provide maximum security. The drying unit operates maintenance-free and keeps the relative humidity consistently below 2%. Forced air circulation and an integrated sensor with a measurement accuracy of +/- 3% RH contribute to precise humidity control. After opening the doors, the cabinet returns to a humidity level below 5% RH within 30 minutes. Technical Data: - Volume: 135 L - Dimensions (WxHxD): 500 x 630 x 580 mm - Interior dimensions (WxHxD): 490 x 560 x 450 mm - Weight: 37 kg - Maximum load capacity: 100 kg - Number of shelves: 3, with a load capacity of 30 kg per shelf - Cable length: 5.0 m - Material: Steel sheet Item number: TO-SD-151-21. Ideal for storage and drying according to IPC standards.
Shelves
Shelves
3
Volume
Volume
135 l
Width [mm]
Width [mm]
500 mm
Height [mm]
Height [mm]
630 mm
Depth [mm]
Depth [mm]
580 mm
Cable length
Cable length
5.0 m
Internal depth
Internal depth
450 mm
Internal height
Internal height
560 mm
Internal width
Internal width
490 mm
Bracket
Bracket
steel sheet
Load capacity
Load capacity
100 kg
Weight
Weight
37 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Article imageArticle descriptionShelvesVolumeWidth [mm]Height [mm]Depth [mm]PriceCompare
TO-SD-1104-21 - Drying storage cabinet SD 1104-21 TO-SD-1104-21
Drying storage cabinet SD 1104-21 		51179 l1200 mm1675 mm765 mm -
TO-SD-1106-21 - Drying storage cabinet SD 1106-21 TO-SD-1106-21
Drying storage cabinet SD 1106-21 		51179 l1200 mm1675 mm765 mm -
TO-SD-151-21 - Drying storage cabinet SD 151-21 TO-SD-151-21
Drying storage cabinet SD 151-21 		3135 l500 mm630 mm580 mm -
TO-SD-1704-21 - Drying storage cabinet SD 1704-21 TO-SD-1704-21
Drying storage cabinet SD 1704-21 		51700 l1200 mm1675 mm960 mm -
TO-SD-302-21 - Drying storage cabinet SD 302-21 TO-SD-302-21
Drying storage cabinet SD 302-21 		7320 l500 mm1227 mm640 mm -
TO-SD-502-21 - Drying storage cabinet SD 502-21 TO-SD-502-21
Drying storage cabinet SD 502-21 		3496 l880 mm898 mm740 mm -
TO-SD-702-21 - Drying storage cabinet SD 702-21 TO-SD-702-21
Drying storage cabinet SD 702-21 		5680 l620 mm1675 mm768 mm -
