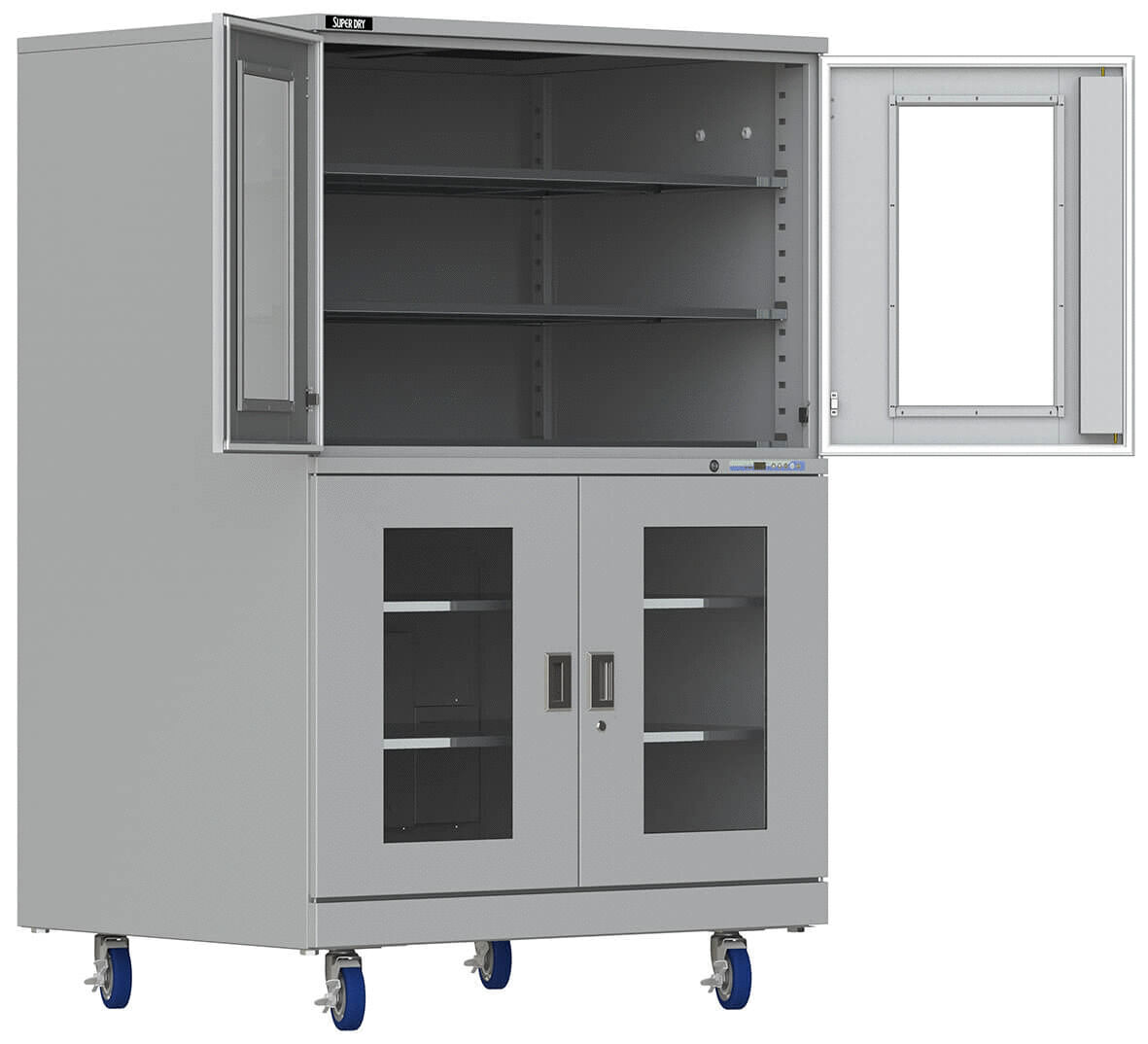

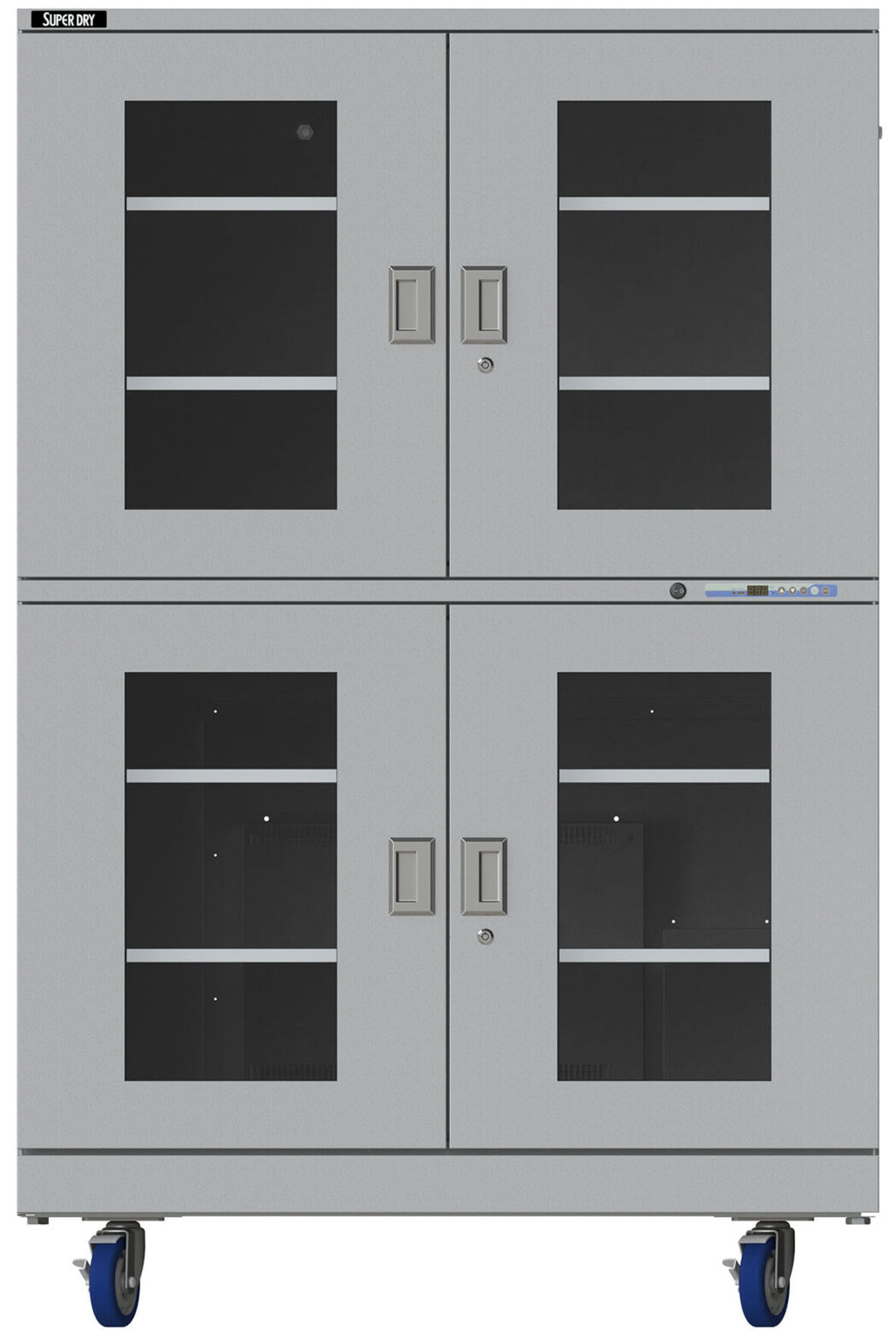

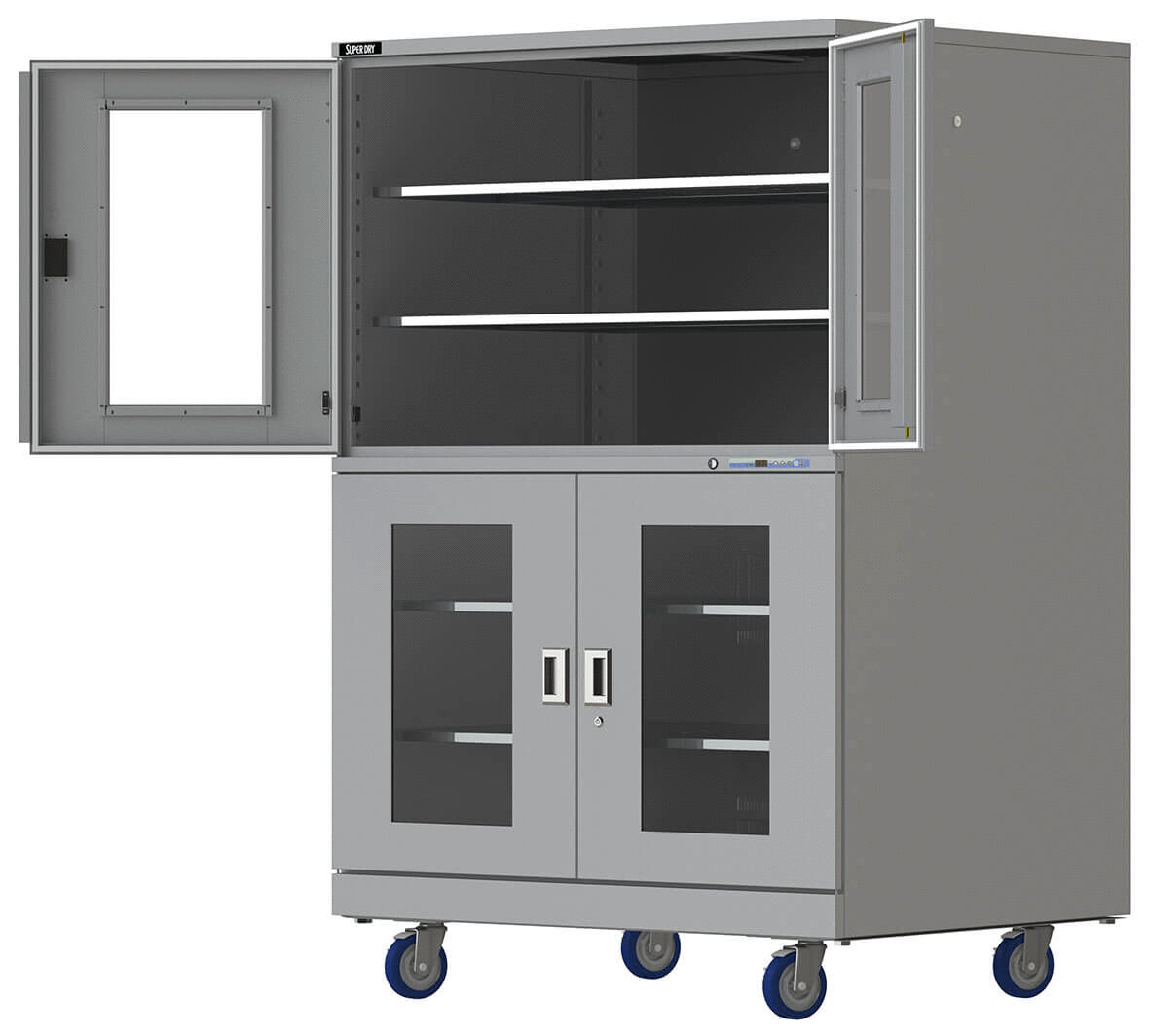

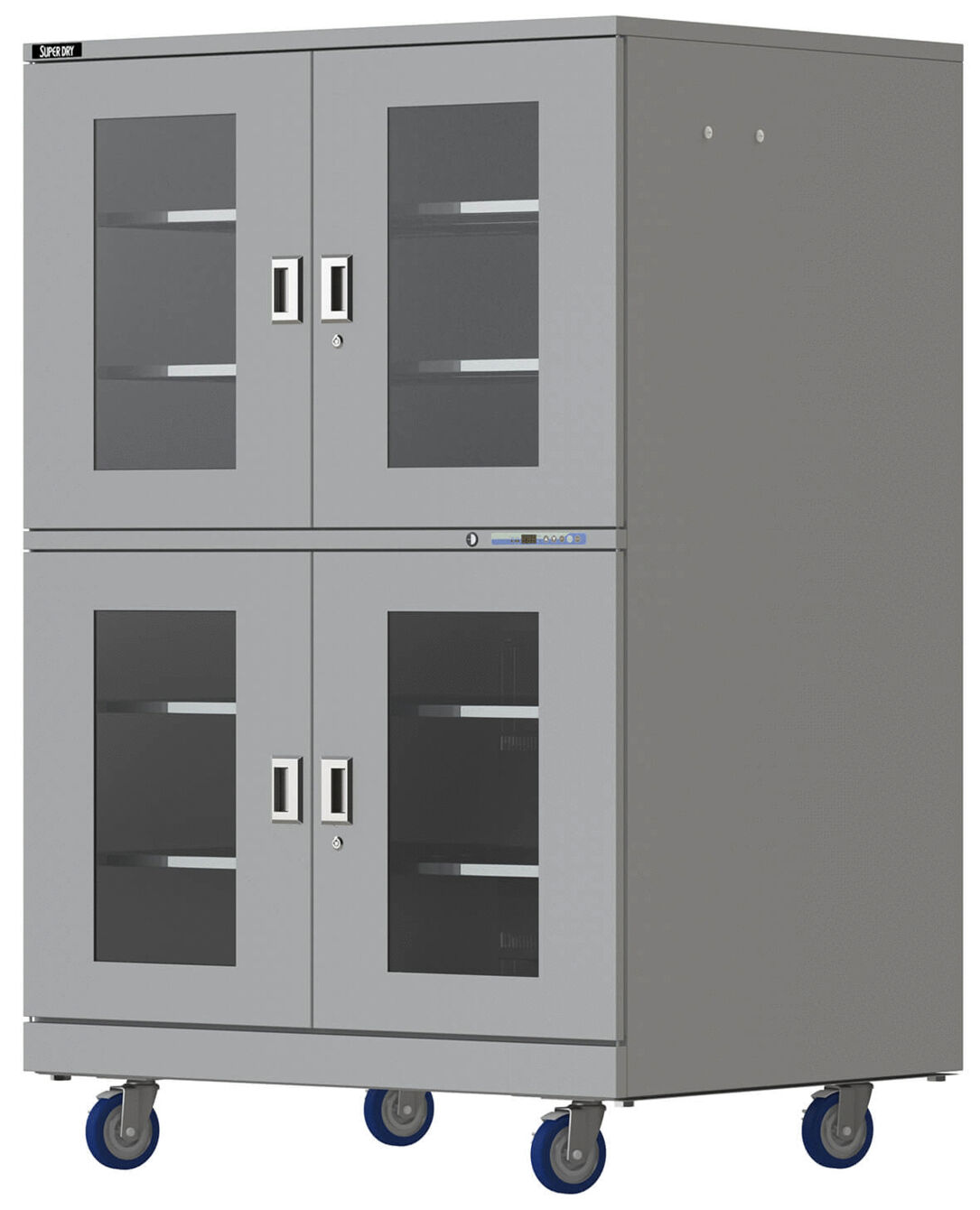

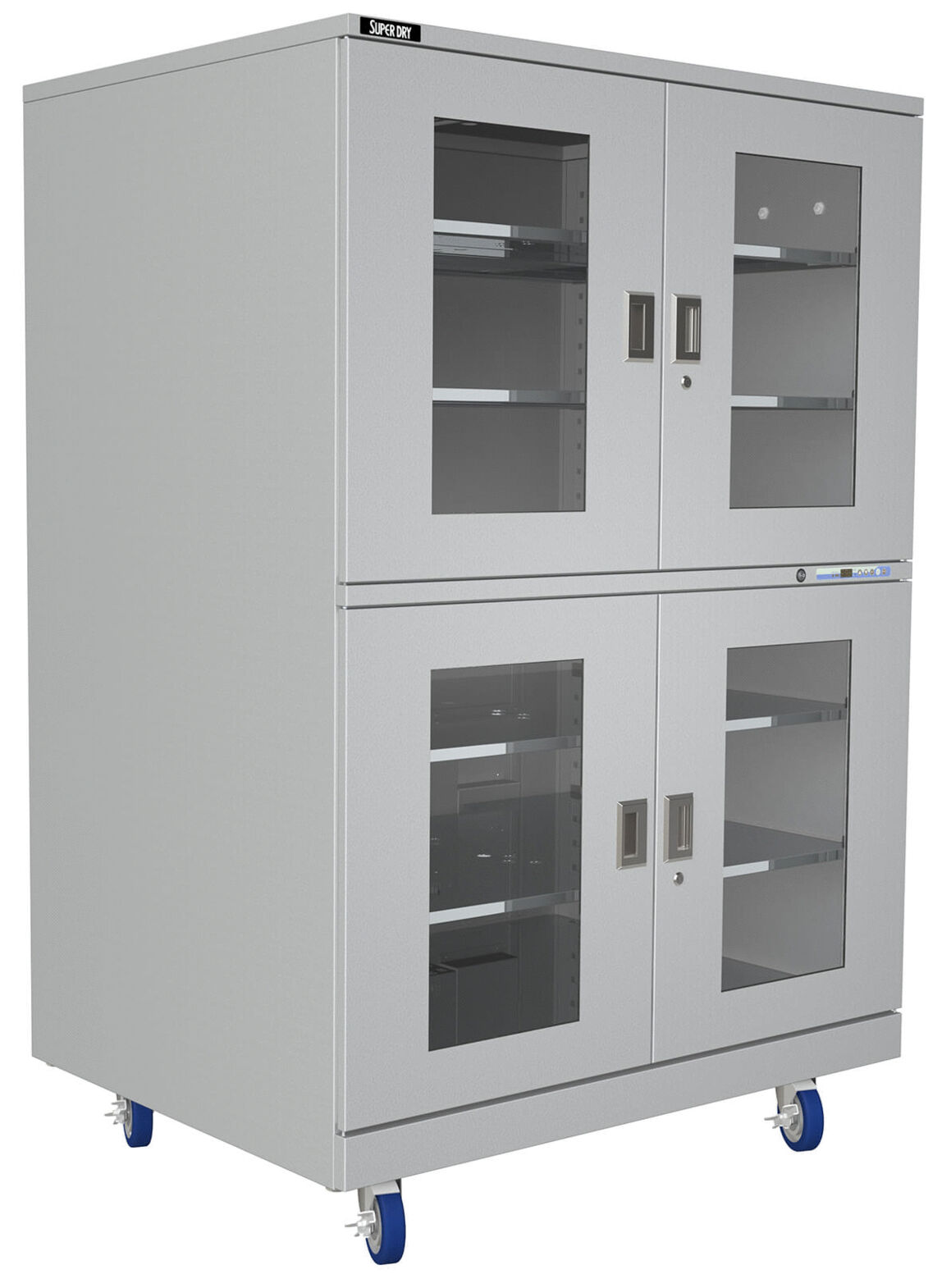

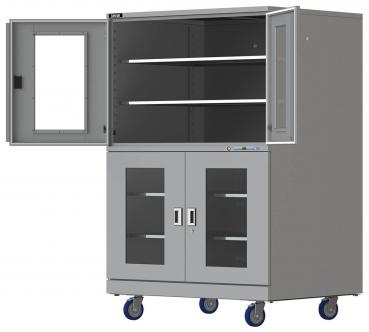

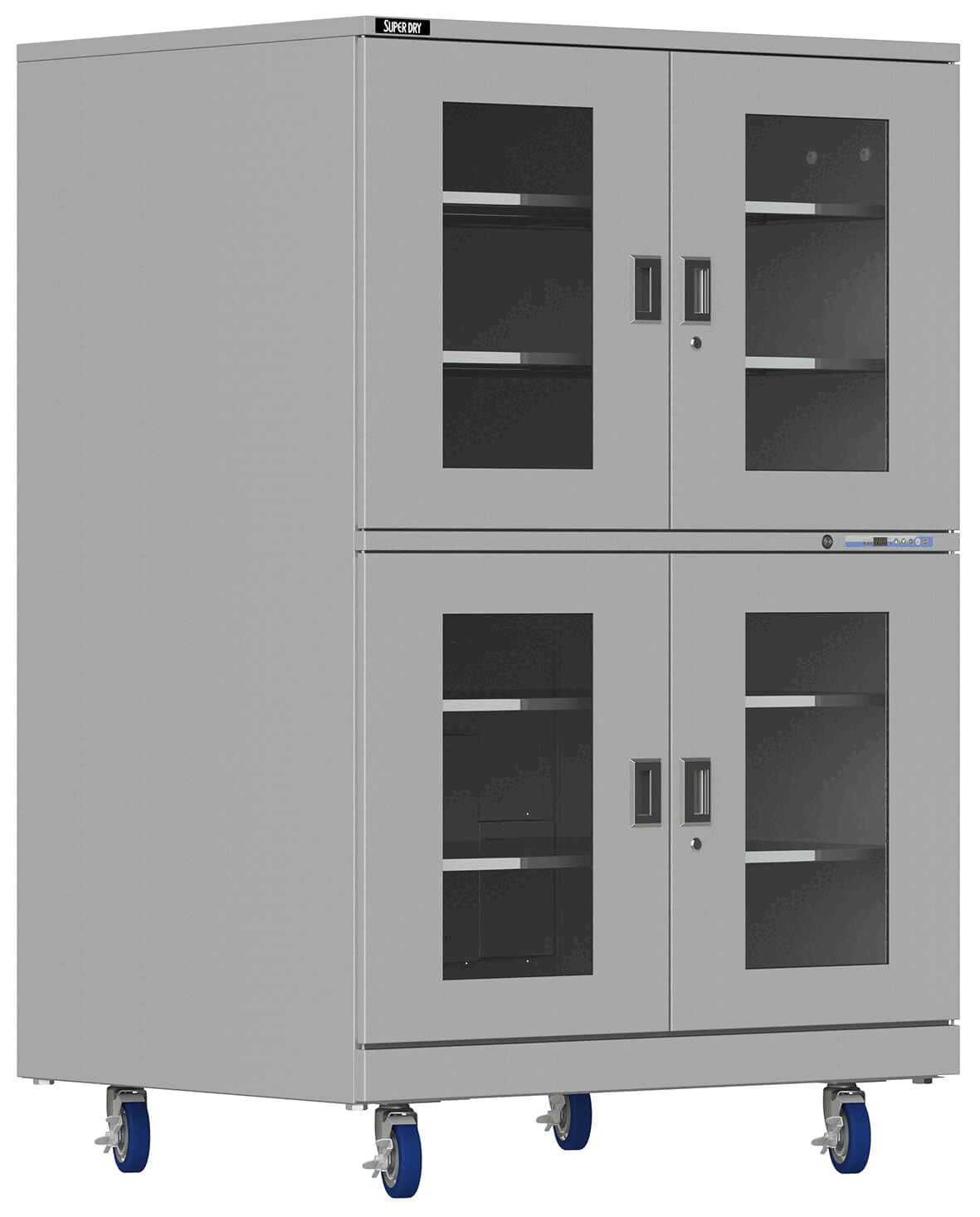

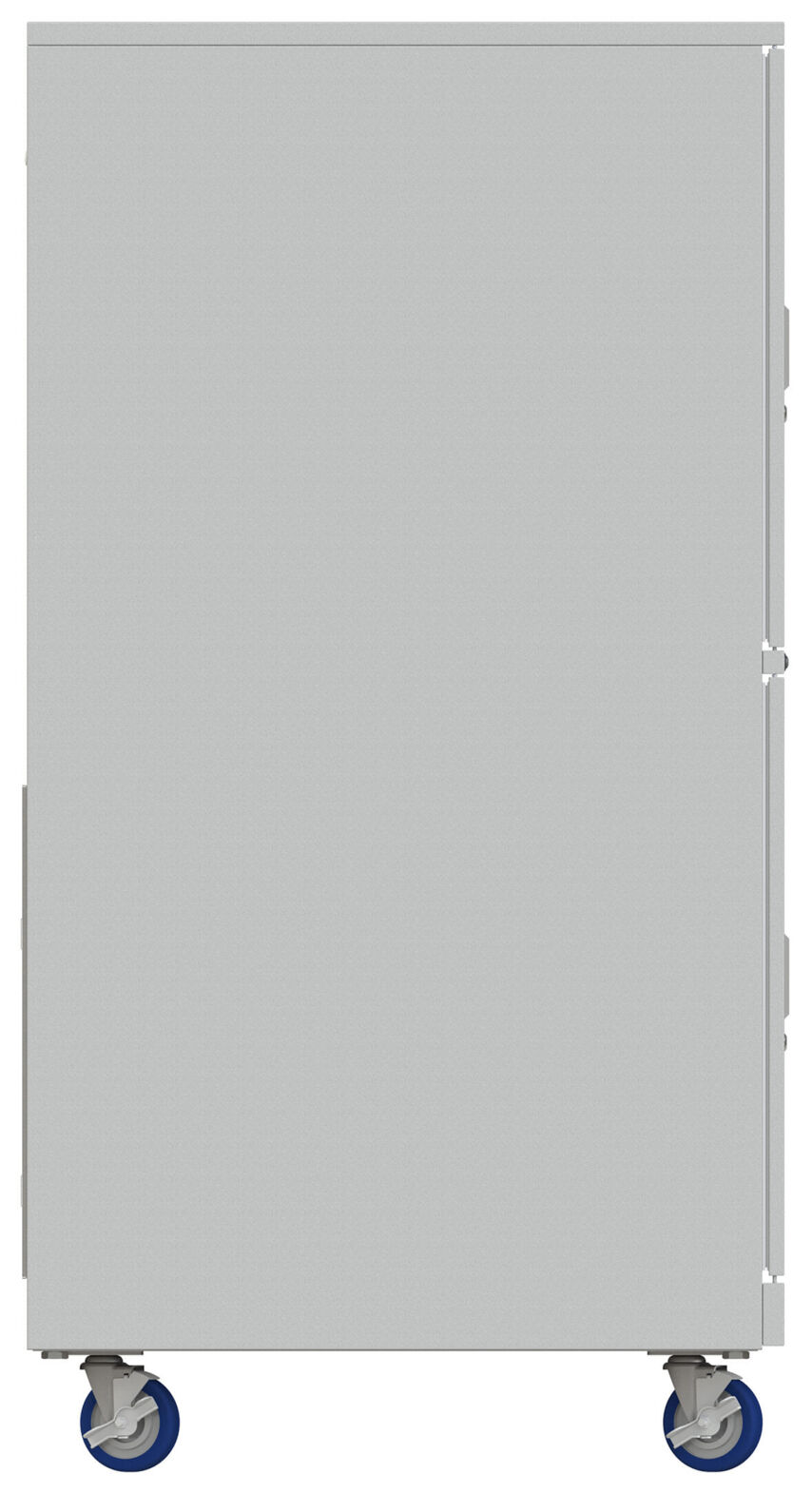

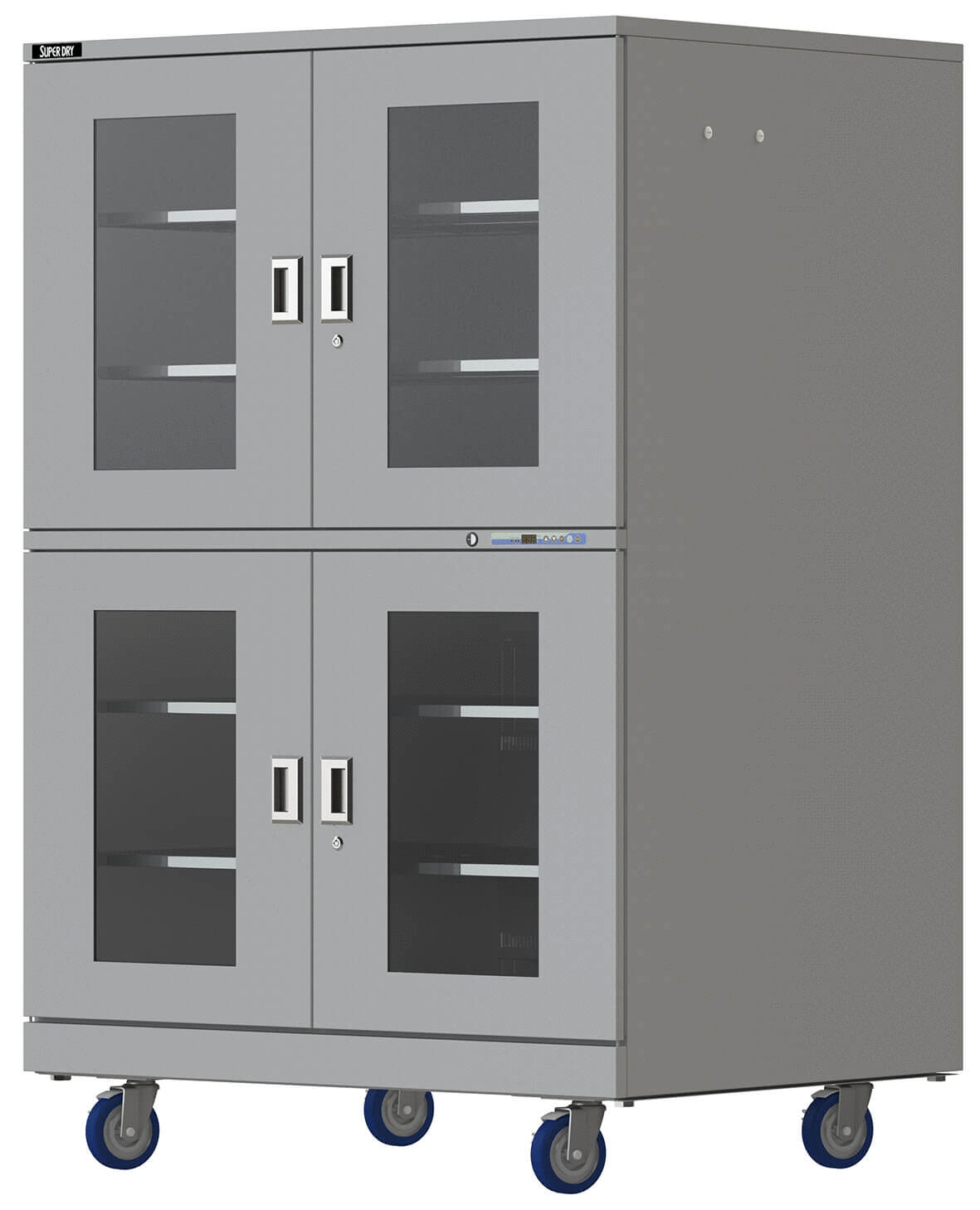

Drying storage cabinet SD 1704-21

(Product No.: TO-SD-1704-21)

(Product No.: TO-SD-1704-21)

Drying storage cabinet SD 1704-21

ArticleNo: TO-SD-1704-21

dpvlink:

27417

Tags:

Shelves:

Volume:

1700 l

Width [mm]:

1200 mm

Height [mm]:

1675 mm

Depth [mm]:

960 mm

Further product information

Compare

Notice

Product Info

Dry Storage Cabinet SD 1704-21 This dry storage cabinet provides an optimal solution for storing and drying sensitive components, in accordance with ESD standard DIN EN 61340-5-1. The robust steel housing, combined with 360° casters and brakes, allows for flexible and secure positioning. The doors are lockable and meet protection class 1. Technical Specifications: - Volume: 1700 l - External dimensions: 1200 mm width, 1675 mm height, 960 mm depth - Internal dimensions: 1190 mm width, 1533 mm height, 910 mm depth - Weight: 197 kg - Load capacity: 500 kg, shelf 100 kg - Cable: 5.0 m length Additional features include a digital control panel, a maintenance-free drying unit that keeps relative humidity below 2%, and forced air circulation. The integrated sensor ensures precise humidity measurement. After opening the doors, the cabinet returns to a humidity level of below 5% RH within 30 minutes. Item number: TO-SD-1704-21

Details

Shelves Shelves: 5
Volume Volume: 1700 l
Width [mm] Width [mm]: 1200 mm
Height [mm] Height [mm]: 1675 mm
Depth [mm] Depth [mm]: 960 mm
Cable length Cable length: 5.0 m
Internal depth Internal depth: 910 mm
Internal height Internal height: 1533 mm
Internal width Internal width: 1190 mm
Bracket Bracket: steel sheet
Load capacity Load capacity: 500 kg
Weight Weight: 197 kg

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

Article image	Article description	Shelves	Volume	Width [mm]	Height [mm]	Depth [mm]	Price
	TO-SD-1104-21 Drying storage cabinet SD 1104-21	5	1179 l	1200 mm	1675 mm	765 mm	-
	TO-SD-1106-21 Drying storage cabinet SD 1106-21	5	1179 l	1200 mm	1675 mm	765 mm	-
	TO-SD-151-21 Drying storage cabinet SD 151-21	3	135 l	500 mm	630 mm	580 mm	-
	TO-SD-1704-21 Drying storage cabinet SD 1704-21	5	1700 l	1200 mm	1675 mm	960 mm	-
	TO-SD-302-21 Drying storage cabinet SD 302-21	7	320 l	500 mm	1227 mm	640 mm	-
	TO-SD-502-21 Drying storage cabinet SD 502-21	3	496 l	880 mm	898 mm	740 mm	-
	TO-SD-702-21 Drying storage cabinet SD 702-21	5	680 l	620 mm	1675 mm	768 mm	-
