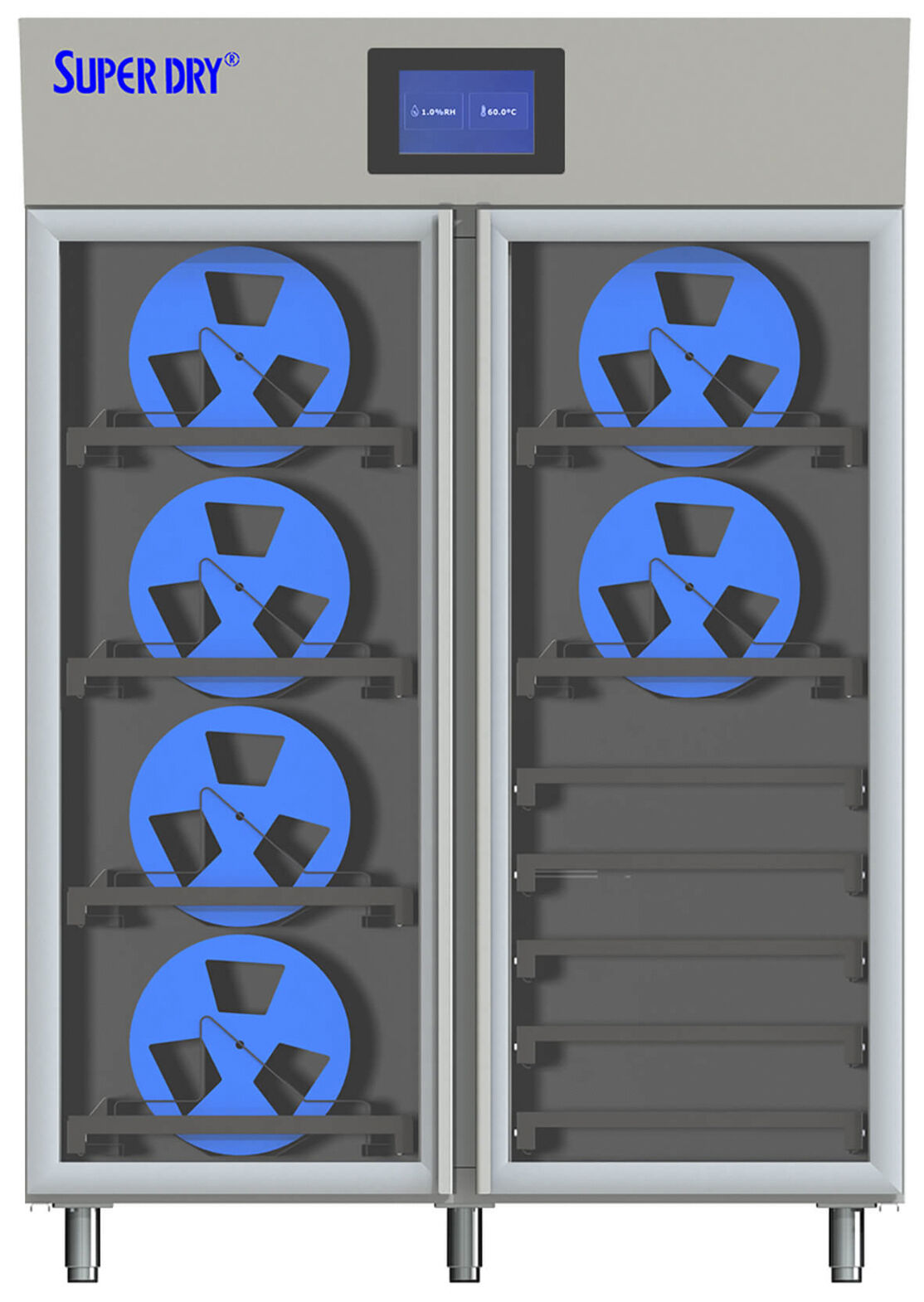

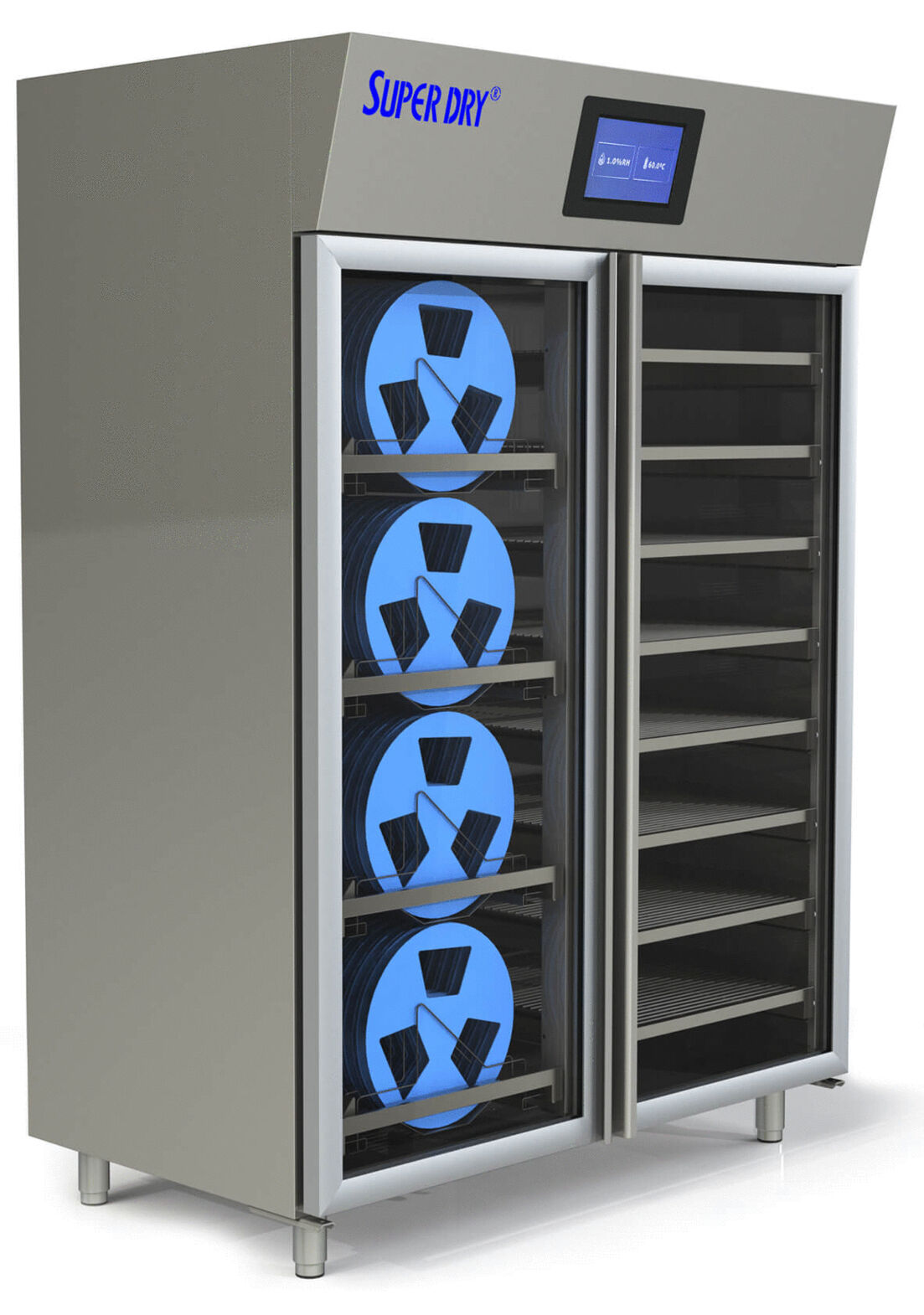

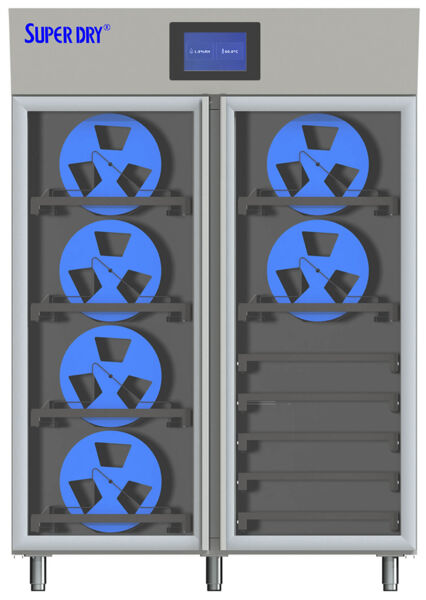

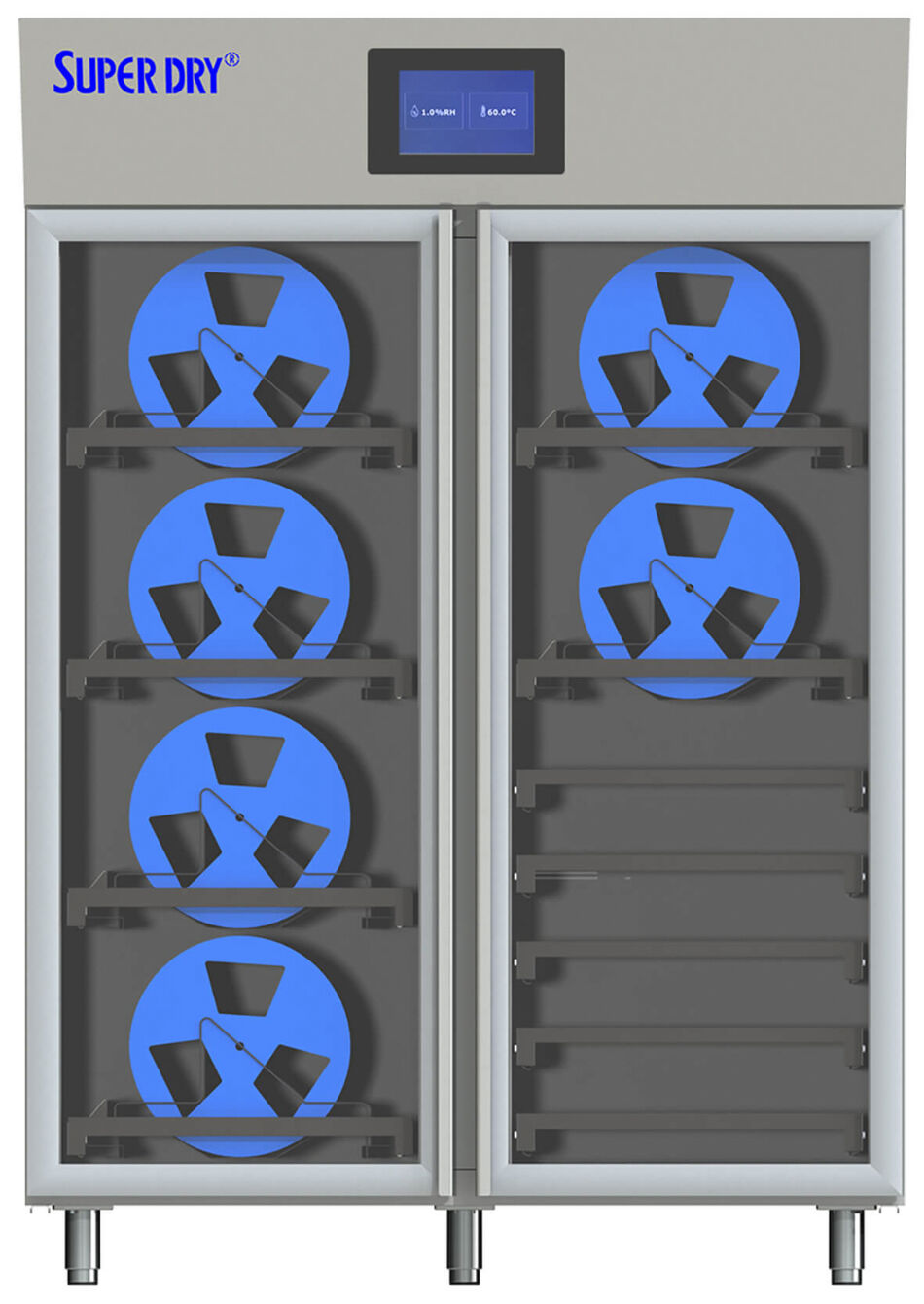

The isolated dry storage cabinet XSDB-1412-55 from Totech SuperDry offers an advanced solution for drying moisture-sensitive components. This unit is specifically designed to ensure a continuously controlled humidity level of less than 0.5% RH. With its compact external dimensions of 1432x1930/2110x808 mm and an effective interior space of 1315 x 1504 x 600 mm, the cabinet provides a volume of 1190 liters and is equipped with ten shelves that allow for flexible storage.
The insulation and the painted housing protect the contents from external influences, while the integrated heater allows for stepless regulation up to 40°C. The technical equipment includes a hygrometer, a humidity display with limit value monitoring, and an integrated sensor that offers a measurement accuracy of +/- 0.8% RH. A powerful radial fan ensures forced air circulation, and the drying unit is maintenance-free. In addition, the cabinet features a digital control panel, the Totech Viewer software, and an integrated data logger with an Ethernet interface.
The cabinet complies with the ESD standard DIN EN 61340-5-1 and operates efficiently with an energy consumption of 230 W/h. This product is an ideal choice for technical environments that require the highest precision and reliability.
Details
- Shelves
Shelves
- 10
- Volume
Volume
- 1390 l
- Width [mm]
Width [mm]
- 1432 mm
- Height [mm]
Height [mm]
- 1930 - 2110 mm
- Depth [mm]
Depth [mm]
- 808 mm
- Internal depth
Internal depth
- 685 mm
- Internal height
- 1504 mm
- Internal width
Internal width
- 1315 mm
- Power [W]
Power [W]
- 230 W
- Temperature accuracy/stability +/-
Temperature stability +/-
- 2 °C
- Temperature resistance
Temperature resistance
- 60 °C
- Weight
Weight
- 230 kg
