Pallet stacking frame ESD
(Product No.: 5395.AR)
Mobile Preview: Image
Mobile Preview: Image
Notice

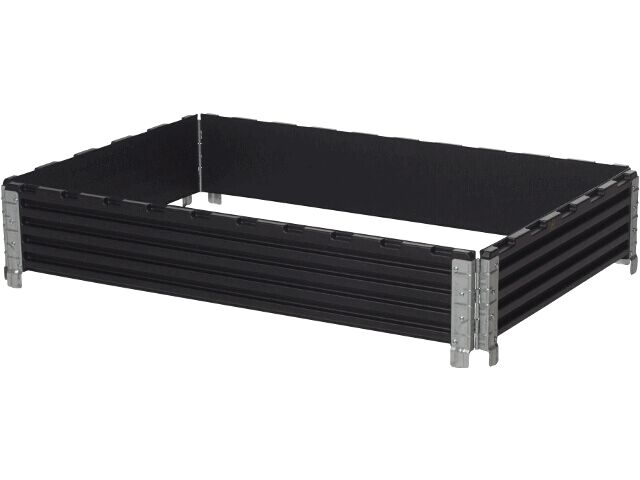

Pallet stacking frame ESD

dpvlink:
19362
Tags:
Length [mm]:
1200
Width [mm]:
800
Height [mm]:
200
Further product information

127.45 CHF
127.45 CHF per PCE

PCE:
Compare Compare
Notice
Product Info

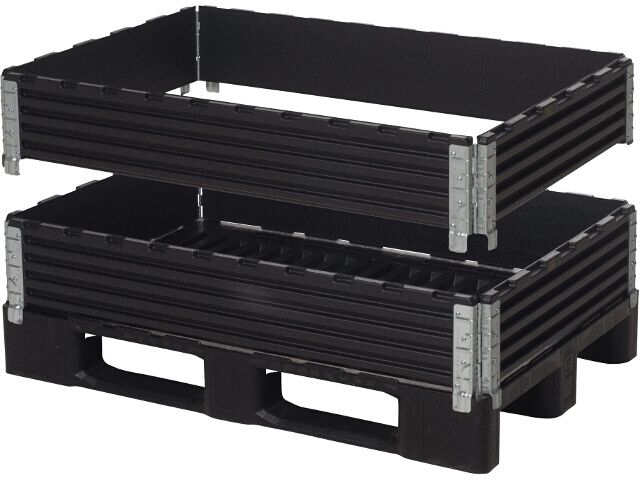

ESD Pallet Collar Frame The ESD pallet collar frame 1200x800x200 mm is ideal for secure ESD-protected transport. Made from conductive polystyrene reinforced with carbon, this frame effectively dissipates electrostatic charges. It is certified according to the ESD standard DIN EN 61340-5-1, ensuring the highest safety standards. The frame is equipped with four corner hinges that allow for diagonal folding and facilitate stackability. Technical Specifications: - Length: 1200 mm - Width: 800 mm - Height: 200 mm - Weight: 5.2 kg - Material: Polystyrene - Color: Black - Point-to-point resistance Rp-p: 10^6 Ω - Stackable: Yes Item number: 5395.AR
Length [mm]
Length [mm]
1200
Width [mm]
Width [mm]
800
Height [mm]
Height [mm]
200
Color
Color
black
Conductivity
Conductivity
conductive
Material
Material
polystyrene
Stackable
Stackable
yes
Weight
Weight
5.2 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 296
Complete Catalog 2023 - 2024

This product is compatible with (for example):

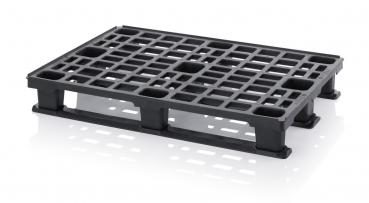

Lightweight pallet ESD 1200 x 800 mm
ESD lightweight pallet 1200 x 800 x 150 mm, black
with 9 feet, material: PP with external locking
electrostatically conductive
(DIN EN 61340-5-1)
Surface load:
static 1,000 kg
dynamic 500 kg
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15655

53.85 CHF
Lightweight pallet ESD 1200 x 800 mm / skids...
Lightweight pallet ESD 1200 x 800 x 150 mm, black
with 3 skids, material: PP with external locking

electrostatically conductive (DIN EN 61340-5-1)
Surface load::
static 1,000kg
dynamic 500 kg
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15655

74.05 CHF

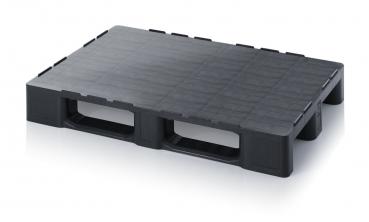

Transport pallet ESD type 860
ESD transport pallet type 860
1200 x 800 x 160 mm, with 3 skids, external lock
Weight 17.5 kg
Material: conductive polypropylene
load capacity (load):
static = 3500 kg
dynamic = 1500 kg
high rack = 300 kg
dpvlink
17010

145.15 CHF
Transport pallet ESD type 861
ESD pallet type 861
1200 x 800 x 160 mm, reinforced with 2 steel pipes
with 3 skids, external locking, weight 19 kg
Material: conductive polypropylene
load capacity (load):
static = 4500 kg
dynamic = 2500 kg
high rack = 1500 kg
dpvlink
17010

160.70 CHF
