Drawer unit 30/22 ESD
Drawer unit 30/22 ESD

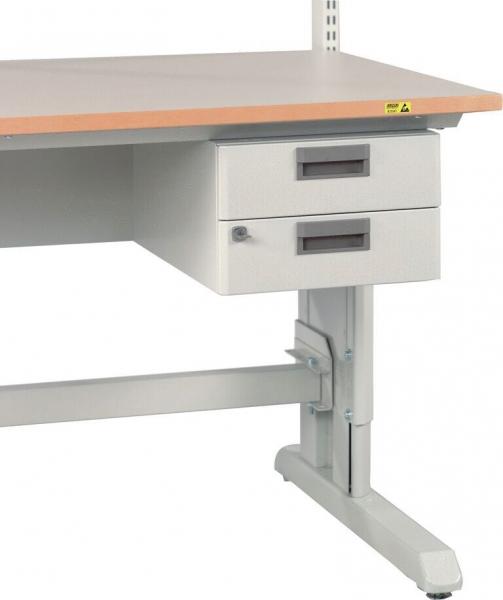

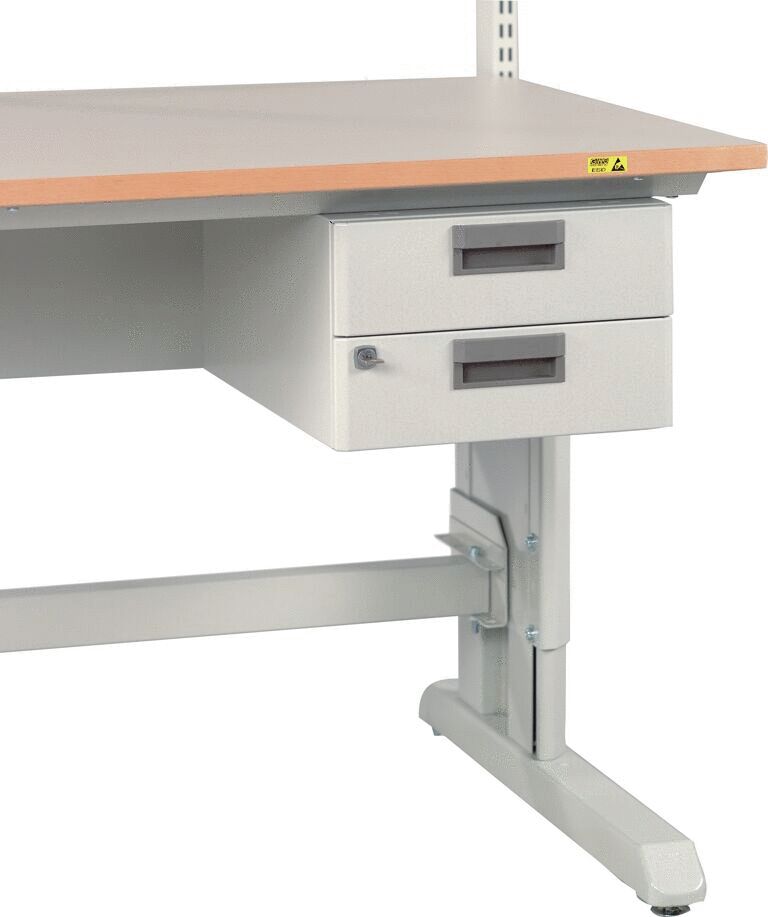

The Treston drawer unit 30/22 ESD offers optimal storage options right under the workbench top. This model features two drawers, each with a height of 110 mm and is lockable, providing additional security for stored contents. The external dimensions of the unit are 300 mm in width, 454 mm in depth, and 220 mm in height, while the internal dimensions per drawer are 255 mm in width, 400 mm in depth, and 75 mm in height.The construction from ESD-safe material prevents electrostatic discharges, which is particularly advantageous in technical and electronic work environments. Each drawer can carry up to 10 kg. With easy installation under the workbench top and the option to attach additional drawer units, this drawer unit is a flexible and secure storage solution.
Details
- Width Width
- 300 mm
- Height Height
- 220 mm
- Depth Depth
- 454 mm
- Drawers Drawers
- 2
- Load capacity Load capacity
- 10 kg
- suitable for table system suitable for system
- TP, TPH, Concept, WB, TED, TPB
- Color Color
- light grey
- Drawer height Drawer height
- 110 mm
- Internal depth
- 400 mm
- Internal height
- 75 mm
- Internal width Internal width
- 255 mm
- Material Material
- steel
- Surface Surface
- Epoxy powder-coated
- ESD ESD
- yes
- Version Version
- 80% extension
- further versions available -
Show accessories
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Drawer unit 30 and 35
Article image
Article description
Width
Height
Depth
Drawers
Load capacity
suitable for table system
Price
Compare
300 mm
150 mm
454 mm
1
10 kg
TP, TPH, Concept, WB, TED, TPB
300 mm
220 mm
454 mm
2
10 kg
TP, TPH, Concept, WB, TED, TPB
