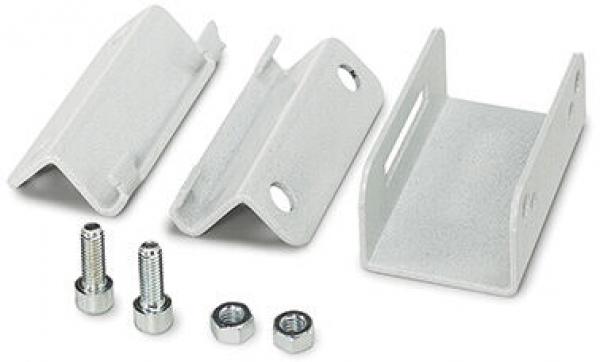

The image shows two metal brackets and a casing, all in silver color. Included are three screws and washers. The shapes are rectangular and flat.
Adapter für MA4 suitable for upright tubes
(Product No.: AS4)
The image shows two metal brackets and a casing, all in silver color. Included are three screws and washers. The shapes are rectangular and flat.
Notice / Inquire

Adapter für MA4 suitable for upright tubes

Adapter für MA4 suitable for upright tubes

dpvlink:
18572
suitable for system:
TP, Concept, QuarteX
Further product information

47.85 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Adapter für MA4 suitable for upright tubes

The AS4 adapter from Treston is specifically designed to attach the MA4 monitor holder to the slotted tube profiles of the Concept, TP, TED, and QuatreX desk series. With a width of 35 mm, a height of 100 mm, and a depth of 54 mm, this adapter provides a compact and robust solution for mounting. Its ESD safety ensures the protection of sensitive electronic components from electrostatic discharges. The light gray color and powder-coated steel material guarantee a durable and resistant surface that seamlessly integrates into the work environment. Ideal for technical workstations that require a reliable and efficient mounting solution.
suitable for system
suitable for system
TP, Concept, QuarteX
Color
Color
light grey
Depth
Depth
54 mm
Height
Height
100 mm
Width
Width
35 mm
Material
Material
steel
Surface
Surface
Epoxy powder-coated
ESD
ESD
yes
Show accessories
Accessories

Accessories

The image displays a monitor mount with a movable, silver arm. The mount can be adjusted into various positions and features a black back with multiple mounting holes.
LCD screen holder MA4
LCD screen holder MA4 with height-adjustable arm
Load capacity max. 7 kg
dpvlink
18572

374.10 CHF
The image shows a simple, white shelving frame with two vertical sides connected by a horizontal bar at the top. It features various perforations for mounting options.
Upright tube module ESD, 2xM750
Upright tube module ESD, 2 x M750 consisting of:
3 x upright tube 996 mm, 2 x horizontal tube M750
Incl. 5 cable clips

(suitable for Concept tables width 1500/1800/2000 mm and TP tables width 1500 mm)
dpvlink
19302

318.00 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Swivel arm MA

The quick-release mechanism ist equipped with the standard mount suitable for all conventional flat screens (75x75 and 100x100). The arm is double articulated, turns through a radius of 180°, extends between 95-425 mm from the upright. For the mounting to TPH work tables, a connector AS2 is required. Load capacity 10 kg.


Article image
Article description
Load capacity
suitable for system
suitable for module
Price
Compare
MH - Screen bracket for workstation
MH
Screen bracket for workstation
15 kg
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR,multi cart, Cabinet cart

224.00 CHF
MA - Swivel arm MA for flat screen
MA
Swivel arm MA for flat screen
10 kg
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR,multi cart

355.00 CHF
MA2 - Swivel arm MA2 for flat screens
MA2
Swivel arm MA2 for flat screens
15 kg
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR,multi cart

414.00 CHF
MA4 - LCD screen holder MA4
MA4
LCD screen holder MA4
7 kg
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR

374.10 CHF
MY - Tablet bracket for workstation MLC and MLCT
MY
Tablet bracket for workstation MLC and MLCT
15 kg
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR,multi cart, Cabinet cart
MH, MA, MA2, MA4
170.00 CHF
AS2 - Adapter set for fixing MH/MA/MA2 holder
AS2
Adapter set for fixing MH/MA/MA2 holder

TP, TPH, Concept, QuatreX

42.80 CHF
AS4 - Adapter für MA4 suitable for upright tubes
AS4
Adapter für MA4 suitable for upright tubes

TP, Concept, QuarteX

47.85 CHF
AS4C - Adapter for MA4 suitable for TPH/TPB structure profiles
AS4C
Adapter for MA4 suitable for TPH/TPB structure profiles

TPH, TPB

47.85 CHF
