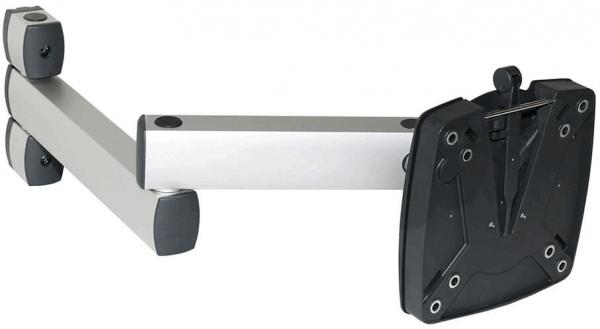

The image shows a swiveling monitor arm. It consists of a silver metal arm with a black mount. The arm is flexible and allows for adjustment of the monitor position.
Swivel arm MA for flat screen
(Product No.: MA)
The image shows a swiveling monitor arm. It consists of a silver metal arm with a black mount. The arm is flexible and allows for adjustment of the monitor position.
Notice / Inquire

Swivel arm MA for flat screen

Swivel arm MA for flat screen

dpvlink:
18572
Load capacity :
10 kg
suitable for system:
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR,multi cart
Properties:
Further product information

355.00 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Swivel arm MA for flat screen

The MA flat screen swivel arm from Treston offers a flexible solution for mounting flat screens at various workstations. This model is equipped with a universal quick-release mount that is compatible with VESA standards 75 and 100, supporting a wide range of screens. The arm features two extensions and can be swiveled up to 180°, with an adjustable range from 95 to 425 mm from the mounting point.
To mount on the grid tubes and C-profiles of the Treston workbenches of the TPH/TPB series, as well as on the grid tube profiles of the Concept, TP, TED, and Workshop table series, the AS2 adapter set is required. The swivel arm carries loads up to 10 kg and is made of anodized aluminum, making it both sturdy and lightweight. The color of the arm is a neutral light gray, suitable for various work environments. Note that this swivel arm is not ESD-safe.
Load capacity
Load capacity
10 kg
suitable for system
suitable for system
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR,multi cart
Color
Color
light grey
Material
Material
aluminum / anodized
ESD
ESD
no
Version
Version
swivelling
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a simple metal frame. It consists of two vertical bars on the sides and a horizontal beam connecting them. The frame is stable and has fixtures on the bottom.
Upright profile AL2X-180W
Upright profile 55 x 1789 x 900 mm
consisting of 2 vertical profiles +
1 horizontal profile
suitable for WB-818 ESD
dpvlink
1545

305.00 CHF
The image shows a long, flat bar made of light material with several small holes along the top. It is straight and has a simple, functional shape.
Upright tube 30 x 60 x 1359 mm (WxDxL)
Upright tube ESD 30 x 60 x 1359 mm (WxDxL)
RAL 7035 ESD
dpvlink
18756

65.00 CHF
The image shows an assembly kit consisting of two gray brackets with slots, two smaller gray parts, two metallic plates, and several screws.
Adapter set for fixing MH/MA/MA2 holder
AS2 adapter set
for the fixing MH/MA/MA2 holder to the
upright tubes
dpvlink
18572

42.80 CHF
The image displays a simple, silver aluminum frame. It consists of two vertical poles and a horizontal connection that provides stability. The design is plain and functional.

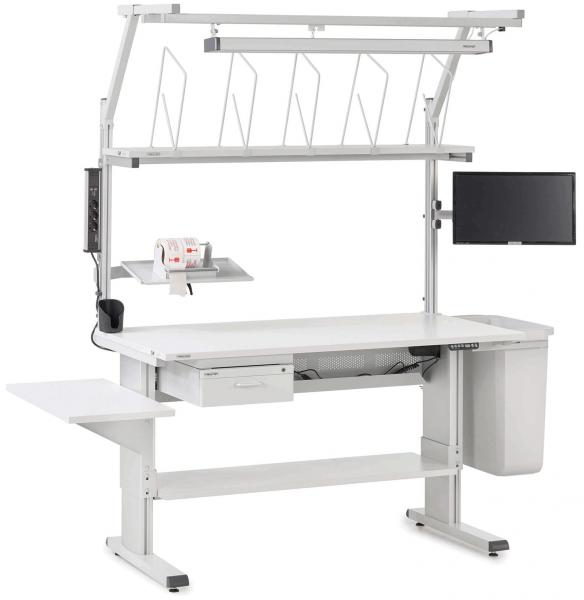

Upright profile AL2X-180QX
Upright ESD QuatreX 1489x1200mm
Depth 55mm
The set consists of 2 upright and
a horizontal aluminium profile
dpvlink
29648

367.00 CHF
The image shows a simple, white shelving frame with two vertical sides connected by a horizontal bar at the top. It features various perforations for mounting options.
Upright tube module ESD, 2xM750
Upright tube module ESD, 2 x M750 consisting of:
3 x upright tube 1359 mm, 2 x horizontal tube M750
Incl. 5 cable clips

(suitable for Concept tables width 1500/1800/2000 mm and TP tables width 1500 mm)
dpvlink
19302

310.00 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 259
Complete Catalog 2023 - 2024

Product Family

Swivel arm MA

The quick-release mechanism ist equipped with the standard mount suitable for all conventional flat screens (75x75 and 100x100). The arm is double articulated, turns through a radius of 180°, extends between 95-425 mm from the upright. For the mounting to TPH work tables, a connector AS2 is required. Load capacity 10 kg.


Article image
Article description
Load capacity
suitable for system
suitable for module
Price
Compare
MH - Screen bracket for workstation
MH
Screen bracket for workstation
15 kg
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR,multi cart, Cabinet cart

224.00 CHF
MA - Swivel arm MA for flat screen
MA
Swivel arm MA for flat screen
10 kg
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR,multi cart

355.00 CHF
MA2 - Swivel arm MA2 for flat screens
MA2
Swivel arm MA2 for flat screens
15 kg
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR,multi cart

414.00 CHF
MA4 - LCD screen holder MA4
MA4
LCD screen holder MA4
7 kg
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR

374.10 CHF
MY - Tablet bracket for workstation MLC and MLCT
MY
Tablet bracket for workstation MLC and MLCT
15 kg
TP, TPH, Concept, QuatreX, TED, WB, TPB, WTR,multi cart, Cabinet cart
MH, MA, MA2, MA4
170.00 CHF
AS2 - Adapter set for fixing MH/MA/MA2 holder
AS2
Adapter set for fixing MH/MA/MA2 holder

TP, TPH, Concept, QuatreX

42.80 CHF
AS4 - Adapter für MA4 suitable for upright tubes
AS4
Adapter für MA4 suitable for upright tubes

TP, Concept, QuarteX

47.85 CHF
AS4C - Adapter for MA4 suitable for TPH/TPB structure profiles
AS4C
Adapter for MA4 suitable for TPH/TPB structure profiles

TPH, TPB

47.85 CHF
