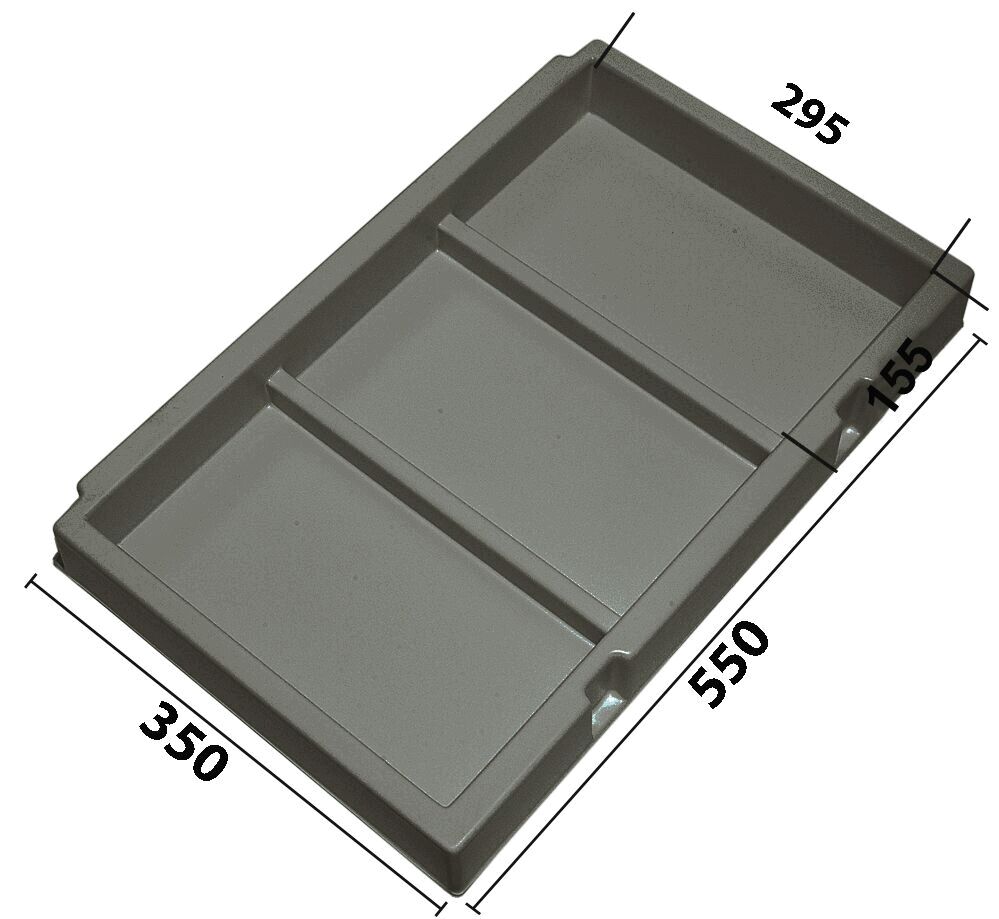

The image displays a gray, rectangular tray with two compartments. It measures 550 mm in length, 350 mm in width, and 155 mm in height. The surfaces are smooth and plain.
Vacuum-formed insert T-2109 550 x 350 x 58 mm, 3 compartments ESD
(Product No.: 032.T-2109)
The image displays a gray, rectangular tray with two compartments. It measures 550 mm in length, 350 mm in width, and 155 mm in height. The surfaces are smooth and plain.
Notice

Vacuum-formed insert T-2109 550 x 350 x 58 mm, 3 compartments ESD

Vacuum-formed insert T-2109 550 x 350 x 58 mm, 3 compartments ESD

dpvlink:
18948
Length :
550 mm
Width [mm]:
350 mm
Height [mm]:
58 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


Minimum order:
10 PCE
24.10 CHF

excl. 8.1% tax

10 PCE
Compare Compare
Notice
Product Info

Vacuum-formed insert T-2109 550 x 350 x 58 mm, 3 compartments ESD

The Licefa deep-drawing insert T-2109 is distinguished by its precise dimensions of 550 x 350 x 58 mm and is specifically designed for use in containers sized 600x400 mm. This insert features three compartments, each measuring 295 x 135 x 55 mm, which allow for the secure and organized storage of sensitive electronic components.
Made from electrically conductive plastic material, the deep-drawing insert meets the standards of DIN EN 61340-5-1, making it ideal for applications in ESD-sensitive environments. The surface resistance is between 10^3 and 10^5 Ohm, ensuring reliable dissipation of electrostatic charges.
Additionally, the insert is suitable for reversible stacking, which simplifies and optimizes handling and storage. With its robust construction and specific features, the Licefa deep-drawing insert T-2109 effectively supports the technical purchasing requirements in the area of safe and efficient component storage.
Length
Length
550 mm
Width [mm]
Width
350 mm
Height [mm]
Height
58 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
3
Dimensions cavities
Dimensions cavities
295x135x55 mm
Suitable for containers
Suitable for containers
600x400 mm
Common
Vacuum-formed inserts are specially shaped inserts or inserts made of plastic that are used in storage and transport containers to store sensitive or fragile items safely and securely.
Licefa's ESD vacuum-formed inserts offer a first-class solution for the safe and efficient storage of your sensitive electronic components. All inserts are made of electrically conductive material (Liastat).

Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 319
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Article image
Article description
Length
Width [mm]
Height [mm]
Price
Compare
032.T-2109 - Vacuum-formed insert T-2109 550 x 350 x 58 mm, 3 compartments ESD
032.T-2109
Vacuum-formed insert T-2109 550 x 350 x 58 mm, 3 compartments ESD
550 mm
350 mm
58 mm
24.10 CHF
