Euro container Light with fixed hinged lid 800 x 600 x 240 mm

(Product No.: 8060220.L-ED)

Euro container Light with fixed hinged lid 800 x 600 x 240 mm

Name: Euro container Light with fixed hinged lid 800 x 600 x 240 mm
SKU: 8060220.L-ED
Price: 106.85 CHF
Availability: InStock

ArticleNo: 8060220.L-ED

dpvlink:

22805

Tags:

Length [mm]:

800

Width [mm]:

600

Height [mm]:

240

Internal length:

760

Internal width:

560

Internal height:

195

inside LxWxH [mm]:

760 x 560 x 195

Dimensions outside:

800 x 600 x 240

Further product information

Imprinting / Printing for boxes
configure_now

Interlayers
configure_now

Parting Inserts
configure_now

106.85 CHF
106.85 CHF per PCE

PCE:

Compare

Notice

Product Info

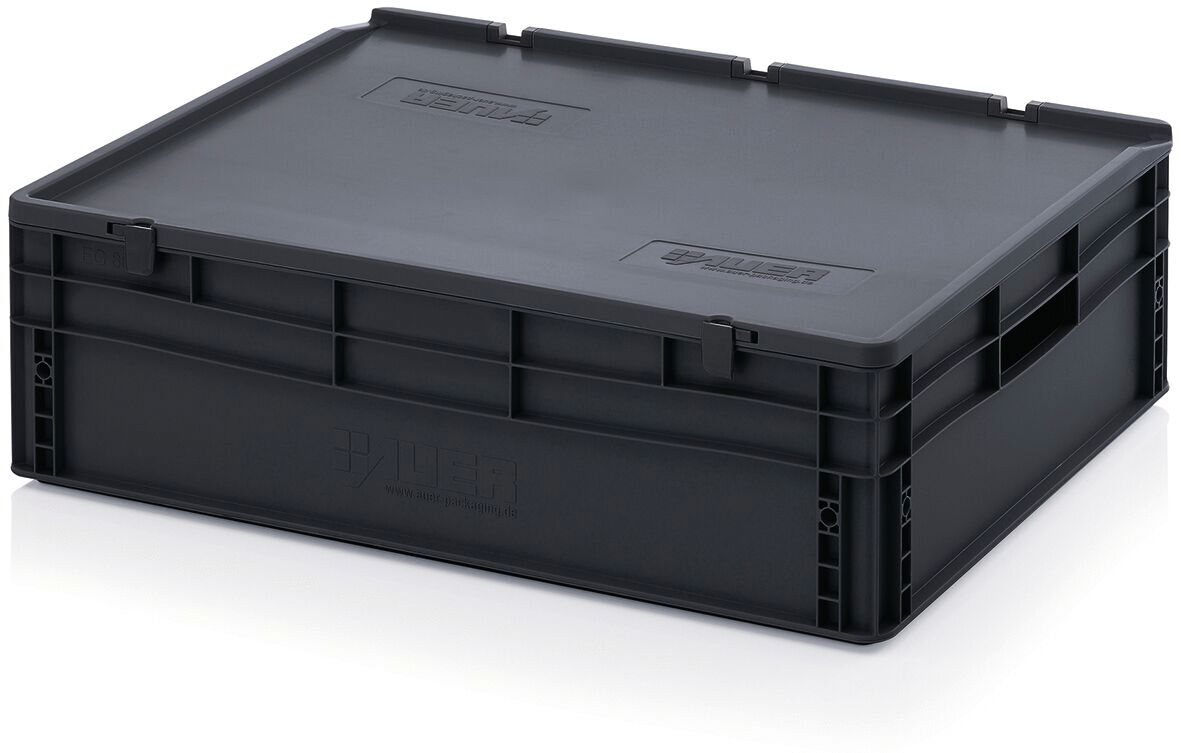

Euro container Light with permanently mounted hinged lid 800 x 600 x 240 mm
This sturdy Euro container Light with a permanently mounted hinged lid is made of antistatic polypropylene, which prevents electrostatic charges and safely dissipates them. The external dimensions are 800 x 600 x 240 mm and the internal dimensions are 760 x 560 x 195 mm, allowing a usable internal height of 195 mm. The container is black and features a reinforced ribbed base, providing additional stability. It is stackable and designed for a load capacity of up to 25 kg. The specific volume and surface resistance ranges between 10^3 and 10^10 Ohm, meeting the ESD standard DIN EN 61340-5-1. This container is ideal for the safe transport and storage of sensitive electronic components.
- External dimensions: 800 x 600 x 240 mm
- Internal dimensions: 760 x 560 x 195 mm
- Material: Polypropylene
- Color: Black
- Volume: 45 l
- Load capacity: 25 kg
- Stackable: Yes
- Volume resistance: 10^3 - 10^10 Ω
Item number: 8060220.L-ED

Details

Length [mm] Length [mm]: 800
Width [mm] Width [mm]: 600
Height [mm] Height [mm]: 240
Internal length Internal length: 760
Internal width Internal width: 560
Internal height Internal height: 195
Color Color: black
Volume resistance Volume resistance: 10³ - 10¹⁰ Ω
Material Material: polypropylene
Stackable Stackable: yes
Volume Volume: 45 l
Load capacity Load capacity: 25 kg

Show accessories

Accessories

Label clamp for Euro container 30 mm for...

Label holder 30 mm wide, galvanized
(to attach to container ribs)

Article image	Article description	inside LxWxH [mm]	Dimensions outside	Price
	6040220.L-ED Euro container Light with fixed hinged lid 600 x 400 x 235 mm	560 x 360 x 205	600 x 400 x 235	48.25 CHF
	6040320.L-ED Euro container Light with fixed hinged lid 600 x 400 x 335 mm	560 x 360 x 305	600 x 400 x 335	58.55 CHF
	8060120.L-ED Euro container Light with fixed hinged lid 800 x 600 x 140 mm	760 x 560 x 95	800 x 600 x 140	94.80 CHF
	4030170.L-ED Euro container Light with fixed hinged lid 400 x 300 x 185 mm	360 x 260 x 145	400 x 300 x 185	34.70 CHF
	4030120.L-ED Euro container Light with fixed hinged lid 400 x 300 x 135 mm	360 x 260 x 105	400 x 300 x 135	33.35 CHF
	3020120.L-ED Euro container Light ESD with fixed hinged lid 300 x 200 x 135 mm	260 x 160 x 100	300 x 200 x 135	15.95 CHF
	6040075.L-ED Euro container Light with fixed hinged lid 600 x 400 x 90 mm	560 x 360 x 63	600 x 400 x 90	38.55 CHF
	3020170.L-ED Euro container Light ESD with fixed hinged lid 300 x 200 x 185 mm	260 x 160 x 150	300 x 200 x 185	17.60 CHF
	4030220.L-ED Euro container Light with fixed hinged lid 400 x 300 x 235 mm	360 x 260 x 195	400 x 300 x 235	38.30 CHF
	4030075.L-ED Euro container Light with fixed hinged lid 400 x 300 x 90 mm	360 x 260 x 52	400 x 300 x 90	22.00 CHF
	4030270.L-ED Euro container Light with fixed hinged lid 400 x 300 x 285 mm	360 x 260 x 245	400 x 300 x 295	40.20 CHF
	8060320.L-ED Euro container Light with fixed hinged lid 800 x 600 x 340 mm	760 x 560 x 295	800 x 600 x 340	119.25 CHF
	2015120.L-ED Euro container Light ESD with fixed hinged lid 200 x 150 x 135 mm	160 x 110 x 100	200 x 150 x 135	18.20 CHF
	6040270.L-ED Euro container Light with fixed hinged lid 600 x 400 x 285 mm	560 x 360 x 255	600 x 400 x 285	55.05 CHF
	4030320.L-ED Euro container Light with fixed hinged lid 400 x 300 x 335 mm	360 x 260 x 295	400 x 300 x 335	43.35 CHF
	8060220.L-ED Euro container Light with fixed hinged lid 800 x 600 x 240 mm	760 x 560 x 195	800 x 600 x 240	106.85 CHF
	6040420.L-ED Euro container Light with fixed hinged lid 600 x 400 x 435 mm	560 x 360 x 405	600 x 400 x 435	62.90 CHF
	6040120.L-ED Euro container Light with fixed hinged lid 600 x 400 x 135 mm	560 x 360 x 105	600 x 400 x 135	42.10 CHF
	6040170.L-ED Euro container Light with fixed hinged lid 600 x 400 x 185 mm	560 x 360 x 155	600 x 400 x 185	47.25 CHF
	8060420.L-ED Euro container Light with fixed hinged lid 800 x 600 x 440 mm	760 x 560 x 395	800 x 600 x 440	136.05 CHF
