NEWBOX Euro container conductive 600x400x320 mm
(Product No.: 5310.65)
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image

NEWBOX Euro container conductive 600x400x320 mm

dpvlink:
795
Tags:
Dimensions outside:
600 x 400 x 320
inside LxWxH [mm]:
554 x 354 x 317
Material:
polypropylene
Stackable:
yes
Conductivity:
conductive
Further product information
Imprinting / Printing for boxes
configure_now
Interlayers
configure_now
Parting Inserts
configure_now



Compare Compare
Notice
Product Info

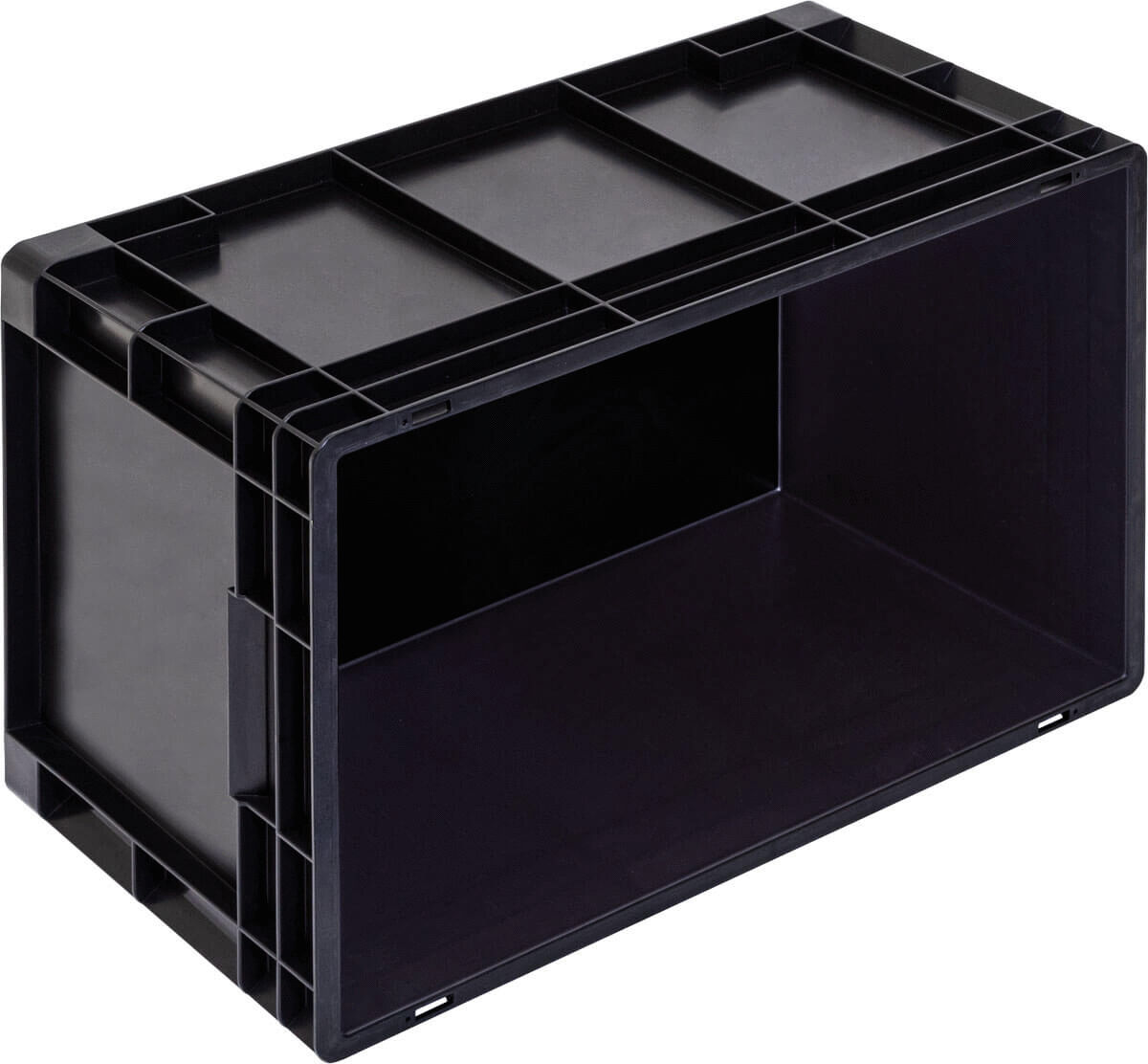

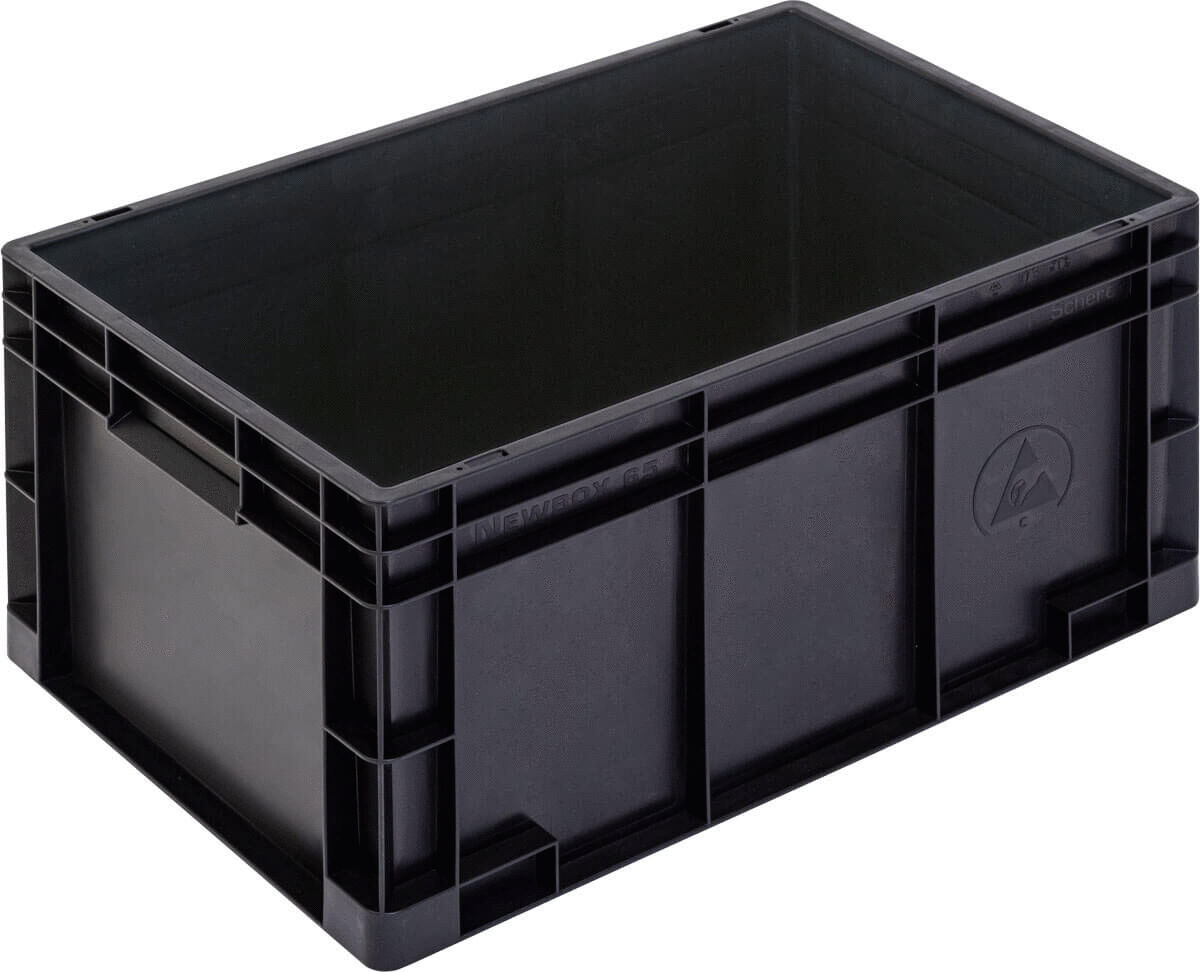

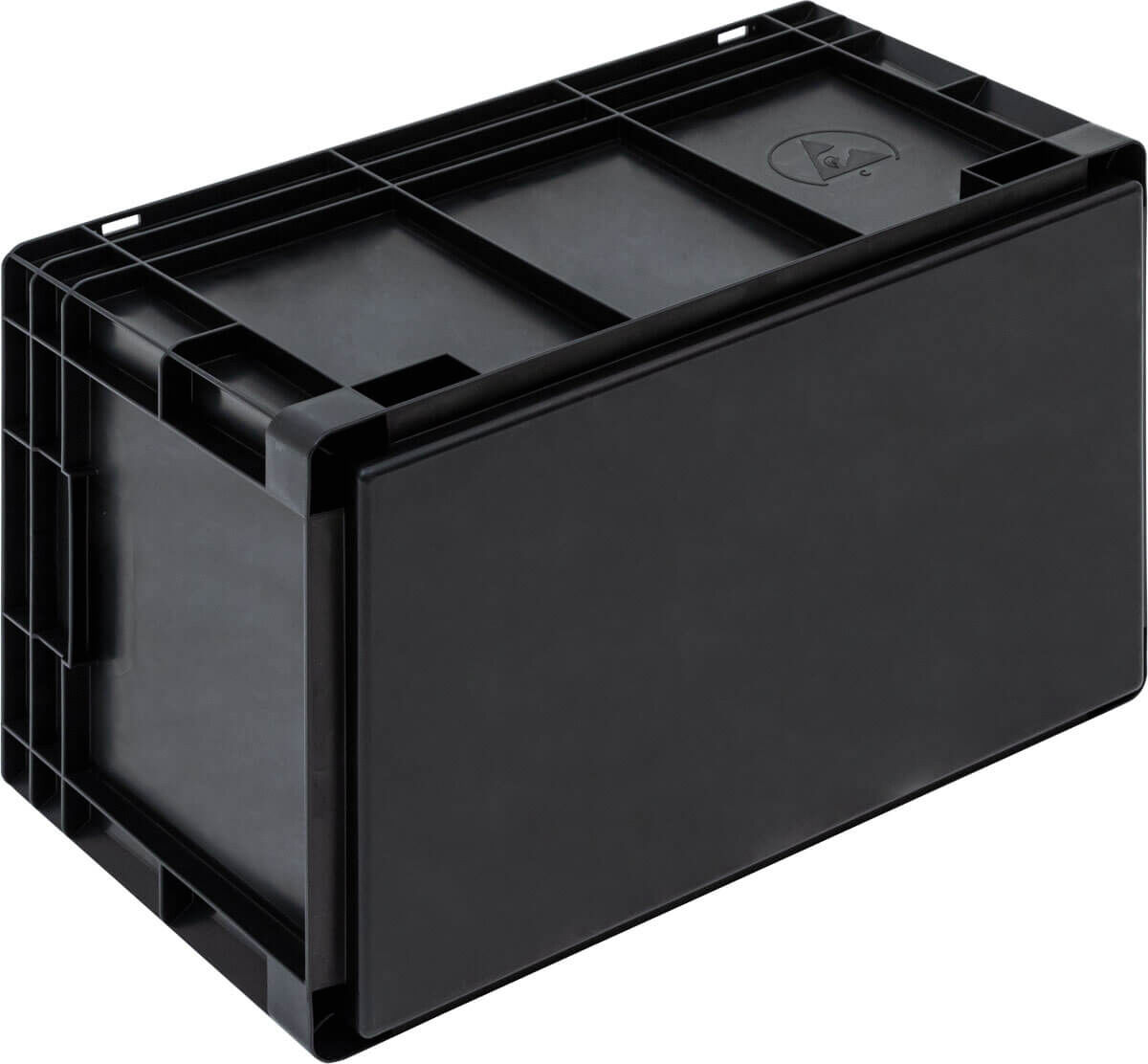

NEWBOX Conductive Euro Container 600x400x320 mm
The NEWBOX Euro container 600x400x320 mm in black is made from electrostatically conductive polypropylene and meets the ESD standard DIN EN 61340-5-1. This container is not only stackable but also ideal for the safe storage and transport of electro-sensitive components.
Technical Specifications: - External dimensions: 600 x 400 x 320 mm - Internal dimensions (LxWxH): 554 x 354 x 317 mm - Usable height: 299 mm - Stacking height: 302 mm - Volume: 60.3 liters - Material: Polypropylene - Color: Black - Temperature resistance: -20°C to +80°C - Conductivity: Electrically conductive
Item number: 5310.65. Ideal for applications where protection against electrostatic discharge is required.
Material
Material
polypropylene
Stackable
Stackable
yes
Conductivity
Conductivity
conductive
Color
Color
black
Height [mm]
Height [mm]
320 mm
Internal height
Internal height
317 mm
Internal length
Internal length
554 mm
Internal width
Internal width
354 mm
Length [mm]
Length [mm]
600 mm
Stacking height
Stacking height
302 mm
Useable height
Useable height
299 mm
Width [mm]
Width [mm]
400 mm
Temperature range
Temperature range
+80 - -20
Volume
Volume
60,3 l
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!
Configurators:
Imprinting / Printing for boxes
Configurators:
Interlayers
Configurators:
Parting Inserts

Product Family

Article imageArticle descriptionDimensions outsideinside LxWxH [mm]MaterialStackableConductivityPriceCompare
5310.10 - NEWBOX Euro container conductive 400x300x120 mm 5310.10
NEWBOX Euro container conductive 400x300x120 mm 		400 x 300 x 120360 x 258 x 118polypropyleneyesvolume conductive 12.60 CHF
5310.50 - NEWBOX Euro container conductive 600x400x236 mm 5310.50
NEWBOX Euro container conductive 600x400x236 mm 		600 x 400 x 236555 x 357 x 231polypropyleneyesvolume conductive 43.75 CHF
5310.34 - NEWBOX Euro container conductive 600x400x170 mm 5310.34
NEWBOX Euro container conductive 600x400x170 mm 		600 x 400 x 170555 x 355 x 165polypropyleneyesvolume conductive 36.05 CHF
5310.42 - NEWBOX Euro container conductive 600x400x220 mm 5310.42
NEWBOX Euro container conductive 600x400x220 mm 		600 x 400 x 220555 x 358 x 217polypropyleneyesvolume conductive 39.90 CHF
5310.31 - NEWBOX Euro container conductive 400x300x320 mm 5310.31
NEWBOX Euro container conductive 400x300x320 mm 		400 x 300 x 320358 x 256 x 316polypropyleneyesvolume conductive 28.55 CHF
5310.24 - NEWBOX Euro container conductive 600x400x120 mm 5310.24
NEWBOX Euro container conductive 600x400x120 mm 		600 x 400 x 120555 x 358 x 115polypropyleneyesvolume conductive 28.00 CHF
5310.33 - NEWBOX Euro container conductive 600x400x150 mm 5310.33
NEWBOX Euro container conductive 600x400x150 mm 		600 x 400 x 150555 x 353 x 145polypropyleneyesvolume conductive 35.15 CHF
5310.14 - NEWBOX Euro container conductive 400x300x170 mm 5310.14
NEWBOX Euro container conductive 400x300x170 mm 		400 x 300 x 170358 x 258 x 168polypropyleneyesvolume conductive 15.80 CHF
5310.55 - NEWBOX Euro container conductive 600x400x280 mm 5310.55
NEWBOX Euro container conductive 600x400x280 mm 		600 x 400 x 280553 x 355 x 277polypropyleneyesvolume conductive 48.35 CHF
5310.20 - NEWBOX Euro container conductive 400x300x220 mm 5310.20
NEWBOX Euro container conductive 400x300x220 mm 		400 x 300 x 220358 x 258 x 217polypropyleneyesvolume conductive 17.30 CHF
5310.05 - NEWBOX Euro container conductive 300x200x120 mm 5310.05
NEWBOX Euro container conductive 300x200x120 mm 		300 x 200 x 120260 x 160 x 117polypropyleneyesvolume conductive 9.25 CHF
5310.80 - NEWBOX Euro container conductive 600x400x423 mm 5310.80
NEWBOX Euro container conductive 600x400x423 mm 		600 x 400 x 423555 x 355 x 420polypropyleneyesvolume conductive 72.10 CHF
5310.65 - NEWBOX Euro container conductive 600x400x320 mm 5310.65
NEWBOX Euro container conductive 600x400x320 mm 		600 x 400 x 320554 x 354 x 317polypropyleneyesconductive -
5310.15 - NEWBOX Euro container conductive 600x400x75 mm 5310.15
NEWBOX Euro container conductive 600x400x75 mm 		600 x 400 x 75555 x 355 x 72polypropyleneyesvolume conductive 26.20 CHF
5310.S.130 - NEWBOX Euro container conductive 800x600x320 mm 5310.S.130
NEWBOX Euro container conductive 800x600x320 mm 		800 x 600 x 320756 x 556 x 297polypropyleneyesvolume conductive 96.75 CHF
5310.25 - NEWBOX Euro container conductive 400x300x270 mm 5310.25
NEWBOX Euro container conductive 400x300x270 mm 		400 x 300 x 270358 x 256 x 267polypropyleneyesvolume conductive 22.40 CHF
