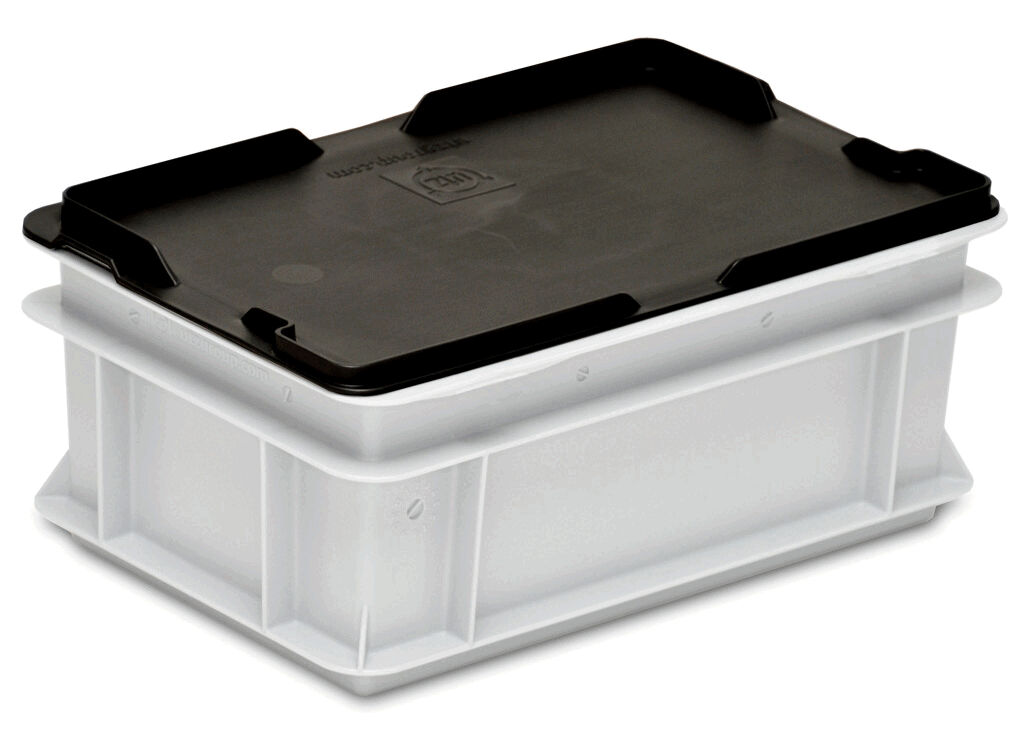

The image shows a rectangular storage box with a white body and a black lid. The box has a smooth surface and is sturdy, ideal for storing items.
Loose lid ESD 300 x 200 mm
(Product No.: 051732)
The image shows a rectangular storage box with a white body and a black lid. The box has a smooth surface and is sturdy, ideal for storing items.
Notice

Loose lid ESD 300 x 200 mm

Loose lid ESD 300 x 200 mm

dpvlink:
815
Length :
300 mm
Width [mm]:
200 mm
Conductivity:
volume conductive
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


5.80 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Loose lid ESD 300 x 200 mm

The cover lid ESD 300 x 200 mm from UTZ is specifically designed for the safe storage and transport of electronically sensitive components. This lid is suitable for RAKO Euro containers and meets the ESD standard DIN EN 61340-5-1, making it electrically conductive and protecting against electrostatic discharges.
With a length of 300 mm and a width of 200 mm, the lid provides optimal coverage for standard containers of this size. The volume conductivity and a surface resistance of 10^4 - 10^11 Ω ensure effective dissipation of electrostatic charges. The lid weighs 190 g and is available in black, making it visually unobtrusive while remaining functional.
Additionally, the robust plastic of the lid protects the contents from mechanical damage, contamination, and moisture. This makes it an ideal choice for use in highly sensitive electronic manufacturing and storage environments.
Length
Length
300 mm
Width [mm]
Width
200 mm
Conductivity
Conductivity
volume conductive
Color
Color
black
Surface resistance Rs
Surface resistance Rs
104 - 1011 Ω
Lid type
Lid type
loose lid
Weight
Weight
190 g
Common

The ESD storage and transport system by UTZ prevents a potential electrostatic discharge. Furthermore the robust plastic containers protect the content against mechanical damage, contamination or moisture.



ESD Storage and transport system for the protection against electrostatic discharge

Electronic components can be destroyed by electrostatic discharges. In order to protect those components against such damages, electronic mounting parts are often transported or stored in containers or on pallets made of electrically conductive plastic.


Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 302
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Article image
Article description
Length
Width [mm]
Conductivity
Price
Compare
051721 - Loose lid ESD 200 x 150 mm
051721
Loose lid ESD 200 x 150 mm
200 mm
150 mm
volume conductive
5.75 CHF
051732 - Loose lid ESD 300 x 200 mm
051732
Loose lid ESD 300 x 200 mm
300 mm
200 mm
volume conductive
5.80 CHF
051743 - Loose lid ESD 400 x 300 mm
051743
Loose lid ESD 400 x 300 mm
400 mm
300 mm
volume conductive
7.45 CHF
051764 - Loose lid ESD 600 x 400 mm
051764
Loose lid ESD 600 x 400 mm
600 mm
400 mm
volume conductive
12.10 CHF
051821 - Hinged lid ESD 200 x 150 mm
051821
Hinged lid ESD 200 x 150 mm
200 mm
150 mm
volume conductive
5.75 CHF
051832 - Hinged lid ESD 300 x 200 mm
051832
Hinged lid ESD 300 x 200 mm
300 mm
200 mm
volume conductive
5.80 CHF
051843 - Hinged lid ESD 400 x 300 mm
051843
Hinged lid ESD 400 x 300 mm
400 mm
300 mm
volume conductive
7.45 CHF
051864 - Hinged lid ESD 600 x 400 mm
051864
Hinged lid ESD 600 x 400 mm
600 mm
400 mm
volume conductive
12.10 CHF
051878 - Lid with hooks ESD 400 x 300 mm
051878
Lid with hooks ESD 400 x 300 mm
400 mm
300 mm
volume conductive
7.45 CHF
051879 - Lid with hooks ESD 600 x 400 mm
051879
Lid with hooks ESD 600 x 400 mm
600 mm
400 mm
volume conductive
12.10 CHF
Show Compare List (0)

This product is compatible with (for example):

The image shows a rectangular, flat box made of sturdy gray plastic. It has a slightly raised edge and is open, without a lid. The edge is rounded.
RAKO Euro container ESD 300 x 200 x 120 mm...
Euro container RAKO 300x200x120 mm /
258x160x115 mm
electrically conductive (DIN EN 61340-5-1)
dpvlink
797

8.45 CHF
The image shows a rectangular, black plastic container. It has straight walls, an open top, and a sturdy structure, suitable for storage or transport.
RAKO Euro container ESD 300 x 200 x 220 mm...
Euro container RAKO 300x200x220 mm /
260x160x217 mm,
electrically conductive (DIN EN 61340-5-1)
dpvlink
797

15.45 CHF
